Makita HR5201C
Makita HR5201C: exploded parts diagram, 1 sheet, 130 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR5201C: 130 positions on 1 sheet

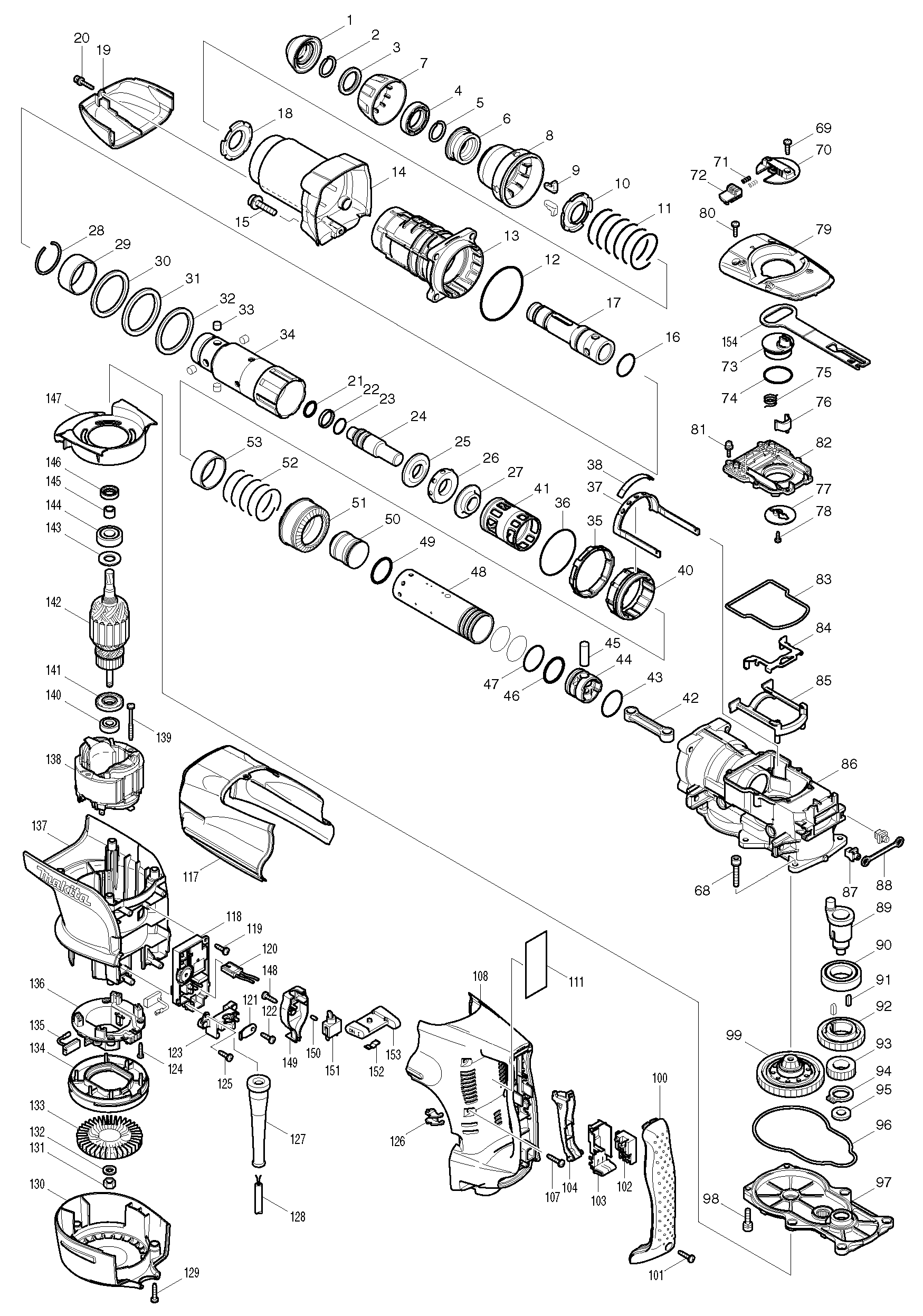

Sheet 1: Makita HR5201C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286272-3 | Makita 286272-3 Tool Holder Cap for HR4002 |
| 2 | 233948-3 | Makita 233948-3 RING SPRING 25HR5211C |
| 3 | 257280-1 | Makita 257280-1 RING 28HR5211C |
| 4 | 419002-9 | Makita 419002-9 SPACER HR4001C/4011C |
| 5 | 233948-3 | Makita 233948-3 RING SPRING 25HR5211C |
| 6 | 324752-2 | Makita 324752-2 CHUCK RINGHR5211C |
| 7 | 419778-8 | Makita 419778-8 CHUCK COVERHR5211C |
| 8 | 419779-6 | Makita 419779-6 RELEASE COVERHR5211C |
| 9 | 310178-4 | Makita 310178-4 TOOL RETAINERHR5211C |
| 10 | 345804-6 | Makita 345804-6 SPRING GUIDEHR5211C |
| 11 | 233496-2 | Makita 233496-2 COMPRESSION SPRING 4HR5211C |
| 12 | 213766-5 | Makita 213766-5 O-RING 78HR5211C |
| 13 | 158175-0 | Makita 158175-0 BARREL COMPLETEHR5211C |
| 14 | 158179-2 | Makita 158179-2 BARREL COVER COMPLETHR5211C |
| 15 | 922456-6 | Makita 922456-6 HEX. SOCKET HEAD BOLT M8X |
| 16 | 213492-6 | Makita 213492-6 O-RING 32HR5211C |
| 17 | 324740-9 | Makita 324740-9 TOOL HOLDER AHR5211C |
| 18 | 345804-6 | Makita 345804-6 SPRING GUIDEHR5211C |
| 19 | 419791-6 | Makita 419791-6 GEAR HOUSING COVERHR5211C |
| 20 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 21 | 213274-6 | Makita 213274-6 O-RING 18 HR3000C |
| 22 | 213392-0 | Makita 213392-0 FLUORIDE RING 25 HR4000C |
| 23 | 213317-4 | Makita 213317-4 O RING 20 HR4000C |
| 24 | 324753-0 | Makita 324753-0 IMPACT BOLTHR5211C |
| 25 | 324756-4 | Makita 324756-4 RING 20HR5211C |
| 26 | 424000-0 | Makita 424000-0 RUBBER RING 24HR5211C |
| 27 | 324757-2 | Makita 324757-2 COLLAR SLEEVE 20HR5211C |
| 28 | 233949-1 | Makita 233949-1 RING SPRING 44HR5211C |
| 29 | 257282-7 | Makita 257282-7 RING 47HR5211C |
| 30 | 267287-9 | Makita 267287-9 FLAT WASHER 57, HM1305 |
| 31 | 262122-6 | Makita 262122-6 URETAHNE RING 57HR5211C |
| 32 | 267287-9 | Makita 267287-9 FLAT WASHER 57, HM1305 |
| 33 | 256265-4 | Makita 256265-4 PIN 10 FOR 5001C |
| 34 | 324741-7 | Makita 324741-7 TOOL HOLDER BHR5211C |
| 35 | 419776-2 | Makita 419776-2 LOCK SLEEVEHR5211C |
| 36 | 213654-6 | Makita 213654-6 O RING 60 |
| 37 | 165459-9 | Makita 165459-9 RINK ARMHR5211C |
| 38 | 419775-4 | Makita 419775-4 LINK ARM GUIDEHR5211C |
| 40 | 313138-5 | Makita 313138-5 DRIVING SLEEVEHR5211C |
| 41 | 419780-1 | Makita 419780-1 SLIDE SLEEVEHR5211C |
| 42 | 419772-0 | Makita 419772-0 CONECTING RODHR5211C |
| 43 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 44 | 419771-2 | Makita 419771-2 PISTONHR5211C |
| 45 | 268121-6 | Makita 268121-6 PIN 12, JR3050T |
| 46 | 213482-9 | Makita 213482-9 O RING 34 FOR HR5001C |
| 47 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 48 | 331748-6 | Makita 331748-6 CYLINDER 40HR5211C |
| 49 | 213482-9 | Makita 213482-9 O RING 34 FOR HR5001C |
| 50 | 324754-8 | Makita 324754-8 STRIKERHR5211C |
| 51 | 227511-2 | Makita 227511-2 STRAIGHT BEVEL GEARHR5211C |
| 52 | 233498-8 | Makita 233498-8 COMPRESSION SPRING 4HR5211C |
| 53 | 257281-9 | Makita 257281-9 RING 45HR5211C |
| 68 | 922361-7 | Makita 922361-7 HEX. SOCKET HEAD BOLT M6X |
| 69 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 70 | 419020-7 | Makita 419020-7 CHANGE LEVER HR4001C/4011C |
| 71 | 233436-0 | Makita 233436-0 COMPRESSION SPRING 3, HR4002 |
| 72 | 419777-0 | Makita 419777-0 LOCK BUTTONHR5211C |
| 73 | 419784-3 | Makita 419784-3 CRANK LEVERHR5211C |
| 74 | 213515-0 | Makita 213515-0 O-RING 36, 9049 |
| 75 | 233506-5 | Makita 233506-5 TORSION SPRING 16HR5211C |
| 76 | 310207-3 | Makita 310207-3 LINK LEVERHR5211C |
| 77 | 345778-1 | Makita 345778-1 RETAINER PLATEHR5211C |
| 78 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 79 | 318130-6 | Makita 318130-6 CRANK CAP COVERHR5210C |
| 80 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 81 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 82 | 419789-3 | Makita 419789-3 CRANK CAPHR5211C |
| 83 | 421998-2 | Makita 421998-2 SEAL RINGHR5211C |
| 84 | 345779-9 | Makita 345779-9 LINK PLATEHR5211C |
| 85 | 419781-9 | Makita 419781-9 LINK PLATE GUIDEHR5211C |
| 86 | 158177-6 | Makita 158177-6 CRANK HOUSING COMPLEHR5201C |
| 87 | 419008-7 | Makita 419008-7 FIX GUIDE HR4001C/4011C |
| 88 | 423366-5 | Makita 423366-5 CUSHION PLATEHR5211C |
| 89 | 324739-4 | Makita 324739-4 CRANKSHAFT, HR5211C |
| 90 | 211418-2 | Makita 211418-2 BALL BEARING 6006LLU |
| 91 | 254229-2 | Makita 254229-2 KEY 5 |
| 92 | 226646-6 | Makita 226646-6 HELICAL GEAR 47HR5211C |
| 93 | 227176-0 | Makita 227176-0 SPUR GEAR 24HR5211C |
| 94 | 961102-6 | Makita 961102-6 RETAINING RING S-22 |
| 95 | 253843-1 | Makita 253843-1 FLAT WASHER 12 |
| 96 | 421999-0 | Makita 421999-0 SEAL RINGHR5211C |
| 97 | 158178-4 | Makita 158178-4 GEAR HOUSING COMPLETHR5211C |
| 98 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 99 | 125374-9 | Makita 125374-9 TORQUE LIMITER ASS'YHR5211C |
| 100 | 419796-6 | Makita 419796-6 HANDLE COVERHR5211C |
| 101 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 102 | 650567-4 | Makita 650567-4 Switch HR4001C HR4010C HR4011C HR3210 HR5211 HR4501C |
| 103 | 154626-1 | Makita 154626-1 SWITCH HOLDER COMPLETE, HR4002 |
| 104 | 419028-1 | Makita 419028-1 SWITCH LEVER HR4001C |
| 107 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 108 | 419799-0 | Makita 419799-0 HANDLEHR5201C |
| 111 | 863359-4 | Makita 863359-4 HR5201C NAME PLATEHR5201C |
| 117 | 419794-0 | Makita 419794-0 CRANK HOUSING COVERHR5201C |
| 118 | 631727-7 | Makita 631727-7 Controller for HR5201C HR5211C HR5210C Rotary Hammer |
| 119 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 120 | 638510-3 | Makita 638510-3 LEAD UNITHR5211C |
| 121 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 122 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 123 | 419024-9 | Makita 419024-9 CORD CLAMP BASE HR4001C/4011C |
| 124 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 125 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 126 | 419774-6 | Makita 419774-6 LENSHR5211C |
| 127 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 128 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 129 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 130 | 419790-8 | Makita 419790-8 REAR COVERHR5211C |
| 131 | 252178-7 | Makita 252178-7 HEX.NUT M8-12 |
| 132 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 133 | 240016-5 | Makita 240016-5 FAN 90 |
| 134 | 419782-7 | Makita 419782-7 FAN GUIDEHR5211C |
| 135 | 194412-8 | Makita 194412-8 CARBON BRUSH CB-171 HR5211C |
| 136 | 638447-4 | Makita 638447-4 Brush Holder Unit for HR5211C HM1307CB |
| 137 | 419795-8 | Makita 419795-8 MOTOR HOUSINGHR5211C |
| 138 | 636303-2 | Makita 636303-2 FIELD 220-240VHR5211C |
| 139 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 140 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 141 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 142 | 516993-6 | Makita 516993-6 ARMATURE ASS'Y 220-2HR5211C |
| 143 | 267025-9 | Makita 267025-9 FLAT WASHER 15 HR4500C |
| 144 | 211238-4 | Makita 211238-4 BALL BEARING 6202LLU HM1202C |
| 145 | 331596-3 | Makita 331596-3 SLEEVE 12, HR4002 |
| 146 | 213231-4 | Makita 213231-4 OIL SEAL 15 |
| 147 | 419788-5 | Makita 419788-5 BAFFLE PLATEHR5211C |
| 148 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 149 | 419786-9 | Makita 419786-9 SWITCH BOXHR5210C |
| 150 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 151 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 152 | 232209-8 | Makita 232209-8 LEAF SPRING HM0860C |
| 153 | 154635-0 | Makita 154635-0 SLIDE LEVER HR4001C |
| 154 | 419785-1 | Makita 419785-1 CONTROL PLATEHR5210C |
