Makita HR5001C
Makita HR5001C: exploded parts diagram, 1 sheet, 141 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR5001C: 141 positions on 1 sheet

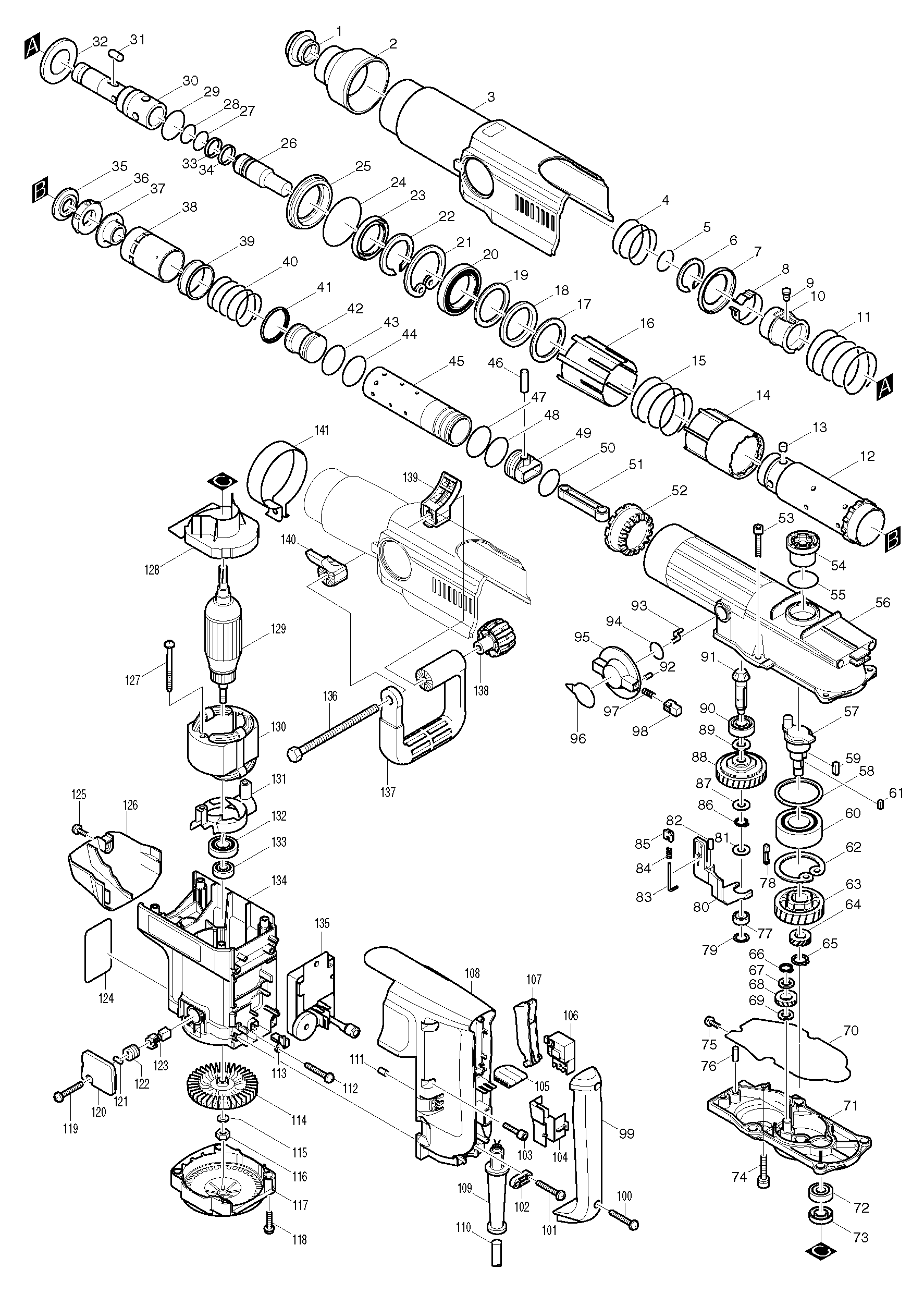

Sheet 1: Makita HR5001C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286250-3 | Makita 286250-3 Tool Holder Cap |
| 2 | 416568-0 | Makita 416568-0 CHUCK COVER FOR HR5001C |
| 3 | 150836-8 | Makita 150836-8 CRANK HOUSING COVER COMPL ETE FOR HR5001C |
| 4 | 233217-2 | Makita 233217-2 COMPRESSION SPRING 51 |
| 5 | 231984-3 | Makita 231984-3 RING SPRING 25 |
| 6 | 961232-3 | Makita 961232-3 Retaining Ring WR-45 HM1202C |
| 7 | 267735-8 | Makita 267735-8 CUP WASHER 45 FOR HR5001C |
| 8 | 232180-6 | Makita 232180-6 LEAF SPRING 41 FOR HR5001C |
| 9 | 323767-6 | Makita 323767-6 PIN 8 FOR HR50001C |
| 10 | 323773-1 | Makita 323773-1 Chuck Ring for HR5001C |
| 11 | 233218-0 | Makita 233218-0 COMPRESSION SPRING 55, HM1202C |
| 12 | 323772-3 | Makita 323772-3 TOOL HOLDER B |
| 13 | 256265-4 | Makita 256265-4 PIN 10 FOR 5001C |
| 14 | 416572-9 | Makita 416572-9 LOCK SLEEVE A FOR HR5001C |
| 15 | 233216-4 | Makita 233216-4 COMPRESSION SPRING 58 HR5001C |
| 16 | 416573-7 | Makita 416573-7 LOCK SLEEVE B HR5001C |
| 17 | 267180-7 | Makita 267180-7 FLAT WASHER 50 |
| 18 | 262543-2 | Makita 262543-2 URETHANE SLEEVE 50 |
| 19 | 267180-7 | Makita 267180-7 FLAT WASHER 50 |
| 20 | 211751-2 | Makita 211751-2 BALL BEARING 6910 HR5001C |
| 21 | 962351-8 | Makita 962351-8 RETAINING RING R-72 |
| 22 | 961234-9 | Makita 961234-9 RETAINING RING WR-50 HR5001C |
| 23 | 213618-0 | Makita 213618-0 OIL SEAL 48 FOR HR5001C |
| 24 | 213715-2 | Makita 213715-2 O RING 67 FOR |
| 25 | 416565-6 | Makita 416565-6 SEAL CASE HR5001C |
| 26 | 323768-4 | Makita 323768-4 IMPACT BOLT FOR HR50001C |
| 27 | 213394-6 | Makita 213394-6 O RING 23 FOR HR5001C |
| 28 | 213394-6 | Makita 213394-6 O RING 23 FOR HR5001C |
| 29 | 213522-3 | Makita 213522-3 O RING 36 FOR HR5001C |
| 30 | 323771-5 | Makita 323771-5 TOOL HOLDER FOR HR5001C |
| 31 | 322908-1 | Makita 322908-1 ROLLER 8 |
| 32 | 267734-0 | Makita 267734-0 CUP WASHER 37 FOR HR5001C |
| 33 | 213431-6 | Makita 213431-6 FLUORIDE RING 28 FOR HR5001C |
| 34 | 213431-6 | Makita 213431-6 FLUORIDE RING 28 FOR HR5001C |
| 35 | 323817-7 | Makita 323817-7 RING 22 |
| 36 | 421623-5 | Makita 421623-5 RUBBER RING 24 FOR HR5001C |
| 37 | 331530-3 | Makita 331530-3 COLLAR SLEEVE, HR5001C |
| 38 | 416566-4 | Makita 416566-4 SLIDE SLEEVE |
| 39 | 331531-1 | Makita 331531-1 RING 45 |
| 40 | 233215-6 | Makita 233215-6 COMPRESSION SPRING 45 |
| 41 | 267736-6 | Makita 267736-6 WASHER 45 FOR HR5001C |
| 42 | 323769-2 | Makita 323769-2 STRIKER |
| 43 | 213482-9 | Makita 213482-9 O RING 34 FOR HR5001C |
| 44 | 231985-1 | Makita 231985-1 RING SPRING 43 FOR HR5001C |
| 45 | 331534-5 | Makita 331534-5 CYLINDER 40 HR5001C |
| 46 | 331532-9 | Makita 331532-9 PIPE 10 HR5001C |
| 47 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 48 | 213482-9 | Makita 213482-9 O RING 34 FOR HR5001C |
| 49 | 416563-0 | Makita 416563-0 PISTON HR5001C |
| 50 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 51 | 416564-8 | Makita 416564-8 Connecting Rod for HR5001C |
| 52 | 226761-6 | Makita 226761-6 SPIRAL BEVEL GEAR 41 FOR HR5001C |
| 53 | 922361-7 | Makita 922361-7 HEX. SOCKET HEAD BOLT M6X |
| 54 | 416561-4 | Makita 416561-4 CRANK CAP |
| 55 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 56 | 150831-8 | Makita 150831-8 CRANK HOUSING COMPLETE |
| 57 | 323774-9 | Makita 323774-9 CRANK SHAFT, HR5001C |
| 58 | 267181-5 | Makita 267181-5 FLAT WASHER 56 |
| 59 | 254229-2 | Makita 254229-2 KEY 5 |
| 60 | 211470-0 | Makita 211470-0 BALL BEARING 62/32 2RS HR5001C |
| 61 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 62 | 962303-9 | Makita 962303-9 RETAINING RING R-65 |
| 63 | 226493-5 | Makita 226493-5 HELICAL GEAR 50 FOR HR5001C |
| 64 | 226490-1 | Makita 226490-1 HELICAL GEAR 20A |
| 65 | 961054-1 | Makita 961054-1 RETAINING RING S-14 |
| 66 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 67 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 68 | 150835-0 | Makita 150835-0 HELICAL GEAR |
| 69 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 70 | 421622-7 | Makita 421622-7 SEAL RING FOR HR5001C |
| 71 | 150832-6 | Makita 150832-6 GEAR HOUSING COMP HR5001C |
| 72 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 73 | 213160-1 | Makita 213160-1 OIL SEAL 14 HR5001C |
| 74 | 922351-0 | Makita 922351-0 H.S.H.BOLT M6X30, LF1000 |
| 75 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 76 | 256286-6 | Makita 256286-6 PIN 7 |
| 77 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 78 | 322951-0 | Makita 322951-0 CHANGE KEY |
| 79 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 80 | 416571-1 | Makita 416571-1 Change Link for HR5001C |
| 81 | 253810-6 | Makita 253810-6 FLAT WASHER 12 HR4000C |
| 82 | 256263-8 | Makita 256263-8 PIN 5 FOR 5001C |
| 83 | 322963-3 | Makita 322963-3 GUIDE PIN 2 |
| 84 | 233180-9 | Makita 233180-9 COMPRESSION SPRING 3 |
| 85 | 416289-4 | Makita 416289-4 SLIDE PLATE HR5001C HR40 |
| 86 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 87 | 267113-2 | Makita 267113-2 FLAT WASHER 12, 5007FA |
| 88 | 150986-9 | Makita 150986-9 TORQUE LIMITER COMPLETE HR5001C |
| 89 | 267113-2 | Makita 267113-2 FLAT WASHER 12, 5007FA |
| 90 | 211109-5 | Makita 211109-5 BALL BEARING 6201, 5277NB |
| 91 | 226760-8 | Makita 226760-8 SPIRAL BEVEL GEAR 12 FOR HR5001C |
| 92 | 256122-6 | Makita 256122-6 PIN 4 |
| 93 | 323973-3 | Makita 323973-3 CRANK PIN 4 FOR HR50001C |
| 94 | 213304-3 | Makita 213304-3 O RING 20 HR4000C |
| 95 | 416287-8 | Makita 416287-8 CHANGE LEVER HR4000C |
| 96 | 816329-2 | Makita 816329-2 INDICATION LABEL |
| 97 | 233188-3 | Makita 233188-3 COMPRESSION SPRING 2.4 |
| 98 | 416286-0 | Makita 416286-0 LOCK BUTTON |
| 99 | 416577-9 | Makita 416577-9 HANDLE COVER HR5001C |
| 100 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 101 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 102 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 103 | 922351-0 | Makita 922351-0 H.S.H.BOLT M6X30, LF1000 |
| 104 | 416126-2 | Makita 416126-2 LEAD GUIDE HR4500C |
| 105 | 421583-1 | Makita 421583-1 SPONGE SHEET |
| 106 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 107 | 416284-4 | Makita 416284-4 SWITCH LEVER |
| 108 | 416576-1 | Makita 416576-1 HANDLE |
| 109 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 110 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 111 | 416285-2 | Makita 416285-2 ACRYLIC PIN 5 |
| 112 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 113 | 416562-2 | Makita 416562-2 FIX ROD |
| 114 | 240016-5 | Makita 240016-5 FAN 90 |
| 115 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 116 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 117 | 416570-3 | Makita 416570-3 REAR COVER HR5001C |
| 118 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 119 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 120 | 416292-5 | Makita 416292-5 BRUSH HOLDER COVER |
| 121 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 122 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 123 | 181048-2 | Makita 181048-2 Carbon Brush CB-155 5008NB HM1202C HR3851 HM1211B |
| 124 | 859584-3 | Makita 859584-3 NAME PLATE HR5001C |
| 125 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 126 | 416575-3 | Makita 416575-3 GEAR HOUSING COVER FOR HR5001C |
| 127 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 128 | 416569-8 | Makita 416569-8 BAFFLE PLATE |
| 129 | 516778-0 | Makita 516778-0 ARMATURE ASSY FOR HR5001C |
| 130 | 626078-1 | Makita 626078-1 FIELD ASSY HR5001C |
| 131 | 416567-2 | Makita 416567-2 DUST GUIDE |
| 132 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 133 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 134 | 150833-4 | Makita 150833-4 Motor Housing Complete for HR5001C |
| 135 | 631273-0 | Makita 631273-0 Controller 240v for HM1202C HM1242C HR5001C |
| 136 | 265439-6 | Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200 |
| 137 | 416009-6 | Makita 416009-6 SIDE HANDLE |
| 138 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
| 139 | 416574-5 | Makita 416574-5 SIDE HANDLE BASE 87 |
| 140 | 416574-5 | Makita 416574-5 SIDE HANDLE BASE 87 |
| 141 | 344634-2 | Makita 344634-2 HANDLE SPRING |
