Makita HR4511C
Makita HR4511C: exploded parts diagram, 1 sheet, 143 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR4511C: 143 positions on 1 sheet

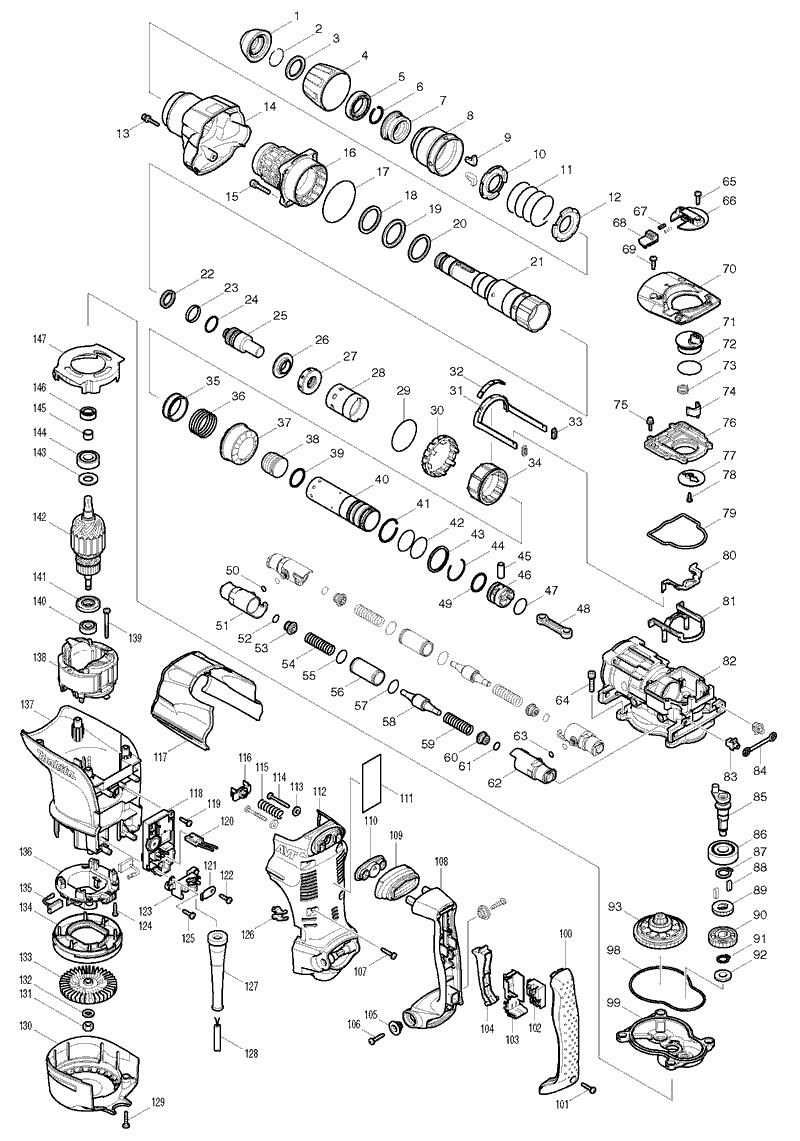

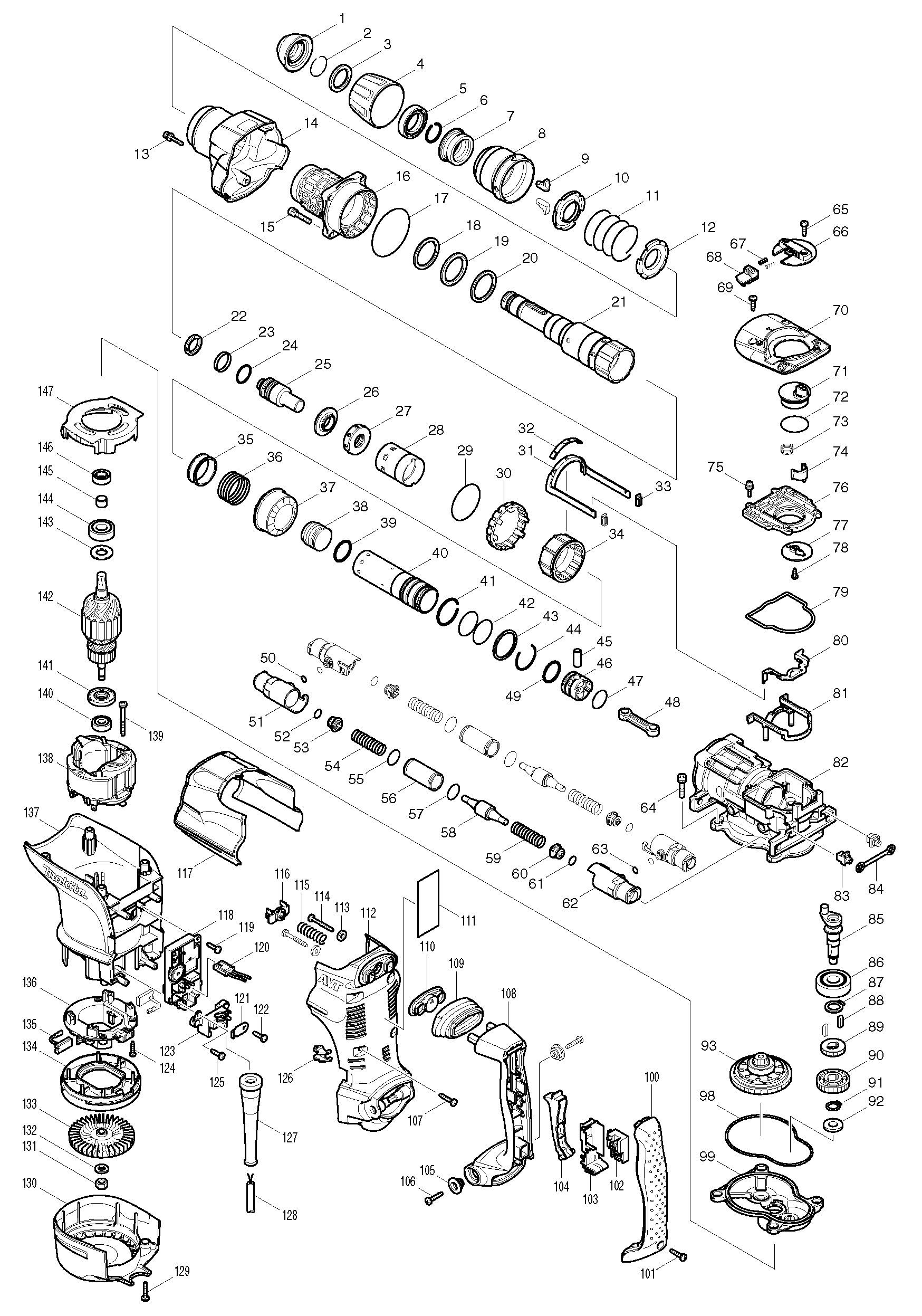

Sheet 1: Makita HR4511C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286272-3 | Makita 286272-3 Tool Holder Cap for HR4002 |
| 2 | 233948-3 | Makita 233948-3 RING SPRING 25HR5211C |
| 3 | 257280-1 | Makita 257280-1 RING 28HR5211C |
| 4 | 450064-8 | Makita 450064-8 CHUCK COVERHR4511C |
| 5 | 419002-9 | Makita 419002-9 SPACER HR4001C/4011C |
| 6 | 233948-3 | Makita 233948-3 RING SPRING 25HR5211C |
| 7 | 324752-2 | Makita 324752-2 CHUCK RINGHR5211C |
| 8 | 450030-5 | Makita 450030-5 RELEASE COVERHR4511C |
| 9 | 310178-4 | Makita 310178-4 TOOL RETAINERHR5211C |
| 10 | 345804-6 | Makita 345804-6 SPRING GUIDEHR5211C |
| 11 | 233496-2 | Makita 233496-2 COMPRESSION SPRING 4HR5211C |
| 12 | 345804-6 | Makita 345804-6 SPRING GUIDEHR5211C |
| 13 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 14 | 158300-3 | Makita 158300-3 BARREL COVER COMPLETHR4511C |
| 15 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 16 | 158576-2 | Makita 158576-2 BARREL COMPLETEHR4511C |
| 17 | 213754-2 | Makita 213754-2 O RING 71 |
| 18 | 267357-4 | Makita 267357-4 FLAT WASHER 36HR4511C |
| 19 | 262135-7 | Makita 262135-7 URETHAN RING 36HR4511C |
| 20 | 267357-4 | Makita 267357-4 FLAT WASHER 36HR4511C |
| 21 | 324872-2 | Makita 324872-2 TOOL HOLDERHR4511C |
| 22 | 213980-3 | Makita 213980-3 X-RING 21HR4511C |
| 23 | 213431-6 | Makita 213431-6 FLUORIDE RING 28 FOR HR5001C |
| 24 | 213394-6 | Makita 213394-6 O RING 23 FOR HR5001C |
| 25 | 324802-3 | Makita 324802-3 IMPACT BOLTHR4511C |
| 26 | 324805-7 | Makita 324805-7 RING 19HR4511C |
| 27 | 424032-7 | Makita 424032-7 RUBBER RING 20HR4511C |
| 28 | 450024-0 | Makita 450024-0 Slide Sleeve HR4511C |
| 29 | 213656-2 | Makita 213656-2 O-RING 53, HM0830 |
| 30 | 450031-3 | Makita 450031-3 LOCK SLEEVEHR4511C |
| 31 | 165465-4 | Makita 165465-4 LINK ARMHR4511C |
| 32 | 450032-1 | Makita 450032-1 LINK ARM GUIDEHR4511C |
| 33 | 424024-6 | Makita 424024-6 SEAL PLATEHR5211C |
| 34 | 324800-7 | Makita 324800-7 DRIVING SLEEVEHR4511C |
| 35 | 331599-7 | Makita 331599-7 RING 38 |
| 36 | 234024-6 | Makita 234024-6 COMPRESSION SPRING 3HR4511C |
| 37 | 227526-9 | Makita 227526-9 STRAIGHT BEVEL GEARHR4511C |
| 38 | 324804-9 | Makita 324804-9 STRIKERHR4511C |
| 39 | 213981-1 | Makita 213981-1 O-RING 27HR4511C |
| 40 | 324803-1 | Makita 324803-1 34 Cylinder for HR4511C |
| 41 | 233956-4 | Makita 233956-4 RING SPRING 37HR4511C |
| 42 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 43 | 257283-5 | Makita 257283-5 RING 38HR4511C |
| 44 | 233955-6 | Makita 233955-6 RING SPRING 36HR4511C |
| 45 | 331598-9 | Makita 331598-9 PIPE 10 |
| 46 | 450025-8 | Makita 450025-8 PISTONHR4511C |
| 47 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 48 | 450026-6 | Makita 450026-6 CONNECTING RODHR4511C |
| 49 | 213981-1 | Makita 213981-1 O-RING 27HR4511C |
| 50 | 213030-4 | Makita 213030-4 O RING 8 |
| 51 | 318169-9 | Makita 318169-9 PIPE HOLDERHR4511C |
| 52 | 213118-0 | Makita 213118-0 O RING 12, 5277NB |
| 53 | 450027-4 | Makita 450027-4 SPRING GUIDEHR4511C |
| 54 | 234023-8 | Makita 234023-8 COMPRESSION SPRING 1HR4511C |
| 55 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 56 | 331778-7 | Makita 331778-7 PIPE 20HR4511C |
| 57 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 58 | 324806-5 | Makita 324806-5 COUNTER WEIGHT, HR4511C |
| 59 | 234023-8 | Makita 234023-8 COMPRESSION SPRING 1HR4511C |
| 60 | 450027-4 | Makita 450027-4 SPRING GUIDEHR4511C |
| 61 | 213118-0 | Makita 213118-0 O RING 12, 5277NB |
| 62 | 318169-9 | Makita 318169-9 PIPE HOLDERHR4511C |
| 63 | 213030-4 | Makita 213030-4 O RING 8 |
| 64 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 65 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 66 | 419020-7 | Makita 419020-7 CHANGE LEVER HR4001C/4011C |
| 67 | 233436-0 | Makita 233436-0 COMPRESSION SPRING 3, HR4002 |
| 68 | 419009-5 | Makita 419009-5 LOCK BUTTON HR4001C/4011C |
| 69 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 70 | 318170-4 | Makita 318170-4 CRANK CAP COVERHR4511C |
| 71 | 419784-3 | Makita 419784-3 CRANK LEVERHR5211C |
| 72 | 213515-0 | Makita 213515-0 O-RING 36, 9049 |
| 73 | 233506-5 | Makita 233506-5 TORSION SPRING 16HR5211C |
| 74 | 310207-3 | Makita 310207-3 LINK LEVERHR5211C |
| 75 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 76 | 450034-7 | Makita 450034-7 CRANK CAPHR4511C |
| 77 | 345778-1 | Makita 345778-1 RETAINER PLATEHR5211C |
| 78 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 79 | 424034-3 | Makita 424034-3 SEAL RINGHR4511C |
| 80 | 345822-4 | Makita 345822-4 LINK PLATEHR4511C |
| 81 | 450029-0 | Makita 450029-0 LINK PLATE GUIDEHR4511C |
| 82 | 158297-6 | Makita 158297-6 CRANK HOUSING COMPLEHR4511C |
| 83 | 419008-7 | Makita 419008-7 FIX GUIDE HR4001C/4011C |
| 84 | 423345-3 | Makita 423345-3 CUSHION PLATE HR4001C/4011C |
| 85 | 324801-5 | Makita 324801-5 CRANKSHAFT, HR4511C |
| 86 | 211279-0 | Makita 211279-0 BALL BEARING 6303LLU |
| 87 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 88 | 254220-0 | Makita 254220-0 KEY 5HR4511C |
| 89 | 227181-7 | Makita 227181-7 SPUR GEAR 19HR4511C |
| 90 | 226655-5 | Makita 226655-5 HELICAL GEAR 36HR4511C |
| 91 | 961054-1 | Makita 961054-1 RETAINING RING S-14 |
| 92 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 93 | 125415-1 | Makita 125415-1 TORQUE LIMITER ASS'YHR4511C |
| 98 | 424033-5 | Makita 424033-5 SEAL RINGHR4511C |
| 99 | 158299-2 | Makita 158299-2 GEAR HOUSING COMPLETHR4511C |
| 100 | 419796-6 | Makita 419796-6 HANDLE COVERHR5211C |
| 101 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 102 | 650567-4 | Makita 650567-4 Switch HR4001C HR4010C HR4011C HR3210 HR5211 HR4501C |
| 103 | 154626-1 | Makita 154626-1 SWITCH HOLDER COMPLETE, HR4002 |
| 104 | 419025-7 | Makita 419025-7 SWITCH LEVER, HR4002 |
| 105 | 313124-6 | Makita 313124-6 SHOULDER SLEEVE 6 HR4011C |
| 106 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 107 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 108 | 419798-2 | Makita 419798-2 HANDLEHR5211C |
| 109 | 424035-1 | Makita 424035-1 DUST COVERHR4511C |
| 110 | 450028-2 | Makita 450028-2 DUST COVER SUPPORTHR4511C |
| 111 | 864096-3 | Makita 864096-3 HR4511C NAME PLATEHR4511C |
| 112 | 450038-9 | Makita 450038-9 HANDLE BASEHR4511C |
| 113 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 114 | 266211-9 | Makita 266211-9 TAPPING SCREW 5X40 |
| 115 | 233434-4 | Makita 233434-4 COMPRESSION SPRING 11 HR4011C |
| 116 | 419013-4 | Makita 419013-4 SPRING GUIDE HR4011C |
| 117 | 450036-3 | Makita 450036-3 CRANK HOUSING COVERHR4511C |
| 118 | 631751-0 | Makita 631751-0 CONTROLLERHR4511C |
| 119 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 120 | 638510-3 | Makita 638510-3 LEAD UNITHR5211C |
| 121 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 122 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 123 | 419024-9 | Makita 419024-9 CORD CLAMP BASE HR4001C/4011C |
| 124 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 125 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 126 | 419774-6 | Makita 419774-6 LENSHR5211C |
| 127 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 128 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 129 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 130 | 450035-5 | Makita 450035-5 REAR COVERHR4511C |
| 131 | 252178-7 | Makita 252178-7 HEX.NUT M8-12 |
| 132 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 133 | 240016-5 | Makita 240016-5 FAN 90 |
| 134 | 419782-7 | Makita 419782-7 FAN GUIDEHR5211C |
| 135 | 194412-8 | Makita 194412-8 CARBON BRUSH CB-171 HR5211C |
| 136 | 638447-4 | Makita 638447-4 Brush Holder Unit for HR5211C HM1307CB |
| 137 | 450041-0 | Makita 450041-0 MOTOR HOUSINGHR4511C |
| 138 | 636313-9 | Makita 636313-9 FIELD 220-240VHR4511C |
| 139 | 266046-8 | Makita 266046-8 TAPPING SCREW 5X50, HR2010 |
| 140 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 141 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 142 | 517768-6 | Makita 517768-6 ARMATURE ASS'Y 220-2HR4511C |
| 143 | 267025-9 | Makita 267025-9 FLAT WASHER 15 HR4500C |
| 144 | 211238-4 | Makita 211238-4 BALL BEARING 6202LLU HM1202C |
| 145 | 331596-3 | Makita 331596-3 SLEEVE 12, HR4002 |
| 146 | 213231-4 | Makita 213231-4 OIL SEAL 15 |
| 147 | 450033-9 | Makita 450033-9 BAFFLE PLATEHR4511C |
