Makita HR4500C
Makita HR4500C: exploded parts diagram, 1 sheet, 131 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR4500C: 131 positions on 1 sheet

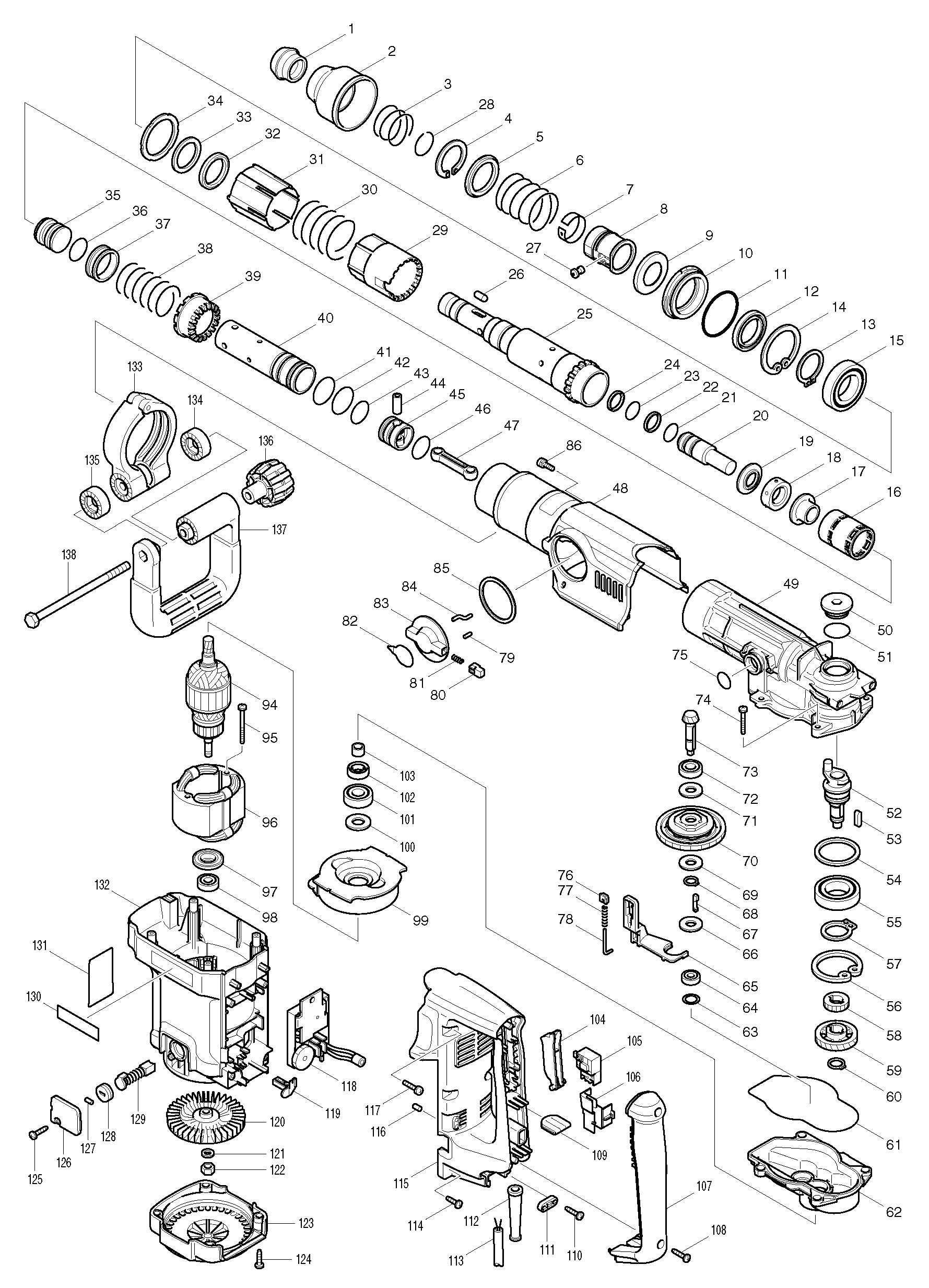

Sheet 1: Makita HR4500C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286259-5 | Makita 286259-5 TOOL HOLDER CAP HR4500C |
| 2 | 417459-8 | Makita 417459-8 CHUCK COVER HR4500C |
| 3 | 233178-6 | Makita 233178-6 COMPRESSION SPRING 46 |
| 4 | 961186-4 | Makita 961186-4 RETAINING RING WR-40 |
| 5 | 344489-5 | Makita 344489-5 WASHER 40 |
| 6 | 233179-4 | Makita 233179-4 COMPRESSION SPRING 50 |
| 7 | 232171-7 | Makita 232171-7 LEAF SPRING 37 |
| 8 | 322948-9 | Makita 322948-9 CHUCK RING |
| 9 | 344488-7 | Makita 344488-7 CUP WASHER 32 |
| 10 | 417435-2 | Makita 417435-2 SEAL CASE HR4500C |
| 11 | 213669-3 | Makita 213669-3 O RING 56 |
| 12 | 213480-3 | Makita 213480-3 OIL SEAL 35 |
| 13 | 961153-9 | Makita 961153-9 RETAINING RING S-35 HR4000C |
| 14 | 962301-3 | Makita 962301-3 RETAINING RING R-62 |
| 15 | 211471-8 | Makita 211471-8 BALL BEARING 6007LLU |
| 16 | 417434-4 | Makita 417434-4 SLIDE SLEEVE |
| 17 | 331589-0 | Makita 331589-0 SLEEVE 19 |
| 18 | 421767-1 | Makita 421767-1 RUBBER RING 22 |
| 19 | 331597-1 | Makita 331597-1 WASHER 19 HR4500C |
| 20 | 324088-9 | Makita 324088-9 IMPACT BOLT |
| 21 | 213317-4 | Makita 213317-4 O RING 20 HR4000C |
| 22 | 213392-0 | Makita 213392-0 FLUORIDE RING 25 HR4000C |
| 23 | 213317-4 | Makita 213317-4 O RING 20 HR4000C |
| 24 | 213392-0 | Makita 213392-0 FLUORIDE RING 25 HR4000C |
| 25 | 324064-3 | Makita 324064-3 TOOL HOLDER |
| 26 | 322908-1 | Makita 322908-1 ROLLER 8 |
| 27 | 310052-6 | Makita 310052-6 SHOULDER PIN 8 |
| 28 | 231984-3 | Makita 231984-3 RING SPRING 25 |
| 29 | 417437-8 | Makita 417437-8 LOCK SLEEVE A HR4500C |
| 30 | 233300-5 | |
| 31 | 417436-0 | Makita 417436-0 LOCK SLEEVE B |
| 32 | 262093-7 | Makita 262093-7 URETHAN RING 35 |
| 33 | 267221-9 | Makita 267221-9 FLAT WASHER 35 |
| 34 | 267222-7 | Makita 267222-7 FLAT WASHER 49 |
| 35 | 324089-7 | Makita 324089-7 STRIKER |
| 36 | 213440-5 | Makita 213440-5 O RING 27 |
| 37 | 331599-7 | Makita 331599-7 RING 38 |
| 38 | 233299-4 | |
| 39 | 227401-9 | Makita 227401-9 Spiral Bevel Gear 36 for HR4500C |
| 40 | 331592-1 | Makita 331592-1 CYLINDER 34 |
| 41 | 213486-1 | Makita 213486-1 O RING 35 |
| 42 | 213486-1 | Makita 213486-1 O RING 35 |
| 43 | 213440-5 | Makita 213440-5 O RING 27 |
| 44 | 331598-9 | Makita 331598-9 PIPE 10 |
| 45 | 417433-6 | Makita 417433-6 PISTON |
| 46 | 213440-5 | Makita 213440-5 O RING 27 |
| 47 | 417432-8 | Makita 417432-8 ROD HR4500C |
| 48 | 152766-9 | Makita 152766-9 CRANK HOUSING COVER COMPL ETE HR4500C |
| 49 | 152764-3 | Makita 152764-3 CRANK HOUSING COMPLETE HR4500C |
| 50 | 416124-6 | Makita 416124-6 CRANK CAP |
| 51 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 52 | 324065-1 | Makita 324065-1 CRANKSHAFT, HR4500C |
| 53 | 254218-7 | Makita 254218-7 KEY 5 |
| 54 | 267219-6 | Makita 267219-6 FLAT WASHER 45 |
| 55 | 211418-2 | Makita 211418-2 BALL BEARING 6006LLU |
| 56 | 962252-0 | Makita 962252-0 RETAINING RING R-55 |
| 57 | 961110-7 | Makita 961110-7 RETAINING RING S-30 |
| 58 | 227017-0 | Makita 227017-0 SPUR GEAR 22 |
| 59 | 226533-9 | Makita 226533-9 HELICAL GEAR 37 HR4500C |
| 60 | 961056-7 | Makita 961056-7 RETAINING RING S-16 |
| 61 | 421768-9 | Makita 421768-9 SEAL RING HR4500C |
| 62 | 152765-1 | Makita 152765-1 GEAR HOUSING COMPLETE |
| 63 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 64 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 65 | 417438-6 | Makita 417438-6 CHANGE LINK |
| 66 | 253810-6 | Makita 253810-6 FLAT WASHER 12 HR4000C |
| 67 | 322951-0 | Makita 322951-0 CHANGE KEY |
| 68 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 69 | 267113-2 | Makita 267113-2 FLAT WASHER 12, 5007FA |
| 70 | 152763-5 | Makita 152763-5 TORQUE LIMITER COMPLETE |
| 71 | 267113-2 | Makita 267113-2 FLAT WASHER 12, 5007FA |
| 72 | 211138-8 | Makita 211138-8 BALL BEARING 6001LLU |
| 73 | 227405-1 | Makita 227405-1 Spiral Bevel Gear 10 for 4500C |
| 74 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 75 | 213304-3 | Makita 213304-3 O RING 20 HR4000C |
| 76 | 416289-4 | Makita 416289-4 SLIDE PLATE HR5001C HR40 |
| 77 | 233180-9 | Makita 233180-9 COMPRESSION SPRING 3 |
| 78 | 322963-3 | Makita 322963-3 GUIDE PIN 2 |
| 79 | 256122-6 | Makita 256122-6 PIN 4 |
| 80 | 417340-3 | Makita 417340-3 LOCK BUTTON HR4000C |
| 81 | 233188-3 | Makita 233188-3 COMPRESSION SPRING 2.4 |
| 82 | 816329-2 | Makita 816329-2 INDICATION LABEL |
| 83 | 416287-8 | Makita 416287-8 CHANGE LEVER HR4000C |
| 84 | 322962-5 | Makita 322962-5 CRANK PIN 4 HR4000C |
| 85 | 421698-4 | Makita 421698-4 DUSTPROOF WASHER 55 HR4000C |
| 86 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 94 | 516843-5 | Makita 516843-5 ARMATURE ASS'Y 220-240V |
| 95 | 266046-8 | Makita 266046-8 TAPPING SCREW 5X50, HR2010 |
| 96 | 526113-4 | Makita 526113-4 FIELD ASS'Y 220-240V |
| 97 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 98 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 99 | 417439-4 | |
| 100 | 267025-9 | Makita 267025-9 FLAT WASHER 15 HR4500C |
| 101 | 211238-4 | Makita 211238-4 BALL BEARING 6202LLU HM1202C |
| 102 | 213231-4 | Makita 213231-4 OIL SEAL 15 |
| 103 | 331596-3 | Makita 331596-3 SLEEVE 12, HR4002 |
| 104 | 416284-4 | Makita 416284-4 SWITCH LEVER |
| 105 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 106 | 416126-2 | Makita 416126-2 LEAD GUIDE HR4500C |
| 107 | 417443-3 | Makita 417443-3 HANDLE COVER HR4500C |
| 108 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 109 | 421583-1 | Makita 421583-1 SPONGE SHEET |
| 110 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 111 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 112 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 113 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 114 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 115 | 417444-1 | Makita 417444-1 HANDLE |
| 116 | 416285-2 | Makita 416285-2 ACRYLIC PIN 5 |
| 117 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 118 | 631433-4 | LOST Makita 631433-4 Controller for Rotary Hammer HR4500C 220V |
| 119 | 417431-0 | Makita 417431-0 FIX ROD |
| 120 | 240016-5 | Makita 240016-5 FAN 90 |
| 121 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 122 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |
| 123 | 417441-7 | Makita 417441-7 REAR COVER |
| 124 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 125 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 126 | 416292-5 | Makita 416292-5 BRUSH HOLDER COVER |
| 127 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 128 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 129 | 181048-2 | Makita 181048-2 Carbon Brush CB-155 5008NB HM1202C HR3851 HM1211B |
| 130 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 131 | 852945-6 | |
| 132 | 183332-1 | Makita 183332-1 MOTOR HOUSING SET |
| 133 | 152768-5 | Makita 152768-5 SIDE HANDLE BASE 75 COMPL ETE |
| 134 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 135 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 136 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
| 137 | 417003-1 | Makita 417003-1 SIDEHANDLE HM1202C |
| 138 | 265439-6 | Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200 |
