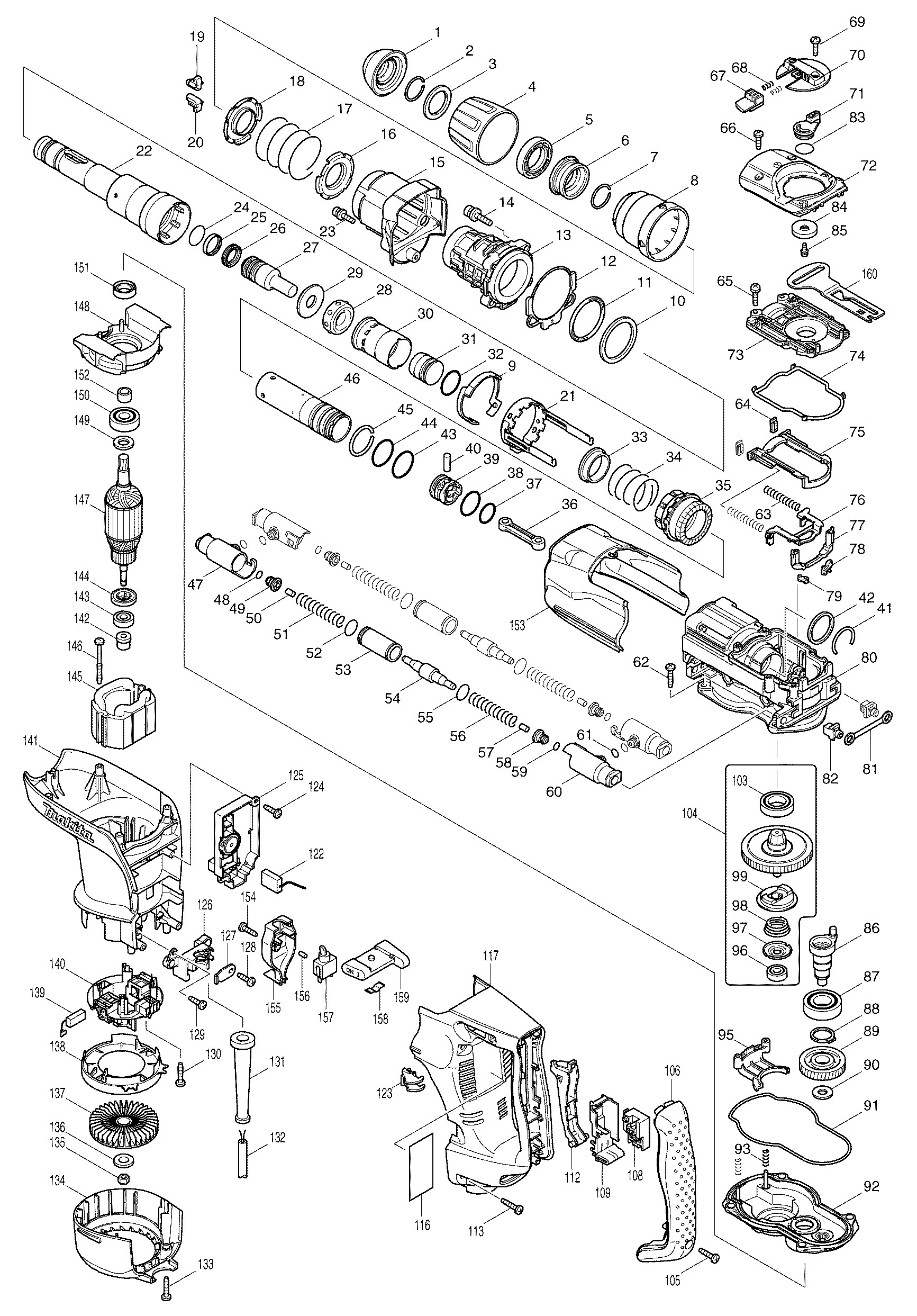

Sheet 1: Makita HR4010C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286272-3 | Makita 286272-3 Tool Holder Cap for HR4002 |
| 2 | 231984-3 | Makita 231984-3 RING SPRING 25 |
| 3 | 267272-2 | Makita 267272-2 FLAT WASHER 28, HR4002 |
| 4 | 419015-0 | Makita 419015-0 CHUCK COVER, HR4002 |
| 5 | 419002-9 | Makita 419002-9 SPACER HR4001C/4011C |
| 6 | 324548-1 | Makita 324548-1 CHUCK RING, HR4011C |
| 7 | 231984-3 | Makita 231984-3 RING SPRING 25 |
| 8 | 419016-8 | Makita 419016-8 RELEASE COVER HR4001C/4011C |
| 9 | 419017-6 | Makita 419017-6 LOCK SLEEVE GUIDE HR4001C/4011C |
| 10 | 267298-4 | Makita 267298-4 FLAT WASHER 45 HR4001C/4011C |
| 11 | 262116-1 | Makita 262116-1 URETHAN RING 45 HR4001C/4011C |
| 12 | 421911-0 | Makita 421911-0 SEAL SHEET HR4001C/4011C |
| 13 | 154621-1 | Makita 154621-1 BARREL COMPLETE HR4011C/4001C |
| 14 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 15 | 154624-5 | Makita 154624-5 BARREL COVER HR4001C |
| 16 | 345579-7 | Makita 345579-7 SPRING GUIDE, HR4011C |
| 17 | 233431-0 | Makita 233431-0 COMPRESSION SPRING 48, HR4002 |
| 18 | 345579-7 | Makita 345579-7 SPRING GUIDE, HR4011C |
| 19 | 310161-1 | Makita 310161-1 Tool Retainer HR4001C/4011C |
| 20 | 310161-1 | Makita 310161-1 Tool Retainer HR4001C/4011C |
| 21 | 165407-8 | Makita 165407-8 LOCK SLEEVE HR4001C/4011C |
| 22 | 324542-3 | Makita 324542-3 TOOL HOLDER HR4011C/4001C |
| 23 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 24 | 213317-4 | Makita 213317-4 O RING 20 HR4000C |
| 25 | 213392-0 | Makita 213392-0 FLUORIDE RING 25 HR4000C |
| 26 | 213281-9 | Makita 213281-9 X RING 18 HR4001C/4011C |
| 27 | 324569-3 | Makita 324569-3 IMPACT BOLT, HR4011C |
| 28 | 421901-3 | Makita 421901-3 RUBBER RING 17 HR4001C/4011C |
| 29 | 324573-2 | Makita 324573-2 RING 17, HR4011C |
| 30 | 419003-7 | Makita 419003-7 Slide Sleeve for HR4001C HR4011C |
| 31 | 324571-6 | Makita 324571-6 STRIKER, HR4011C |
| 32 | 213962-5 | Makita 213962-5 O RING 22 HR4001C/4011C |
| 33 | 331709-6 | Makita 331709-6 RING 33, HR4002 |
| 34 | 233448-3 | Makita 233448-3 Compression Spring 37 for HR4002 |
| 35 | 227486-5 | Makita 227486-5 STRAIGHT BEVEL GEAR 25 HR4001C/4011C |
| 36 | 419005-3 | Makita 419005-3 Connecting Rod HR4001C HR4010C HR4011C |
| 37 | 213379-2 | Makita 213379-2 O-RING 21, HR4002 |
| 38 | 213962-5 | Makita 213962-5 O RING 22 HR4001C/4011C |
| 39 | 419004-5 | Makita 419004-5 Piston Hr4041C |
| 40 | 256197-5 | Makita 256197-5 SHOULDER PIN 7, HR4002 |
| 41 | 233937-8 | Makita 233937-8 RING SPRING 31, HR4002 |
| 42 | 257268-1 | Makita 257268-1 RING 33, HR4002 |
| 43 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 44 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 45 | 233935-2 | Makita 233935-2 RING SPRING 32 HR4001C/4011C |
| 46 | 324570-8 | Makita 324570-8 CYLINDER 28.5 HR4011C/4001C |
| 47 | 317923-8 | Makita 317923-8 Pipe Holder HR4011C |
| 48 | 213030-4 | Makita 213030-4 O RING 8 |
| 49 | 419011-8 | Makita 419011-8 SPRING GUIDE HR4011C |
| 50 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 51 | 233435-2 | Makita 233435-2 COMPRESSION SPRING 11 HR4011C |
| 52 | 213275-4 | Makita 213275-4 O RING 18 |
| 53 | 324572-4 | Makita 324572-4 PIPE 16, HR4011C |
| 54 | 324574-0 | Makita 324574-0 COUNTER WEIGHT, HR4011C |
| 55 | 213275-4 | Makita 213275-4 O RING 18 |
| 56 | 233435-2 | Makita 233435-2 COMPRESSION SPRING 11 HR4011C |
| 57 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 58 | 419011-8 | Makita 419011-8 SPRING GUIDE HR4011C |
| 59 | 213030-4 | Makita 213030-4 O RING 8 |
| 60 | 317923-8 | Makita 317923-8 Pipe Holder HR4011C |
| 61 | 213030-4 | Makita 213030-4 O RING 8 |
| 62 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 63 | 233432-8 | Makita 233432-8 COMPRESSION SPRING 7, HR4002 |
| 64 | 421910-2 | Makita 421910-2 SEAL PLATE HR4011C |
| 65 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 66 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 67 | 419009-5 | Makita 419009-5 LOCK BUTTON HR4001C/4011C |
| 68 | 233436-0 | Makita 233436-0 COMPRESSION SPRING 3, HR4002 |
| 69 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 70 | 419020-7 | Makita 419020-7 CHANGE LEVER HR4001C/4011C |
| 71 | 419007-9 | Makita 419007-9 CRANK LEVER HR4001C/4011C |
| 72 | 317925-4 | Makita 317925-4 CRANK CAP COVER HR4001C |
| 73 | 419030-4 | Makita 419030-4 CRANK CAP HR4001C/4011C |
| 74 | 421908-9 | Makita 421908-9 SEAL RING HR4001C/4011C |
| 75 | 419019-2 | Makita 419019-2 LINK PLATE GUIDE HR4001C/4011C |
| 76 | 345582-8 | Makita 345582-8 LINK PLATE HR4001C/4011C |
| 77 | 419012-6 | Makita 419012-6 AIR PIPE HR4011C |
| 78 | 421909-7 | Makita 421909-7 AIR PIPE SEAL HR4011C |
| 79 | 421909-7 | Makita 421909-7 AIR PIPE SEAL HR4011C |
| 80 | 154622-9 | Makita 154622-9 CRANK HOUSING COMPLETE HR4011C |
| 81 | 423345-3 | Makita 423345-3 CUSHION PLATE HR4001C/4011C |
| 82 | 419008-7 | Makita 419008-7 FIX GUIDE HR4001C/4011C |
| 83 | 213262-3 | Makita 213262-3 O RING 18 |
| 84 | 419006-1 | Makita 419006-1 LINK LEVER HR4001C/4011C |
| 85 | 911511-9 | Makita 911511-9 PAN HEAD SCREW M4X10 HR4001C/4011C |
| 86 | 324550-4 | Makita 324550-4 CRANK SHAFT, HR4011C |
| 87 | 211332-2 | Makita 211332-2 BEARING 6004LLU, HR4002 |
| 88 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 89 | 226605-0 | Makita 226605-0 HELICAL GEAR 38 HR4001C/4011C |
| 90 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 91 | 421907-1 | Makita 421907-1 SEAL RING HR4001C/4011C |
| 92 | 154623-7 | Makita 154623-7 GEAR HOUSING COMPL HR4011C/4001C |
| 93 | 233433-6 | Makita 233433-6 COMPRESSION SPRING 5, HR4002 |
| 95 | 419018-4 | Makita 419018-4 CHANGE PLATE HR4001C/4011C |
| 96 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 97 | 345581-0 | Makita 345581-0 CUP WASHER 8, HR4002 |
| 98 | 233936-0 | Makita 233936-0 CONICAL COMPRESSION SPRING, HR4002 |
| 99 | 324549-9 | Makita 324549-9 DRVING FLANCE, HR4011C |
| 103 | 211323-3 | Makita 211323-3 BALL BEARING 6904LLU, HR2412 |
| 105 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 106 | 419036-2 | Makita 419036-2 HANDLE COVER HR4001C/4011C |
| 108 | 650567-4 | Makita 650567-4 Switch HR4001C HR4010C HR4011C HR3210 HR5211 HR4501C |
| 109 | 154626-1 | Makita 154626-1 SWITCH HOLDER COMPLETE, HR4002 |
| 112 | 419028-1 | Makita 419028-1 SWITCH LEVER HR4001C |
| 113 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 116 | 861492-6 | |
| 117 | 419040-1 | Makita 419040-1 HANDLE HR4010C |
| 122 | 638407-6 | Makita 638407-6 LEAD UNIT HR4001C |
| 123 | 419010-0 | Makita 419010-0 LENS HR4001C/4011C |
| 124 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 125 | 631657-2 | Makita 631657-2 Controller for HR4001C HR4010C HR4011C |
| 126 | 419024-9 | Makita 419024-9 CORD CLAMP BASE HR4001C/4011C |
| 127 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 128 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 129 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 130 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 131 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 132 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 133 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 134 | 419032-0 | Makita 419032-0 REAR COVER HR4001C/4011C |
| 135 | 931303-0 | Makita 931303-0 HEX. NUT M6 |
| 136 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 137 | 241876-8 | Makita 241876-8 FAN 76 HR4000C |
| 138 | 419022-3 | Makita 419022-3 FAN GUIDE HR4001C/4011C |
| 139 | 194160-9 | Makita 194160-9 CARBON BRUSH CB-350, HR4011 |
| 140 | 638393-1 | Makita 638393-1 BRUSH HOLDER UNIT, HR4010C |
| 141 | 154619-8 | Makita 154619-8 MOTOR HOUSING COMPL. HR4011C/4001C |
| 142 | 324390-0 | Makita 324390-0 Shoulder Sleeve 6 for HR4001C HR4011C |
| 143 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 144 | 681650-6 | Makita 681650-6 Insulation Washer for HR3000C HR4000C |
| 145 | 625738-2 | Makita 625738-2 FIELD HR4011C |
| 146 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 147 | 513633-7 | Makita 513633-7 Armature Ass'y HR4011C/4001C |
| 148 | 419021-5 | Makita 419021-5 BAFFLE PLATE HR4001C/4011C |
| 149 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 150 | 211137-0 | Makita 211137-0 BEARING 6201LLU, HR4002 |
| 151 | 213231-4 | Makita 213231-4 OIL SEAL 15 |
| 152 | 331596-3 | Makita 331596-3 SLEEVE 12, HR4002 |
| 153 | 419033-8 | Makita 419033-8 CRANK HOUSING COVER HR4011C |
| 154 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 155 | 419026-5 | Makita 419026-5 SWITCH BOX HR4001C |
| 156 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 157 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 158 | 232209-8 | Makita 232209-8 LEAF SPRING HM0860C |
| 159 | 154635-0 | Makita 154635-0 SLIDE LEVER HR4001C |
| 160 | 419027-3 | Makita 419027-3 CONTROL PLATE HR4001C |
