Makita HR3550C
Makita HR3550C: exploded parts diagram, 1 sheet, 132 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR3550C: 132 positions on 1 sheet

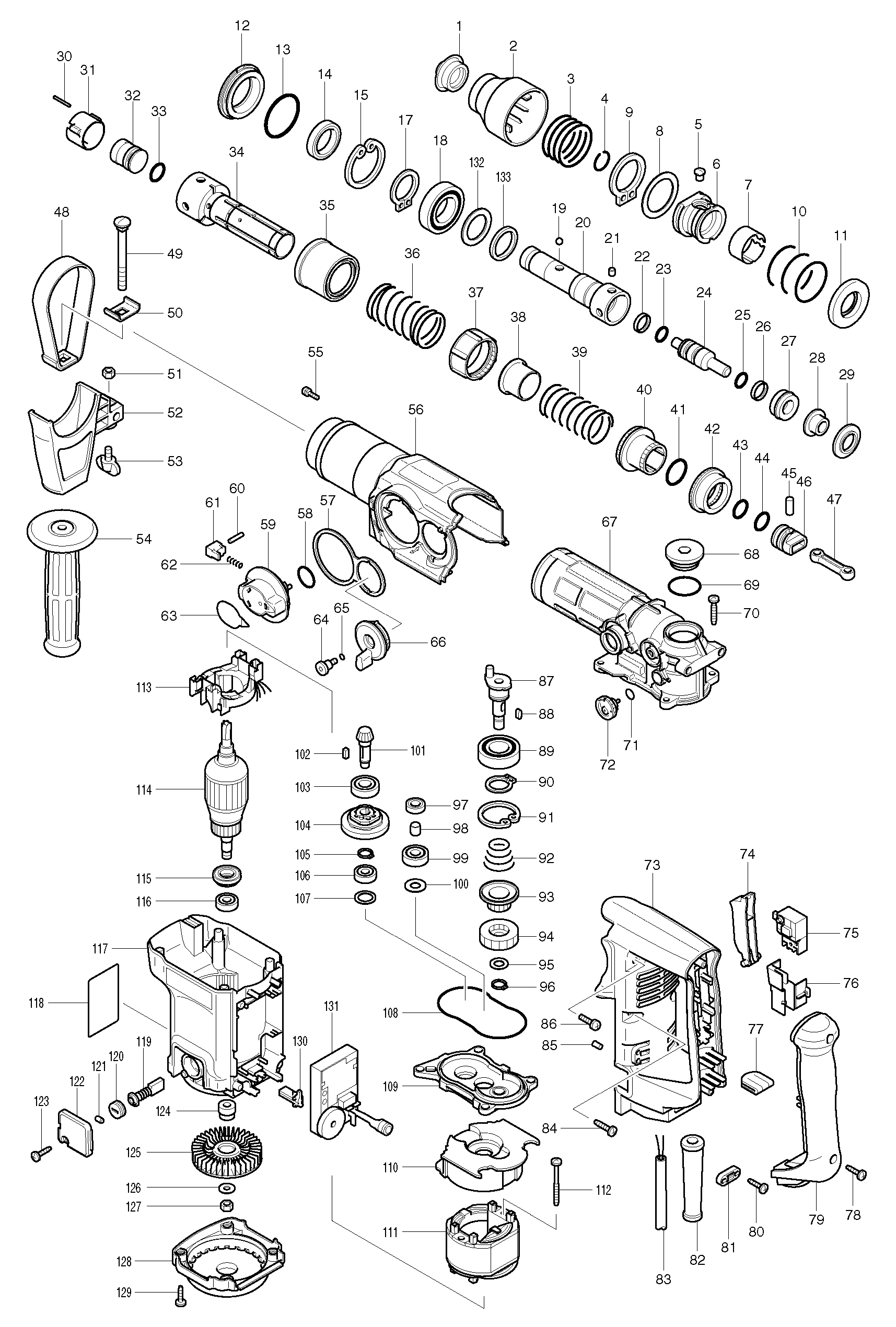

Sheet 1: Makita HR3550C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286261-8 | Makita 286269-2 Tool Holder Cap |
| 2 | 417516-2 | Makita 417516-2 CHUCK COVER |
| 3 | 233294-4 | Makita 233294-4 COMPRESSION SPRING 46 |
| 4 | 233907-7 | Makita 233907-7 RING SPRING 21 |
| 5 | 256450-9 | Makita 256450-9 PIN 8 |
| 6 | 324084-7 | Makita 324084-7 CHUCK RING |
| 7 | 232202-2 | Makita 232202-2 LEAF SPRING 35 |
| 8 | 267224-3 | Makita 267224-3 FLAT WASHER 37 |
| 9 | 961154-7 | Makita 961154-7 RETAINING RING (EXT) S-36 |
| 10 | 233295-2 | Makita 233295-2 COMPRESSION SPRING 44 |
| 11 | 344970-6 | Makita 344970-6 GUIDE WASHER |
| 12 | 417015-4 | Makita 417015-4 SEAL CASE HR3000C |
| 13 | 213615-6 | Makita 213615-6 O-RING 46 HR3000C |
| 14 | 213436-6 | Makita 213436-6 OIL SEAL HR3000C |
| 15 | 962251-2 | Makita 962251-2 RETAINING RING R-52 |
| 17 | 961108-4 | Makita 961108-4 RETAINING RING 28 HR3000C |
| 18 | 211422-1 | Makita 211422-1 60/28LLU Ball Bearing |
| 19 | 216004-4 | Makita 216004-4 STEEL BALL 7.9 |
| 20 | 324083-9 | Makita 324083-9 TOOL HOLDER |
| 21 | 256293-9 | Makita 256293-9 PIN 8 |
| 22 | 213321-3 | Makita 213321-3 FLUORO CARB.RESING RING |
| 23 | 213228-3 | Makita 213228-3 O-RING 15 |
| 24 | 323913-1 | Makita 323913-1 IMPACT BOLT HR3000C |
| 25 | 213228-3 | Makita 213228-3 O-RING 15 |
| 26 | 213321-3 | Makita 213321-3 FLUORO CARB.RESING RING |
| 27 | 421703-7 | Makita 421703-7 RUBBER RING HR3000C |
| 28 | 331594-7 | Makita 331594-7 SLEEVE 12 |
| 29 | 331595-5 | Makita 331595-5 WASHER 19 |
| 30 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 31 | 417023-5 | Makita 417023-5 PIN HOLDER FOR HR3000C |
| 32 | 323936-9 | Makita 323936-9 STRIKER HR3000R |
| 33 | 213274-6 | Makita 213274-6 O-RING 18 HR3000C |
| 34 | 331559-9 | Makita 331559-9 CYLINDER 25 HR3000C |
| 35 | 331563-8 | Makita 331563-8 SLEEVE 50 HR3000C |
| 36 | 233253-8 | Makita 233253-8 COMPRESSION RING 40 HR300 |
| 37 | 417020-1 | Makita 417020-1 LOCK SLEEVE HR3000C |
| 38 | 331557-3 | Makita 331557-3 RING 29 HR3000C |
| 39 | 233254-6 | |
| 40 | 331558-1 | Makita 331558-1 DRIVING SLEEVE HR3000R |
| 41 | 213435-8 | Makita 213435-8 O RING 26, CS550D |
| 42 | 226783-6 | Makita 226783-6 SPIRAL BEVEL GEAR 37 HR30 |
| 43 | 213274-6 | Makita 213274-6 O-RING 18 HR3000C |
| 44 | 213274-6 | Makita 213274-6 O-RING 18 HR3000C |
| 45 | 256292-1 | Makita 256292-1 PIN 7 HR3000C |
| 46 | 417021-9 | Makita 417021-9 Piston HR3000C |
| 47 | 417016-2 | Makita 417016-2 ROD HR3000C |
| 48 | 344811-6 | Makita 344811-6 GRIP SPRING 63 |
| 49 | 266163-4 | Makita 266163-4 CUP SQUARE NECK BOLT M8X8 |
| 50 | 344492-6 | Makita 344492-6 PLATE, HR4002 |
| 51 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 52 | 417026-9 | Makita 417026-9 SIDE GRIP BASE 63 |
| 53 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 54 | 152554-4 | Makita 152554-4 GRIP 36 COMPLETE |
| 55 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 56 | 151697-9 | Makita 151697-9 CRANK HOUSING COVER HR300 |
| 57 | 421704-5 | Makita 421704-5 DUSTPROOF WASHER HR3000C |
| 58 | 213304-3 | Makita 213304-3 O RING 20 HR4000C |
| 59 | 151693-7 | Makita 151693-7 CHANGE LEVER COMP.HR3000C |
| 60 | 256219-1 | Makita 256219-1 PIN 4 |
| 61 | 417018-8 | Makita 417018-8 LOCK BUTTOM HR3000C |
| 62 | 233188-3 | Makita 233188-3 COMPRESSION SPRING 2.4 |
| 63 | 816329-2 | Makita 816329-2 INDICATION LABEL |
| 64 | 265077-4 | Makita 265077-4 SOCKET FLAT HEAD SCREW M5 HR3000C |
| 65 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 66 | 151694-5 | Makita 151694-5 SHIFT LEVER COMP. HR3000C |
| 67 | 151709-8 | Makita 151709-8 CRANK HOUSING COMP.HR3000C |
| 68 | 416124-6 | Makita 416124-6 CRANK CAP |
| 69 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 70 | 266173-1 | Makita 266173-1 TAPPING SCREW 5X30 |
| 71 | 213070-2 | Makita 213070-2 O-RING 10 HR3000C |
| 72 | 151758-5 | Makita 151758-5 SPUR GEAR 21 COMP.HR3000C |
| 73 | 417014-6 | Makita 417014-6 HANDLE HR3000C |
| 74 | 416284-4 | Makita 416284-4 SWITCH LEVER |
| 75 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 76 | 416126-2 | Makita 416126-2 LEAD GUIDE HR4500C |
| 77 | 421583-1 | Makita 421583-1 SPONGE SHEET |
| 78 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 79 | 417028-5 | Makita 417028-5 HANDLE COVER HR3000C |
| 80 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 81 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 82 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 83 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 84 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 85 | 416285-2 | Makita 416285-2 ACRYLIC PIN 5 |
| 86 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 87 | 323915-7 | Makita 323915-7 CRANK SHAFT, HR3000C |
| 88 | 254239-9 | Makita 254239-9 KEY 4 HR3000C |
| 89 | 211332-2 | Makita 211332-2 BEARING 6004LLU, HR4002 |
| 90 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 91 | 962211-4 | Makita 962211-4 RETAINING RING R-42, GA9020 |
| 92 | 231991-6 | Makita 231991-6 CONICAL COMP.SPRING 21-31 |
| 93 | 223130-2 | Makita 223130-2 CLUTCH HR3000C |
| 94 | 226514-3 | Makita 226514-3 HELICAL GEAR 34 HR3000C |
| 95 | 253878-2 | Makita 253878-2 FLAT WASHER 10 |
| 96 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 97 | 213071-0 | Makita 213071-0 OIL SEAL 10 HR3000C |
| 98 | 331564-6 | Makita 331564-6 SLEEVE 10 HR3000C |
| 99 | 210058-3 | Makita 210058-3 BALL BEARING 6000LU HR300 |
| 100 | 253171-4 | Makita 253171-4 FLAT WASHER 10, HR2810 |
| 101 | 226782-8 | Makita 226782-8 SPIRAL BEVEL GEAR 10 HR30 |
| 102 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 103 | 211138-8 | Makita 211138-8 BALL BEARING 6001LLU |
| 104 | 151692-9 | Makita 151692-9 TORQUE LIMITER COMPLETE |
| 105 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 106 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 107 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 108 | 421702-9 | Makita 421702-9 SEAL RING HR3000C |
| 109 | 151695-3 | Makita 151695-3 GEAR HOUSING COMP. HR3000C |
| 110 | 417010-4 | Makita 417010-4 BAFFLE PLATE HR3000C |
| 111 | 634348-4 | Makita 634348-4 FIELD HR3000C |
| 112 | 266046-8 | Makita 266046-8 TAPPING SCREW 5X50, HR2010 |
| 113 | 632933-7 | Makita 632933-7 SUPPORT COMP. HR3000C |
| 114 | 516383-3 | Makita 516383-3 ARMATURE ASSY HR3000C |
| 115 | 681650-6 | Makita 681650-6 Insulation Washer for HR3000C HR4000C |
| 116 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 117 | 151696-1 | Makita 151696-1 MOTOR HOUSING COMPLETE |
| 118 | 852906-6 | Makita 852906-6 NAME PLATE HR3550C |
| 119 | 191961-6 | Makita 191961-6 CARBON BRUSH CB-304 |
| 120 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 121 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 122 | 417024-3 | Makita 417024-3 BRUSH HOLDER COVER HR3000C |
| 123 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 124 | 323937-7 | Makita 323937-7 SHOULDER SLEEVE 7 HR3000C |
| 125 | 241863-7 | Makita 241863-7 FAN 70, JR3050T |
| 126 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 127 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 128 | 417012-0 | Makita 417012-0 REAR COVER HR3000C |
| 129 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 130 | 417017-0 | Makita 417017-0 FIX ROD HR3000C |
| 131 | 631369-7 | Makita 631369-7 Controller for Rotary Hammer HR3000C HR3550C 220V |
| 132 | 267088-5 | Makita 267088-5 FLAT WASHER 28 |
| 133 | 262088-0 | Makita 262088-0 URETHANE RING 28 HR3000C |
