Makita HR3541FC
Makita HR3541FC: exploded parts diagram, 1 sheet, 145 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR3541FC: 145 positions on 1 sheet

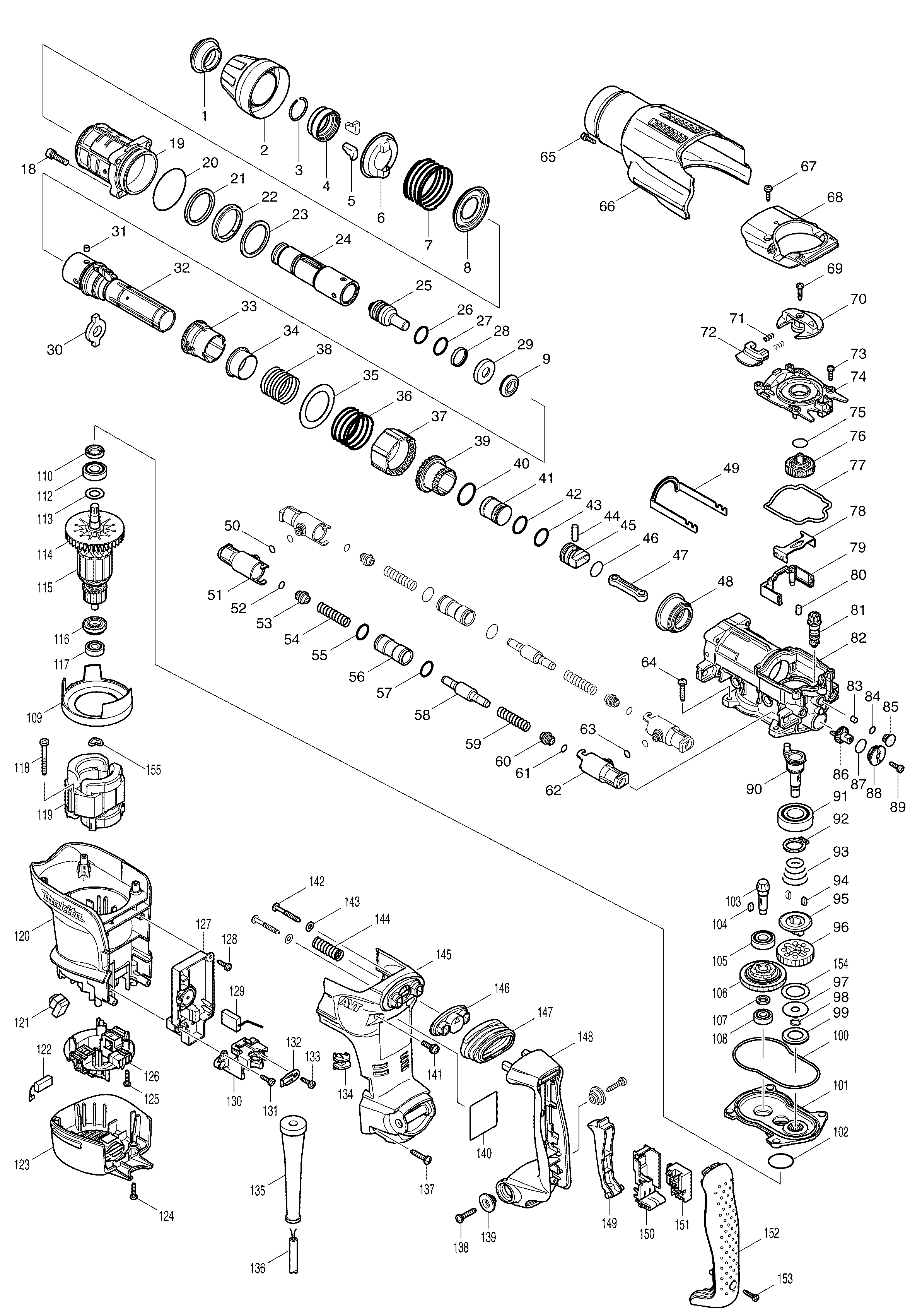

Sheet 1: Makita HR3541FC parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286269-2 | Makita 286269-2 TOOL HOLDER CAP HM0860C |
| 2 | 450592-3 | Makita 450592-3 CHUCK COVER HR3540C |
| 3 | 231984-3 | Makita 231984-3 RING SPRING 25 |
| 4 | 331823-8 | Makita 331823-8 CHUCK RINGHR3540C |
| 5 | 310257-8 | Makita 310257-8 TOOL RETAINERHR3540C |
| 6 | 345928-8 | Makita 345928-8 SPRING GUIDE HR3540C |
| 7 | 234063-6 | Makita 234063-6 COMPRESSION SPRING 52 HR3540C |
| 8 | 345976-7 | Makita 345976-7 SPRING HOLDER |
| 9 | 424110-3 | Makita 424110-3 RUBBER RING 13HR3540C |
| 18 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 19 | 158674-2 | Makita 158674-2 BARREL COMPLETE HR3541FC |
| 20 | 213656-2 | Makita 213656-2 O-RING 53, HM0830 |
| 21 | 257294-0 | Makita 257294-0 RING 38 HR3540C |
| 22 | 262143-8 | Makita 262143-8 URETHANE RING 38 HR3540C |
| 23 | 267381-7 | Makita 267381-7 FLAT WASHER 39HR3540C |
| 24 | 324900-3 | Makita 324900-3 TOOL HOLDERHR3540C |
| 25 | 324901-1 | Makita 324901-1 IMPACT BOLT HR3540C |
| 26 | 213309-3 | Makita 213309-3 O RING 19 |
| 27 | 213309-3 | Makita 213309-3 O RING 19 |
| 28 | 213996-8 | Makita 213996-8 FLUORO CARB.RESING RING |
| 29 | 324899-2 | Makita 324899-2 RING 13 HR3540C |
| 30 | 324838-2 | Makita 324838-2 SLIDE PLATE, HR3210C |
| 31 | 256266-2 | Makita 256266-2 PIN 6HR3210FCT |
| 32 | 331822-0 | Makita 331822-0 CYLINDER 25HR3540C |
| 33 | 450243-8 | Makita 450243-8 SLIDE SLEEVEHR3210FCT |
| 34 | 331805-0 | Makita 331805-0 RING 29HR3210FCT |
| 35 | 267360-5 | Makita 267360-5 FLAT WASHER 40HR3210FCT |
| 36 | 234052-1 | Makita 234052-1 COMPRESSION SPRING 4HR3210FCT |
| 37 | 450236-5 | Makita 450236-5 LOCK SLEEVEHR3210FCT |
| 38 | 234050-5 | Makita 234050-5 COMPRESSION SPRING 3HR3210FCT |
| 39 | 331795-7 | Makita 331795-7 DRIVING SLEEVEHR3210FCT |
| 40 | 213434-0 | Makita 213434-0 O-RING 26, SS610D |
| 41 | 324898-4 | Makita 324898-4 STRIKERHR3540C |
| 42 | 213283-5 | Makita 213283-5 O-RING 18HR3210FCT |
| 43 | 213283-5 | Makita 213283-5 O-RING 18HR3210FCT |
| 44 | 256087-2 | Makita 256087-2 PIN 7, JR3000V |
| 45 | 324918-4 | Makita 324918-4 PISTONHR3210FCT |
| 46 | 213262-3 | Makita 213262-3 O RING 18 |
| 47 | 450235-7 | Makita 450235-7 CONNECTING RODHR3210FCT |
| 48 | 227531-6 | Makita 227531-6 SPIRAL BEVEL GEAR 37HR3210FCT |
| 49 | 345867-2 | Makita 345867-2 LINK ARMHR3210FCT |
| 50 | 213030-4 | Makita 213030-4 O RING 8 |
| 51 | 450248-8 | Makita 450248-8 PIPE HOLDERHR3210FCT |
| 52 | 213030-4 | Makita 213030-4 O RING 8 |
| 53 | 450239-9 | Makita 450239-9 SPRING GUIDEHR3210FCT |
| 54 | 234048-2 | Makita 234048-2 COMPRESSION SPRING 1HR3210FCT |
| 55 | 213275-4 | Makita 213275-4 O RING 18 |
| 56 | 331800-0 | Makita 331800-0 PIPE 15HR3210FCT |
| 57 | 213275-4 | Makita 213275-4 O RING 18 |
| 58 | 324862-5 | Makita 324862-5 COUNTER WEIGHTHR3210FCT |
| 59 | 234048-2 | Makita 234048-2 COMPRESSION SPRING 1HR3210FCT |
| 60 | 450239-9 | Makita 450239-9 SPRING GUIDEHR3210FCT |
| 61 | 213030-4 | Makita 213030-4 O RING 8 |
| 62 | 450248-8 | Makita 450248-8 PIPE HOLDERHR3210FCT |
| 63 | 213030-4 | Makita 213030-4 O RING 8 |
| 64 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 65 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 66 | 450593-1 | Makita 450593-1 CRANK HOUSING COVERHR3541FC |
| 67 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 68 | 318201-9 | Makita 318201-9 CRANK CAP COVERHR3210FCT |
| 69 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 70 | 450249-6 | Makita 450249-6 CHANGE LEVERHR3210FCT |
| 71 | 233436-0 | Makita 233436-0 COMPRESSION SPRING 3, HR4002 |
| 72 | 450250-1 | Makita 450250-1 LOCK BUTTONHR3210FCT |
| 73 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 74 | 450241-2 | Makita 450241-2 CRANK CAPHR3210FCT |
| 75 | 213223-3 | Makita 213223-3 O RING 16 |
| 76 | 158437-6 | Makita 158437-6 SPER GEAR 33 COMPLETHR3210FCT |
| 77 | 424064-4 | Makita 424064-4 SEAL RING BHR3210FCT |
| 78 | 345868-0 | Makita 345868-0 LINK PLATEHR3210FCT |
| 79 | 450247-0 | Makita 450247-0 AIR PIPEHR3210FCT |
| 80 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 81 | 450242-0 | Makita 450242-0 GEAR SHAFTHR3210FCT |
| 82 | 158712-0 | Makita 158712-0 CRANK HOUSING COMPLEHR3541FC |
| 83 | 443138-2 | Makita 443138-2 Filter for HR3210FCT |
| 84 | 213030-4 | Makita 213030-4 O RING 8 |
| 85 | 450238-1 | Makita 450238-1 Filter Cap for HR3210FCT |
| 86 | 450244-6 | Makita 450244-6 CRANK GEARHR3210FCT |
| 87 | 213223-3 | Makita 213223-3 O RING 16 |
| 88 | 450237-3 | Makita 450237-3 CAP HOLDERHR3210FCT |
| 89 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 90 | 324839-0 | Makita 324839-0 CRANKSHAFT, HR3210C |
| 91 | 211332-2 | Makita 211332-2 BEARING 6004LLU, HR4002 |
| 92 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 93 | 231991-6 | Makita 231991-6 CONICAL COMP.SPRING 21-31 |
| 94 | 254239-9 | Makita 254239-9 KEY 4 HR3000C |
| 95 | 324848-9 | Makita 324848-9 CLUTCH, HR3210C |
| 96 | 227188-3 | Makita 227188-3 SPUR GEAR 33, HR3210C |
| 97 | 253197-6 | Makita 253197-6 FLAT WASHER 10, 2703 |
| 98 | 961036-3 | Makita 961036-3 RETAINING RING WR-10HR3210FCT |
| 99 | 345869-8 | Makita 345869-8 CUP WASHER 18HR3210FCT |
| 100 | 424063-6 | Makita 424063-6 SEAL RING AHR3210FCT |
| 101 | 158534-8 | Makita 158534-8 GEAR HOUSING COMPLETHR3210FCT |
| 102 | 213415-4 | Makita 213415-4 O RING 28 |
| 103 | 227533-2 | Makita 227533-2 SPIRAL BEVEL GEAR 9HR3210FCT |
| 104 | 254239-9 | Makita 254239-9 KEY 4 HR3000C |
| 105 | 210105-0 | Makita 210105-0 BALL BEARING 6001LLU, HR281FT |
| 106 | 125421-6 | Makita 125421-6 TORQUE LIMITER ASS'YHR3210FCT |
| 107 | 257291-6 | Makita 257291-6 RING 10HR3210FCT |
| 108 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 109 | 450251-9 | Makita 450251-9 BAFFLE PLATEHR3210FCT |
| 110 | 213133-4 | Makita 213133-4 OIL SEAL 12, HR281FT |
| 112 | 210105-0 | Makita 210105-0 BALL BEARING 6001LLU, HR281FT |
| 113 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 115 | 513748-0 | Makita 513748-0 Armature Rotor 240V HR3200C HR3210C HR3210FCT |
| 116 | 681650-6 | Makita 681650-6 Insulation Washer for HR3000C HR4000C |
| 117 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 118 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 119 | 625813-4 | Makita 625813-4 Field for HR3200C, HR3210C |
| 120 | 450260-8 | Makita 450260-8 MOTOR HOUSINGHR3210FCT |
| 121 | 631785-3 | Makita 631785-3 LED CIRCUITHR3210FCT |
| 122 | 194160-9 | Makita 194160-9 CARBON BRUSH CB-350, HR4011 |
| 123 | 450253-5 | Makita 450253-5 REAR COVERHR3210FCT |
| 124 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 125 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 126 | 638519-5 | Makita 638519-5 BRUSH HOLDER UNIT, HR3210C |
| 127 | 631783-7 | Makita 631783-7 Controller for HR3210FCT |
| 128 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 129 | 638406-8 | |
| 130 | 450246-2 | Makita 450246-2 CORD CLAMP BASEHR3210FCT |
| 131 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 132 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 133 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 134 | 450240-4 | Makita 450240-4 LENSHR3210FCT |
| 135 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 136 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 137 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 138 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 139 | 450352-3 | Makita 450352-3 SHOULDER SLEEVE 6HR3210FCT |
| 140 | 865380-9 | Makita 865380-9 NAME PLATE HR3541FC |
| 141 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 142 | 266211-9 | Makita 266211-9 TAPPING SCREW 5X40 |
| 143 | 267066-5 | Makita 267066-5 FLAT WASHER 5 |
| 144 | 234051-3 | Makita 234051-3 COMPRESSION SPRING 1HR3210FCT |
| 145 | 450255-1 | Makita 450255-1 HANDLE BASEHR3210FCT |
| 146 | 419014-2 | Makita 419014-2 DUST COVER SUPPORT HR4011C |
| 147 | 421912-8 | Makita 421912-8 DUST COVER HR4011C |
| 148 | 450256-9 | Makita 450256-9 HANDLEHR3210FCT |
| 149 | 419025-7 | Makita 419025-7 SWITCH LEVER, HR4002 |
| 150 | 154626-1 | Makita 154626-1 SWITCH HOLDER COMPLETE, HR4002 |
| 151 | 650567-4 | Makita 650567-4 Switch HR4001C HR4010C HR4011C HR3210 HR5211 HR4501C |
| 152 | 450257-7 | Makita 450257-7 HANDLE COVERHR3210FCT |
| 153 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 154 | 267383-3 | Makita 267383-3 FLAT WASHER 22 |
| 155 | 267721-9 | Makita 267721-9 WAVE WASHER 15BTS130 |
