Makita HR3520B
Makita HR3520B: exploded parts diagram, 1 sheet, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR3520B: 86 positions on 1 sheet

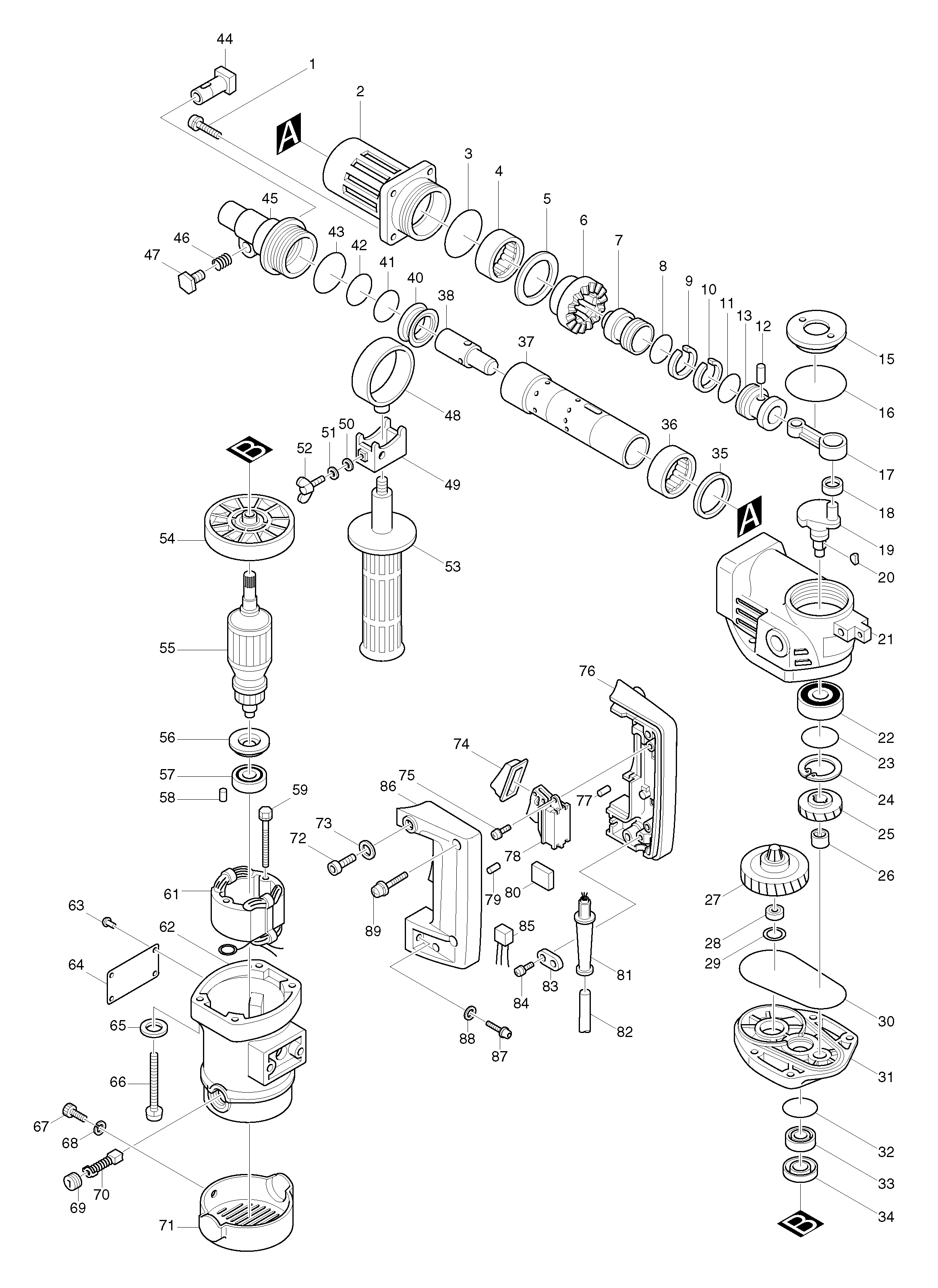

Sheet 1: Makita HR3520B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 2 | 311612-7 | |
| 3 | 213655-4 | Makita 213655-4 O-RING 56, 483 |
| 4 | 212502-6 | |
| 5 | 253817-2 | Makita 253817-2 FLAT WASHER 40 |
| 6 | 221367-5 | Makita 221367-5 SPIRAL BEVEL GEAR 36 |
| 7 | 322197-8 | Makita 322197-8 STRIKER |
| 8 | 213381-5 | Makita 213381-5 O RING 21, HR2610 |
| 9 | 412037-9 | Makita 412037-9 PISTON RING HR3520 |
| 10 | 412037-9 | Makita 412037-9 PISTON RING HR3520 |
| 11 | 213381-5 | Makita 213381-5 O RING 21, HR2610 |
| 12 | 256006-8 | Makita 256006-8 PIN 8 |
| 13 | 322196-0 | Makita 322196-0 PISTON |
| 15 | 150367-7 | Makita 150367-7 CRANK CAP COMPLETE |
| 16 | 213554-0 | Makita 213554-0 O RING 44 |
| 17 | 315248-4 | Makita 315248-4 Rod HR3510 HR3520 HR3500 |
| 18 | 212065-2 | Makita 212065-2 NEEDLE BEARING 1012 |
| 19 | 321725-6 | Makita 321725-6 CRANKSHAFT, HR3520 |
| 20 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 21 | 159507-4 | Makita 159507-4 CRANK HOUSING |
| 22 | 211259-6 | Makita 211259-6 BALL BEARING 6203 |
| 23 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 24 | 962157-4 | Makita 962157-4 RETAINING RING R-40 |
| 25 | 221676-2 | Makita 221676-2 HELICAL GEAR 36 |
| 26 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 27 | 151176-7 | Makita 151176-7 TORQUE LIMITER COMPLETE HR3520 |
| 28 | 211034-0 | Makita 211034-0 BALL BEARING 608 |
| 29 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 30 | 213854-8 | Makita 213854-8 O RING 97 |
| 31 | 157304-2 | Makita 157304-2 GEAR HOUSING |
| 32 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 33 | 211109-5 | Makita 211109-5 BALL BEARING 6201, 5277NB |
| 34 | 213160-1 | Makita 213160-1 OIL SEAL 14 HR5001C |
| 35 | 267060-7 | |
| 36 | 212502-6 | |
| 37 | 152337-2 | Makita 152337-2 CYLINDER LINER COMPLETE |
| 38 | 322217-8 | |
| 40 | 213420-1 | Makita 213420-1 X RING 28 |
| 41 | 213411-2 | Makita 213411-2 O RING 27 |
| 42 | 213411-2 | Makita 213411-2 O RING 27 |
| 43 | 213554-0 | Makita 213554-0 O RING 44 |
| 44 | 331301-8 | Makita 331301-8 TOOL RETAINER |
| 45 | 322222-5 | |
| 46 | 231375-8 | Makita 231375-8 COMPRESSION SPRING 15 |
| 47 | 265321-9 | Makita 265321-9 HEX. BOLT M8X12 |
| 48 | 164569-9 | Makita 164569-9 GRIP HOLDER |
| 49 | 164543-7 | Makita 164543-7 GRIP BASE |
| 50 | 261049-7 | Makita 261049-7 RUBBER WASHER 5.5 |
| 51 | 261049-7 | Makita 261049-7 RUBBER WASHER 5.5 |
| 52 | 924321-5 | Makita 924321-5 WING BOLT M6X18 |
| 53 | 273472-4 | |
| 54 | 241827-1 | Makita 241827-1 FAN 82 |
| 55 | 512818-2 | DISC 512818-2 |
| 56 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 57 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 58 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 59 | 265345-5 | Makita 265345-5 HEX. BOLT M5X60 TW1000 |
| 61 | 528706-3 | Makita 528706-3 FIELD ASS Y 220V HR3520 |
| 62 | 157305-0 | Makita 157305-0 MOTOR HOUSING |
| 63 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 64 | 856220-2 | Makita 856220-2 NAME PLATE HR3520B |
| 65 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 66 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 67 | 922222-1 | Makita 922222-1 H.S.H.BOLT M5*16, HR3850 |
| 68 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 69 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 70 | 181038-5 | Makita 181038-5 Carbon Brushes CB-105 for HR2010 HR2510 HR3520 HM0810 HK1800 |
| 71 | 284056-3 | Makita 284056-3 REAR COVER |
| 72 | 922336-6 | Makita 922336-6 H.S.H.BOLT M6*22 WITHW, RBC411 |
| 73 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 74 | 421265-5 | Makita 421265-5 DUST COVER |
| 75 | 911129-6 | Makita 911129-6 PAN HEAD SCREW M4X16 |
| 76 | 182076-0 | Makita 182076-0 HANDLE SET |
| 77 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 78 | 651145-3 | Makita 651145-3 Switch C3D-H-MS for HM1200 HM1200K HM1500 HR5000K |
| 79 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 80 | 685700-9 | |
| 81 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 82 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 83 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 84 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 85 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 86 | 182076-0 | Makita 182076-0 HANDLE SET |
| 87 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 88 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 89 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
