Makita HR3001C
Makita HR3001C: exploded parts diagram, 1 sheet, 132 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR3001C: 132 positions on 1 sheet

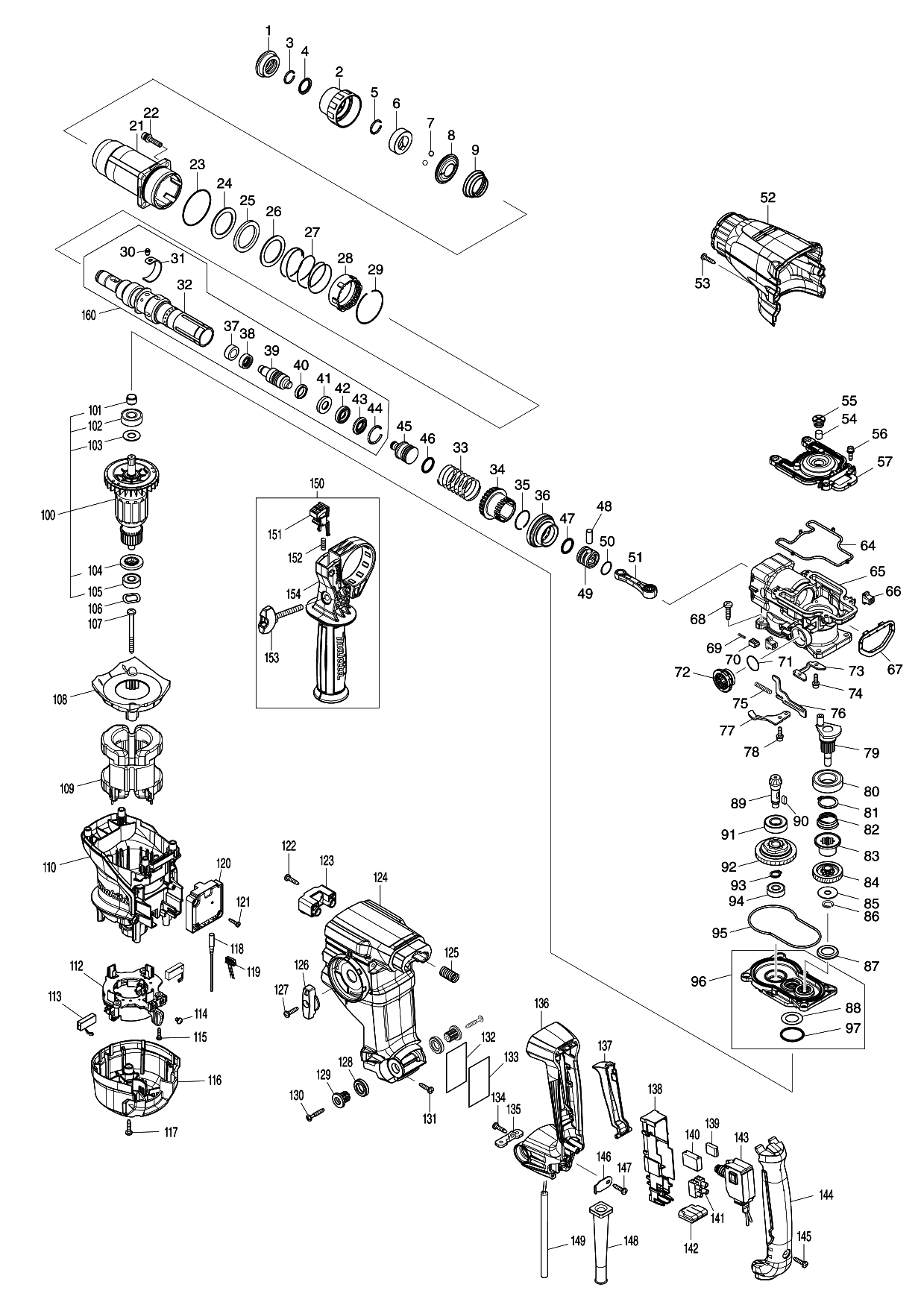

Sheet 1: Makita HR3001C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286288-8 | Makita 286288-8 Cap 35 for BHR242 HR2610 HR2300 HR2600 MT870 |
| 2 | 459685-3 | |
| 3 | 233989-9 | Makita 233989-9 LEAF SPRING, HR2610 |
| 4 | 346834-0 | Makita 346834-0 WASHER 16 |
| 5 | 233992-0 | Makita 233992-0 RING SPRING 15 |
| 6 | 327269-4 | Makita 327269-4 RING 17, HR3011FC |
| 7 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 8 | 347553-1 | Makita 347553-1 GUIDE WASHER, HR3011FC |
| 9 | 232503-8 | |
| 21 | 140J35-0 | Makita 140J35-0 BARREL COMPLETE, HR3011FC |
| 22 | 266793-1 | |
| 23 | 213620-3 | Makita 213620-3 O RING, 5704R |
| 24 | 267354-0 | Makita 267354-0 FLAT WASHER 31, HR2810 |
| 25 | 422493-5 | Makita 422493-5 RUBBER RING 31, HR3011FC |
| 26 | 267354-0 | Makita 267354-0 FLAT WASHER 31, HR2810 |
| 27 | 232496-9 | Makita 232496-9 COMPRESSION SPRING 37, HR3011FC |
| 28 | 419986-1 | Makita 419986-1 LOCK SLEEVE, HR2810 |
| 29 | 233952-2 | Makita 233952-2 Ring Spring 41 for HR2810 |
| 30 | 256598-7 | |
| 31 | 347501-0 | |
| 32 | 327277-5 | |
| 33 | 232497-7 | Makita 232497-7 COMPRESSION SPRING 27, HR3011FC |
| 34 | 327276-7 | Makita 327276-7 DRIVING SLEEVE, HR3011FC |
| 35 | 232501-2 | Makita 232501-2 RING SPRING 24, HR3011FC |
| 36 | 226868-8 | |
| 37 | 327515-5 | |
| 38 | 327516-3 | |
| 39 | 140S89-1 | Makita 140S89-1 IMPACT BOLT A COMPLETE |
| 40 | 213880-7 | Makita 213880-7 SEAL RING 12 |
| 41 | 327268-6 | |
| 42 | 424267-0 | Makita 424267-0 CUSHION RING 12, HR2600 |
| 43 | 327271-7 | |
| 44 | 231987-7 | Makita 231987-7 RING SPRING 21 |
| 45 | 327266-0 | |
| 46 | 213881-5 | |
| 47 | 213881-5 | |
| 48 | 268122-4 | |
| 49 | 319807-6 | |
| 50 | 213226-7 | Makita 213226-7 O RING 16, BHR240 |
| 51 | 140J36-8 | |
| 52 | 459165-9 | |
| 53 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 54 | 443153-6 | Makita 443153-6 FELT, HR2610 |
| 55 | 459180-3 | Makita 459180-3 FILTER CAP, HR3011FC |
| 56 | 922123-3 | Makita 922123-3 Hex. Socket Head Bolt M4X |
| 57 | 319846-6 | |
| 64 | 459182-9 | Makita 459182-9 SEAL RING B, HR3011FC |
| 65 | 140J33-4 | Makita 140J33-4 CRANK HOUSING COMPLETE, HR3011FC |
| 66 | 455165-7 | Makita 455165-7 FIX GUIDE |
| 67 | 422492-7 | Makita 422492-7 CUSHION, HR3011FC |
| 68 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 69 | 232499-3 | Makita 232499-3 COMPRESSION SPRING 2, HR3011FC |
| 70 | 310929-5 | Makita 310929-5 PUSH CORN, HR3011FC |
| 71 | 213262-3 | Makita 213262-3 O RING 18 |
| 72 | 459175-6 | Makita 459175-6 LINK LEVER, HR3011FC |
| 73 | 347497-5 | Makita 347497-5 BEARING RETAINER A, HR3011FC |
| 74 | 922123-3 | Makita 922123-3 Hex. Socket Head Bolt M4X |
| 75 | 234019-9 | Makita 234019-9 COMPRESSION SPRING 4, HR2810 |
| 76 | 345814-3 | Makita 345814-3 LINK PLATE, HR2810 |
| 77 | 347498-3 | Makita 347498-3 GUIDE PLATE, HR3011FC |
| 78 | 922123-3 | Makita 922123-3 Hex. Socket Head Bolt M4X |
| 79 | 140M22-7 | Makita 140M22-7 CRANK SHAFT COMPLETE, HR3011FC |
| 80 | 211323-3 | Makita 211323-3 BALL BEARING 6904LLU, HR2412 |
| 81 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 82 | 232498-5 | Makita 232498-5 CONICAL COMP. SPRING 21-26, HR3011FC |
| 83 | 327273-3 | Makita 327273-3 CLUTCH, HR3211FC |
| 84 | 226869-6 | Makita 226869-6 HELICAL GEAR 31, HR3011FC |
| 85 | 267353-2 | Makita 267353-2 FLAT WASHER 8, HR2810 |
| 86 | 961034-7 | Makita 961034-7 Retaining Ring (EXT) WR-8 for HR281FT |
| 87 | 345818-5 | Makita 345818-5 CUP WASHER 16, HR2810 |
| 88 | 253749-3 | Makita 253749-3 FLAT WASHER 16 |
| 89 | 226867-0 | Makita 226867-0 SPIRAL BEVEL GEAR 8, HR3011FC |
| 90 | 254239-9 | Makita 254239-9 KEY 4 HR3000C |
| 91 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 92 | 125386-2 | Makita 125386-2 TORQUE LIMITER ASSEMBLY, HR2810 |
| 93 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 94 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 95 | 459181-1 | Makita 459181-1 SEAL RING A, HR3011FC |
| 97 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 100 | 515528-0 | |
| 101 | 331775-3 | Makita 331775-3 Sleeve 10 |
| 102 | 211097-6 | Makita 211097-6 BALL BEARING 6000LLB, 5806B |
| 103 | 253171-4 | Makita 253171-4 FLAT WASHER 10, HR2810 |
| 104 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 105 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 106 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 107 | 266329-6 | Makita 266329-6 TAPPING SCREW 5*60, MT580 |
| 108 | 459172-2 | |
| 109 | 621899-6 | |
| 110 | 459160-9 | |
| 112 | 632N59-9 | Makita 632N59-9 BRUSH HOLDER UNIT, HR3011FC |
| 113 | 197245-0 | Makita 197245-0 CARBON BRUSH CB-351, HR4013C |
| 114 | 652044-2 | |
| 115 | 266404-8 | Makita 266404-8 TAPPING SCREW 3*14, TD020D |
| 116 | 459168-3 | Makita 459168-3 REAR COVER, HR3011FC |
| 117 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 118 | 632P88-4 | Makita 632P88-4 LEAD UNIT, HR3011FC |
| 119 | 632P89-2 | Makita 632P89-2 LEAD UNIT, HR3011FC |
| 120 | 620C42-2 | |
| 121 | 266404-8 | Makita 266404-8 TAPPING SCREW 3*14, TD020D |
| 122 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 123 | 140M21-9 | Makita 140M21-9 HANDLE STOPPER COMPLETE, HR3011FC |
| 124 | 459163-3 | |
| 125 | 232500-4 | Makita 232500-4 COMPRESSION SPRING 10, HR3011FC |
| 126 | 459174-8 | Makita 459174-8 CHANGE LEVER, HR3011FC |
| 127 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 128 | 459184-5 | |
| 129 | 459176-4 | |
| 130 | 266459-3 | Makita 266459-3 TAPPING SCREW 5*25, 5477NB |
| 131 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 132 | 856W05-4 | |
| 133 | 818U61-0 | |
| 134 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 135 | 347502-8 | Makita 347502-8 LOCK PLATE, HR3011FC |
| 136 | 459164-1 | Makita 459164-1 HANDLE, HR3011FC |
| 137 | 459177-2 | Makita 459177-2 SWITCH LEVER, HR3011FC |
| 138 | 459178-0 | Makita 459178-0 SWITCH HOLDER, HR3011FC |
| 139 | 646755-9 | Makita 646755-9 RESISTANCE, DA6301 |
| 140 | 645190-8 | Makita 645190-8 CAPACITOR, MT950 |
| 141 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 142 | 424031-9 | Makita 424031-9 SPONGE SHEET, HR3011FC |
| 143 | 651385-3 | Makita 651385-3 SWITCH C3JW-A1B-PA7, HR3011FC |
| 144 | 459166-7 | Makita 459166-7 HANDLE COVER, HR3011FC |
| 145 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 146 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 147 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 148 | 682573-1 | Makita 682573-1 Cord Guard 10 for JR3050T |
| 149 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 151 | 144959-2 | |
| 152 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 153 | 265625-9 | |
| 154 | 459170-6 |
