Makita HR2653
Makita HR2653: exploded parts diagram, 3 sheets, 149 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2653: 149 positions on 3 sheets

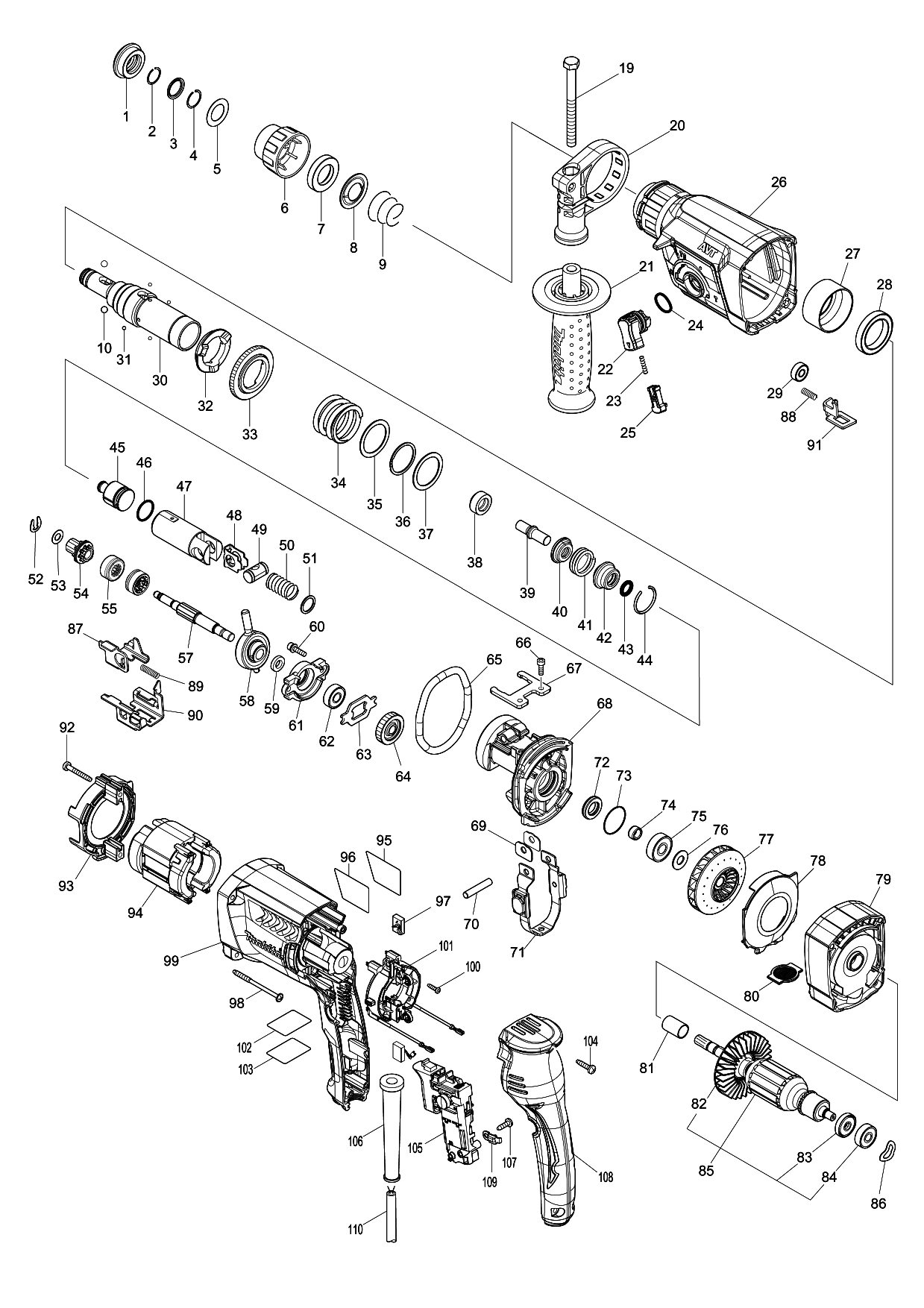

Sheet 1: Makita HR2653 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286288-8 | Makita 286288-8 Cap 35 for BHR242 HR2610 HR2300 HR2600 MT870 |
| 2 | 233989-9 | Makita 233989-9 LEAF SPRING, HR2610 |
| 3 | 346834-0 | Makita 346834-0 WASHER 16 |
| 4 | 233992-0 | Makita 233992-0 RING SPRING 15 |
| 5 | 267114-0 | Makita 267114-0 FLAT WASHER 17, RP0900 |
| 6 | 455393-4 | Makita 455393-4 Chuck Cover for HR2630 |
| 7 | 325813-1 | Makita 325813-1 RING 21, HR2610 |
| 8 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 9 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 10 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 19 | 266745-2 | Makita 266745-2 HEX.BOLT M8X90 |
| 20 | 453129-5 | Makita 453129-5 GRIP BASE |
| 21 | 158057-6 | Makita 158057-6 Grip 36 Complete for HR1830FT |
| 22 | 161656-5 | Makita 161656-5 CHANGE LEVER COMPLETE, HR2651 |
| 23 | 234264-6 | Makita 234264-6 COMPRESSION SPRING 3 |
| 24 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 25 | 457709-9 | Makita 457709-9 LOCK BUTTON, HR2651 |
| 26 | 140D00-3 | Makita 140D00-3 GEAR HOUSING COMPLETE, HR2651T |
| 27 | 331890-3 | Makita 331890-3 CUP SLEEVE, HR2610 |
| 28 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 29 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 30 | 142972-4 | |
| 31 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 32 | 332139-4 | Makita 332139-4 Driving Flange for HR2610 HR2600 HR2300 BHR243 |
| 33 | 227360-7 | Makita 227360-7 Spur Gear 51 for HR2610 HR2600 HR2300 BHR243 |
| 34 | 234148-8 | Makita 234148-8 COMPRESSION SPRING 31, HR2610 |
| 35 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 36 | 257932-4 | Makita 257932-4 SPIRO LOCK WASHER 30, 6922K |
| 37 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 38 | 325783-4 | Makita 325783-4 SLEEVE 9B, HR2611F |
| 39 | 325789-2 | Makita 325789-2 IMPACT BOLT A, HR2610 |
| 40 | 325792-3 | Makita 325792-3 WASHER 10, HR2611F |
| 41 | 234149-6 | Makita 234149-6 COMPRESSION SPRING 20, HR2610 |
| 42 | 325793-1 | Makita 325793-1 O-RING CASE B, HR2610 |
| 43 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 44 | 233979-2 | Makita 233979-2 RING SPRING 28, HR2020 |
| 45 | 325784-2 | Makita 325784-2 Striker for HR2610 |
| 46 | 213258-4 | Makita 213258-4 O RING 17.5, HR2610 |
| 47 | 310345-1 | Makita 310345-1 Piston Cylinder for HP2610 |
| 48 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 49 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 50 | 234098-7 | Makita 234098-7 COMPRESSION SPRING 14, HR2610 |
| 51 | 267447-3 | Makita 267447-3 FLAT WASHER 14, HR2610 |
| 52 | 257336-0 | Makita 257336-0 STOP RING EXT U-6, BHR243 |
| 53 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 54 | 227359-2 | Makita 227359-2 SPUR GEAR 10 |
| 55 | 332125-5 | Makita 332125-5 CLUTCH CAM |
| 57 | 326448-1 | Makita 326448-1 CAM SHAFT |
| 58 | 219023-9 | Makita 219023-9 SWASH BEARING 10 |
| 59 | 257321-3 | Makita 257321-3 RING 8, MT870 |
| 60 | 266437-3 | Makita 266437-3 HEX. SOCKET HEAD BOLT M4X16, HR2610 |
| 61 | 310344-3 | Makita 310344-3 BEARING BOX, HR2610 |
| 62 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 63 | 285735-6 | Makita 285735-6 BEARING RETAINER, HR2610 |
| 64 | 227719-8 | Makita 227719-8 HELICAL GEAR 26, HR2610 |
| 65 | 213728-3 | Makita 213728-3 O-RING 68, HR261D |
| 66 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 67 | 346222-1 | Makita 346222-1 PLATE, HR2610 |
| 68 | 141573-5 | Makita 141573-5 INNER HOUSING COMPLETE |
| 69 | 346180-1 | Makita 346180-1 WEIGHT HOLDER GUIDE, HR2610 |
| 70 | 256246-8 | Makita 256246-8 PIN MUH352, MUH352 |
| 71 | 161655-7 | Makita 161655-7 COUNTER WEIGHT, HR2651 |
| 72 | 213678-2 | Makita 213678-2 OIL SEAL 12, HR2610 |
| 73 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 74 | 262569-4 | Makita 262569-4 SLEEVE 9, HR2610 |
| 75 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 76 | 253733-8 | Makita 253733-8 FLAT WASHER 9, HR2432 |
| 77 | 240182-8 | Makita 240182-8 FAN 65, HR2651 |
| 78 | 457711-2 | Makita 457711-2 BAFFLE PLATE, HR2651 |
| 79 | 457710-4 | Makita 457710-4 FAN HOUSING, HR2651 |
| 80 | 457713-8 | Makita 457713-8 FILTER PLATE, HR2651 |
| 81 | 262184-4 | Makita 262184-4 SLEEVE 10, HR2651 |
| 83 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 84 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 85 | 515424-2 | Makita 515424-2 ARMATURE ASSY 240V, HR2651 |
| 86 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 87 | 347230-5 | Makita 347230-5 CHANGE PLATE B, HR2651 |
| 88 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 89 | 234343-0 | Makita 234343-0 COMPRESSION SPRING 5 |
| 90 | 347229-0 | Makita 347229-0 CHANGE PLATE A, HR2651 |
| 91 | 347228-2 | Makita 347228-2 LOCK PLATE, HR2651 |
| 92 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 93 | 451527-7 | Makita 451527-7 BAFFLE PLATE, HR2610 |
| 94 | 621874-2 | Makita 621874-2 FIELD, HR2651 |
| 95 | 819390-8 | Makita 819390-8 CLEAR LABEL, HR2300 |
| 96 | 855F87-1 | |
| 97 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 98 | 266334-3 | Makita 266334-3 TAPPING SCREW 4X60, GA9010 |
| 99 | 451536-6 | Makita 451536-6 MOTOR HOUSING, HR2610 |
| 100 | 266556-5 | Makita 266556-5 TAPPING SCREW 3*12, HR2610 |
| 101 | 632K38-9 | Makita 632K38-9 BRUSH HOLDER UNIT, HR2651 |
| 102 | 855F89-7 | |
| 103 | 819389-3 | |
| 104 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 105 | 651090-2 | Makita 651090-2 Switch TG853TB-3 for HR2651 HR2610 HR2611 |
| 106 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 107 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 108 | 451528-5 | Makita 451528-5 HANDLE COVER, HR2610 |
| 109 | 687682-1 | Makita 687682-1 CORD CLAMP, MT960 |
| 110 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |

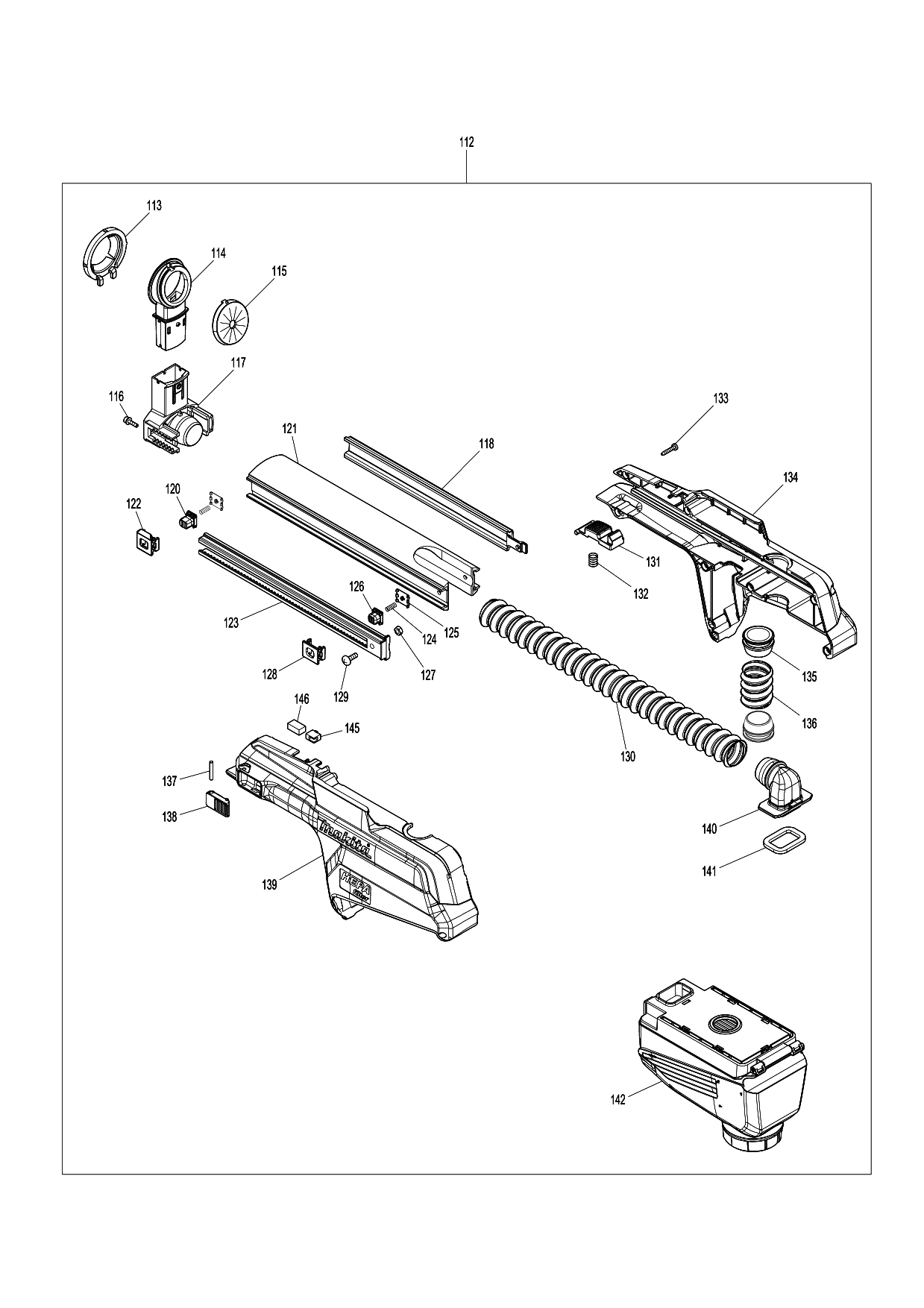

Sheet 2: Makita HR2653 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 113 | 424722-2 | Makita 424722-2 FITTING RUBBER |
| 114 | 455736-0 | Makita 455736-0 COLLECTOR |
| 115 | 424474-5 | Makita 424474-5 SEALING CAP |
| 116 | 251568-1 | Makita 251568-1 H.S.H. BOLT M3*12 WITH WR, HR2651 |
| 117 | 457730-8 | Makita 457730-8 COLLECTOR BASE A, HR2651 |
| 118 | 457723-5 | Makita 457723-5 PIPE COVER, HR2651 |
| 120 | 457718-8 | Makita 457718-8 PUSH BUTTON B, HR2651 |
| 121 | 326988-9 | Makita 326988-9 SLIDE PIPE, HR2651 |
| 122 | 457728-5 | Makita 457728-5 STOPPER BASE B, HR2651 |
| 123 | 457722-7 | Makita 457722-7 RACK GUIDE, HR2651 |
| 124 | 232386-6 | Makita 232386-6 COMPRESSION SPRING 4, HR2651 |
| 125 | 457721-9 | Makita 457721-9 SPRING PLATE, HR2651 |
| 126 | 457717-0 | Makita 457717-0 PUSH BUTTON A, HR2651 |
| 127 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 128 | 457719-6 | Makita 457719-6 STOPPER BASE A, HR2651 |
| 129 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 130 | 245045-3 | |
| 131 | 458668-0 | |
| 132 | 231316-4 | Makita 231316-4 COMPRESSION SPRING 7 |
| 133 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 134 | 183K50-7 | |
| 135 | 457712-0 | Makita 457712-0 JOINT SLEEVE, HR2651 |
| 136 | 245047-9 | |
| 137 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 138 | 457720-1 | Makita 457720-1 PUSH LEVER, HR2651 |
| 139 | 183K50-7 | |
| 140 | 457724-3 | Makita 457724-3 INNER PIPE, HR2651 |
| 141 | 457725-1 | Makita 457725-1 SPONGE SHEET B, HR2651 |
| 142 | 199586-0 | Makita 199586-0 DUST CASE SET + FILTER. HR2651T |
| 145 | 458687-6 | |
| 146 | 422315-9 |
Sheet 3: Makita HR2653 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 143 | 199557-7 | Makita 199557-7 Hepa Filter for DX06 DX09 |
| 147 | 457727-7 | |
| 148 | 453148-1 | |
| 149 | 327221-2 | |
| 150 | 253431-4 | |
| 151 | 140G88-1 | |
| 152 | 310918-0 | |
| 153 | 310919-8 | |
| 154 | 232482-0 | |
| 155 | 253431-4 | |
| 156 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 157 | 226856-5 | |
| 158 | 226857-3 | |
| 159 | 226855-7 | |
| 160 | 140F90-8 | |
| 161 | 253430-6 | |
| 162 | 140H88-7 | |
| 163 | 922129-1 |
