Makita HR2631F
Makita HR2631F: exploded parts diagram, 1 sheet, 104 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2631F: 104 positions on 1 sheet

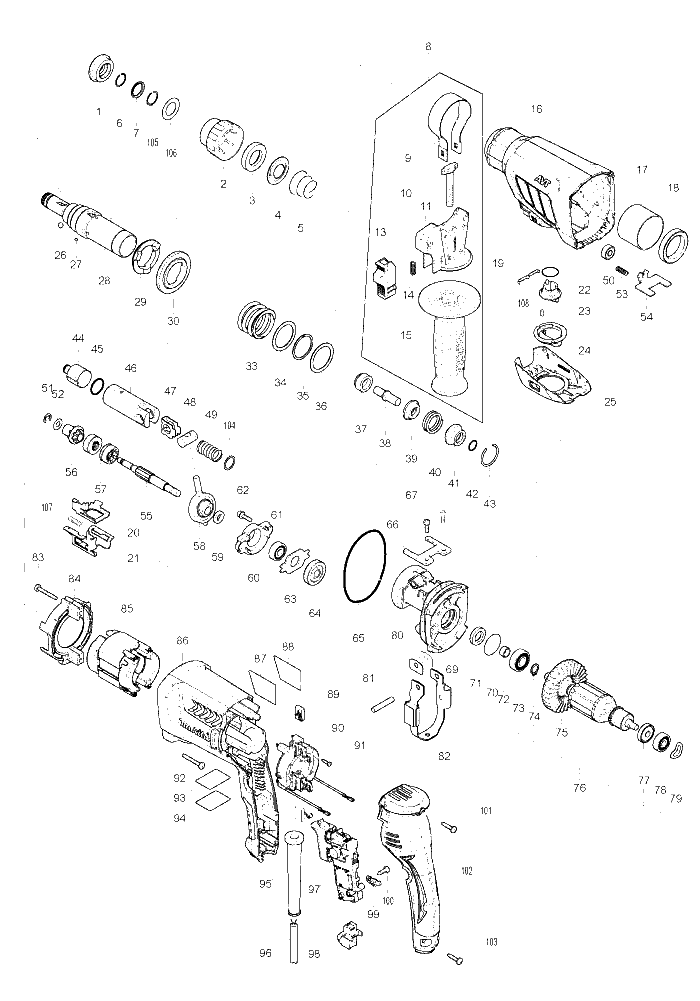

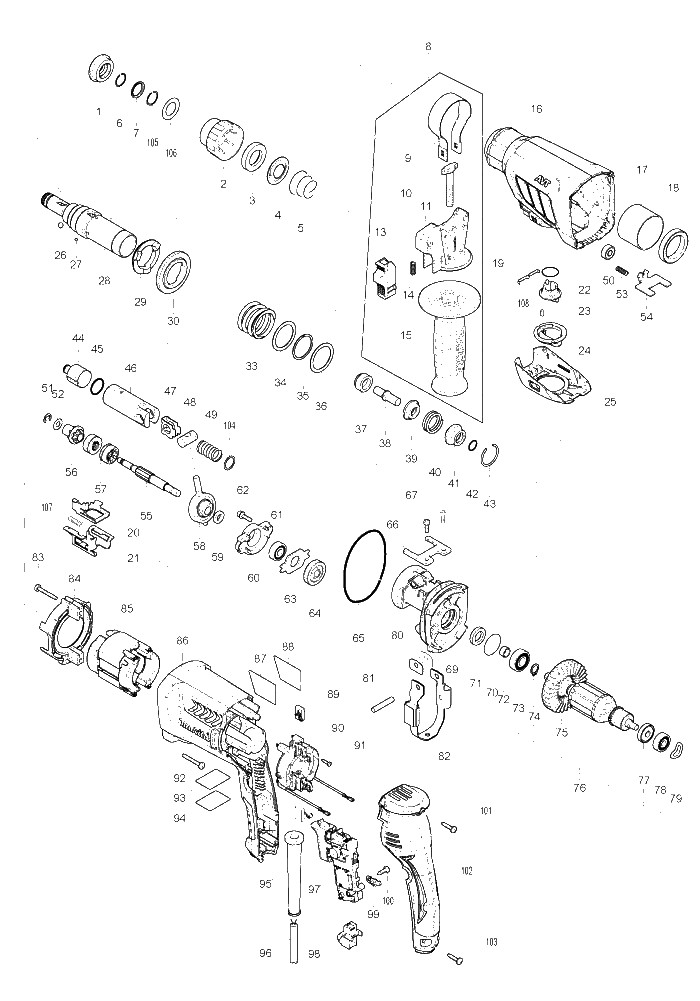

Sheet 1: Makita HR2631F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286288-8 | Makita 286288-8 Cap 35 for BHR242 HR2610 HR2300 HR2600 MT870 |
| 2 | 455393-4 | Makita 455393-4 Chuck Cover for HR2630 |
| 3 | 325813-1 | Makita 325813-1 RING 21, HR2610 |
| 4 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 5 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 6 | 233989-9 | Makita 233989-9 LEAF SPRING, HR2610 |
| 7 | 346834-0 | Makita 346834-0 WASHER 16 |
| 9 | 346181-9 | Makita 346181-9 GRIP SPRING 50, HR2610 |
| 10 | 266349-0 | Makita 266349-0 SQUARE BOLT M8*50, DF441D |
| 11 | 451539-0 | Makita 451539-0 GRIP BASE, HR2610 |
| 13 | 141765-6 | Makita 141765-6 LOCK BUTTON COMPL6D |
| 14 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 15 | 154935-8 | |
| 16 | 142970-8 | Makita 142970-8 GEAR HOUSING COMPLETE |
| 17 | 331890-3 | Makita 331890-3 CUP SLEEVE, HR2610 |
| 18 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 19 | 232286-0 | Makita 232286-0 LEAF SPRING |
| 20 | 346833-2 | Makita 346833-2 CHANGE PLATE B |
| 21 | 346832-4 | Makita 346832-4 CHANGE PLATE A |
| 22 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 23 | 455392-6 | Makita 455392-6 CHANGE LEVER |
| 24 | 455394-2 | Makita 455394-2 CHANGE LEVER CAP |
| 25 | 455391-8 | Makita 455391-8 CHANGE LEVER COVER |
| 26 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 27 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 28 | 142972-4 | |
| 29 | 332139-4 | Makita 332139-4 Driving Flange for HR2610 HR2600 HR2300 BHR243 |
| 30 | 227360-7 | Makita 227360-7 Spur Gear 51 for HR2610 HR2600 HR2300 BHR243 |
| 33 | 234148-8 | Makita 234148-8 COMPRESSION SPRING 31, HR2610 |
| 34 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 35 | 257932-4 | Makita 257932-4 SPIRO LOCK WASHER 30, 6922K |
| 36 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 37 | 325783-4 | Makita 325783-4 SLEEVE 9B, HR2611F |
| 38 | 325789-2 | Makita 325789-2 IMPACT BOLT A, HR2610 |
| 39 | 325792-3 | Makita 325792-3 WASHER 10, HR2611F |
| 40 | 234149-6 | Makita 234149-6 COMPRESSION SPRING 20, HR2610 |
| 41 | 325793-1 | Makita 325793-1 O-RING CASE B, HR2610 |
| 42 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 43 | 233979-2 | Makita 233979-2 RING SPRING 28, HR2020 |
| 44 | 325784-2 | Makita 325784-2 Striker for HR2610 |
| 45 | 213258-4 | Makita 213258-4 O RING 17.5, HR2610 |
| 46 | 310345-1 | Makita 310345-1 Piston Cylinder for HP2610 |
| 47 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 48 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 49 | 234098-7 | Makita 234098-7 COMPRESSION SPRING 14, HR2610 |
| 50 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 51 | 257336-0 | Makita 257336-0 STOP RING EXT U-6, BHR243 |
| 52 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 53 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 54 | 346831-6 | Makita 346831-6 LOCK PLATE |
| 55 | 326448-1 | Makita 326448-1 CAM SHAFT |
| 56 | 227359-2 | Makita 227359-2 SPUR GEAR 10 |
| 57 | 332125-5 | Makita 332125-5 CLUTCH CAM |
| 58 | 219023-9 | Makita 219023-9 SWASH BEARING 10 |
| 59 | 257321-3 | Makita 257321-3 RING 8, MT870 |
| 60 | 310344-3 | Makita 310344-3 BEARING BOX, HR2610 |
| 61 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 62 | 266437-3 | Makita 266437-3 HEX. SOCKET HEAD BOLT M4X16, HR2610 |
| 63 | 285735-6 | Makita 285735-6 BEARING RETAINER, HR2610 |
| 64 | 227719-8 | Makita 227719-8 HELICAL GEAR 26, HR2610 |
| 65 | 213728-3 | Makita 213728-3 O-RING 68, HR261D |
| 66 | 346222-1 | Makita 346222-1 PLATE, HR2610 |
| 67 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 69 | 141573-5 | Makita 141573-5 INNER HOUSING COMPLETE |
| 70 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 71 | 213678-2 | Makita 213678-2 OIL SEAL 12, HR2610 |
| 72 | 262569-4 | Makita 262569-4 SLEEVE 9, HR2610 |
| 73 | 211097-6 | Makita 211097-6 BALL BEARING 6000LLB, 5806B |
| 74 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 76 | 515359-7 | Makita 515359-7 Armature Ass'y 240V for HR2600 HR2610 HR2611F |
| 77 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 78 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 79 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 80 | 346180-1 | Makita 346180-1 WEIGHT HOLDER GUIDE, HR2610 |
| 81 | 256246-8 | Makita 256246-8 PIN MUH352, MUH352 |
| 82 | 165593-5 | Makita 165593-5 COUNTER WEIGHT, HR2610 |
| 83 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 84 | 451527-7 | Makita 451527-7 BAFFLE PLATE, HR2610 |
| 85 | 626634-7 | Makita 626634-7 FIELD 240V 195T, HR2600 |
| 86 | 451535-8 | Makita 451535-8 MOTOR HOUSING, HR2610 |
| 87 | 850L56-3 | |
| 88 | 819390-8 | Makita 819390-8 CLEAR LABEL, HR2300 |
| 89 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 90 | 638655-7 | Makita 638655-7 Brush Holder HR2300 HR2600 HR2601 HR2610 |
| 91 | 266556-5 | Makita 266556-5 TAPPING SCREW 3*12, HR2610 |
| 92 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 93 | 850L61-0 | |
| 94 | 819389-3 | |
| 95 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 96 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 97 | 650625-6 | Makita 650625-6 SWITCH C3QA-2L-C, HR2610 |
| 98 | 631937-6 | Makita 631937-6 LIGHT CIRCUIT, HR261FT |
| 99 | 687682-1 | Makita 687682-1 CORD CLAMP, MT960 |
| 100 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 101 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 102 | 451528-5 | Makita 451528-5 HANDLE COVER, HR2610 |
| 103 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 104 | 267447-3 | Makita 267447-3 FLAT WASHER 14, HR2610 |
| 105 | 233992-0 | Makita 233992-0 RING SPRING 15 |
| 106 | 267114-0 | Makita 267114-0 FLAT WASHER 17, RP0900 |
| 107 | 234343-0 | Makita 234343-0 COMPRESSION SPRING 5 |
| 108 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 8 | 122878-2 | Makita 122878-2 Grip Assembly for HR2610 HR2300 HR2600 HR2601F HR2610T |
| 75 | 240121-8 | Makita 240121-8 FAN 65 |
