Makita HR2611FT: exploded parts diagram, 1 sheet, 111 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2611FT: 111 positions on 1 sheet

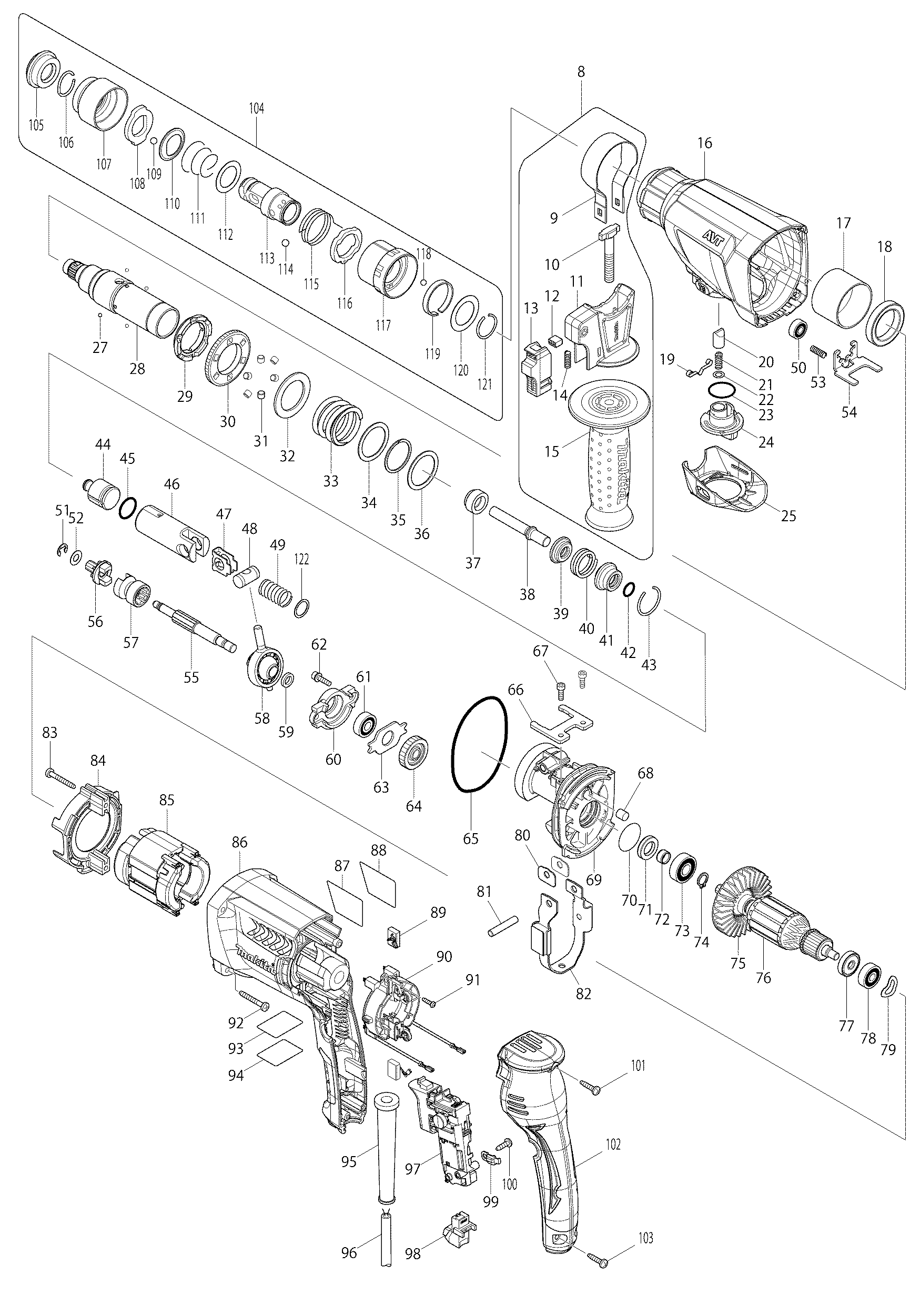

Sheet 1: Makita HR2611FT parts diagram
| No. | Part number | Part name |
|---|---|---|
| 9 | 346181-9 | Makita 346181-9 GRIP SPRING 50, HR2610 |
| 10 | 266349-0 | Makita 266349-0 SQUARE BOLT M8*50, DF441D |
| 11 | 451539-0 | Makita 451539-0 GRIP BASE, HR2610 |
| 12 | 313179-1 | Makita 313179-1 RACK, HR2610 |
| 13 | 451540-5 | Makita 451540-5 LOCK BUTTON, HR2610 |
| 14 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 15 | 154935-8 | |
| 16 | 140423-1 | Makita 140423-1 GEAR HOUSING COMPLETE, HR2611F |
| 17 | 331890-3 | Makita 331890-3 CUP SLEEVE, HR2610 |
| 18 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 19 | 232152-1 | Makita 232152-1 Leaf Spring for JR181D |
| 20 | 325785-0 | Makita 325785-0 PUSH CORN, HR2610 |
| 21 | 234147-0 | Makita 234147-0 COMPRESSION SPRING 5, HR2610 |
| 22 | 253308-3 | Makita 253308-3 THIN WASHER 6, HR2610 |
| 23 | 213381-5 | Makita 213381-5 O RING 21, HR2610 |
| 24 | 451529-3 | Makita 451529-3 Change Lever A for HR2610, HR2611F, HR2611FT |
| 25 | 451530-8 | Makita 451530-8 CHANGE LEVER COVER A, HR2610 |
| 27 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 28 | 140266-1 | Makita 140266-1 Tool Holder Complete for HR2610T HR2611FT BHR243 HR2630T |
| 29 | 313149-0 | Makita 313149-0 DRIVING FLANGE, HR2610 |
| 30 | 227232-6 | Makita 227232-6 SPUR GEAR 51, HR2610 |
| 31 | 268226-2 | Makita 268226-2 PIN 6, HR2610 |
| 32 | 267414-8 | Makita 267414-8 FLAT WASHER 30, HR2610 |
| 33 | 234148-8 | Makita 234148-8 COMPRESSION SPRING 31, HR2610 |
| 34 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 35 | 257932-4 | Makita 257932-4 SPIRO LOCK WASHER 30, 6922K |
| 36 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 37 | 325783-4 | Makita 325783-4 SLEEVE 9B, HR2611F |
| 38 | 325791-5 | Makita 325791-5 Impact Bolt B for HR2610T |
| 39 | 325792-3 | Makita 325792-3 WASHER 10, HR2611F |
| 40 | 234149-6 | Makita 234149-6 COMPRESSION SPRING 20, HR2610 |
| 41 | 325793-1 | Makita 325793-1 O-RING CASE B, HR2610 |
| 42 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 43 | 233979-2 | Makita 233979-2 RING SPRING 28, HR2020 |
| 44 | 325784-2 | Makita 325784-2 Striker for HR2610 |
| 45 | 213258-4 | Makita 213258-4 O RING 17.5, HR2610 |
| 46 | 310345-1 | Makita 310345-1 Piston Cylinder for HP2610 |
| 47 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 48 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 49 | 234098-7 | Makita 234098-7 COMPRESSION SPRING 14, HR2610 |
| 50 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 51 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 52 | 267449-9 | Makita 267449-9 FLAT WASHER, 3901 |
| 53 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 54 | 346176-2 | Makita 346176-2 LOCK PLATE, HR2610 |
| 55 | 325786-8 | Makita 325786-8 CAM SHAFT, HR2610 |
| 56 | 227231-8 | Makita 227231-8 SPUR GEAR 10, HR2610 |
| 57 | 331814-9 | Makita 331814-9 Clutch Cam A for HR2610 |
| 58 | 219020-5 | Makita 219020-5 Swash Bearing 10 HR2610 |
| 59 | 267234-0 | Makita 267234-0 FLAT WASHER 8, HR2020 |
| 60 | 310344-3 | Makita 310344-3 BEARING BOX, HR2610 |
| 61 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 62 | 266437-3 | Makita 266437-3 HEX. SOCKET HEAD BOLT M4X16, HR2610 |
| 63 | 285735-6 | Makita 285735-6 BEARING RETAINER, HR2610 |
| 64 | 227719-8 | Makita 227719-8 HELICAL GEAR 26, HR2610 |
| 65 | 213728-3 | Makita 213728-3 O-RING 68, HR261D |
| 66 | 346222-1 | Makita 346222-1 PLATE, HR2610 |
| 67 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 68 | 443153-6 | Makita 443153-6 FELT, HR2610 |
| 69 | 140267-9 | Makita 140267-9 INNER HOUSING COMPLETE, HR2611F |
| 70 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 71 | 213133-4 | Makita 213133-4 OIL SEAL 12, HR281FT |
| 72 | 262569-4 | Makita 262569-4 SLEEVE 9, HR2610 |
| 73 | 211097-6 | Makita 211097-6 BALL BEARING 6000LLB, 5806B |
| 74 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 76 | 515359-7 | Makita 515359-7 Armature Ass'y 240V for HR2600 HR2610 HR2611F |
| 77 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 78 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 79 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 80 | 346180-1 | Makita 346180-1 WEIGHT HOLDER GUIDE, HR2610 |
| 81 | 256246-8 | Makita 256246-8 PIN MUH352, MUH352 |
| 82 | 165593-5 | Makita 165593-5 COUNTER WEIGHT, HR2610 |
| 83 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 84 | 451527-7 | Makita 451527-7 BAFFLE PLATE, HR2610 |
| 85 | 626634-7 | Makita 626634-7 FIELD 240V 195T, HR2600 |
| 86 | 451535-8 | Makita 451535-8 MOTOR HOUSING, HR2610 |
| 87 | 867747-7 | Makita 867747-7 NAME PLATEHR2611FT |
| 88 | 819390-8 | Makita 819390-8 CLEAR LABEL, HR2300 |
| 89 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 90 | 638655-7 | Makita 638655-7 Brush Holder HR2300 HR2600 HR2601 HR2610 |
| 91 | 266556-5 | Makita 266556-5 TAPPING SCREW 3*12, HR2610 |
| 92 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 93 | 867751-6 | |
| 94 | 819389-3 | |
| 95 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 96 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 97 | 650625-6 | Makita 650625-6 SWITCH C3QA-2L-C, HR2610 |
| 98 | 631937-6 | Makita 631937-6 LIGHT CIRCUIT, HR261FT |
| 99 | 687682-1 | Makita 687682-1 CORD CLAMP, MT960 |
| 100 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 101 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 102 | 451528-5 | Makita 451528-5 HANDLE COVER, HR2610 |
| 103 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 105 | 286263-4 | Makita 286263-4 Cap 35 HR2020, HR2460, HR2470, HR2470T, HR3611FT |
| 106 | 233940-9 | Makita 233940-9 RING SPRING 19, HR1830FT |
| 107 | 418217-5 | Makita 418217-5 CHUCK COVER, HR245FT |
| 108 | 345333-9 | Makita 345333-9 STOPPER, HR2450FT |
| 109 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 110 | 345187-4 | Makita 345187-4 GUIDE WASHER, HR2020 |
| 111 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 112 | 267279-8 | Makita 267279-8 FLAT WASHER 21, HR2450 |
| 113 | 324355-2 | Makita 324355-2 TOOL HOLDER, HR2450T |
| 114 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 115 | 231669-1 | Makita 231669-1 TORSION SPRING, HR2450 |
| 116 | 345334-7 | Makita 345334-7 CHANGE RING, HR245FT |
| 117 | 418218-3 | Makita 418218-3 CHANGE COVER, HR245FTT |
| 118 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 119 | 345335-5 | Makita 345335-5 LEAF SPRING, HR245FT |
| 120 | 267270-6 | Makita 267270-6 FLAT WASHER 24, HR245FT |
| 121 | 233924-7 | Makita 233924-7 RING SPRING, HR245FT |
| 122 | 267447-3 | Makita 267447-3 FLAT WASHER 14, HR2610 |
