Makita HR2510
Makita HR2510: exploded parts diagram, 1 sheet, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2510: 88 positions on 1 sheet

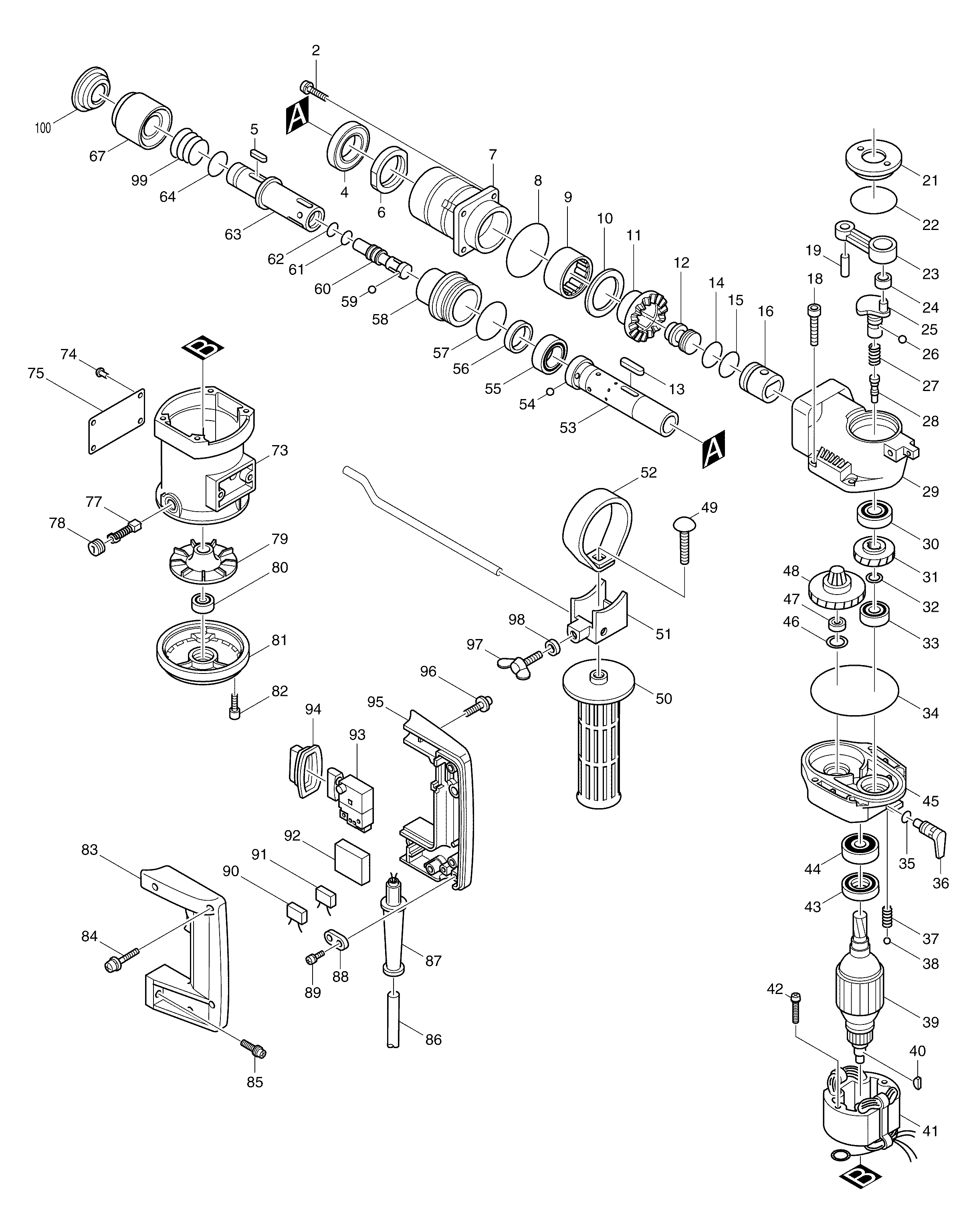

Sheet 1: Makita HR2510 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 4 | 211441-7 | Makita 211441-7 BALL BEARING 3009 |
| 5 | 322255-0 | Makita 322255-0 ROLLER 6.5 |
| 6 | 252214-9 | Makita 252214-9 NUT M30.3-36 |
| 7 | 315606-4 | |
| 8 | 213606-7 | Makita 213606-7 O RING 48 |
| 9 | 212455-9 | |
| 10 | 253802-5 | Makita 253802-5 FLAT WASHER 35 |
| 11 | 221333-2 | Makita 221333-2 SPIRAL BEVEL GEAR 33 |
| 12 | 322505-3 | Makita 322505-3 STRIKER |
| 13 | 254231-5 | Makita 254231-5 KEY 4 |
| 14 | 213308-5 | Makita 213308-5 O RING 19 |
| 15 | 213308-5 | Makita 213308-5 O RING 19 |
| 16 | 321685-2 | Makita 321685-2 PISTON |
| 18 | 922366-7 | Makita 922366-7 HEX. SOCKET HEAD BOLT M6X |
| 19 | 256099-5 | Makita 256099-5 PIN 6, HR2412 |
| 21 | 150367-7 | Makita 150367-7 CRANK CAP COMPLETE |
| 22 | 213554-0 | Makita 213554-0 O RING 44 |
| 23 | 315146-2 | Makita 315146-2 ROD |
| 24 | 212025-4 | Makita 212025-4 NEEDLE BEARING 810 |
| 25 | 321615-3 | Makita 321615-3 CRANK SHAFT |
| 26 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 27 | 231327-9 | Makita 231327-9 COMPRESSION SPRING 6 |
| 28 | 321618-7 | Makita 321618-7 CHANGE PIN 8 |
| 29 | 159504-0 | Makita 159504-0 CRANK HOUSING |
| 30 | 211204-1 | |
| 31 | 221719-0 | Makita 221719-0 HELICAL GEAR 36 |
| 32 | 253147-1 | Makita 253147-1 FLAT WASHER 15 |
| 33 | 211221-1 | Makita 211221-1 BALL BEARING 6902 |
| 34 | 213806-9 | Makita 213806-9 O RING 90 |
| 35 | 213011-8 | Makita 213011-8 O RING 7, LS1216 |
| 36 | 321614-5 | |
| 37 | 231328-7 | |
| 38 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 39 | 612798-3 | Makita 612798-3 ARMATURE 220V |
| 40 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 41 | 528722-5 | Makita 528722-5 FIELD ASS Y 220V |
| 42 | 265347-1 | Makita 265347-1 HEX. BOLT M5X45 |
| 43 | 213157-0 | |
| 44 | 211069-1 | |
| 45 | 157166-8 | Makita 157166-8 GEAR HOUSING |
| 46 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 47 | 211034-0 | Makita 211034-0 BALL BEARING 608 |
| 48 | 151162-8 | Makita 151162-8 TORQUE LIMITER COMPLETE |
| 49 | 923456-9 | |
| 50 | 273496-0 | Makita 273496-0 GRIP 32 |
| 51 | 315145-4 | DISC Makita 315145-4 GRIP BASE |
| 52 | 342633-8 | |
| 53 | 331407-2 | Makita 331407-2 CYLINDER LINER 25 |
| 54 | 216007-8 | Makita 216007-8 STEEL BALL 6.4 |
| 55 | 213377-6 | |
| 56 | 443061-1 | |
| 57 | 213554-0 | Makita 213554-0 O RING 44 |
| 58 | 322096-4 | Makita 322096-4 SEAL HOLDER |
| 59 | 216007-8 | Makita 216007-8 STEEL BALL 6.4 |
| 60 | 321616-1 | Makita 321616-1 IMPACT BOLT |
| 61 | 213058-2 | Makita 213058-2 O RING 10 |
| 62 | 213058-2 | Makita 213058-2 O RING 10 |
| 63 | 322254-2 | Makita 322254-2 DRILL HOLDER |
| 64 | 213064-7 | Makita 213064-7 O RING 10 |
| 67 | 414425-6 | Makita 414425-6 CHANGE RING |
| 73 | 157523-0 | Makita 157523-0 MOTOR HOUSING |
| 74 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 75 | 854940-2 | Makita 854940-2 NAME PLATE HR2510 |
| 77 | 181038-5 | Makita 181038-5 Carbon Brushes CB-105 for HR2010 HR2510 HR3520 HM0810 HK1800 |
| 78 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 79 | 241819-0 | Makita 241819-0 FAN 65 |
| 80 | 210001-2 | Makita 210001-2 BALL BEARING 608LB |
| 81 | 152229-5 | Makita 152229-5 BEARING BOX COMPLETE |
| 82 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 83 | 181562-8 | Makita 181562-8 HANDLE SET |
| 84 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 85 | 911343-4 | Makita 911343-4 PAN HEAD SCREW M6X25 |
| 86 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 87 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 88 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 89 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 90 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 91 | ||
| 92 | 685700-9 | |
| 93 | 651258-0 | Makita 651258-0 SWITCH SGE204MB |
| 94 | 421145-5 | |
| 95 | 181562-8 | Makita 181562-8 HANDLE SET |
| 96 | 911328-0 | |
| 97 | 924216-2 | Makita 924216-2 WING BOLT M5X15 |
| 98 | 261042-1 | Makita 261042-1 RUBBER WASHER 4.5 |
| 99 | 231946-1 | Makita 231946-1 CONICAL COMPR. SPRING 21- |
| 100 | 286220-2 | Makita 286220-2 CAP 34 |
