Makita HR2470FT
Makita HR2470FT: exploded parts diagram, 1 sheet, 98 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2470FT: 98 positions on 1 sheet

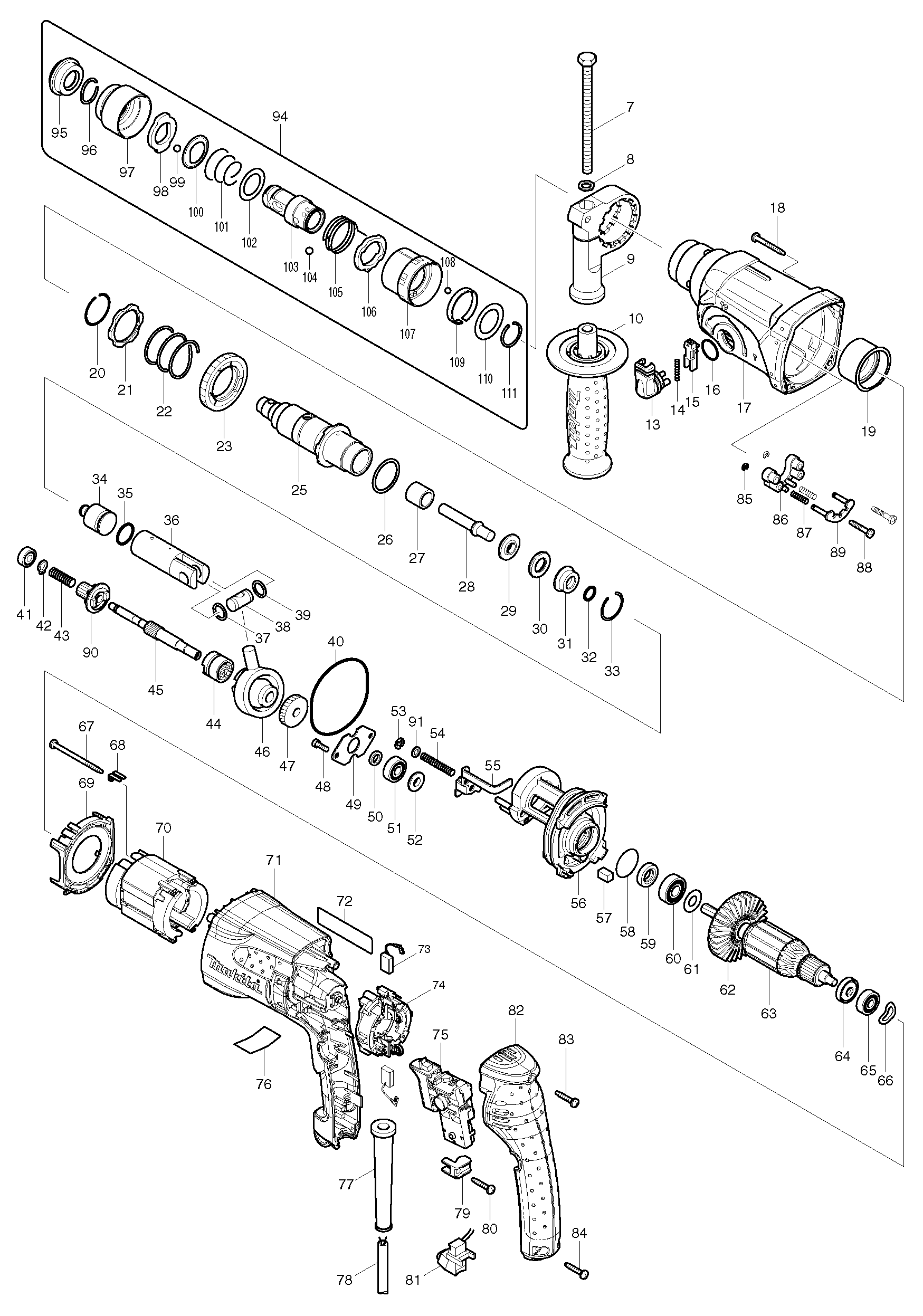

Sheet 1: Makita HR2470FT parts diagram
| No. | Part number | Part name |
|---|---|---|
| 7 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 8 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
| 9 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 10 | 158057-6 | Makita 158057-6 Grip 36 Complete for HR1830FT |
| 13 | 162245-9 | Makita 162245-9 CHANGE LEVER COMPLETE, HR180D |
| 14 | 233459-8 | Makita 233459-8 COMPRESSION SPRING 3, HR1830FT |
| 15 | 419192-8 | Makita 419192-8 LOCK BUTTON, HR1830FT |
| 16 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 17 | 158216-2 | Makita 158216-2 Gear Housing for HR2470 DHR241 |
| 18 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 19 | 153290-5 | Makita 153290-5 NEEDLE BEARING COMPLETE, HR2440 |
| 20 | 233929-7 | Makita 233929-7 Ring Spring for HR2450 |
| 21 | 267791-8 | Makita 267791-8 WASHER 31, HR2453 |
| 22 | 233401-9 | Makita 233401-9 COMPRESSION SPRING 32, HR2450 |
| 23 | 227109-5 | Makita 227109-5 Spur Gear 51 HR2470 |
| 25 | 158307-9 | Makita 158307-9 Tool Holder Complete HR2470T HR2470FT BHR262T |
| 26 | 267229-3 | Makita 267229-3 FLAT WASHER 28, HR2020 |
| 27 | 331769-8 | Makita 331769-8 9 Sleeve 9 HR2470 HR2470T HR2810 HR2811 BHR202 BHR241 BHR261 |
| 28 | 324796-2 | Makita 324796-2 Impact Bolt HR2810 |
| 29 | 324402-9 | Makita 324402-9 RING 10, HR2450T |
| 30 | 421955-0 | Makita 421955-0 Cushion Ring 13 HR2453 HR2470 HR2230 HR2460 HR2810 |
| 31 | 324216-6 | Makita 324216-6 O RING CASE, HR2020 |
| 32 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 33 | 233917-4 | Makita 233917-4 Ring Spring 28 for HR2020 HR2440 HR2450 HR2460 HR2470 HR2810 |
| 34 | 324733-6 | Makita 324733-6 STRIKER, HR2470 |
| 35 | 213227-5 | Makita 213227-5 O RING 16, HR2020 |
| 36 | 318132-2 | Makita 318132-2 Piston Cylinder for HR2470 |
| 37 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 38 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 39 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 40 | 213727-5 | Makita 213727-5 O-RING 63, HR2453 |
| 41 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 42 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 43 | 233343-7 | Makita 233343-7 COMPRESSION SPRING 7, HR2450 |
| 44 | 331768-0 | Makita 331768-0 CLUTCH CAM, HR2470 |
| 45 | 324668-1 | Makita 324668-1 CAM SHAFT, HR2453 |
| 46 | 219014-0 | Makita 219014-0 Swash Bearing 10 for HR2450 HR2455 BHR200 BHR202 |
| 47 | 226656-3 | Makita 226656-3 HELICAL GEAR 26, HR2470 |
| 48 | 266273-7 | Makita 266273-7 HEX SOCKET HEAD BOLT M4*12, HR2020 |
| 49 | 345179-3 | Makita 345179-3 BEARING RETAINER, HR2020 |
| 50 | 267234-0 | Makita 267234-0 FLAT WASHER 8, HR2020 |
| 51 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 52 | 324212-4 | Makita 324212-4 RING 8, HR2020 |
| 53 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 54 | 233342-9 | Makita 233342-9 COMPRESSION SPRING 6, HR2450 |
| 55 | 345363-0 | Makita 345363-0 Change Plate |
| 56 | 158215-4 | Makita 158215-4 Inner Housing Complete HR2470 HR2470T HR180D HR180D |
| 57 | 443126-9 | Makita 443126-9 FELT, HR2453 |
| 58 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 59 | 213077-8 | Makita 213077-8 OIL SEAL 10, HR2470 |
| 60 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 61 | 267213-8 | Makita 267213-8 FLAT WASHER 10, HR2460 |
| 63 | 515289-2 | Makita 515289-2 Armature Ass'y HR2470 240V |
| 64 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 65 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 66 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 67 | 266334-3 | Makita 266334-3 TAPPING SCREW 4X60, GA9010 |
| 68 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 69 | 419716-0 | Makita 419716-0 BAFFLE PLATE, HR2470 |
| 70 | 626579-9 | Old code 626579-9 |
| 71 | 419718-6 | Makita 419718-6 Motor Housing for HR2470 |
| 72 | 863556-2 | Makita 863556-2 HR2470FT NAME PLATEHR2470FT |
| 73 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 74 | 638500-6 | Makita 638500-6 Brush Holder for HR2470F HR2470 |
| 75 | 650588-6 | Makita 650588-6 Switch HR2470F HR2470 HR2230 HR2460 |
| 76 | 814966-6 | Makita 814966-6 SERIAL NO.LABEL, HR2470FT |
| 77 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 78 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 79 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 80 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 81 | 631746-3 | Makita 631746-3 LED CIRCUIT, HR2470 |
| 82 | 419717-8 | Makita 419717-8 Handle Cover HR2470 |
| 83 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 84 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 85 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 86 | 417796-0 | Makita 417796-0 GUIDE BASE, HR2450 |
| 87 | 233344-5 | Makita 233344-5 COMPRESSION SPRING 4, HR2450 |
| 88 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 89 | 163430-7 | Makita 163430-7 LOCK PLATE COMPLETE, HR2450 |
| 90 | 227179-4 | Makita 227179-4 Spur Gear 10 for BHR202, BHR241, BHR261, HR2450 |
| 91 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 95 | 286263-4 | Makita 286263-4 Cap 35 HR2020, HR2460, HR2470, HR2470T, HR3611FT |
| 96 | 233940-9 | Makita 233940-9 RING SPRING 19, HR1830FT |
| 97 | 418217-5 | Makita 418217-5 CHUCK COVER, HR245FT |
| 98 | 345333-9 | Makita 345333-9 STOPPER, HR2450FT |
| 99 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 100 | 345187-4 | Makita 345187-4 GUIDE WASHER, HR2020 |
| 101 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 102 | 267279-8 | Makita 267279-8 FLAT WASHER 21, HR2450 |
| 103 | 324355-2 | Makita 324355-2 TOOL HOLDER, HR2450T |
| 104 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 105 | 231669-1 | Makita 231669-1 TORSION SPRING, HR2450 |
| 106 | 345334-7 | Makita 345334-7 CHANGE RING, HR245FT |
| 107 | 418218-3 | Makita 418218-3 CHANGE COVER, HR245FTT |
| 108 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 109 | 345335-5 | Makita 345335-5 LEAF SPRING, HR245FT |
| 110 | 267270-6 | Makita 267270-6 FLAT WASHER 24, HR245FT |
| 111 | 233924-7 | Makita 233924-7 RING SPRING, HR245FT |
