All parts of Makita HR2460: 80 positions on 1 sheet

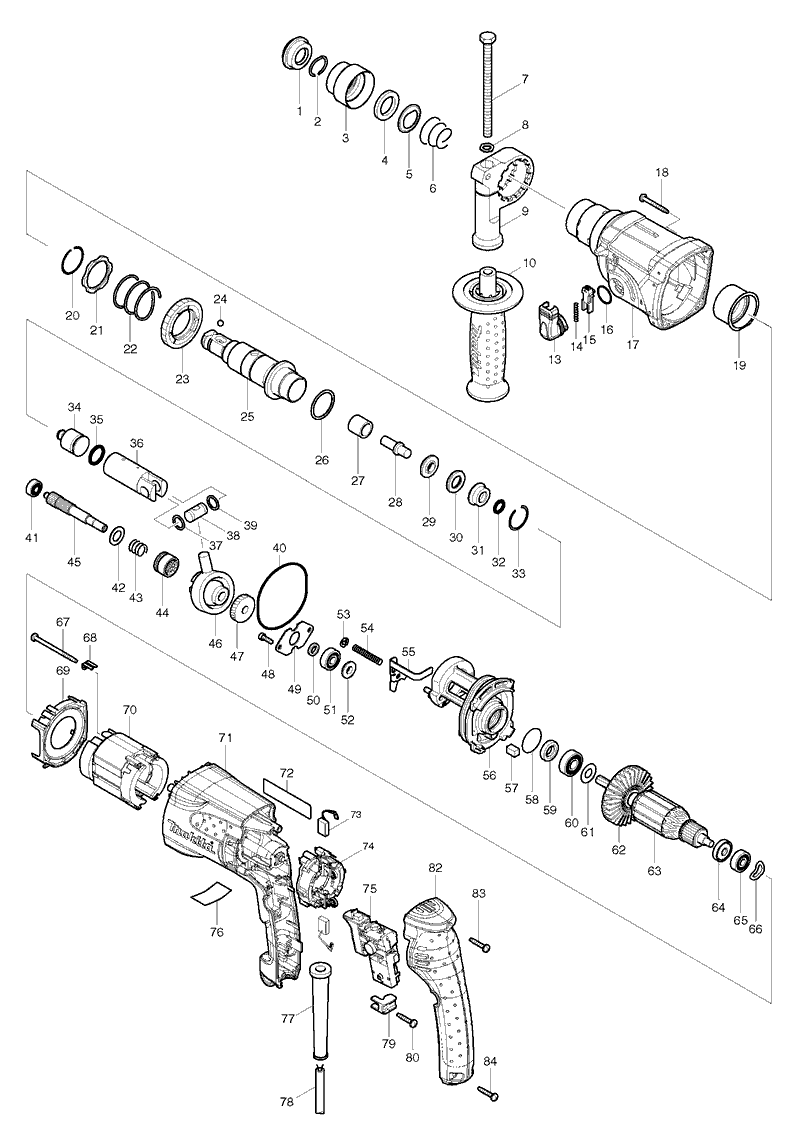

Sheet 1: Makita HR2460 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286263-4 | Makita 286263-4 Cap 35 HR2020, HR2460, HR2470, HR2470T, HR3611FT |
| 2 | 233940-9 | Makita 233940-9 RING SPRING 19, HR1830FT |
| 3 | 417629-9 | Makita 417629-9 CHUCK COVER, HR2020 |
| 4 | 257241-1 | Makita 257241-1 RING 21, HR180D |
| 5 | 345187-4 | Makita 345187-4 GUIDE WASHER, HR2020 |
| 6 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 7 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 8 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
| 9 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 10 | 158057-6 | Makita 158057-6 Grip 36 Complete for HR1830FT |
| 13 | 162244-1 | Makita 162244-1 CHANGE LEVER COMPLETE, HR2470 |
| 14 | 233459-8 | Makita 233459-8 COMPRESSION SPRING 3, HR1830FT |
| 15 | 419192-8 | Makita 419192-8 LOCK BUTTON, HR1830FT |
| 16 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 17 | 158305-3 | Makita 158305-3 GEAR HOUSING COMPLETE, HR2460 |
| 18 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 19 | 153290-5 | Makita 153290-5 NEEDLE BEARING COMPLETE, HR2440 |
| 20 | 233918-2 | Makita 233918-2 RING SPRING 28, HP2020 |
| 21 | 267805-3 | Makita 267805-3 WASHER 30, HR2460 |
| 22 | 233328-3 | Makita 233328-3 COMPRESSION SPRING 31, HR2020 |
| 23 | 227019-6 | Makita 227019-6 SPUR GEAR 51, HR2020 |
| 24 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 25 | 158306-1 | Makita 158306-1 TOOL HOLDER COMPLETEHR2230 |
| 26 | 267229-3 | Makita 267229-3 FLAT WASHER 28, HR2020 |
| 27 | 331769-8 | Makita 331769-8 9 Sleeve 9 HR2470 HR2470T HR2810 HR2811 BHR202 BHR241 BHR261 |
| 28 | 324669-9 | Makita 324669-9 Impact Bolt for HR2453 |
| 29 | 324402-9 | Makita 324402-9 RING 10, HR2450T |
| 30 | 421955-0 | Makita 421955-0 Cushion Ring 13 HR2453 HR2470 HR2230 HR2460 HR2810 |
| 31 | 324216-6 | Makita 324216-6 O RING CASE, HR2020 |
| 32 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 33 | 233917-4 | Makita 233917-4 Ring Spring 28 for HR2020 HR2440 HR2450 HR2460 HR2470 HR2810 |
| 34 | 324733-6 | Makita 324733-6 STRIKER, HR2470 |
| 35 | 213227-5 | Makita 213227-5 O RING 16, HR2020 |
| 36 | 317517-9 | Makita 317517-9 Piston Cylinder HR2020 |
| 37 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 38 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 39 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 40 | 213727-5 | Makita 213727-5 O-RING 63, HR2453 |
| 41 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 42 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 43 | 233347-9 | Makita 233347-9 COMPRESSION SPRING 12, HR2020 |
| 44 | 331734-7 | Makita 331734-7 CLUTCH CAM, HR2453 |
| 45 | 227182-5 | Makita 227182-5 SPUR GEAR 10, HR2460 |
| 46 | 219014-0 | Makita 219014-0 Swash Bearing 10 for HR2450 HR2455 BHR200 BHR202 |
| 47 | 226656-3 | Makita 226656-3 HELICAL GEAR 26, HR2470 |
| 48 | 266273-7 | Makita 266273-7 HEX SOCKET HEAD BOLT M4*12, HR2020 |
| 49 | 345179-3 | Makita 345179-3 BEARING RETAINER, HR2020 |
| 50 | 267234-0 | Makita 267234-0 FLAT WASHER 8, HR2020 |
| 51 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 52 | 324212-4 | Makita 324212-4 RING 8, HR2020 |
| 53 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 54 | 233388-5 | Makita 233388-5 COMPRESSION SPRING 5, HR2020 |
| 55 | 345770-7 | Makita 345770-7 Change Plate for HR2230 |
| 56 | 158308-7 | Makita 158308-7 INNER HOUSING COMPLETE HR2460, HR2460 |
| 57 | 443126-9 | Makita 443126-9 FELT, HR2453 |
| 58 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 59 | 213077-8 | Makita 213077-8 OIL SEAL 10, HR2470 |
| 60 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 61 | 267213-8 | Makita 267213-8 FLAT WASHER 10, HR2460 |
| 63 | 515289-2 | Makita 515289-2 Armature Ass'y HR2470 240V |
| 64 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 65 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 66 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 67 | 266334-3 | Makita 266334-3 TAPPING SCREW 4X60, GA9010 |
| 68 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 69 | 419716-0 | Makita 419716-0 BAFFLE PLATE, HR2470 |
| 70 | 626579-9 | Old code 626579-9 |
| 71 | 419731-4 | Makita 419731-4 MOTOR HOUSING, HR2470 |
| 72 | 863521-1 | Makita 863521-1 HR2460 NAME PLATEHR2460 |
| 73 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 74 | 638500-6 | Makita 638500-6 Brush Holder for HR2470F HR2470 |
| 75 | 650588-6 | Makita 650588-6 Switch HR2470F HR2470 HR2230 HR2460 |
| 76 | 814958-5 | Makita 814958-5 HR2460 SERIAL N0.LABHR2460 |
| 77 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 78 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 79 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 80 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 82 | 419717-8 | Makita 419717-8 Handle Cover HR2470 |
| 83 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 84 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
