All parts of Makita HR2450: 89 positions on 1 sheet

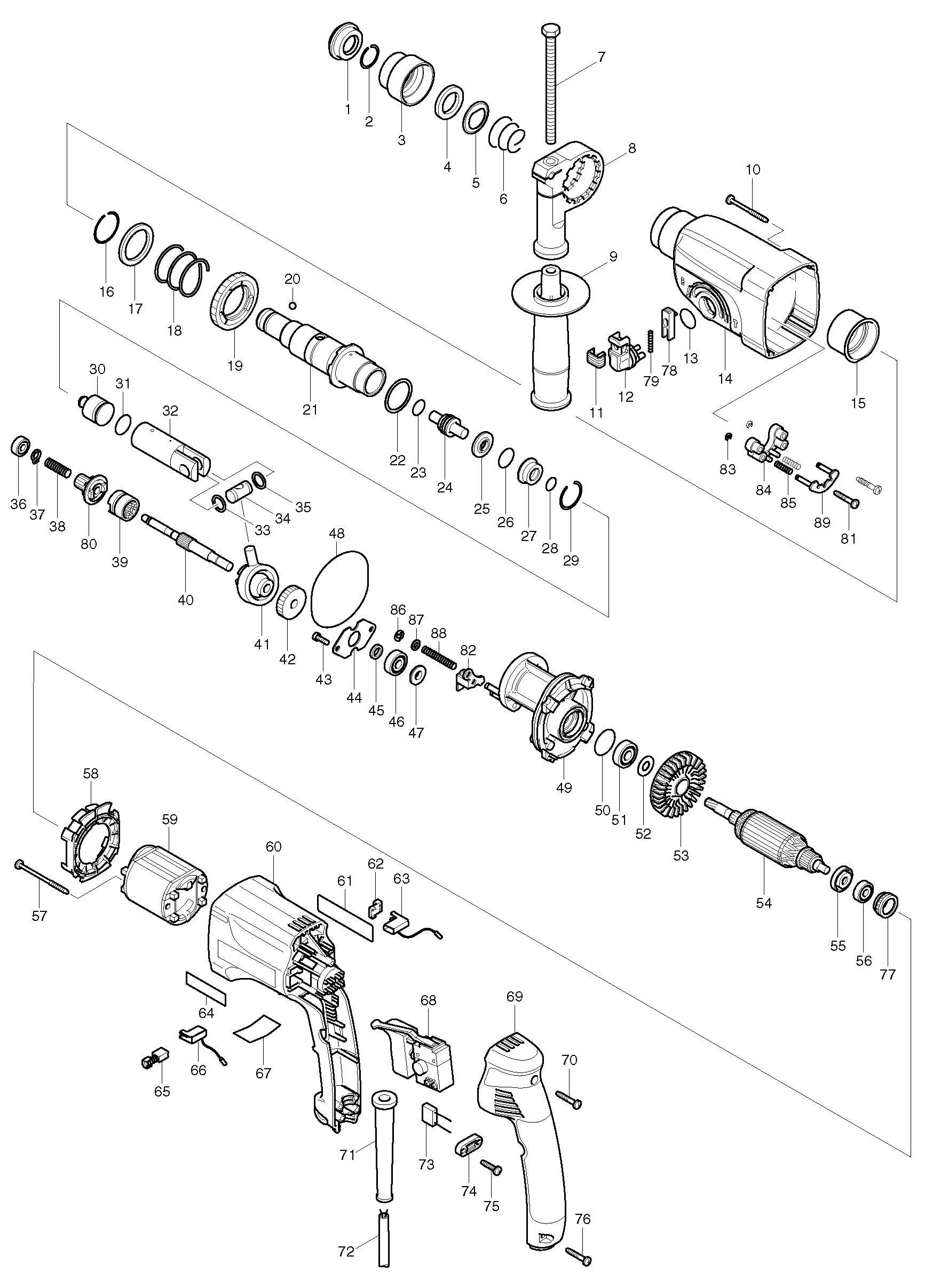

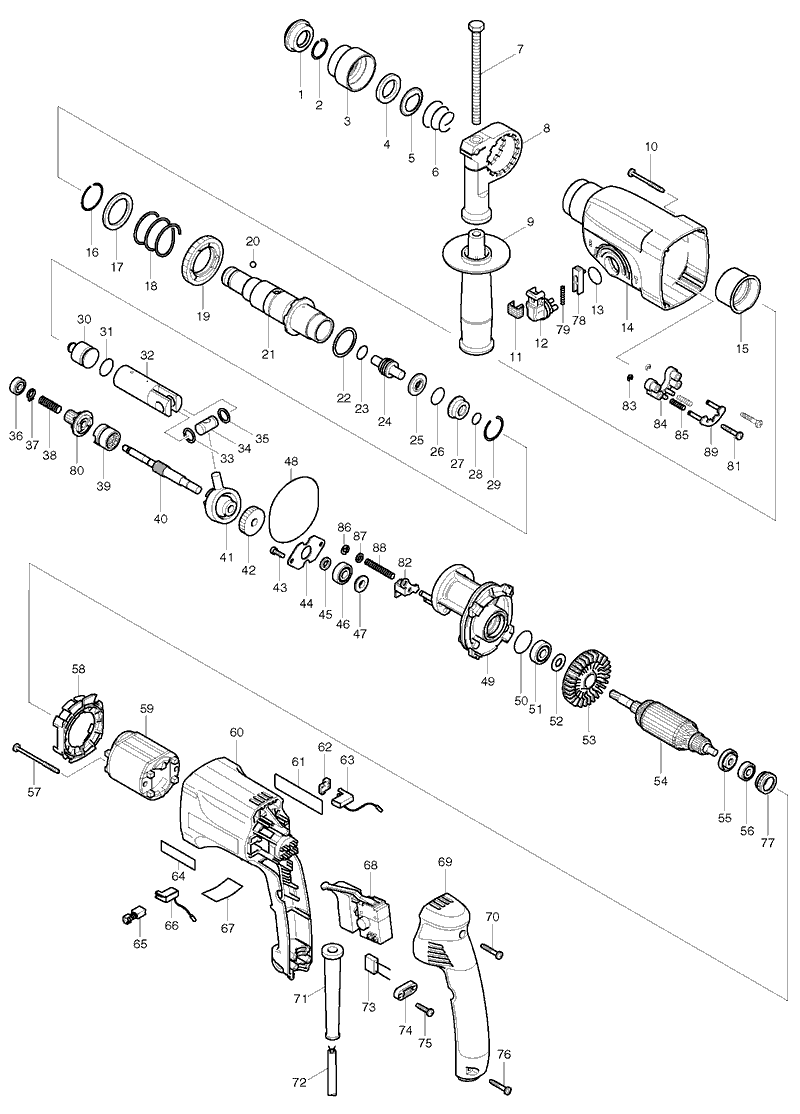

Sheet 1: Makita HR2450 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286263-4 | Makita 286263-4 Cap 35 HR2020, HR2460, HR2470, HR2470T, HR3611FT |
| 2 | 233915-8 | Makita 233915-8 RING SPRING 19 HR2450 |
| 3 | 417629-9 | Makita 417629-9 CHUCK COVER, HR2020 |
| 4 | 257241-1 | Makita 257241-1 RING 21, HR180D |
| 5 | 345187-4 | Makita 345187-4 GUIDE WASHER, HR2020 |
| 6 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 7 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 8 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 9 | 152521-9 | Makita 152521-9 GRIP 36 COMPLETE HP2041 |
| 10 | 266069-6 | Makita 266069-6 TAPPING SCREW, UB1101 |
| 11 | 417794-4 | Makita 417794-4 CAP, HR2450 |
| 12 | 162229-7 | Makita 162229-7 Change Lever Complete for HR2455, HR2450 |
| 13 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 14 | 183441-6 | Makita 183441-6 GEAR HOUSING SET, HR2450 |
| 15 | 153290-5 | Makita 153290-5 NEEDLE BEARING COMPLETE, HR2440 |
| 16 | 233918-2 | Makita 233918-2 RING SPRING 28, HP2020 |
| 17 | 267228-5 | Makita 267228-5 WASHER 30, HR2020 |
| 18 | 233328-3 | Makita 233328-3 COMPRESSION SPRING 31, HR2020 |
| 19 | 227028-5 | Makita 227028-5 Spur Gear 51 for HR2450 |
| 20 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 21 | 153365-0 | Makita 153365-0 Tool Holder Complete HR2450 HR2450F HR2455 HR2432 |
| 22 | 267229-3 | Makita 267229-3 FLAT WASHER 28, HR2020 |
| 23 | 213128-7 | Makita 213128-7 O-RING 12 HR2450 |
| 24 | 324278-4 | Makita 324278-4 IMPACT BOLT, HR2020 |
| 25 | 324218-2 | Makita 324218-2 RING 9, HR2020 |
| 26 | 213232-2 | Makita 213232-2 O-RING 15 HR2450 |
| 27 | 324216-6 | Makita 324216-6 O RING CASE, HR2020 |
| 28 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 29 | 233917-4 | Makita 233917-4 Ring Spring 28 for HR2020 HR2440 HR2450 HR2460 HR2470 HR2810 |
| 30 | 324214-0 | Makita 324214-0 STRIKER, HR2020 |
| 31 | 213227-5 | Makita 213227-5 O RING 16, HR2020 |
| 32 | 331632-5 | Makita 331632-5 Piston Cylinder for HR2450 |
| 33 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 34 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 35 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 36 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 37 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 38 | 233343-7 | Makita 233343-7 COMPRESSION SPRING 7, HR2450 |
| 39 | 331634-1 | Makita 331634-1 CLUTCH CAM, HR2450 |
| 40 | 324248-3 | Makita 324248-3 CAM SHAFT, HR2450 |
| 41 | 219014-0 | Makita 219014-0 Swash Bearing 10 for HR2450 HR2455 BHR200 BHR202 |
| 42 | 226550-9 | Makita 226550-9 HELICAL GEAR, HR2020 |
| 43 | 266273-7 | Makita 266273-7 HEX SOCKET HEAD BOLT M4*12, HR2020 |
| 44 | 345179-3 | Makita 345179-3 BEARING RETAINER, HR2020 |
| 45 | 267234-0 | Makita 267234-0 FLAT WASHER 8, HR2020 |
| 46 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 47 | 324212-4 | Makita 324212-4 RING 8, HR2020 |
| 48 | 213725-9 | Makita 213725-9 O-RING 68 HR2450 |
| 49 | 153367-6 | Makita 153367-6 INNER HOUSING COMP.HR2450 |
| 50 | 213380-7 | Makita 213380-7 O-RING 24 HR2450 |
| 51 | 210060-6 | Makita 210060-6 BALL BEARING 609LLU, HR2020 |
| 52 | 267231-6 | Makita 267231-6 FLAT WASHER 9, HR2020 |
| 53 | 240047-4 | Makita 240047-4 FAN 60 HR2450 |
| 54 | 517378-9 | Makita 517378-9 ARMATURE ASSY HR2450 |
| 55 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 56 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 57 | 266052-3 | Makita 266052-3 TAPPING SCREW, UB1101 |
| 58 | 417631-2 | Makita 417631-2 BAFFLE PLATE HR2450 |
| 59 | 633488-5 | Makita 633488-5 FIELD 220-240V 140T, HR2020 |
| 60 | 183409-2 | Makita 183409-2 MOTOR HOUSING HR2450 |
| 61 | 853822-5 | Makita 853822-5 NAME PLATE HR2450 |
| 62 | 689111-0 | Makita 689111-0 SPACER, HR2020 |
| 63 | 643988-7 | Makita 643988-7 BRUSH HOLDER, HP2050 |
| 64 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 65 | 191962-4 | Old code CB-419 = CB-407 |
| 66 | 643989-5 | Makita 643989-5 BRUSH HOLDER, HR2020 |
| 67 | 815934-2 | Makita 815934-2 SERIAL NO.LABEL Y OR YM, HR2450 |
| 68 | 650508-0 | Makita 650508-0 Switch TG813TLB-1 for HR2450 HR2450FT HR2455 HR2475 |
| 69 | 153284-0 | Makita 153284-0 HANDLE COVER COMPLETE, HR2440 |
| 70 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 71 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 72 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 73 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 74 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 75 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 76 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 77 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 78 | 417795-2 | Makita 417795-2 LOCK BUTTON, HR2450 |
| 79 | 233341-1 | Makita 233341-1 COMPRESSION SPRING, HR2450 |
| 80 | 226399-7 | Makita 226399-7 SPUR GEAR 10, HR2450 |
| 81 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 82 | 345220-2 | Makita 345220-2 CHANGE PLATE, HR2450 |
| 83 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 84 | 417796-0 | Makita 417796-0 GUIDE BASE, HR2450 |
| 85 | 233344-5 | Makita 233344-5 COMPRESSION SPRING 4, HR2450 |
| 86 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 87 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 88 | 233342-9 | Makita 233342-9 COMPRESSION SPRING 6, HR2450 |
| 89 | 163430-7 | Makita 163430-7 LOCK PLATE COMPLETE, HR2450 |
