Makita HR2410
Makita HR2410: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2410: 85 positions on 1 sheet

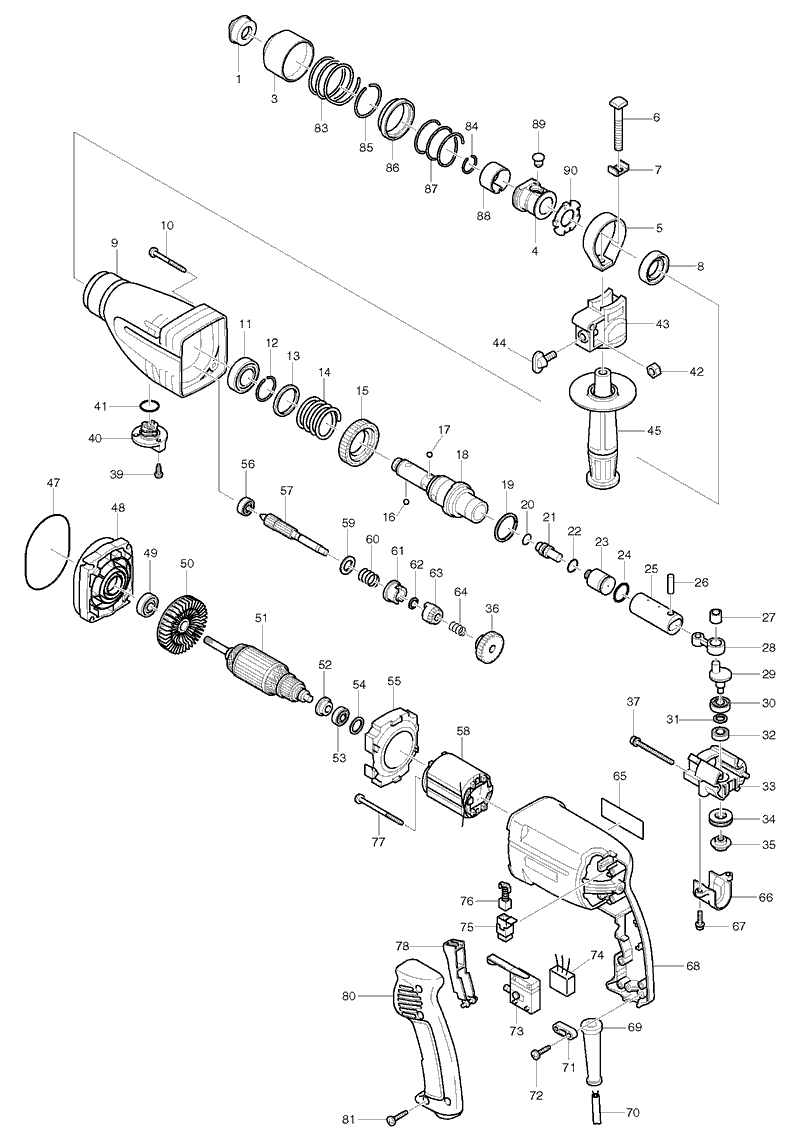

Sheet 1: Makita HR2410 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286240-6 | Makita 286240-6 CAP 37 |
| 3 | 415076-8 | Makita 415076-8 CHANGE RING COVER |
| 4 | 152470-0 | Makita 152470-0 CHANGE RING COMPLETE |
| 5 | 344205-5 | Makita 344205-5 BELT HR2410 |
| 6 | 266092-1 | Makita 266092-1 SQUARE BOLT M8X60 FOR HR |
| 7 | 267719-6 | Makita 267719-6 SQUARE WASHER 9, HR2412 |
| 8 | 213313-2 | Makita 213313-2 OIL SEAL 20 |
| 9 | 159759-7 | Makita 159759-7 GEAR HOUSING COMPLETE |
| 10 | 266069-6 | Makita 266069-6 TAPPING SCREW, UB1101 |
| 11 | 211323-3 | Makita 211323-3 BALL BEARING 6904LLU, HR2412 |
| 12 | 231962-3 | Makita 231962-3 RING SPRING 26, HR2412 |
| 13 | 267132-8 | Makita 267132-8 FLAT WASHER 29 |
| 14 | 233109-5 | Makita 233109-5 COMPRESSION SPRING 29 |
| 15 | 226290-9 | Makita 226290-9 SPUR GEAR 48 |
| 16 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 17 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 18 | 322744-5 | Makita 322744-5 TOOL HOLDER |
| 19 | 267129-7 | Makita 267129-7 FLAT WASHER 27, HR2410 |
| 20 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 21 | 322739-8 | Makita 322739-8 IMPACT BOLT |
| 22 | 213117-2 | Makita 213117-2 O RING 11 |
| 23 | 322740-3 | Makita 322740-3 STRIKER, HR2412 |
| 24 | 213214-4 | Makita 213214-4 O RING 16 |
| 25 | 331446-2 | Makita 331446-2 PISTON CYLINDER |
| 26 | 256099-5 | Makita 256099-5 PIN 6, HR2412 |
| 27 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 28 | 331447-0 | Makita 331447-0 Connecting Rod HR2412 HR2410 HR2430 HR2431 |
| 29 | 322741-1 | Makita 322741-1 SWITH LEVER, HR2413 |
| 30 | 211098-4 | Makita 211098-4 BALL BEARING 699ZZ, HR2412 |
| 31 | 267130-2 | Makita 267130-2 FLAT WASHER 9, HR2410 |
| 32 | 211099-2 | Makita 211099-2 BALL BEARING 689ZZ, HR2412 |
| 33 | 159761-0 | Makita 159761-0 CRANK HOUSING COMPLETE HR2412, HR2412 |
| 34 | 212110-3 | Makita 212110-3 THRUST NEEDLE BEARING 1224, HR2412 |
| 35 | 226726-8 | Makita 226726-8 STRAIGHT BEVEL GEAR 12 |
| 36 | 226434-1 | Makita 226434-1 HELICAL GEAR 31, HR2410 |
| 37 | 911576-1 | Makita 911576-1 PAN HEAD SCREW M4X50, HR2412 |
| 39 | 251392-2 | Makita 251392-2 + PAN HEAD SCREW M4 |
| 40 | 152471-8 | Makita 152471-8 CHANGE LEVER COMPLETE, HR2410 |
| 41 | 213261-5 | Makita 213261-5 O RING 17 |
| 42 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 43 | 415658-6 | Makita 415658-6 GRIP BASE, HR2410 |
| 44 | 265720-5 | Makita 265720-5 Thumb Screw M5X14, HR2412 |
| 45 | 134777-6 | Makita 134777-6 Grip 36 Ass'Y Replacement Part |
| 47 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 48 | 159760-2 | Makita 159760-2 INNER HOUSING COMPLETE, HR2410 |
| 49 | 211051-0 | Makita 211051-0 BALL BEARING 609LLB, HR2412 |
| 50 | 241883-1 | Makita 241883-1 FAN 60 |
| 51 | 517143-6 | Makita 517143-6 ARMATURE ASSY 220V, HR2410 |
| 52 | 681600-1 | Makita 681600-1 INSULATION WASHER |
| 53 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 54 | 253842-3 | Makita 253842-3 FLAT WASHER 14, HR2410 |
| 55 | 415628-5 | Makita 415628-5 BAFFLE PLATE, HR2410 |
| 56 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 57 | 226293-3 | Makita 226293-3 SPUR GEAR 10, HR2410 |
| 58 | 633313-0 | Makita 633313-0 FIELD 220V, HR2412 |
| 59 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 60 | 233089-5 | Makita 233089-5 COMPRESSION SPRING, 9067 |
| 61 | 322743-7 | Makita 322743-7 CLUTCH CAM |
| 62 | 267131-0 | Makita 267131-0 FLAT WASHER 8, HR2410 |
| 63 | 226725-0 | Makita 226725-0 STRAIGHT BEVEL GEAR 14 |
| 64 | 233110-0 | Makita 233110-0 COMPRESSION SPRING 8 HR2410/HR2430 |
| 65 | 857630-6 | Makita 857630-6 NAME PLATE HR2410 |
| 66 | 415630-8 | |
| 67 | 911526-6 | Makita 911526-6 PAN HEAD SCREW M4X16WRM, HR2412 |
| 68 | 415626-9 | Makita 415626-9 MOTOR HOUSING |
| 69 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 70 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 71 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 72 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 73 | 651933-8 | Makita 651933-8 SWITCH 8653C711X |
| 74 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 75 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 76 | 191962-4 | Old code CB-419 = CB-407 |
| 77 | 266052-3 | Makita 266052-3 TAPPING SCREW, UB1101 |
| 78 | 415629-3 | Makita 415629-3 SWITCH LEVER, HR2412 |
| 80 | 415627-7 | Makita 415627-7 HANDLE COVER, HR2412 |
| 81 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 83 | 233203-3 | Makita 233203-3 COMPRESSION SPRING, HR2412 |
| 84 | 231979-6 | Makita 231979-6 RING SPRING, HR2412 |
| 85 | 231936-4 | Makita 231936-4 RING SPRING, HR2412 |
| 86 | 323819-3 | Makita 323819-3 SPRING GUIDE, HR2412 |
| 87 | 233234-2 | Makita 233234-2 COMPRESSION SPRING, HR2412 |
| 88 | 232190-3 | Makita 232190-3 LEAF SPRING 26 HR2400 |
| 89 | 256447-8 | Makita 256447-8 PIN 8 HK0500 |
| 90 | 344690-2 | Makita 344690-2 GUIDE WASHER, HR2412 |
