Makita HR2400
Makita HR2400: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2400: 78 positions on 1 sheet

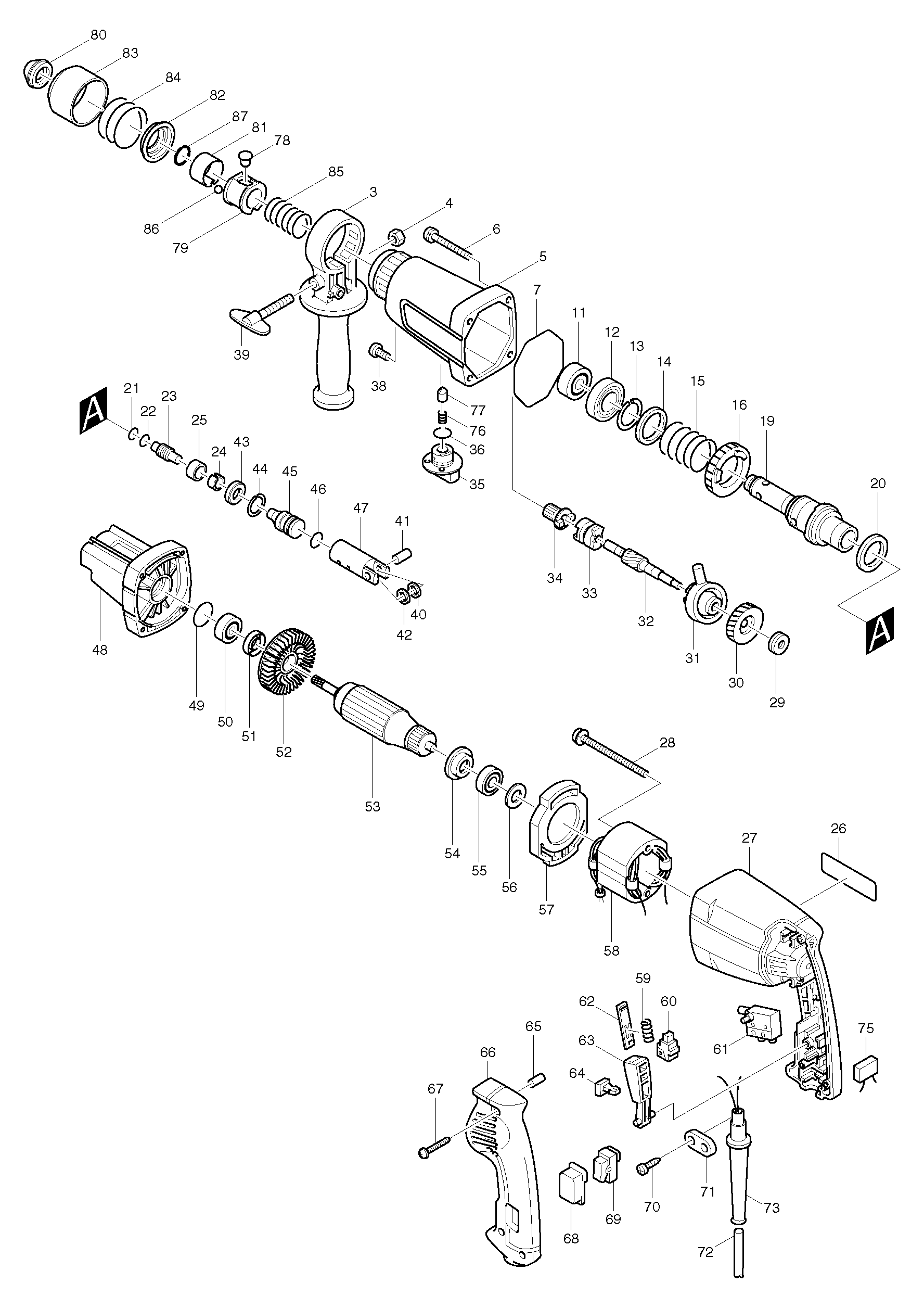

Sheet 1: Makita HR2400 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 3 | 134715-8 | Makita 134715-8 GRIP ASS'Y |
| 4 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 5 | 159594-3 | Makita 159594-3 GEAR HOUSING |
| 6 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 7 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 11 | 211323-3 | Makita 211323-3 BALL BEARING 6904LLU, HR2412 |
| 12 | 213418-8 | Makita 213418-8 OIL SEAL 28 |
| 13 | 231954-2 | |
| 14 | 267110-8 | Makita 267110-8 FLAT WASHER 31 |
| 15 | 233060-9 | Makita 233060-9 COMPRESSION SRING 31 |
| 16 | 226260-8 | Makita 226260-8 SPUR GEAR 46 |
| 19 | 134714-0 | Makita 134714-0 TOOL HOLDER ASS'Y |
| 20 | 267105-1 | Makita 267105-1 Flat Washer 29 for HR2810 |
| 21 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 22 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 23 | 322586-7 | Makita 322586-7 IMPACT BOLT |
| 24 | 321915-1 | Makita 321915-1 IDLER HR2000 |
| 25 | 262038-5 | Makita 262038-5 RUBBER RING 17 HR2000 |
| 26 | 857141-1 | |
| 27 | 415415-2 | Makita 415415-2 MOTOR HOUSING HR2400 |
| 28 | 911581-8 | Makita 911581-8 PAN HEAD SCREW M4X55 |
| 29 | 212040-8 | Makita 212040-8 THRUST NEEDLE BEARING 819 |
| 30 | 226410-5 | |
| 31 | 219004-3 | |
| 32 | 322588-3 | Makita 322588-3 CAM SHAFT |
| 33 | 322652-0 | Makita 322652-0 CLUTCH |
| 34 | 226259-3 | Makita 226259-3 SPUR GEAR 10 HR2400 |
| 35 | 415372-4 | Makita 415372-4 CHANGE LEVER |
| 36 | 213265-7 | Makita 213265-7 O RING 17 |
| 38 | 251392-2 | Makita 251392-2 + PAN HEAD SCREW M4 |
| 39 | 265715-8 | Makita 265715-8 SCREW 6X40 |
| 40 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 41 | 321916-9 | Makita 321916-9 PISTON JOINT HR2400 |
| 42 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 43 | 267109-3 | Makita 267109-3 FLAT WASHER 13.5 |
| 44 | 231953-4 | Makita 231953-4 RING SPRING 23 |
| 45 | 322587-5 | Makita 322587-5 STRIKER |
| 46 | 213214-4 | Makita 213214-4 O RING 16 |
| 47 | 316450-2 | Makita 316450-2 PISTON CYLINDER |
| 48 | 159653-3 | Makita 159653-3 GEAR HOUSING COVER |
| 49 | 213385-7 | Makita 213385-7 O RING 24 |
| 50 | 211051-0 | Makita 211051-0 BALL BEARING 609LLB, HR2412 |
| 51 | 213112-2 | Makita 213112-2 OIL SEAL 12 |
| 52 | 241850-6 | Makita 241850-6 FAN 60, DS4010 |
| 53 | 515163-4 | Makita 515163-4 ARMATURE ASS'Y 220V |
| 54 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 55 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 56 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 57 | 415127-7 | Makita 415127-7 BAFFLE PLATE |
| 58 | 625158-0 | Makita 625158-0 FIELD 220V |
| 59 | 231457-6 | Makita 231457-6 COMPRESSION SPRING 3, LS1040 |
| 60 | 191955-1 | Makita 191955-1 CARBON BRUSH CB-417 |
| 61 | 651919-2 | Makita 651919-2 Switch SGE106CV-1P for JR3030T HR2010 HR2400 |
| 62 | 415117-0 | Makita 415117-0 LOCK PLATE |
| 63 | 415120-1 | Makita 415120-1 SWITCH LEVER |
| 64 | 415118-8 | Makita 415118-8 LOCK BUTTON |
| 65 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 66 | 152416-6 | Makita 152416-6 HANDLE COVER HR2400 |
| 67 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 68 | 421460-7 | Makita 421460-7 DUST COVER HR2400 |
| 69 | 651556-2 | Makita 651556-2 SWITCH VLX11 |
| 70 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 71 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 72 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 73 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 75 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 76 | 231288-3 | Makita 231288-3 COMPRESSION SPRING 6 |
| 77 | 322653-8 | Makita 322653-8 PUSH CONE |
| 78 | 322517-6 | Makita 322517-6 ROLLER 7 |
| 79 | 154404-9 | Makita 154404-9 CHANGE RING COMPLETE |
| 80 | 286234-1 | Makita 286234-1 CAP 37 |
| 81 | 232177-5 | Makita 232177-5 LEAF SPRING 26 |
| 82 | 344574-4 | Makita 344574-4 SPRING GUIDE, HR160D |
| 83 | 415076-8 | Makita 415076-8 CHANGE RING COVER |
| 84 | 213068-9 | Makita 213068-9 O RING 10 |
| 85 | 233202-5 | Makita 233202-5 COMPRESSION SPRING 20, EBH250U |
| 86 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 87 | 257172-4 | Makita 257172-4 RING 20 |
