Makita HR2010
Makita HR2010: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2010: 84 positions on 1 sheet

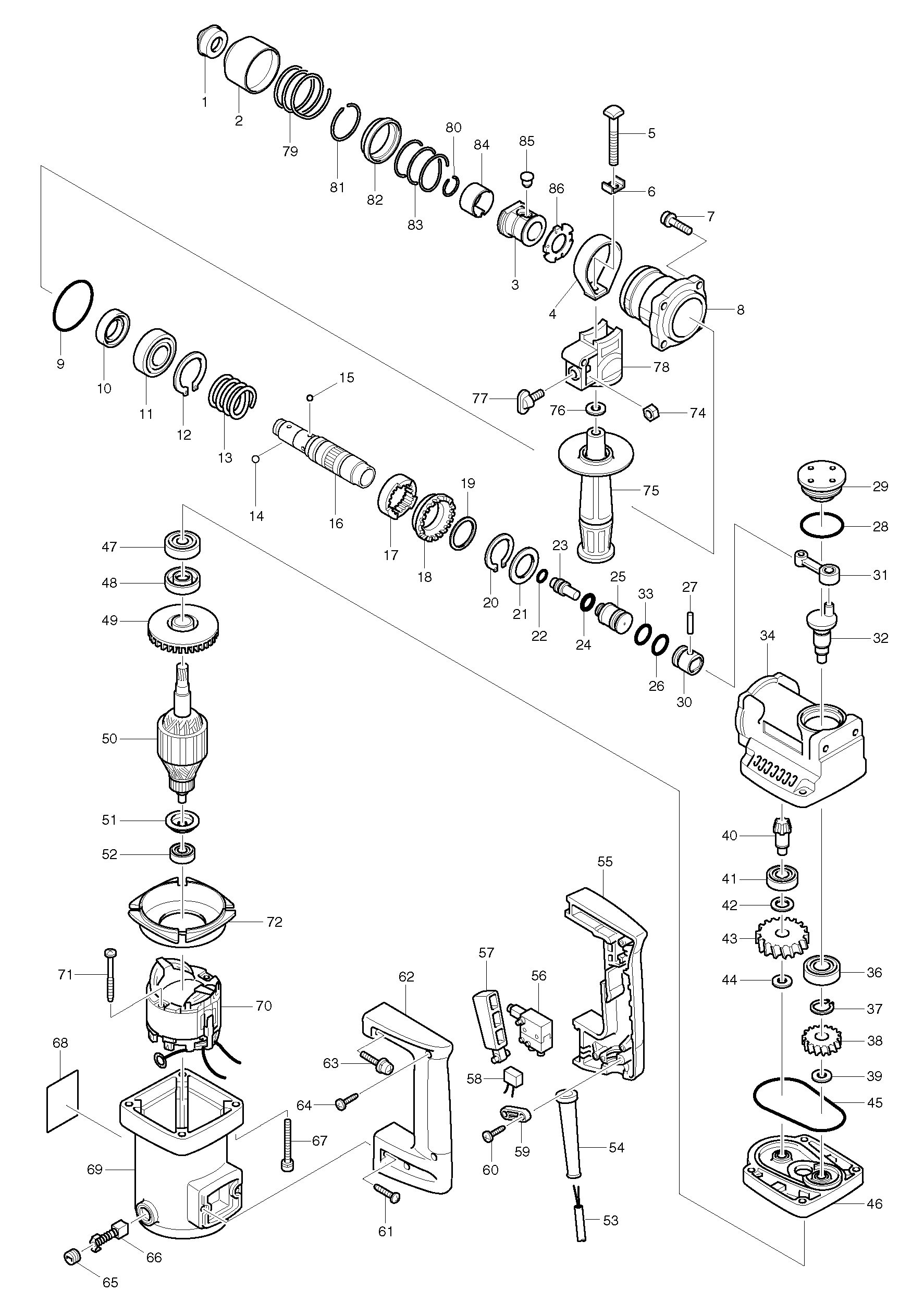

Sheet 1: Makita HR2010 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286251-1 | Makita 286251-1 CAP 37 |
| 2 | 415076-8 | Makita 415076-8 CHANGE RING COVER |
| 3 | 152470-0 | Makita 152470-0 CHANGE RING COMPLETE |
| 4 | 344205-5 | Makita 344205-5 BELT HR2410 |
| 5 | 266092-1 | Makita 266092-1 SQUARE BOLT M8X60 FOR HR |
| 6 | 267719-6 | Makita 267719-6 SQUARE WASHER 9, HR2412 |
| 7 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 8 | 316781-9 | Makita 316781-9 BARREL |
| 9 | 213604-1 | Makita 213604-1 O RING 50 |
| 10 | 213313-2 | Makita 213313-2 OIL SEAL 20 |
| 11 | 211304-7 | Makita 211304-7 BALL BEARING 6004 |
| 12 | 961110-7 | Makita 961110-7 RETAINING RING S-30 |
| 13 | 233145-1 | |
| 14 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 15 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 16 | 322843-3 | Makita 322843-3 TOOL HOLDER |
| 17 | 223112-4 | Makita 223112-4 CLUTCH CAM, HR2010 |
| 18 | 226732-3 | Makita 226732-3 SPIRAL BEVEL GEAR 33 |
| 19 | 267127-1 | Makita 267127-1 FLAT WASHER 26, HR2010 |
| 20 | 961106-8 | Makita 961106-8 RETAINING RING S-26 |
| 21 | 267148-3 | Makita 267148-3 FLAT WASHER 23 |
| 22 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 23 | 322739-8 | Makita 322739-8 IMPACT BOLT |
| 24 | 213117-2 | Makita 213117-2 O RING 11 |
| 25 | 322864-5 | Makita 322864-5 STRIKER |
| 26 | 213172-4 | Makita 213172-4 O-RING 15 HR3520 |
| 27 | 256123-4 | Makita 256123-4 PIN 5 |
| 28 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 29 | 415902-1 | Makita 415902-1 CRANK CAP, HR2010 |
| 30 | 316819-0 | Makita 316819-0 PISTON |
| 31 | 152504-9 | Makita 152504-9 CONNECTING ROD COMPLETE |
| 32 | 322842-5 | Makita 322842-5 CRANK SHAFT |
| 33 | 213172-4 | Makita 213172-4 O-RING 15 HR3520 |
| 34 | 159847-0 | Makita 159847-0 CRANK HOUSING COMPLETE |
| 36 | 211204-1 | |
| 37 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 38 | 226458-7 | Makita 226458-7 HELICAL GEAR 29 |
| 39 | 253865-1 | Makita 253865-1 FLAT WASHER 8 |
| 40 | 226731-5 | Makita 226731-5 SPIRAL BEVEL GEAR 9 |
| 41 | 211104-5 | Makita 211104-5 BALL BEARING 6001, 5377MG |
| 42 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 43 | 226459-5 | Makita 226459-5 HELICAL GEAR 43 |
| 44 | 253865-1 | Makita 253865-1 FLAT WASHER 8 |
| 45 | 213760-7 | Makita 213760-7 O-RING 78, M5900B |
| 46 | 159846-2 | Makita 159846-2 GEAR HOUSING COMPLETE |
| 47 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 48 | 213112-2 | Makita 213112-2 OIL SEAL 12 |
| 49 | 241879-2 | Makita 241879-2 FAN 60 |
| 50 | 516269-1 | Makita 516269-1 ARMATURE ASS Y 240V |
| 51 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 52 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 53 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 54 | 682505-8 | Makita 682505-8 Cord Guard 10-90 for 5806B |
| 55 | 182816-6 | Makita 182816-6 HANDLE SET |
| 56 | 651919-2 | Makita 651919-2 Switch SGE106CV-1P for JR3030T HR2010 HR2400 |
| 57 | 415903-9 | Makita 415903-9 SWITCH LEVER |
| 58 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 59 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 60 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 61 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 62 | 182816-6 | Makita 182816-6 HANDLE SET |
| 63 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 64 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 65 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 66 | 181038-5 | Makita 181038-5 Carbon Brushes CB-105 for HR2010 HR2510 HR3520 HM0810 HK1800 |
| 67 | 922910-0 | Makita 922910-0 HEX. SOCKET HEAD BOLT M5X |
| 68 | 858055-7 | Makita 858055-7 NAME PLATE HR2010 |
| 69 | 159889-4 | Makita 159889-4 MOTOR HOUSING COMPLETE |
| 70 | 594254-4 | Makita 594254-4 FIELD ASS Y 240V |
| 71 | 266046-8 | Makita 266046-8 TAPPING SCREW 5X50, HR2010 |
| 72 | 415904-7 | Makita 415904-7 BAFFLE PLATE |
| 74 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 75 | 152521-9 | Makita 152521-9 GRIP 36 COMPLETE HP2041 |
| 76 | 253865-1 | Makita 253865-1 FLAT WASHER 8 |
| 77 | 265720-5 | Makita 265720-5 Thumb Screw M5X14, HR2412 |
| 78 | 415658-6 | Makita 415658-6 GRIP BASE, HR2410 |
| 79 | 233203-3 | Makita 233203-3 COMPRESSION SPRING, HR2412 |
| 80 | 231979-6 | Makita 231979-6 RING SPRING, HR2412 |
| 81 | 231936-4 | Makita 231936-4 RING SPRING, HR2412 |
| 82 | 323819-3 | Makita 323819-3 SPRING GUIDE, HR2412 |
| 83 | 233234-2 | Makita 233234-2 COMPRESSION SPRING, HR2412 |
| 84 | 232190-3 | Makita 232190-3 LEAF SPRING 26 HR2400 |
| 85 | 256447-8 | Makita 256447-8 PIN 8 HK0500 |
| 86 | 344690-2 | Makita 344690-2 GUIDE WASHER, HR2412 |
