Makita HR2000
Makita HR2000: exploded parts diagram, 1 sheet, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HR2000: 79 positions on 1 sheet

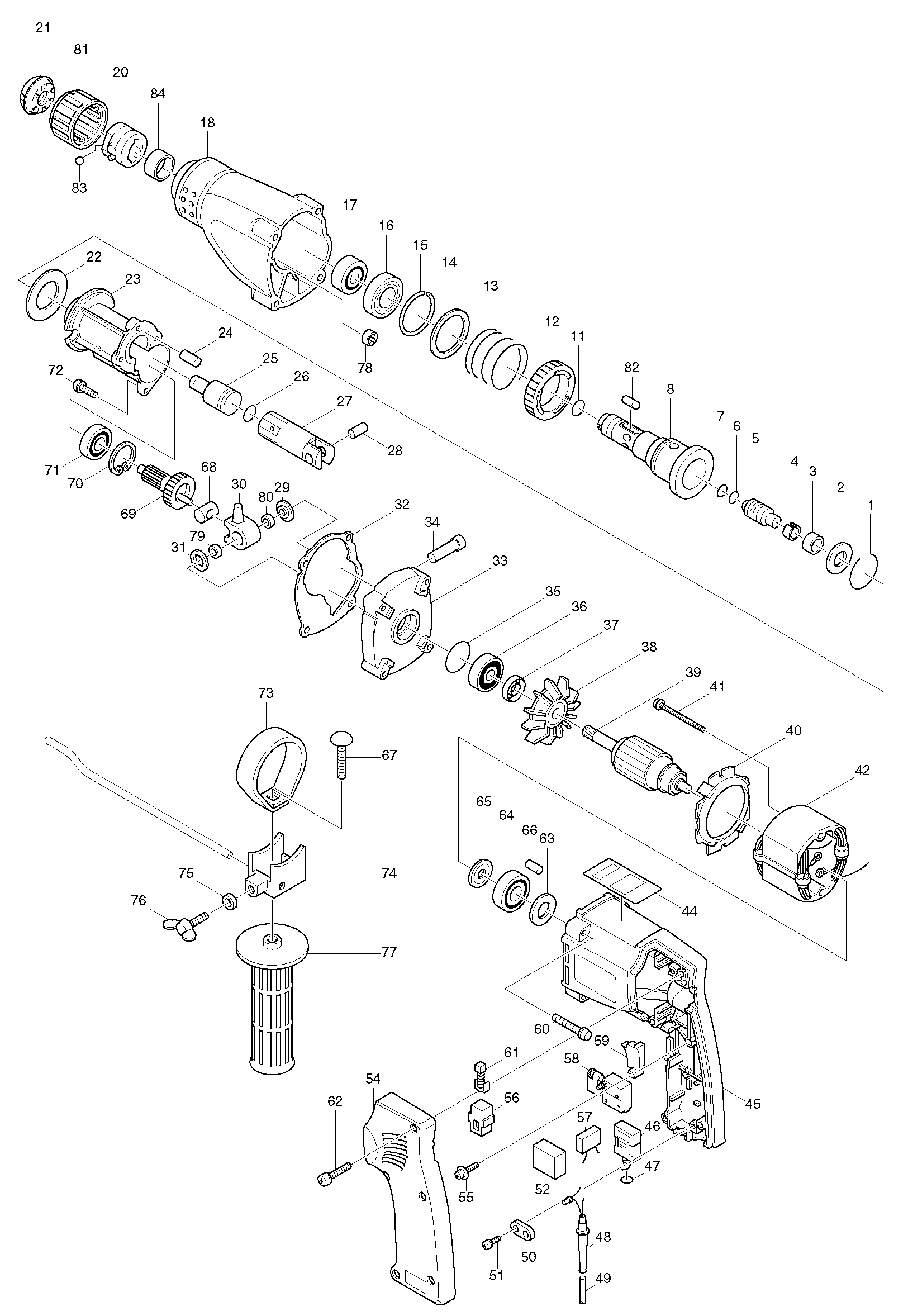

Sheet 1: Makita HR2000 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 231935-6 | Makita 231935-6 RING SPRING 26 |
| 2 | 267022-5 | |
| 3 | 262038-5 | Makita 262038-5 RUBBER RING 17 HR2000 |
| 4 | 321915-1 | Makita 321915-1 IDLER HR2000 |
| 5 | 321913-5 | Makita 321913-5 IMPACT BOLT |
| 6 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 7 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 8 | 322516-8 | |
| 11 | 213068-9 | Makita 213068-9 O RING 10 |
| 12 | 221924-9 | Makita 221924-9 SPUR GEAR 39 |
| 13 | 231408-9 | Makita 231408-9 COMPRESSION SPRING 35 |
| 14 | 267023-3 | |
| 15 | 231936-4 | Makita 231936-4 RING SPRING, HR2412 |
| 16 | 213418-8 | Makita 213418-8 OIL SEAL 28 |
| 17 | 211323-3 | Makita 211323-3 BALL BEARING 6904LLU, HR2412 |
| 18 | 157611-3 | Makita 157611-3 GEAR HOUSING COMPLETE |
| 20 | 154404-9 | Makita 154404-9 CHANGE RING COMPLETE |
| 21 | 286234-1 | Makita 286234-1 CAP 37 |
| 22 | 261067-5 | Makita 261067-5 WASHER 28 |
| 23 | 315883-8 | Makita 315883-8 CRANK HOUSING |
| 24 | 256162-4 | |
| 25 | 321911-9 | Makita 321911-9 STRIKER |
| 26 | 213214-4 | Makita 213214-4 O RING 16 |
| 27 | 331282-6 | Makita 331282-6 PISTON CYLINDER |
| 28 | 321916-9 | Makita 321916-9 PISTON JOINT HR2400 |
| 29 | 342962-9 | Makita 342962-9 WASHER |
| 30 | 321927-4 | |
| 31 | 342962-9 | Makita 342962-9 WASHER |
| 32 | 442087-0 | Makita 442087-0 GEAR HOUSING PACKING |
| 33 | 157612-1 | |
| 34 | 256160-8 | Makita 256160-8 PIN 8 |
| 35 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 36 | 211069-1 | |
| 37 | 213112-2 | Makita 213112-2 OIL SEAL 12 |
| 38 | 241832-8 | Makita 241832-8 FAN 62, JR300VT |
| 39 | 515128-6 | Makita 515128-6 ARMATURE ASS Y 220V |
| 40 | 410773-1 | Makita 410773-1 BAFFLE PLATE |
| 41 | 911581-8 | Makita 911581-8 PAN HEAD SCREW M4X55 |
| 42 | 528147-3 | Makita 528147-3 FIELD ASSY HP2010N |
| 44 | 855437-4 | Makita 855437-4 NAME PLATE HR2000 |
| 45 | 159401-0 | Makita 159401-0 MOTOR HOUSING COMPLETE |
| 46 | 651470-2 | Makita 651470-2 Switch STE210N-1 for HP2010N HR2000 |
| 47 | 213105-9 | Makita 213105-9 O RING 11, 6409 |
| 48 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 49 | 665516-8 | Makita 665516-8 POWER SUPPLY CORD 1.00-2- |
| 50 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 51 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 52 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 54 | 150315-6 | Makita 150315-6 HANDLE COVER COMPLETE |
| 55 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 56 | 643605-9 | Makita 643605-9 BRUSH HOLDER |
| 57 | 645208-5 | |
| 58 | 651256-4 | DISC Makita 651256-4 Switch for 4014NV 4300BV |
| 59 | 411900-3 | Makita 411900-3 SWITCH COVER |
| 60 | 911278-9 | Makita 911278-9 PAN HEAD SCREW M5X55 |
| 61 | 191904-8 | Makita 191904-8 CARBON BRUSH CB-113 |
| 62 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 63 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 64 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 65 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 66 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 67 | 923456-9 | |
| 68 | 321914-3 | |
| 69 | 153160-8 | |
| 70 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 71 | 211204-1 | |
| 72 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 73 | 342633-8 | |
| 74 | 315145-4 | DISC Makita 315145-4 GRIP BASE |
| 75 | 261042-1 | Makita 261042-1 RUBBER WASHER 4.5 |
| 76 | 924216-2 | Makita 924216-2 WING BOLT M5X15 |
| 77 | 273496-0 | Makita 273496-0 GRIP 32 |
| 78 | 212028-8 | Makita 212028-8 NEEDLE BEARING 709 |
| 79 | 212026-2 | Makita 212026-2 NEEDLE CAGE 808 |
| 80 | 212026-2 | Makita 212026-2 NEEDLE CAGE 808 |
| 81 | 415076-8 | Makita 415076-8 CHANGE RING COVER |
| 82 | 322517-6 | Makita 322517-6 ROLLER 7 |
| 83 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 84 | 257172-4 | Makita 257172-4 RING 20 |
