All parts of Makita HR010G: 91 positions on 1 sheet

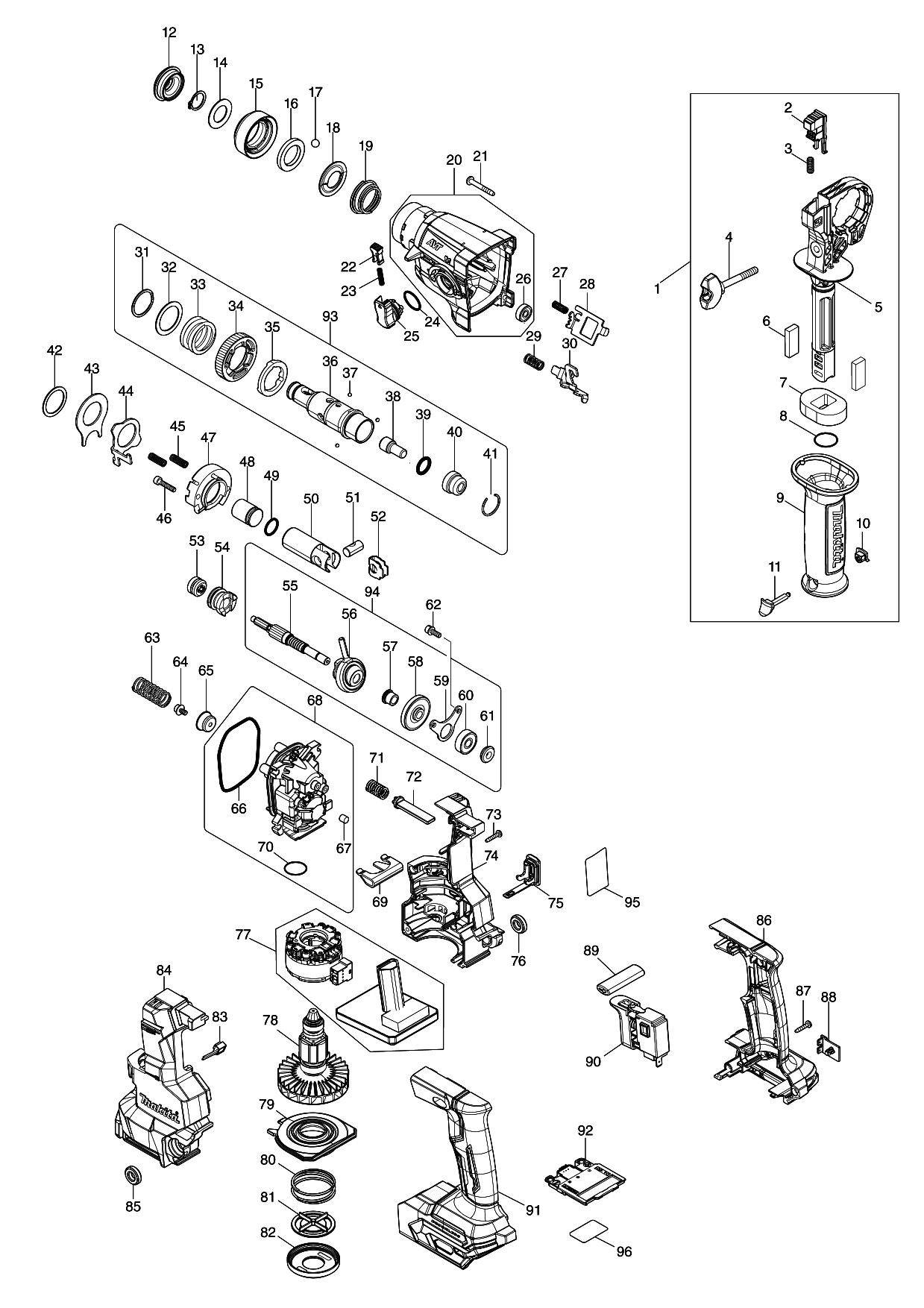

Sheet 1: Makita HR010G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 413N19-8 | |
| 3 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 4 | 265625-9 | |
| 5 | 413N18-0 | |
| 6 | 422A20-4 | |
| 7 | 422A19-9 | |
| 8 | 213262-3 | Makita 213262-3 O RING 18 |
| 9 | 413N20-3 | |
| 10 | 422255-1 | |
| 11 | 162C55-2 | |
| 12 | 286037-3 | Makita 286037-3 CAP 34 |
| 13 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 14 | 253377-4 | Makita 253377-4 FLAT WASHER 17 , HR166D |
| 15 | 458845-4 | Makita 458845-4 CHUCK COVER HR182D |
| 16 | 257416-2 | Makita 257416-2 RING 21 , HR166D |
| 17 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 18 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 19 | 232347-6 | Makita 232347-6 CONICAL COMPRESSION SPRING , HR166D |
| 21 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 22 | 458851-9 | Makita 458851-9 LOCK LEVER, HR182D |
| 23 | 234264-6 | Makita 234264-6 COMPRESSION SPRING 3 |
| 24 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 25 | 162C16-2 | |
| 26 | 210035-5 | |
| 27 | 232805-2 | |
| 28 | 347A82-0 | |
| 29 | 232795-9 | |
| 30 | 347A83-8 | |
| 31 | 347555-7 | |
| 32 | 267304-5 | Makita 267304-5 FLAT WASHER 25, HR1830FT |
| 33 | 232360-4 | Makita 232360-4 COMPRESSION SPRING 25, HR1841F |
| 34 | 226854-9 | Makita 226854-9 SPUR GEAR 44, HR182D |
| 35 | 327B07-6 | |
| 36 | 326886-7 | Makita 326886-7 TOOL HOLDER, HR1841F |
| 37 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 38 | 326887-5 | Makita 326887-5 IMPACT BOLT, HR1841F |
| 39 | 213117-2 | Makita 213117-2 O RING 11 |
| 40 | 327C61-6 | |
| 41 | 233942-5 | Makita 233942-5 RING SPRING22, HR183FT |
| 42 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 43 | 345681-6 | Makita 345681-6 JOINT PLATE, HR1830FT |
| 44 | 347A81-2 | |
| 45 | 232794-1 | |
| 46 | 922137-2 | Makita 922137-2 HEX. SOCKET HEAD BOLT M4X |
| 47 | 141M98-7 | |
| 48 | 327215-7 | |
| 49 | 213832-8 | Makita 213832-8 O RING 3, HR1841F |
| 50 | 327B06-8 | |
| 51 | 324612-8 | Makita 324612-8 PISTON JOINT, HR1830T |
| 52 | 347A84-6 | |
| 53 | 227A97-2 | |
| 54 | 327B05-0 | |
| 55 | 327B04-2 | |
| 56 | 219032-8 | |
| 57 | 257893-8 | |
| 58 | 227A27-3 | |
| 59 | 347A79-9 | |
| 60 | 210025-8 | Makita 210025-8 BALL BEARING 627LLB, 9035 |
| 61 | 257897-0 | |
| 62 | 266273-7 | Makita 266273-7 HEX SOCKET HEAD BOLT M4*12, HR2020 |
| 63 | 232793-3 | |
| 64 | 266831-9 | |
| 65 | 347A80-4 | |
| 66 | 213833-6 | Makita 213833-6 O RING 60, HR1841F |
| 67 | 443138-2 | Makita 443138-2 Filter for HR3210FCT |
| 69 | 347A85-4 | |
| 70 | 213325-5 | Makita 213325-5 O RING19, TD0100 |
| 71 | 232797-5 | |
| 72 | 413N16-4 | |
| 73 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 74 | 183Y25-0 | |
| 75 | 140G30-2 | |
| 76 | 422A09-2 | |
| 77 | 629B82-1 | |
| 78 | 619782-9 | |
| 79 | 413N13-0 | |
| 80 | 232796-7 | |
| 81 | 413N14-8 | |
| 82 | 413N15-6 | |
| 83 | 620K85-2 | |
| 84 | 183Y25-0 | |
| 85 | 422A09-2 | |
| 86 | 183Y92-5 | |
| 87 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 88 | 422A08-4 | |
| 89 | 454980-6 | Makita 454980-6 F/R CHANGE LEVER |
| 90 | 651439-6 | Makita 651439-6 SWTICH C3JR-4B-2 |
| 91 | 183Y92-5 | |
| 92 | 632P65-6 | Makita 632P65-6 TERMINAL UNIT |
| 95 | 8589B0-0 | |
| 96 | 8589F2-4 |
