All parts of Makita HR007G: 105 positions on 1 sheet

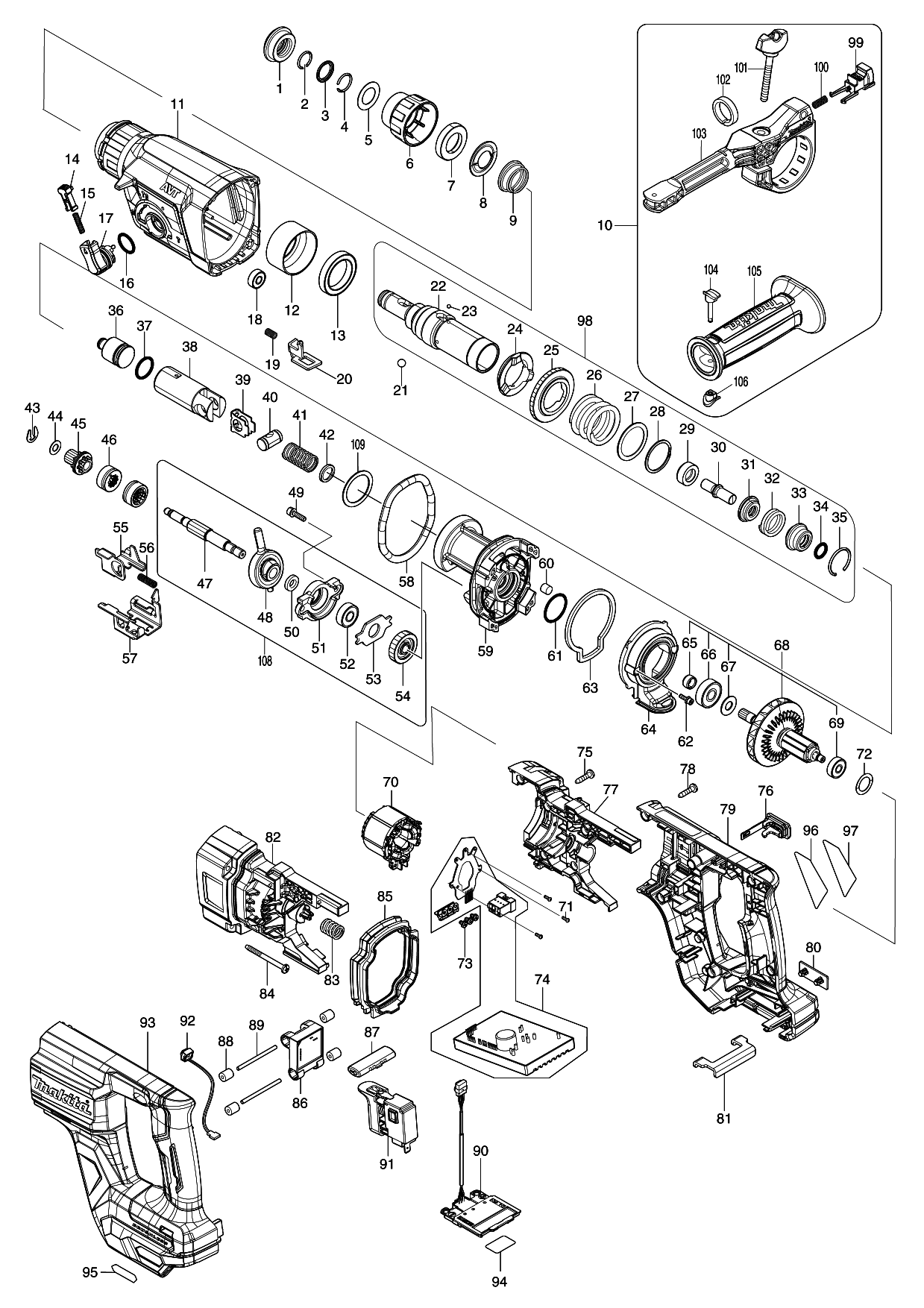

Sheet 1: Makita HR007G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286288-8 | Makita 286288-8 Cap 35 for BHR242 HR2610 HR2300 HR2600 MT870 |
| 2 | 233989-9 | Makita 233989-9 LEAF SPRING, HR2610 |
| 3 | 346834-0 | Makita 346834-0 WASHER 16 |
| 4 | 233992-0 | Makita 233992-0 RING SPRING 15 |
| 5 | 267114-0 | Makita 267114-0 FLAT WASHER 17, RP0900 |
| 6 | 455393-4 | Makita 455393-4 Chuck Cover for HR2630 |
| 7 | 325813-1 | Makita 325813-1 RING 21, HR2610 |
| 8 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 9 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 11 | 140D00-3 | Makita 140D00-3 GEAR HOUSING COMPLETE, HR2651T |
| 12 | 331890-3 | Makita 331890-3 CUP SLEEVE, HR2610 |
| 13 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 14 | 457709-9 | Makita 457709-9 LOCK BUTTON, HR2651 |
| 15 | 234264-6 | Makita 234264-6 COMPRESSION SPRING 3 |
| 16 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 17 | 161656-5 | Makita 161656-5 CHANGE LEVER COMPLETE, HR2651 |
| 18 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 19 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 20 | 347228-2 | Makita 347228-2 LOCK PLATE, HR2651 |
| 21 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 22 | 142972-4 | |
| 23 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 24 | 332139-4 | Makita 332139-4 Driving Flange for HR2610 HR2600 HR2300 BHR243 |
| 25 | 227360-7 | Makita 227360-7 Spur Gear 51 for HR2610 HR2600 HR2300 BHR243 |
| 26 | 234148-8 | Makita 234148-8 COMPRESSION SPRING 31, HR2610 |
| 27 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 28 | 257932-4 | Makita 257932-4 SPIRO LOCK WASHER 30, 6922K |
| 29 | 325783-4 | Makita 325783-4 SLEEVE 9B, HR2611F |
| 30 | 325789-2 | Makita 325789-2 IMPACT BOLT A, HR2610 |
| 31 | 325792-3 | Makita 325792-3 WASHER 10, HR2611F |
| 32 | 234149-6 | Makita 234149-6 COMPRESSION SPRING 20, HR2610 |
| 33 | 325793-1 | Makita 325793-1 O-RING CASE B, HR2610 |
| 34 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 35 | 233979-2 | Makita 233979-2 RING SPRING 28, HR2020 |
| 36 | 327890-9 | |
| 37 | 213258-4 | Makita 213258-4 O RING 17.5, HR2610 |
| 38 | 327079-9 | Makita 327079-9 PISTON CYLINDER, HR280D |
| 39 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 40 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 41 | 232752-7 | Makita 232752-7 COMPRESSION SPRING 14, HR007G |
| 42 | 253569-5 | |
| 43 | 257336-0 | Makita 257336-0 STOP RING EXT U-6, BHR243 |
| 44 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 45 | 227359-2 | Makita 227359-2 SPUR GEAR 10 |
| 46 | 310678-4 | Makita 310678-4 CLUTCH CAM, M8701 |
| 47 | 327889-4 | |
| 48 | 219030-2 | Makita 219030-2 SWASH BEARING 10, HR280D |
| 49 | 266437-3 | Makita 266437-3 HEX. SOCKET HEAD BOLT M4X16, HR2610 |
| 50 | 257321-3 | Makita 257321-3 RING 8, MT870 |
| 51 | 310344-3 | Makita 310344-3 BEARING BOX, HR2610 |
| 52 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 53 | 285735-6 | Makita 285735-6 BEARING RETAINER, HR2610 |
| 54 | 227719-8 | Makita 227719-8 HELICAL GEAR 26, HR2610 |
| 55 | 347230-5 | Makita 347230-5 CHANGE PLATE B, HR2651 |
| 56 | 234343-0 | Makita 234343-0 COMPRESSION SPRING 5 |
| 57 | 347882-2 | |
| 58 | 213728-3 | Makita 213728-3 O-RING 68, HR261D |
| 59 | 141F42-2 | |
| 60 | 443153-6 | Makita 443153-6 FELT, HR2610 |
| 61 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 62 | 251568-1 | Makita 251568-1 H.S.H. BOLT M3*12 WITH WR, HR2651 |
| 63 | 422780-2 | |
| 64 | 413A23-9 | |
| 65 | 262207-8 | |
| 66 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 67 | 253733-8 | Makita 253733-8 FLAT WASHER 9, HR2432 |
| 68 | 519715-3 | |
| 69 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 70 | 629A89-1 | |
| 71 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 72 | 267804-5 | Makita 267804-5 WAVE WASHER 15, HR2470 |
| 73 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 74 | 620G33-7 | |
| 75 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 76 | 140G30-2 | |
| 77 | 183U22-2 | |
| 78 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 79 | 183U19-1 | |
| 80 | 459753-2 | |
| 81 | 347885-6 | |
| 82 | 183U22-2 | |
| 83 | 232436-7 | Makita 232436-7 COMPRESSION SPRING 10, HR280D |
| 84 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 85 | 422779-7 | |
| 86 | 620G35-3 | |
| 87 | 453124-5 | Makita 453124-5 F/R CHANGE LEVER |
| 88 | 422472-3 | |
| 89 | 256886-2 | |
| 90 | 632R98-3 | |
| 91 | 651439-6 | Makita 651439-6 SWTICH C3JR-4B-2 |
| 92 | 620G34-5 | |
| 93 | 183U19-1 | |
| 94 | 8113R6-5 | |
| 95 | 8012U4-2 | |
| 96 | 8113P9-5 | |
| 97 | 8043W5-9 | |
| 99 | 144959-2 | |
| 100 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 101 | 265625-9 | |
| 102 | 422258-5 | |
| 103 | 413A49-1 | |
| 104 | 161838-9 | |
| 105 | 458357-7 | |
| 106 | 422255-1 | |
| 109 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
