Makita HP457D
Makita HP457D: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HP457D: 17 positions on 1 sheet

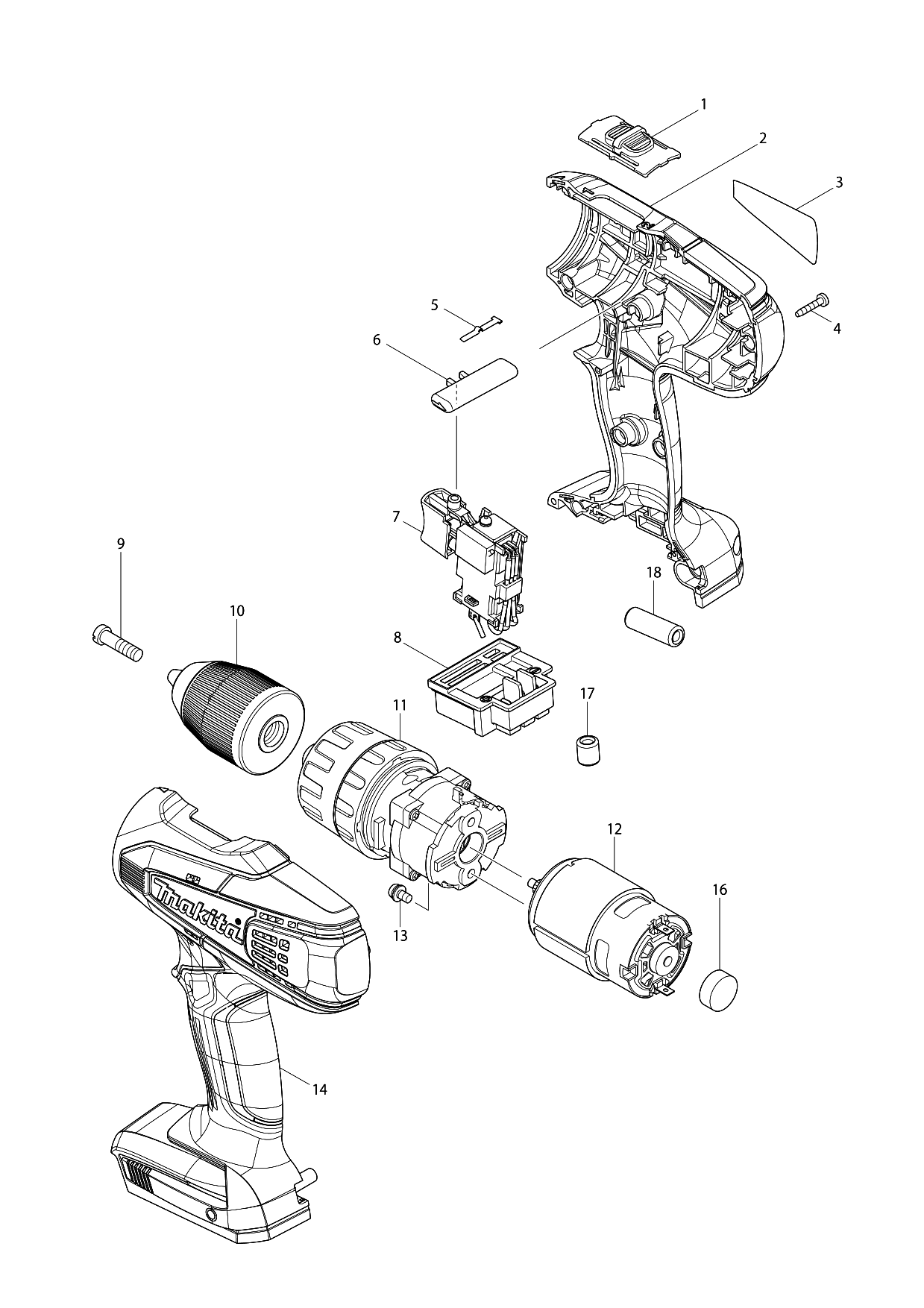

Sheet 1: Makita HP457D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 2 | 187026-0 | |
| 3 | 869392-4 | |
| 4 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 452399-3 | Makita 452399-3 F/R CHANGE LEVER |
| 7 | 638862-2 | Makia 638862-2 Switch for DF457D HP457D |
| 8 | 643862-9 | |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 766004-9 | |
| 11 | 125485-0 | Makita 125485-0 Gear Assembly for 8391D BHP453 DHP453 |
| 12 | ||
| 13 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 14 | 187026-0 | |
| 16 | 421940-3 | Makita 421940-3 CAP, 8390D |
| 17 | 688164-6 | Makita 688164-6 Line Filter 11*5*10 for CL142D |
| 18 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
