Makita HP2070
Makita HP2070: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HP2070: 58 positions on 1 sheet

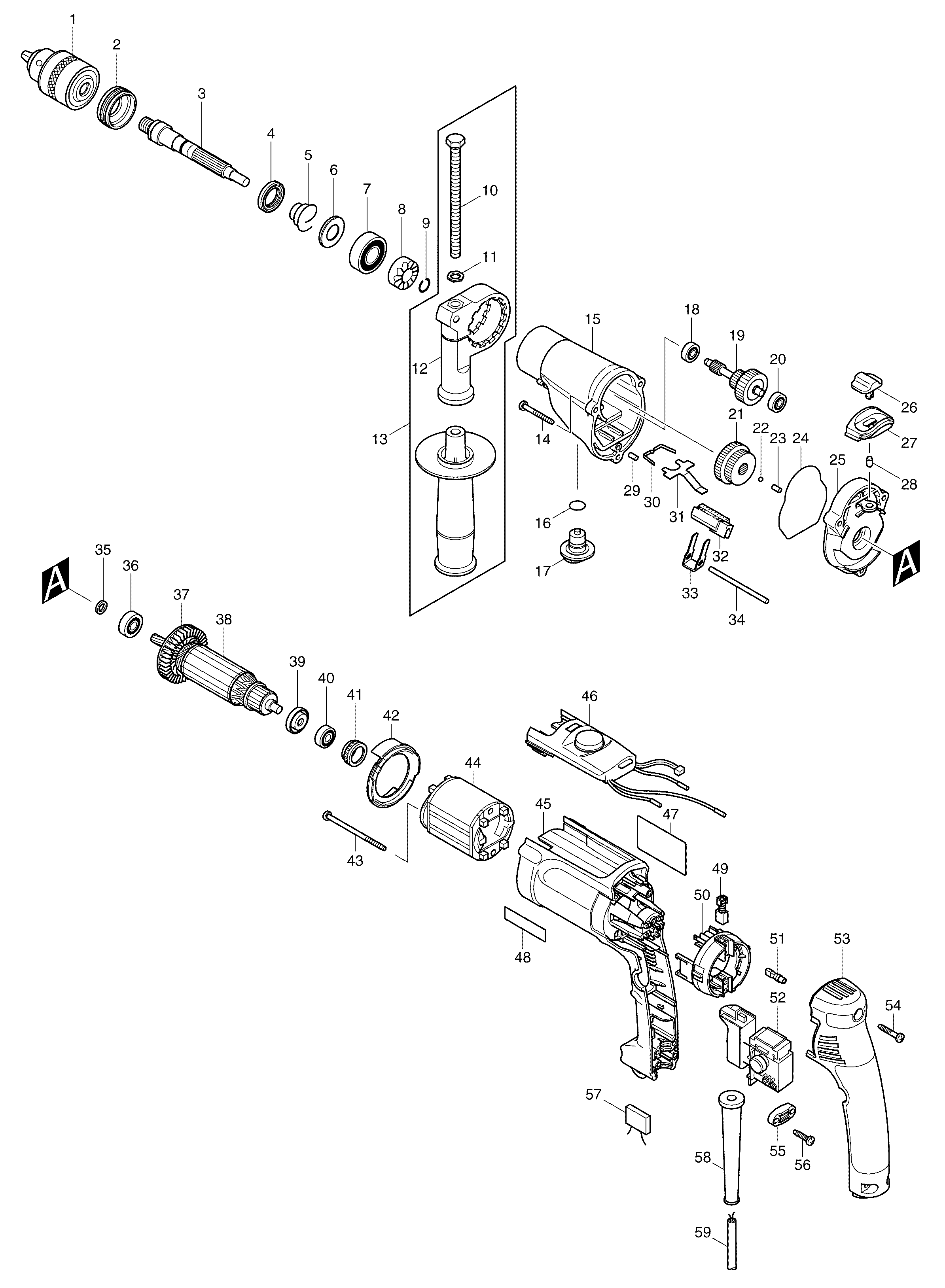

Sheet 1: Makita HP2070 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 193822-6 | Makita 193822-6 DRILLCHUCK 13MM, 1/2 20UNF + KEY |
| 2 | 285839-4 | Makita 285839-4 BEARING RETAINER 20-36, HP2050 |
| 3 | 324247-5 | Makita 324247-5 SPINDLE, HP2050 |
| 4 | 213314-0 | Makita 213314-0 OIL SEAL 19, HP2050 |
| 5 | 233921-3 | Makita 233921-3 CONICAL COMPRESSION SPRIN G HP2051F |
| 6 | 345224-4 | Makita 345224-4 CUP WASHER 15, HP2050 |
| 7 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 8 | 223141-7 | Makita 223141-7 CAM 7 HP2070, HP2070 |
| 9 | 233920-5 | Makita 233920-5 RING SPRING 11, HP2050F |
| 10 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 11 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
| 12 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 13 | 134943-5 | Makita 134943-5 Grip Complete for HR2440 |
| 14 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 15 | 153621-8 | Makita 153621-8 GEAR HOUSING COMPLETE, HP2071F |
| 16 | 213122-9 | Makita 213122-9 O RING 12, HP2070 |
| 17 | 417805-5 | Makita 417805-5 CHANGE LEVER B, HP2050 |
| 18 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 19 | 153622-6 | Makita 153622-6 Gear Complete HP2050 HP2051 HP2051F HP2070 HP2071 HP2071F |
| 20 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 21 | 227030-8 | Makita 227030-8 SPUR GEAR 29-37, HP2050 |
| 22 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 23 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 24 | 421810-6 | Makita 421810-6 SEAL RING HP2051F |
| 25 | 153620-0 | Makita 153620-0 GEAR HOUSING COVER COMPLETE, HP2050F |
| 26 | 418083-0 | Makita 418083-0 CHANGE LEVER A, HP2050 |
| 27 | 417802-1 | Makita 417802-1 LEVER CASE, HP2050 |
| 28 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 29 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 30 | 232143-2 | Makita 232143-2 LEAF SPRING, HP2050 |
| 31 | 345225-2 | Makita 345225-2 LOCK PLATE, HP2050 |
| 32 | 417804-7 | Makita 417804-7 RACK 12, HP2050 |
| 33 | 345223-6 | Makita 345223-6 CHANGE PLATE B, HP2050 |
| 34 | 268092-7 | Makita 268092-7 PIN 4, HR2020 |
| 35 | 262087-2 | Makita 262087-2 RING 8, 6825 |
| 36 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 38 | 517464-6 | Makita 517464-6 Armature Ass'y 220-240V HP2070 HP2071 |
| 39 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 40 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 41 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 42 | 418269-6 | Makita 418269-6 BAFFLE PLATE HP2070, HP2070 |
| 43 | 266004-4 | Makita 266004-4 TAPPING SCREW FLANGE PT4X |
| 44 | 633573-4 | Makita 633573-4 Field 220V for HP2070 HP2071F |
| 45 | 183657-3 | Makita 183657-3 MOTOR HOUSING, HP2070 |
| 46 | 631534-8 | Makita 631534-8 Controller for HP2070F HP2070 HP2071 220V |
| 47 | 850576-5 | |
| 48 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 49 | 191962-4 | Old code CB-419 = CB-407 |
| 50 | 638236-7 | Makita 638236-7 BRUSH HOLDER UNIT, HP2070 |
| 51 | 686038-5 | Makita 686038-5 SLEEVE 6827 |
| 52 | 650212-1 | Makita 650212-1 Switch TG813TB-4 HP2070 HP2070F HP2071F |
| 53 | 418273-5 | Makita 418273-5 HANDLE COVER, HP2070F |
| 54 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 55 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 56 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 57 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 58 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 59 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
