Makita HP2050F
Makita HP2050F: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HP2050F: 60 positions on 1 sheet

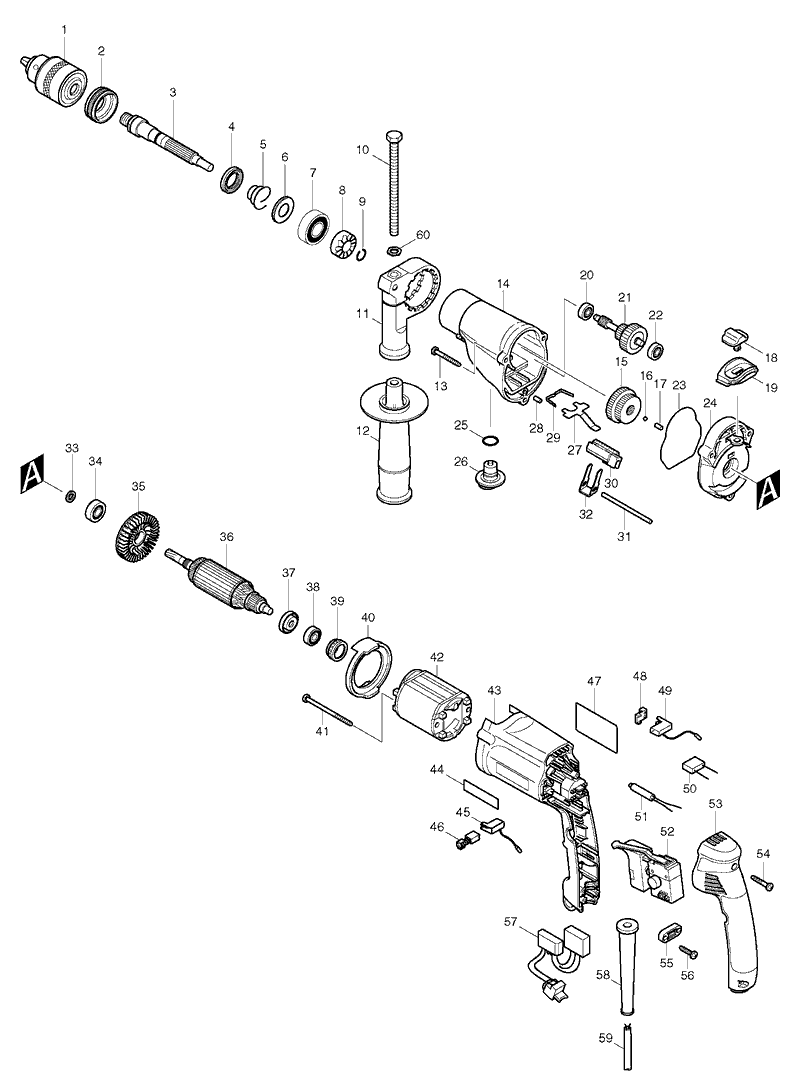

Sheet 1: Makita HP2050F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 193067-6 | |
| 2 | 285839-4 | Makita 285839-4 BEARING RETAINER 20-36, HP2050 |
| 3 | 324247-5 | Makita 324247-5 SPINDLE, HP2050 |
| 4 | 213314-0 | Makita 213314-0 OIL SEAL 19, HP2050 |
| 5 | 233921-3 | Makita 233921-3 CONICAL COMPRESSION SPRIN G HP2051F |
| 6 | 345224-4 | Makita 345224-4 CUP WASHER 15, HP2050 |
| 7 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 8 | 223137-8 | Makita 223137-8 CAM A, HP2050 |
| 9 | 233920-5 | Makita 233920-5 RING SPRING 11, HP2050F |
| 10 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 11 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 12 | 152521-9 | Makita 152521-9 GRIP 36 COMPLETE HP2041 |
| 13 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 14 | 153379-9 | Makita 153379-9 GEAR HOUSING COMPLETE, HP2051F |
| 15 | 227030-8 | Makita 227030-8 SPUR GEAR 29-37, HP2050 |
| 16 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 17 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 18 | 417801-3 | Makita 417801-3 CHANGE LEVER A HP2051F |
| 19 | 417802-1 | Makita 417802-1 LEVER CASE, HP2050 |
| 20 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 21 | 153363-4 | Makita 153363-4 GEAR COMPLETE HP2051F |
| 22 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 23 | 421810-6 | Makita 421810-6 SEAL RING HP2051F |
| 24 | 153364-2 | Makita 153364-2 GEAR HOUSING COVER COMP. HP2051F |
| 25 | 213162-7 | Makita 213162-7 O RING 14 |
| 26 | 417805-5 | Makita 417805-5 CHANGE LEVER B, HP2050 |
| 27 | 345225-2 | Makita 345225-2 LOCK PLATE, HP2050 |
| 28 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 29 | 232143-2 | Makita 232143-2 LEAF SPRING, HP2050 |
| 30 | 417804-7 | Makita 417804-7 RACK 12, HP2050 |
| 31 | 268092-7 | Makita 268092-7 PIN 4, HR2020 |
| 32 | 345223-6 | Makita 345223-6 CHANGE PLATE B, HP2050 |
| 33 | 262087-2 | Makita 262087-2 RING 8, 6825 |
| 34 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 35 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 36 | 517414-1 | Makita 517414-1 Armature HP2050 HP2051 DP4011 DP4010 |
| 37 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 38 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 39 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 40 | 417803-9 | Makita 417803-9 BAFFLE PLATE, HP2050 |
| 41 | 266060-4 | Makita 266060-4 TAPPING SCREW, UB1101 |
| 42 | 633528-9 | Makita 633528-9 Field 220-240V 135T for HP2050 HP2051 DP4011 |
| 43 | 183454-7 | Makita 183454-7 MOTOR HOUSING HP2051F |
| 44 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 45 | 643989-5 | Makita 643989-5 BRUSH HOLDER, HR2020 |
| 46 | 191962-4 | Old code CB-419 = CB-407 |
| 47 | 853859-2 | |
| 48 | 689111-0 | Makita 689111-0 SPACER, HR2020 |
| 49 | 643988-7 | Makita 643988-7 BRUSH HOLDER, HP2050 |
| 50 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 51 | 646133-3 | Makita 646133-3 CHOKE COIL, HR2020 |
| 52 | 650524-2 | Makita 650524-2 Switch TG813ALB-2 for DP4011 HP2050 HP2051 |
| 53 | 153284-0 | Makita 153284-0 HANDLE COVER COMPLETE, HR2440 |
| 54 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 55 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 56 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 57 | 631471-6 | Makita 631471-6 LIGHT CIRCUIT, HR2450 |
| 58 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 59 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 60 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
