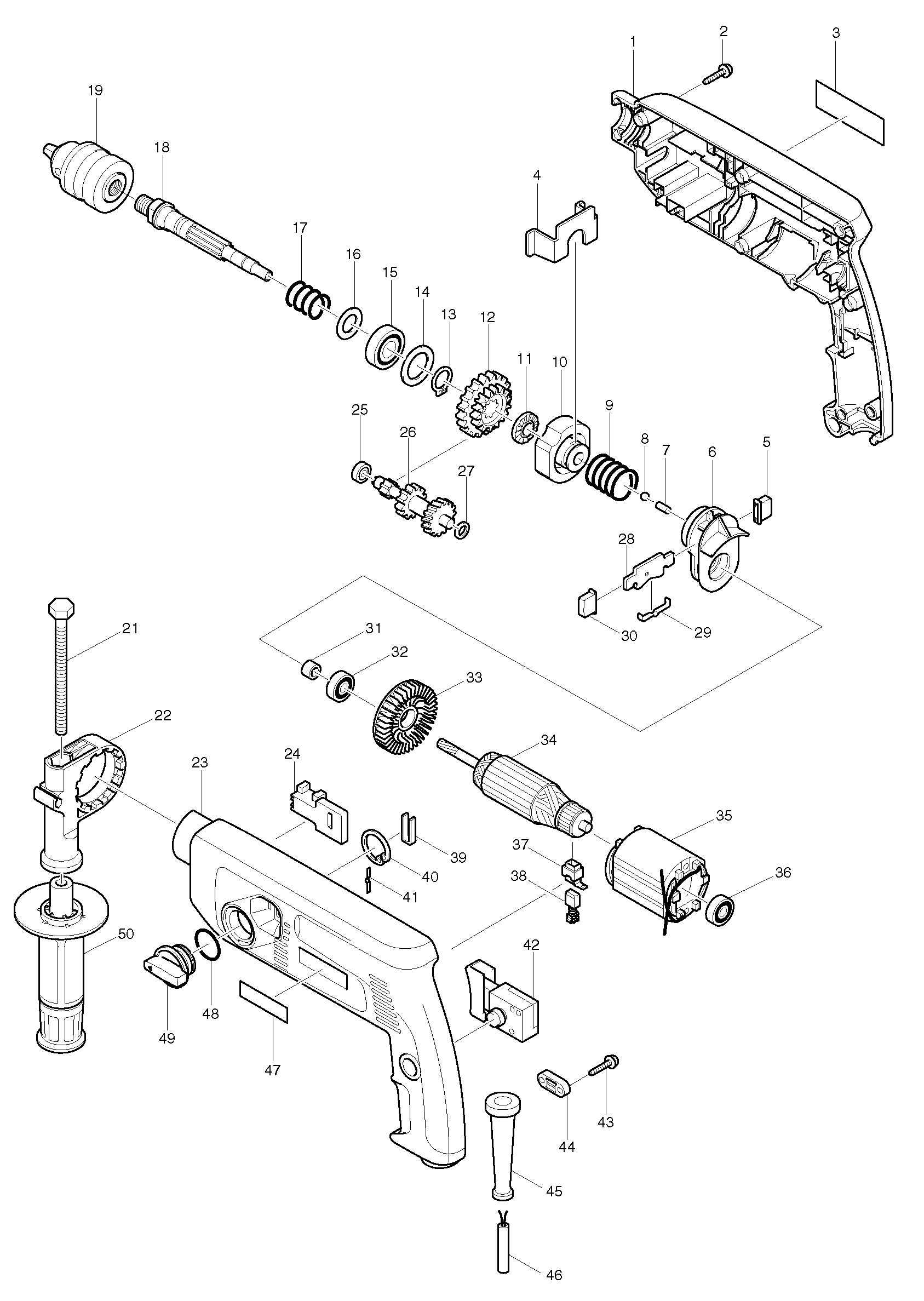

Sheet 1: Makita HP2042 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182907-3 | Makita 182907-3 HOUSING SET HP2040 |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 859048-7 | Makita 859048-7 NAME PLATE HP2042 |
| 4 | 344439-0 | Makita 344439-0 RETAINER, HP2040 |
| 5 | 415453-4 | Makita 415453-4 CHANGE BUTTON |
| 6 | 159965-4 | Makita 159965-4 MOTOR HOUSING COMPLETE FOR HP2040 |
| 7 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 8 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 9 | 233170-2 | Makita 233170-2 COMPRESSION SPRING 23 |
| 10 | 223119-0 | Makita 223119-0 CAM B |
| 11 | 223118-2 | Makita 223118-2 CAM A |
| 12 | 226331-1 | Makita 226331-1 SPUR GEAR 28-38 FOR HP2040 |
| 13 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 14 | 267126-3 | Makita 267126-3 FLAT WASHER 22, GD0600 |
| 15 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 16 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 17 | 233169-7 | Makita 233169-7 COMPRESSION SPRING 18 |
| 18 | 322920-1 | |
| 19 | 763115-1 | OLDN Genuine Makita 763115-1 DRILL CHUCK S13 |
| 21 | 921919-9 | Makita 921919-9 HEX BOLT M8X110, HP1500 |
| 22 | 415485-1 | Makita 415485-1 GRIP BASE FOR HP2030 |
| 23 | 182907-3 | Makita 182907-3 HOUSING SET HP2040 |
| 24 | 416189-8 | Makita 416189-8 SLIDER |
| 25 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 26 | 226130-1 | Makita 226130-1 GEAR COMPLETE 8-18-23 FOR HP2040 |
| 27 | 253777-8 | Makita 253777-8 FLAT WASHER 8, MUH304 |
| 28 | 344419-6 | Makita 344419-6 CHANGE PLATE HP1500 |
| 29 | 232134-3 | Makita 232134-3 LEAF SPRING |
| 30 | 415453-4 | Makita 415453-4 CHANGE BUTTON |
| 31 | 262541-6 | |
| 32 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 33 | 241869-5 | Makita 241869-5 FAN 55, JR181D |
| 34 | 517213-1 | Makita 517213-1 ARMATURE ASSY FOR HP2040 |
| 35 | 593368-6 | Makita 593368-6 FIELD ASS Y 220-240V |
| 36 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 37 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 38 | 191962-4 | Old code CB-419 = CB-407 |
| 39 | 344440-5 | Makita 344440-5 SLIDE PLATE |
| 40 | 961104-2 | |
| 41 | 232053-3 | Makita 232053-3 LEAF SPRING |
| 42 | 651260-3 | Makita 651260-3 SWITCH 35-91, 6409 |
| 43 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 44 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 45 | 682549-8 | Makita 682549-8 CORD GUARD |
| 46 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 47 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 48 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 49 | 152559-4 | Makita 152559-4 CHANGE LEVER COMPLETE |
| 50 | 152521-9 | Makita 152521-9 GRIP 36 COMPLETE HP2041 |
