All parts on this sheet0
All parts of Makita HP2033: 60 positions on 1 sheet

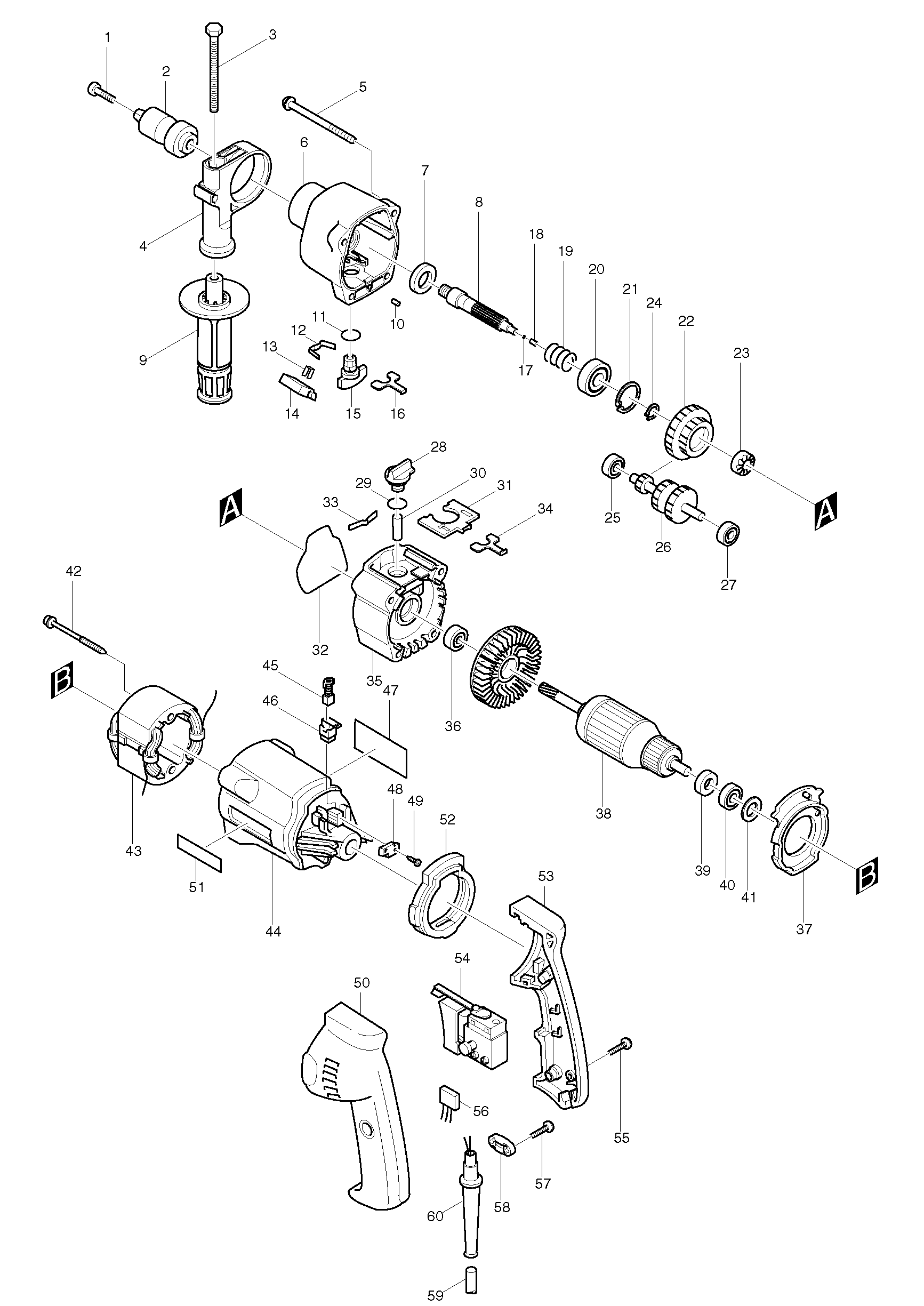

Sheet 1: Makita HP2033 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251464-3 | Makita 251464-3 Flat Head Screw M6X22 for BDF440 BDF450 BHP440 BHP450 |
| 2 | 192664-5 | |
| 3 | 921919-9 | Makita 921919-9 HEX BOLT M8X110, HP1500 |
| 4 | 415485-1 | Makita 415485-1 GRIP BASE FOR HP2030 |
| 5 | 266108-2 | |
| 6 | 317111-7 | Makita 317111-7 GEAR HOUSING |
| 7 | 213314-0 | Makita 213314-0 OIL SEAL 19, HP2050 |
| 8 | 323854-1 | Makita 323854-1 SPINDLE FOR HP2033 |
| 9 | 152489-9 | |
| 10 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 11 | 213162-7 | Makita 213162-7 O RING 14 |
| 12 | 232143-2 | Makita 232143-2 LEAF SPRING, HP2050 |
| 13 | 344179-0 | Makita 344179-0 CHANGE PLATE |
| 14 | 415621-9 | Makita 415621-9 RACK 12 |
| 15 | 415620-1 | Makita 415620-1 CHANGE LEVER B |
| 16 | 344178-2 | Makita 344178-2 LOCK PLATE |
| 17 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 18 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 19 | 233091-8 | |
| 20 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 21 | 962153-2 | Makita 962153-2 RETAINING RING, 2012NB |
| 22 | 226289-4 | Makita 226289-4 SPUR GEAR 27-38 |
| 23 | 223104-3 | Makita 223104-3 CAM A |
| 24 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 25 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 26 | 226818-3 | Makita 226818-3 GEAR COMPLETE 8-19-25 |
| 27 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 28 | 415619-6 | Makita 415619-6 CHANGE LEVER A |
| 29 | 213162-7 | Makita 213162-7 O RING 14 |
| 30 | 322787-7 | |
| 31 | 416747-0 | Makita 416747-0 CAM HOUSING COVER |
| 32 | 213759-2 | |
| 33 | 232053-3 | Makita 232053-3 LEAF SPRING |
| 34 | 344178-2 | Makita 344178-2 LOCK PLATE |
| 35 | 151550-9 | Makita 151550-9 CAM HOUSING COMPLETE |
| 36 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 37 | 415618-8 | Makita 415618-8 BAFFLE PLATE |
| 38 | 517103-8 | Makita 517103-8 Armature Assembly HP2030 HP2031 HP2032 |
| 39 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 40 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 41 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 42 | 266113-9 | |
| 43 | 633413-6 | Makita 633413-6 FIELD ASSY HP2033 |
| 44 | 415601-5 | |
| 45 | 191962-4 | Old code CB-419 = CB-407 |
| 46 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 47 | 851534-4 | Makita 851534-4 NAME PLATE HP2033 |
| 48 | 415622-7 | Makita 415622-7 BRUSH HOLDER PLATE |
| 49 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 50 | 182724-1 | Makita 182724-1 HANDLE SET |
| 51 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 52 | 421505-1 | Makita 421505-1 CUSHION RUBBER |
| 53 | 182724-1 | Makita 182724-1 HANDLE SET |
| 54 | 651952-4 | Makita 651952-4 SWITCH 8653C721AD 200V-24 |
| 55 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 56 | 645256-4 | Makita 645256-4 NOISE SUPPRESSOR |
| 57 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 58 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 59 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 60 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
