Makita HP1641F
Makita HP1641F: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HP1641F: 31 positions on 1 sheet

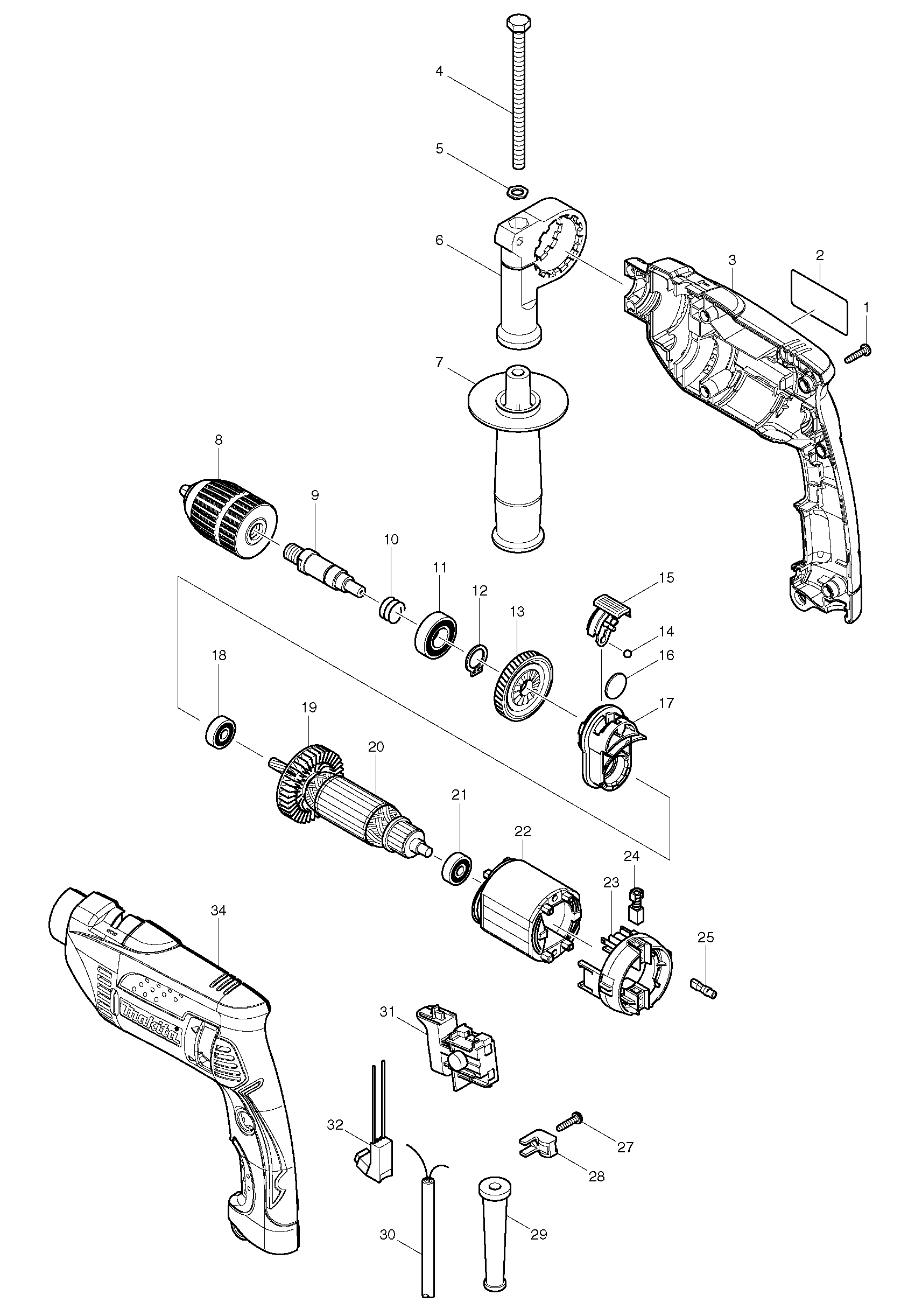

Sheet 1: Makita HP1641F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 866007-4 | Makita 866007-4 HP1641 NAME PLATEHP1641 |
| 3 | 188612-0 | Makita 188612-0 HOUSING SETHP1641 |
| 4 | 265583-9 | Makita 265583-9 HEX. BOLT M8X120HP1640 |
| 5 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
| 6 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 7 | 152489-9 | |
| 8 | 192692-0 | |
| 9 | 324397-6 | Makita 324397-6 SPINDLE, HP1620 |
| 10 | 233389-3 | Makita 233389-3 COMPRESSION SPRING 15 HP1620 |
| 11 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 12 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 13 | 226579-5 | Makita 226579-5 Helical Gear 45 for HP1620 HP1620F HP1621 HP1640 HP1641F |
| 14 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 15 | 418319-7 | Makita 418319-7 CHANGE LEVER HP1620 |
| 16 | 345354-1 | Makita 345354-1 PLATE 19 HP1620 |
| 17 | 153831-7 | Makita 153831-7 CAM HOLDER COMPLETE |
| 18 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 20 | 517458-1 | Makita 517458-1 Armature Ass'y HP1620 HP1641 HP1640 HP1621 |
| 21 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 22 | 633568-7 | Makita 633568-7 Field 240V for HP1620 HP1621 HP1640 HP1641 |
| 23 | 638237-5 | Makita 638237-5 Brush Holder HP1620 HP1621 HP1621F HP1640 HP1641 HP1641F |
| 24 | 191962-4 | Old code CB-419 = CB-407 |
| 25 | 686038-5 | Makita 686038-5 SLEEVE 6827 |
| 27 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 28 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 29 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 30 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 31 | 650570-5 | Makita 650570-5 Switch for HR1830FT HP1460 HP1641 HP1640 |
| 32 | 631823-1 | Makita 631823-1 CIRCUIT HP1641F |
| 34 | 188612-0 | Makita 188612-0 HOUSING SETHP1641 |
