All parts of Makita HP1510: 34 positions on 1 sheet

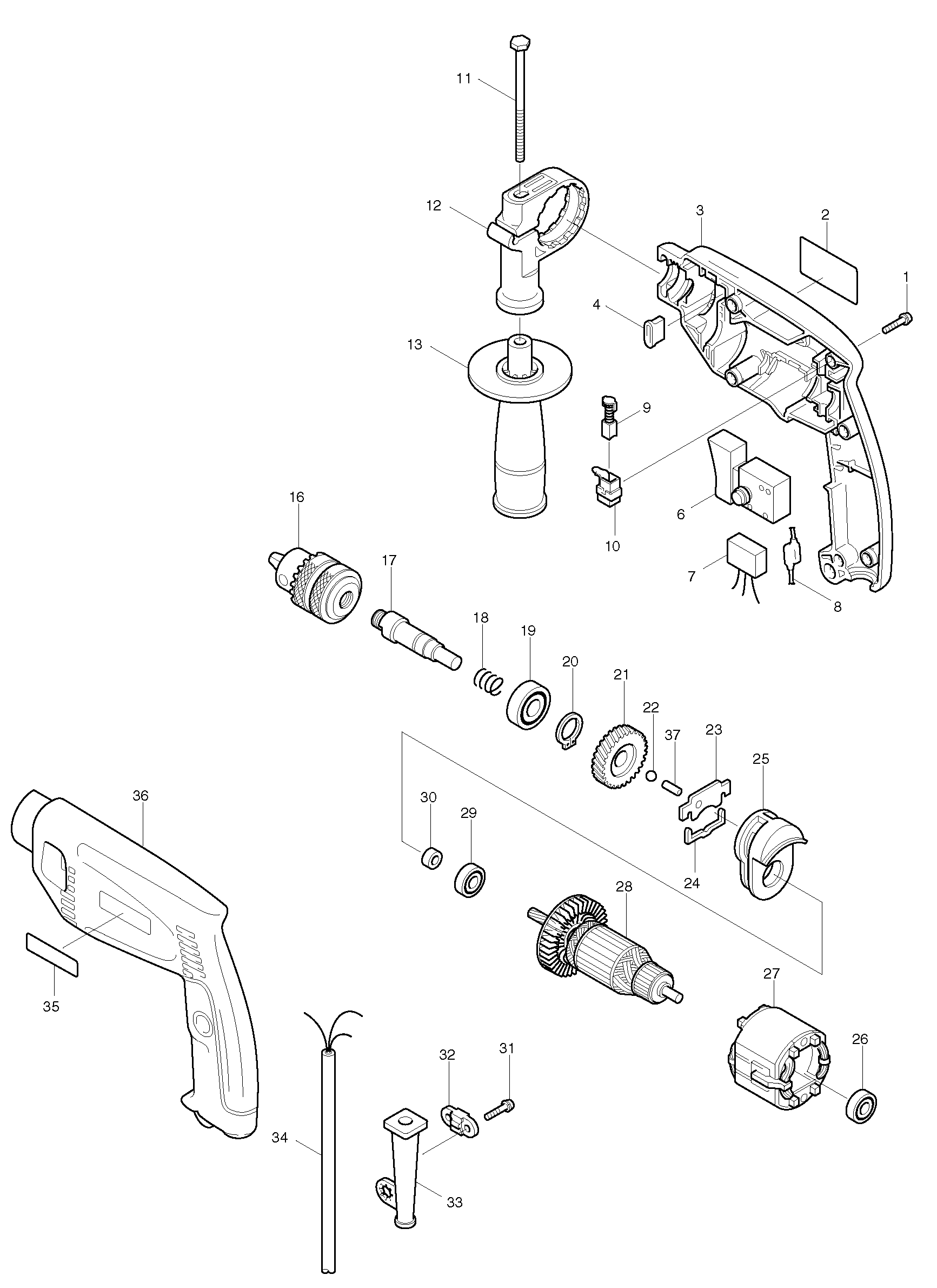

Sheet 1: Makita HP1510 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 2 | 858218-5 | Makita 858218-5 NAME PLATE HP1510 |
| 3 | 182730-6 | Makita 182730-6 HOUSING SET |
| 4 | 415453-4 | Makita 415453-4 CHANGE BUTTON |
| 6 | 651260-3 | Makita 651260-3 SWITCH 35-91, 6409 |
| 7 | 645256-4 | Makita 645256-4 NOISE SUPPRESSOR |
| 8 | 646066-2 | Makita 646066-2 CHOKE COIL |
| 9 | 191962-4 | Old code CB-419 = CB-407 |
| 10 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 11 | 921919-9 | Makita 921919-9 HEX BOLT M8X110, HP1500 |
| 12 | 415485-1 | Makita 415485-1 GRIP BASE FOR HP2030 |
| 13 | 152489-9 | |
| 16 | 763115-1 | OLDN Genuine Makita 763115-1 DRILL CHUCK S13 |
| 17 | 322674-0 | Makita 322674-0 SPINDLE |
| 18 | 233091-8 | |
| 19 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 20 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 21 | 226423-6 | Makita 226423-6 HELICAL GEAR 41, HP1500 |
| 22 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 23 | 344112-2 | Makita 344112-2 CHANGE PLATE |
| 24 | 232134-3 | Makita 232134-3 LEAF SPRING |
| 25 | 152473-4 | Makita 152473-4 CAM HOLDER COMPLETE |
| 26 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 27 | 633303-3 | Makita 633303-3 FIELD 220V, HP1500 |
| 28 | 517108-8 | Makita 517108-8 ARMATURE ASS'Y 220V |
| 29 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 30 | 262528-8 | Makita 262528-8 SLEEVE 7 |
| 31 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 32 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 33 | 682549-8 | Makita 682549-8 CORD GUARD |
| 34 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 35 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 36 | 182730-6 | Makita 182730-6 HOUSING SET |
| 37 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
