Makita HP1030
Makita HP1030: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HP1030: 35 positions on 1 sheet

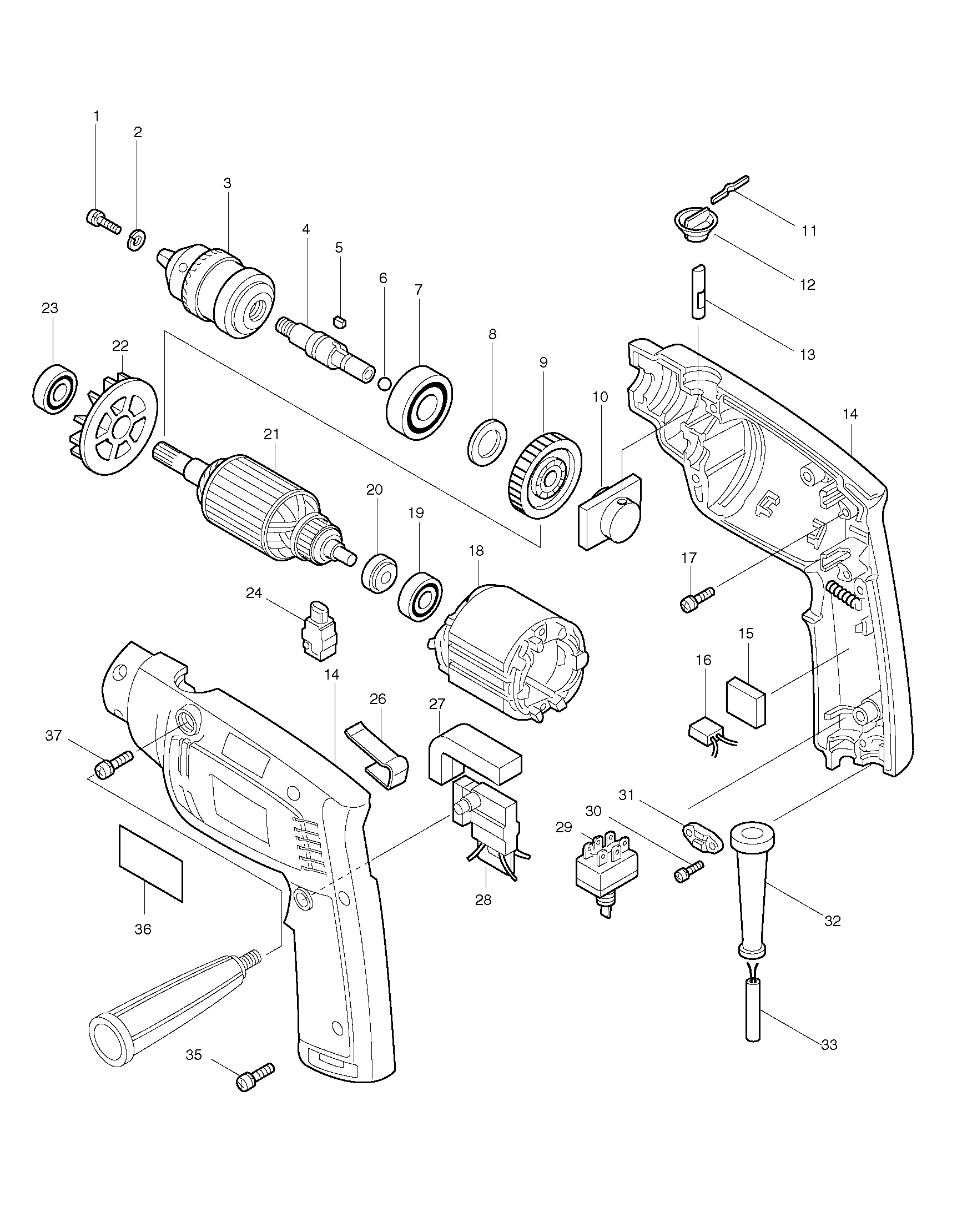

Sheet 1: Makita HP1030 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251448-1 | Makita 251448-1 - PAN HEAD SCREW M5X18 |
| 2 | ||
| 3 | 192879-4 | |
| 4 | 321110-3 | Makita 321110-3 SPINDLE |
| 5 | ||
| 6 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 7 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 8 | 253070-0 | Makita 253070-0 FLAT WASHER 15 |
| 9 | 221663-1 | Makita 221663-1 HELICAL GEAR 62 |
| 10 | 153120-0 | Makita 153120-0 CAM COMPLETE |
| 11 | 232053-3 | Makita 232053-3 LEAF SPRING |
| 12 | 411623-3 | Makita 411623-3 KNOB |
| 13 | 321111-1 | Makita 321111-1 SHIFTER PIN |
| 14 | 182400-7 | Makita 182400-7 HOUSING SET |
| 15 | ||
| 16 | ||
| 17 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 18 | 633183-7 | Makita 633183-7 FIELD 220V |
| 19 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 20 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 21 | 511958-3 | Makita 511958-3 Armature for HP1030 |
| 22 | 241812-4 | Makita 241812-4 FAN 58 |
| 23 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 24 | 191950-1 | Makita 191950-1 CARBON BRUSH CB-415 |
| 26 | 342460-3 | Makita 342460-3 HOOK |
| 27 | ||
| 28 | 651256-4 | DISC Makita 651256-4 Switch for 4014NV 4300BV |
| 29 | 651478-6 | Makita 651478-6 SWITCH VTX11 |
| 30 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 31 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 32 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 33 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 35 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 36 | 856929-6 | Makita 856929-6 NAME PLATE NHP1030 |
| 37 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
