Makita HP001G: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HP001G: 23 positions on 1 sheet

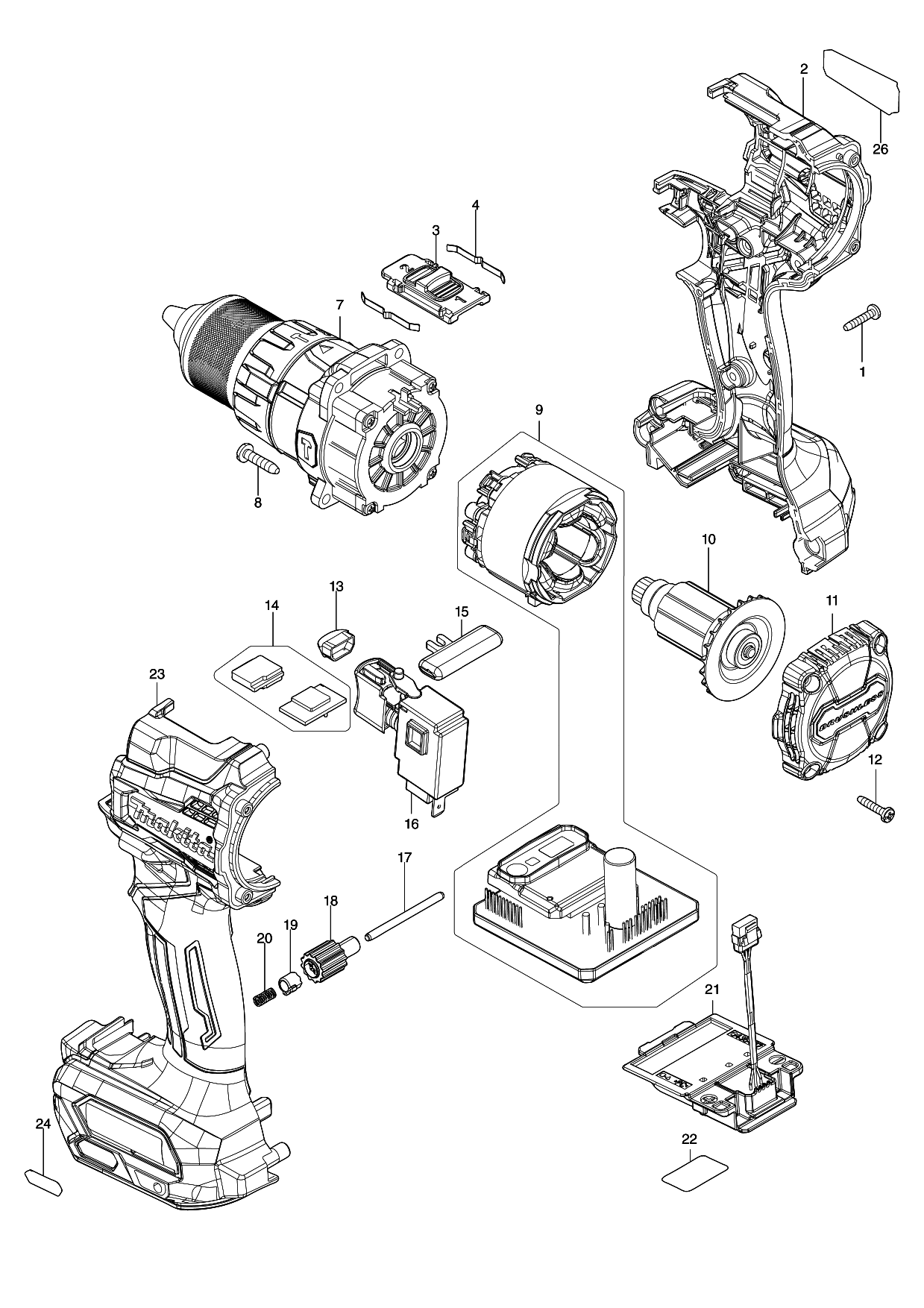

Sheet 1: Makita HP001G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 183N73-3 | Makita 183N73-3 HOUSING COMPLETE |
| 3 | 127494-5 | Makita 127494-5 SPEED CHANGE LEVER |
| 4 | 232220-0 | Makita 232220-0 LEAF SPRING, HP451D |
| 7 | 136229-3 | Makita 136229-3 STATOR UNIT |
| 8 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 9 | 629476-8 | Makita 629476-8 STATOR UNIT |
| 10 | 619613-2 | Makita 619613-2 ROTOR |
| 11 | 412361-0 | Makita 412361-0 REAR COVER |
| 12 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 13 | 620549-0 | Makita 620549-0 LED CIRCUIT |
| 14 | 620C81-2 | Makita 620C81-2 SENSOR CIRCUIT |
| 15 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 16 | 651443-5 | Makita 651443-5 Switch |
| 17 | 256949-4 | Makita 256949-4 ROD 3 |
| 18 | 140R76-4 | Makita 140R76-4 DIAL COMPLETE |
| 19 | 313288-6 | Makita 313288-6 DIAL CAM |
| 20 | 232597-3 | Makita 232597-3 COMPRESSION SPRING 4 |
| 21 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |
| 22 | 856S98-7 | |
| 23 | 183N73-3 | Makita 183N73-3 HOUSING COMPLETE |
| 24 | 8007R2-2 | Makita 8007R2-2 LOGO LABEL |
| 26 | 856S91-1 |
