Makita HM1812
Makita HM1812: exploded parts diagram, 2 sheets, 130 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1812: 130 positions on 2 sheets

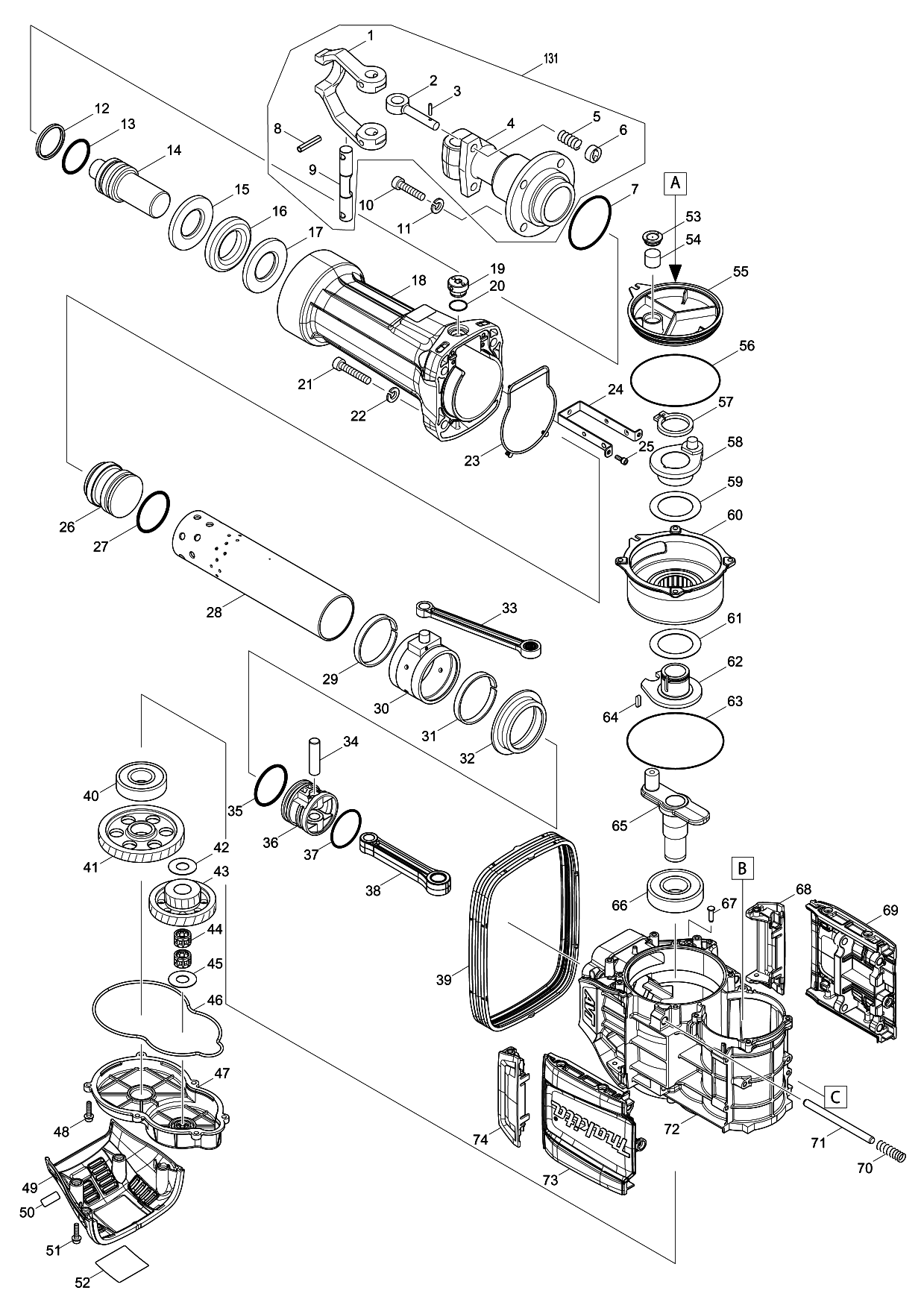

Sheet 1: Makita HM1812 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 324236-0 | Makita 324236-0 TOOL RETAINER HM1800 |
| 2 | 322477-2 | Makita 322477-2 TOOL RETAINER POLE |
| 3 | 256219-1 | Makita 256219-1 PIN 4 |
| 4 | 310616-6 | |
| 5 | 233083-7 | Makita 233083-7 COMPRESSION SPRING 12 |
| 6 | 322560-5 | Makita 322560-5 RETAINER RING HM1304B |
| 7 | 213757-6 | Makita 213757-6 O RING 80 |
| 8 | 951272-9 | Makita 951272-9 SPRING PIN 8-40 HM1500B |
| 9 | 324238-6 | Makita 324238-6 TOOL RETAINER SHAFT HM1800 |
| 10 | 265989-1 | Makita 265989-1 HEX. SOCKET BOLT M12X45 |
| 11 | 942301-9 | Makita 942301-9 SPRING WASHER 12 |
| 12 | 213797-4 | Makita 213797-4 X-RING 47 |
| 13 | 213798-2 | Makita 213798-2 O-RING 47 |
| 14 | 326469-3 | Makita 326469-3 IMPACT BOLT |
| 15 | 332127-1 | Makita 332127-1 WASHER 42 |
| 16 | 262174-7 | Makita 262174-7 RUBBER RING 47 |
| 17 | 332127-1 | Makita 332127-1 WASHER 42 |
| 18 | 319218-5 | Makita 319218-5 BARREL |
| 19 | 450347-6 | Makita 450347-6 CAP HM1810 NEW VERSION |
| 20 | 213953-6 | Makita 213953-6 O RING 24, HR2430 |
| 21 | 922677-0 | Makita 922677-0 HEX. SOCKET BOLT M12X55 HM1800 |
| 22 | 942301-9 | Makita 942301-9 SPRING WASHER 12 |
| 23 | 424666-6 | Makita 424666-6 SEAL RING A |
| 24 | 346840-5 | Makita 346840-5 PLATE |
| 25 | 266086-6 | Makita 266086-6 HEX. SOCKET HEAD BOLT M5X |
| 26 | 326470-8 | Makita 326470-8 STRIKER |
| 27 | 213799-0 | Makita 213799-0 O-RING 56 |
| 28 | 332130-2 | Makita 332130-2 CYLINDER LINER 66 |
| 29 | 455492-2 | Makita 455492-2 SPACER 72 |
| 30 | 123361-2 | Makita 123361-2 BALANCER ASSEMBLY |
| 31 | 455492-2 | Makita 455492-2 SPACER 72 |
| 32 | 332131-0 | Makita 332131-0 SPACER |
| 33 | 142922-9 | Makita 142922-9 CONNECTING ROD COMPLETE |
| 34 | 268328-4 | Makita 268328-4 PIN 15 C |
| 35 | 213799-0 | Makita 213799-0 O-RING 56 |
| 36 | 455509-1 | Makita 455509-1 PISTON |
| 37 | 213662-7 | Makita 213662-7 O RING 55 |
| 38 | 455490-6 | Makita 455490-6 CONNECTING ROD |
| 39 | 424669-0 | Makita 424669-0 BELLOWS |
| 40 | 211151-6 | Makita 211151-6 BALL BEARING 6306LLB |
| 41 | 227797-8 | Makita 227797-8 HELICAL GEAR 57 |
| 42 | 267290-0 | Makita 267290-0 FLAT WASHER 18, JR3050T |
| 43 | 226834-5 | Makita 226834-5 GEAR COMPLETE 23-59 |
| 44 | 212099-5 | Makita 212099-5 NEEDLE CAGE 1816 |
| 45 | 267290-0 | Makita 267290-0 FLAT WASHER 18, JR3050T |
| 46 | 424667-4 | Makita 424667-4 SEAL RING B |
| 47 | 455491-4 | Makita 455491-4 GEAR COVER |
| 48 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 49 | 455500-9 | Makita 455500-9 SIDE COVER B |
| 50 | 850X57-3 | |
| 51 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 52 | 850T96-9 | |
| 53 | 424668-2 | Makita 424668-2 Filter Cap for HM1812 |
| 54 | 443127-7 | Makita 443127-7 Filter for HM1203C |
| 55 | 455493-0 | Makita 455493-0 STOPPER |
| 56 | 213810-8 | Makita 213810-8 O-RING 124 |
| 57 | 961156-3 | Makita 961156-3 RETAINING RING S-40 |
| 58 | 142921-1 | Makita 142921-1 CRANK COMPLETE |
| 59 | 267486-3 | Makita 267486-3 FLAT WASHER 50 |
| 60 | 142952-0 | Makita 142952-0 CRANK BOX COMPLETE |
| 61 | 267486-3 | Makita 267486-3 FLAT WASHER 50 |
| 62 | 310619-0 | Makita 310619-0 COUNTER SHAFT |
| 63 | 213902-3 | Makita 213902-3 O-RING 135 |
| 64 | 254220-0 | Makita 254220-0 KEY 5HR4511C |
| 65 | 310618-2 | Makita 310618-2 CRANK SHAFT |
| 66 | 211500-7 | Makita 211500-7 BALL BEARING 6307LLU |
| 67 | 256559-7 | Makita 256559-7 FLAT FILLISTER HD PIN 6 |
| 68 | 455506-7 | Makita 455506-7 HANDLE C |
| 69 | 455503-3 | Makita 455503-3 CENTER COVER |
| 70 | 234349-8 | Makita 234349-8 COMPRESSION SPRING 12A |
| 71 | 326471-6 | Makita 326471-6 ROD 10 |
| 72 | 142919-8 | Makita 142919-8 CRANK HOUSING COMPLETE |
| 73 | 455503-3 | Makita 455503-3 CENTER COVER |
| 74 | 455506-7 | Makita 455506-7 HANDLE C |

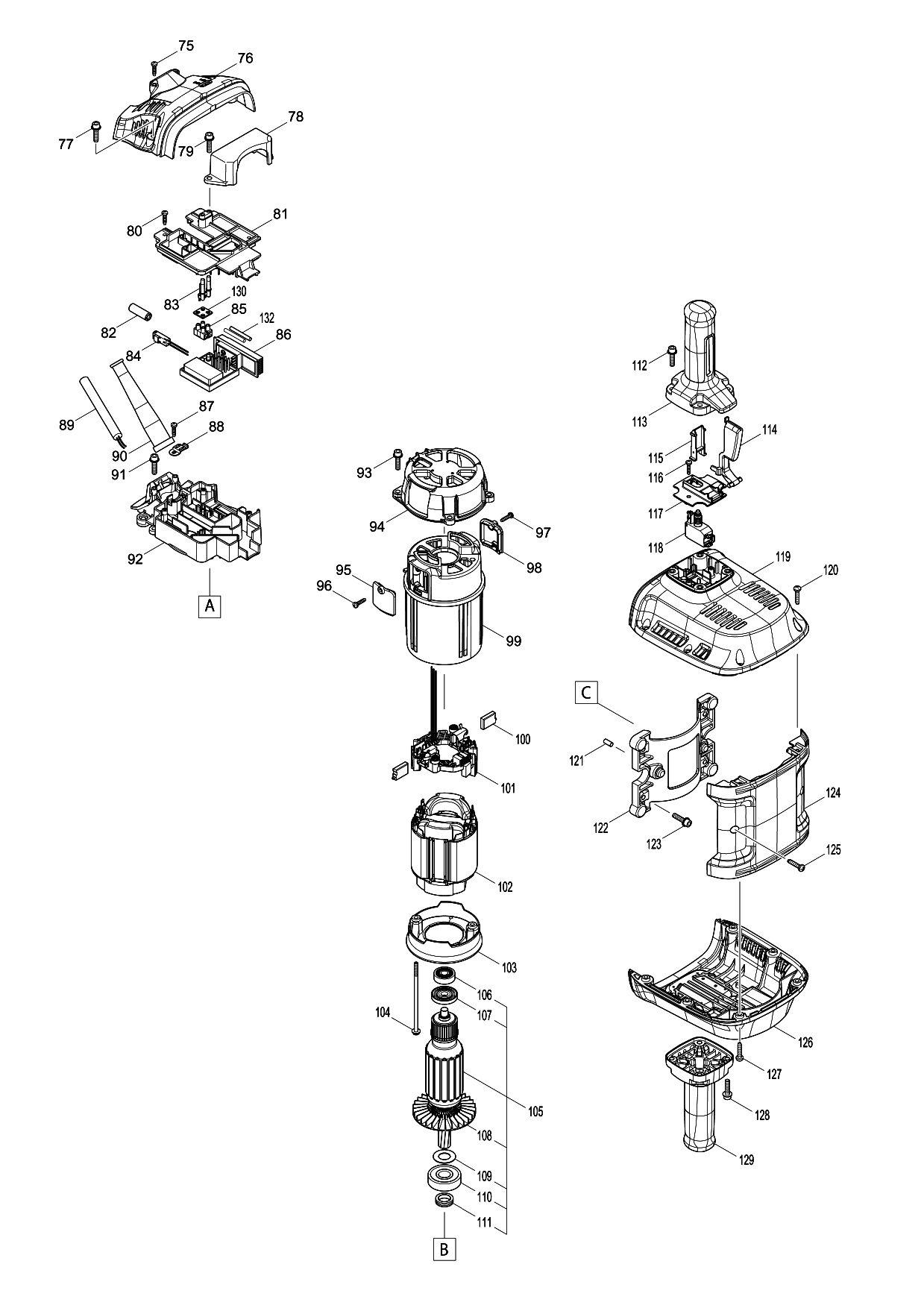

Sheet 2: Makita HM1812 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 75 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 76 | 455499-8 | Makita 455499-8 SIDE COVER A |
| 77 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 78 | 455510-6 | Makita 455510-6 BRACKET |
| 79 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 80 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 81 | 455495-6 | Makita 455495-6 CAP COVER |
| 82 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 83 | 455514-8 | Makita 455514-8 LENS |
| 84 | 632E02-4 | Makita 632E02-4 LEAD UNIT |
| 85 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 86 | 620365-0 | Makita 620365-0 CONTROLLER |
| 87 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 88 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 89 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 90 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 91 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 92 | 455494-8 | Makita 455494-8 CRANK HOUSING CAP |
| 93 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 94 | 319220-8 | Makita 319220-8 BEARING BOX |
| 95 | 455498-0 | Makita 455498-0 BRUSH HOLDER COVER |
| 96 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 97 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 98 | 455498-0 | Makita 455498-0 BRUSH HOLDER COVER |
| 99 | 455496-4 | Makita 455496-4 MOTOR HOUSING |
| 100 | 197129-2 | Makita 197129-2 CARBON BRUSH CB-218 HM1812 |
| 101 | 632E01-6 | Makita 632E01-6 BRUSH HOLDER UNIT |
| 102 | 636409-6 | Makita 636409-6 FIELD 240V |
| 103 | 455497-2 | Makita 455497-2 BAFFLE PLATE |
| 104 | 266922-6 | Makita 266922-6 + HEX. BOLT M5X120 WITH GM |
| 105 | 517914-1 | Makita 517914-1 Armature Assembly 240V |
| 106 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 107 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 109 | 267487-1 | Makita 267487-1 FLAT WASHER 17 |
| 110 | 211152-4 | Makita 211152-4 BALL BEARING 6303LLU |
| 111 | 332129-7 | Makita 332129-7 SEALING SCREW |
| 112 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 113 | 455504-1 | Makita 455504-1 HANDLE A |
| 114 | 455508-3 | Makita 455508-3 SWITCH LEVER |
| 115 | 455511-4 | Makita 455511-4 SWITCH GUIDE |
| 116 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 117 | 455507-5 | Makita 455507-5 SWITCH COVER |
| 118 | 650738-3 | Makita 650738-3 Switch C3JW-C-P for HM1812 HM1802 |
| 119 | 455502-5 | Makita 455502-5 HANDLE BASE A |
| 120 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 121 | 256269-6 | Makita 256269-6 PIN 6 |
| 122 | 319222-4 | Makita 319222-4 BASE |
| 123 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 124 | 455501-7 | Makita 455501-7 HEAD COVER |
| 125 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 126 | 455512-2 | Makita 455512-2 HANDLE BASE B |
| 127 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 128 | 266923-4 | Makita 266923-4 H.S.HEAD BOLT M6X25 WITH GM |
| 129 | 455505-9 | Makita 455505-9 HANDLE B |
| 130 | 685756-2 | Makita 685756-2 RUBBER SHEET |
| 132 | 684970-7 | Makita 684970-7 GLASS CLOTH TUBE 3,5-45 |
