Makita HM1810
Makita HM1810: exploded parts diagram, 2 sheets, 133 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1810: 133 positions on 2 sheets

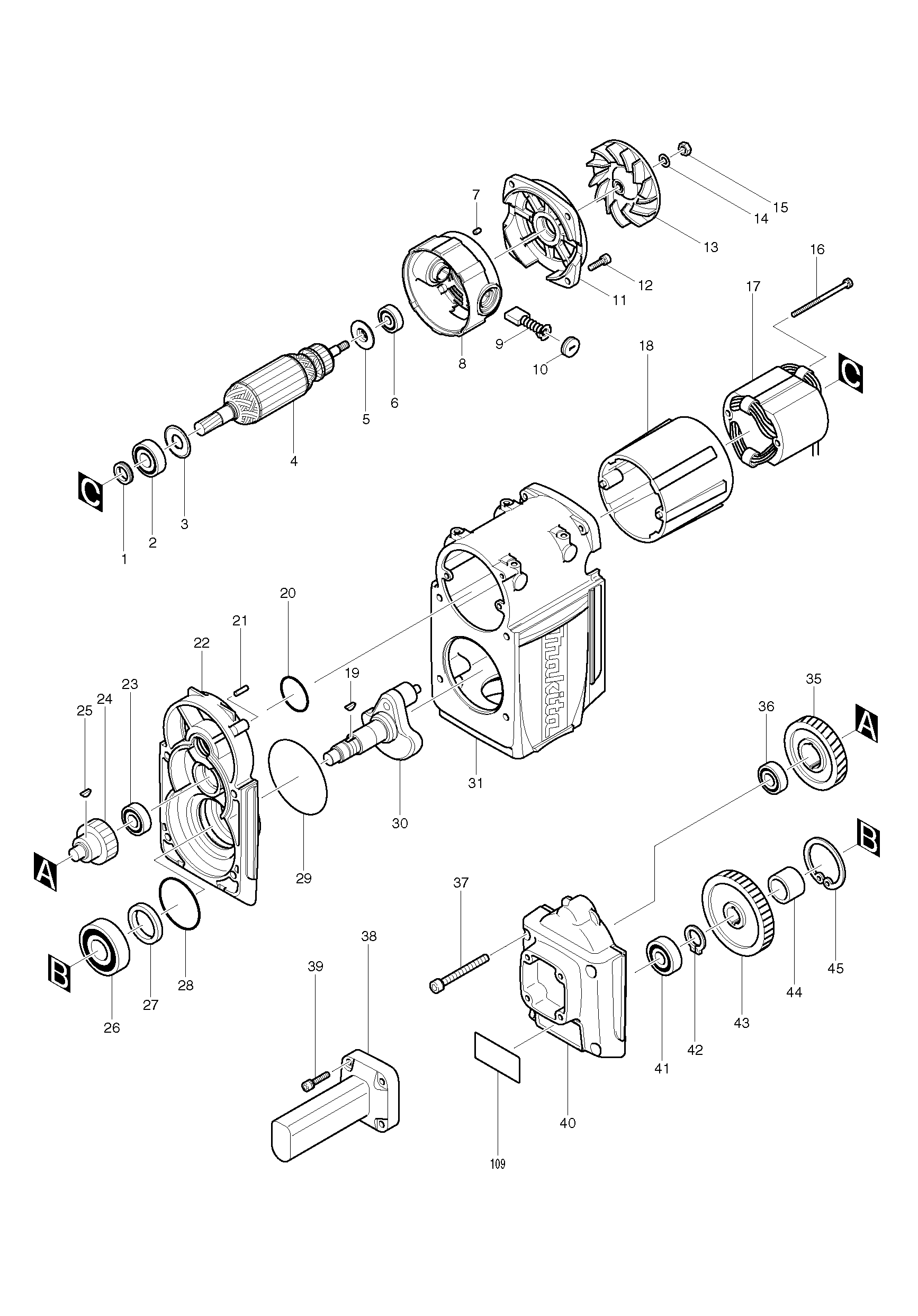

Sheet 1: Makita HM1810 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 322566-3 | Makita 322566-3 SCREW SEAL |
| 2 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 3 | 267706-5 | Makita 267706-5 WASHER 17 HM1800 |
| 4 | 516922-9 | Makita 516922-9 ARMATURE ASS'Y HM1810 |
| 5 | 681646-7 | Makita 681646-7 INSULATION WASHER HM1800 |
| 6 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 7 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 8 | 154586-7 | Makita 154586-7 MOTOR HOUSING HM1810 |
| 9 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 10 | 643710-2 | Makita 643710-2 BRUSHOLDER CAP HM1800 |
| 11 | 317899-9 | Makita 317899-9 BEARING BOX HM1810 |
| 12 | 265366-7 | Makita 265366-7 HEX. SOCKET HEAD BOLT M6X |
| 13 | 240024-6 | Makita 240024-6 Fan 100 for HM1800 |
| 14 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 15 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 16 | 265344-7 | Makita 265344-7 HEX. BOLT M5X85 HM1800 |
| 17 | 628943-0 | Makita 628943-0 FIELD 240V HM1810 |
| 18 | 414787-2 | Makita 414787-2 MOTOR HOUSING A |
| 19 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 20 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 21 | 256151-9 | Makita 256151-9 PIN 5 |
| 22 | 154585-9 | Makita 154585-9 GEAR HOUSING COMPLETE HM1810 |
| 23 | 211209-1 | Makita 211209-1 BALL BEARING 6202 |
| 24 | 226251-9 | Makita 226251-9 SPUR GEAR 22 |
| 25 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 26 | 211361-5 | Makita 211361-5 BALL BEARING 6305LLB HM1800 |
| 27 | 213476-4 | Makita 213476-4 OIL SEAL 35 HM1800 |
| 28 | 213721-7 | Makita 213721-7 O RING 61 HM1800 HM1304B |
| 29 | 213806-9 | Makita 213806-9 O RING 90 |
| 30 | 154588-3 | Makita 154588-3 CRANK SHAFT HM1810 |
| 31 | 317903-4 | Makita 317903-4 CRANK HOUSING HM1810 |
| 35 | 221793-8 | Makita 221793-8 HELICAL GEAR 50 HM1800 |
| 36 | 211209-1 | Makita 211209-1 BALL BEARING 6202 |
| 37 | 922496-4 | Makita 922496-4 HEX. SOCKET HEAD BOLT M8X |
| 38 | 418415-1 | Makita 418415-1 SIDE HANDLE HM1800 |
| 39 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 40 | 317902-6 | Makita 317902-6 GEAR HOUSING COVER HM1810 |
| 41 | 211214-8 | Makita 211214-8 BALL BEARING 6302 |
| 42 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 43 | 226242-0 | Makita 226242-0 SPUR GEAR 47 HM1800 |
| 44 | 331416-1 | Makita 331416-1 SLEEVE 25 HM1800 |
| 45 | 962301-3 | Makita 962301-3 RETAINING RING R-62 |
| 109 | 861399-6 | Makita 861399-6 NAME PLATE HM1810 |

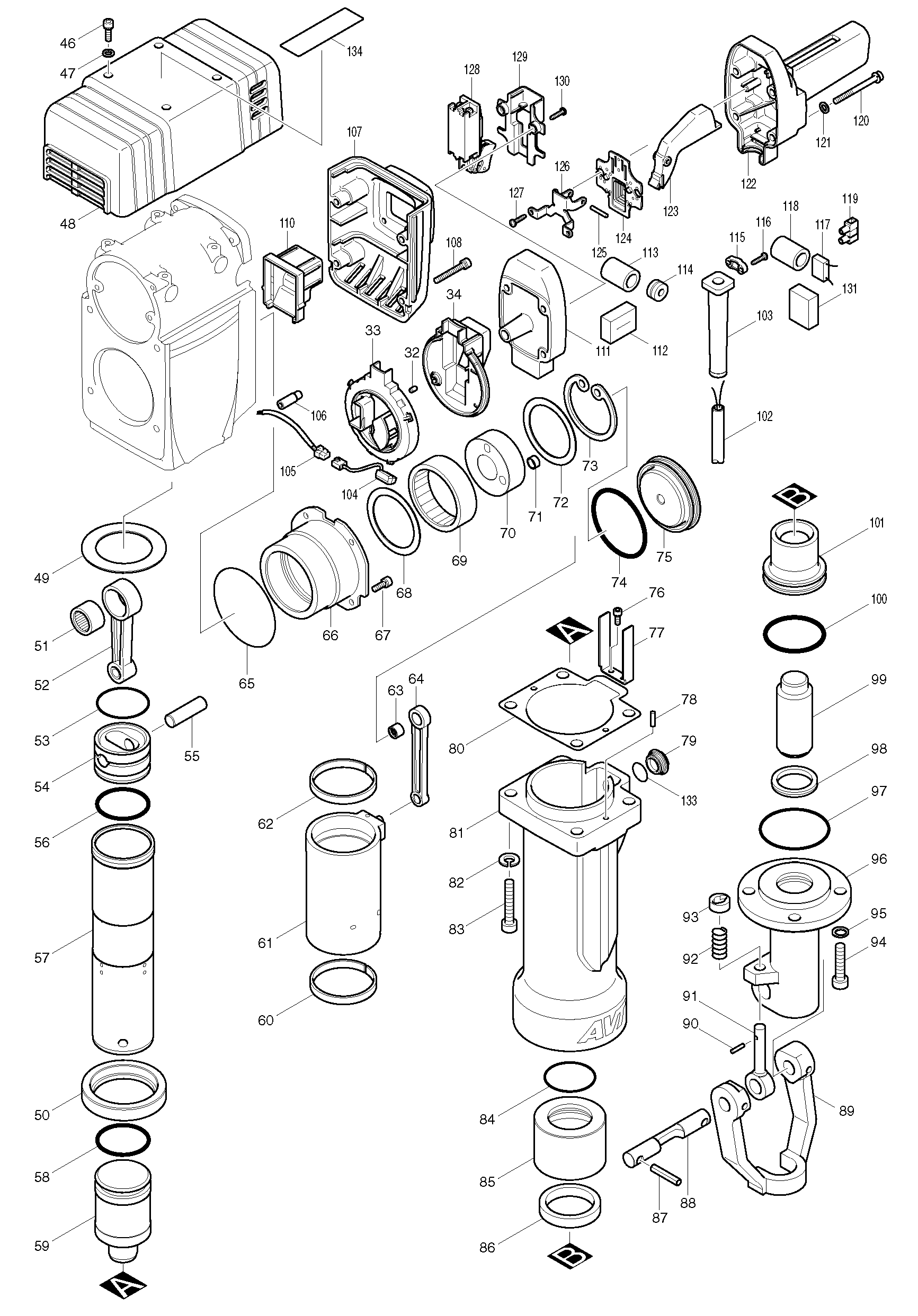

Sheet 2: Makita HM1810 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 32 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 33 | 418955-9 | |
| 34 | 418953-3 | Makita 418953-3 CAP COVER HM1810 |
| 46 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 47 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 48 | 183984-8 | |
| 49 | 267296-8 | Makita 267296-8 FLAT WASHER 63 HM1810 |
| 50 | 324580-5 | Makita 324580-5 SPACER HM1810 |
| 51 | 212358-7 | Makita 212358-7 Needle Bearing 2520 HM1800 |
| 52 | 322476-4 | Makita 322476-4 CONECTING ROD |
| 53 | 213662-7 | Makita 213662-7 O RING 55 |
| 54 | 324536-8 | Makita 324536-8 PISTON, HM1810 |
| 55 | 268130-5 | Makita 268130-5 PIN 15 HM1810 |
| 56 | 213666-9 | Makita 213666-9 O RING 52 HM1800 |
| 57 | 331694-3 | Makita 331694-3 CYLINDER LINER 62 HM1810 |
| 58 | 213666-9 | Makita 213666-9 O RING 52 HM1800 |
| 59 | 324546-5 | Makita 324546-5 STRIKER HM1810 |
| 60 | 418949-4 | Makita 418949-4 SPACER 68 HM1810 |
| 61 | 154589-1 | Makita 154589-1 BALLANCER COMPLETE HM1810 |
| 62 | 418949-4 | Makita 418949-4 SPACER 68 HM1810 |
| 63 | 212075-9 | Makita 212075-9 NEEDLE ROLLER BEARING 101 |
| 64 | 324535-0 | Makita 324535-0 CONNECTING ROD HM1810 |
| 65 | 213855-6 | LOST Makita 213855-6 O RING 95 |
| 66 | 317900-0 | Makita 317900-0 CRANK BOX HM1810 |
| 67 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 68 | 267297-6 | Makita 267297-6 FLAT WASHER 65 HM1810 |
| 69 | 212701-0 | Makita 212701-0 NEEDLE BEARING 7025 HM1810 |
| 70 | 154587-5 | Makita 154587-5 CRANK COMPLETE HM1810 |
| 71 | 257267-3 | Makita 257267-3 RING 10 HM1810 |
| 72 | 267297-6 | Makita 267297-6 FLAT WASHER 65 HM1810 |
| 73 | 962354-2 | Makita 962354-2 RETAINING RING R-80 HM1810 |
| 74 | 213765-7 | Makita 213765-7 O RING 78 HM1810 |
| 75 | 418952-5 | Makita 418952-5 STOPPER HM1810 |
| 76 | 265908-7 | Makita 265908-7 HEX. SOCKET HEAD BOLT M5X |
| 77 | 345569-0 | Makita 345569-0 PLATE HM1810 |
| 78 | 256151-9 | Makita 256151-9 PIN 5 |
| 79 | 324606-3 | Makita 324606-3 CAP HM1810 |
| 80 | 162241-7 | Makita 162241-7 GASKET HM1810 |
| 81 | 317905-0 | Makita 317905-0 BARREL HM1810 |
| 82 | 942301-9 | Makita 942301-9 SPRING WASHER 12 |
| 83 | 922677-0 | Makita 922677-0 HEX. SOCKET BOLT M12X55 HM1800 |
| 84 | 213660-1 | Makita 213660-1 O RING 53 |
| 85 | 322548-5 | Makita 322548-5 CYLINDER B HM1800 |
| 86 | 262050-5 | Makita 262050-5 RUBBER RING 54 |
| 87 | 951272-9 | Makita 951272-9 SPRING PIN 8-40 HM1500B |
| 88 | 324238-6 | Makita 324238-6 TOOL RETAINER SHAFT HM1800 |
| 89 | 324236-0 | Makita 324236-0 TOOL RETAINER HM1800 |
| 90 | 256219-1 | Makita 256219-1 PIN 4 |
| 91 | 322477-2 | Makita 322477-2 TOOL RETAINER POLE |
| 92 | 233083-7 | Makita 233083-7 COMPRESSION SPRING 12 |
| 93 | 322560-5 | Makita 322560-5 RETAINER RING HM1304B |
| 94 | 265989-1 | Makita 265989-1 HEX. SOCKET BOLT M12X45 |
| 95 | 253989-3 | Makita 253989-3 SPRING WASHER 12 |
| 96 | 324539-2 | Makita 324539-2 TOOL HOLDER HM1810 |
| 97 | 213755-0 | Makita 213755-0 O RING 75 HM1400 |
| 98 | 213517-6 | Makita 213517-6 X RING 40 HM1400/1800 |
| 99 | 324545-7 | Makita 324545-7 IMPACT BOLT HM1810 |
| 100 | 213667-7 | Makita 213667-7 O RING 60 |
| 101 | 324541-5 | Makita 324541-5 IMPACT BOLT HOLDER HM1810 |
| 102 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 103 | 682546-4 | Makita 682546-4 CORD GUARD 12-125 |
| 104 | 631671-8 | |
| 105 | 638378-7 | Makita 638378-7 LEAD UNIT HM1810 |
| 106 | 418951-7 | Makita 418951-7 LENS HM1810 |
| 107 | 317901-8 | Makita 317901-8 REAR CASE HM1810 |
| 108 | 922366-7 | Makita 922366-7 HEX. SOCKET HEAD BOLT M6X |
| 110 | 418954-1 | Makita 418954-1 TOP COVER HM1810 |
| 111 | 419044-3 | Makita 419044-3 HANDLE SUB BASE HM1810 HM1800 |
| 112 | 685700-9 | |
| 113 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 114 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
| 115 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 116 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 117 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 118 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 119 | 654554-5 | Makita 654554-5 TERMINAL 3612C HM1810 |
| 120 | 265535-0 | Makita 265535-0 HEX.SOCKET HEAD BOLT M6X6 |
| 121 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 122 | 418333-3 | Makita 418333-3 HANDLE HM1800 |
| 123 | 418332-5 | Makita 418332-5 SWITCH LEVER HM1800 |
| 124 | 421850-4 | Makita 421850-4 DUST PLATE HM1800 |
| 125 | 256206-0 | Makita 256206-0 PIN 4, JV600 |
| 126 | 345355-9 | Makita 345355-9 SUPPORT HM1800 |
| 127 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 128 | 651131-4 | Makita 651131-4 Switch C3D-15MS-1D for 2414DB HM1400 HM1810 9005BZ 4110C |
| 129 | 419045-1 | Makita 419045-1 SWITCH COVER HM1810 |
| 130 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 131 | 685718-0 | Makita 685718-0 SPONGE SHEET JR3000V |
| 133 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 134 | 819213-0 | Makita 819213-0 MAKITA LOGO LABEL HM1810 |
