Makita HM1400
Makita HM1400: exploded parts diagram, 2 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1400: 87 positions on 2 sheets
Sheet 1: Makita HM1400 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 922471-0 | Makita 922471-0 HEX. SOCKET HEAD BOLT M8X |
| 3 | 211109-5 | Makita 211109-5 BALL BEARING 6201, 5277NB |
| 4 | 221713-2 | Makita 221713-2 HELICAL GEAR 36 |
| 5 | 211109-5 | Makita 211109-5 BALL BEARING 6201, 5277NB |
| 6 | 331212-7 | Makita 331212-7 SEAL |
| 7 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 8 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 9 | 213202-1 | Makita 213202-1 DUST SEAL 15 |
| 10 | 241648-1 | Makita 241648-1 FAN 104 |
| 11 | 514843-9 | Makita 514843-9 ARMATURE ASS'Y 220V |
| 12 | 681624-7 | Makita 681624-7 INSULATION WASHER |
| 13 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 14 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 15 | 524793-0 | Makita 524793-0 Field Ass'y 220V for HM1400 |
| 16 | 942301-9 | Makita 942301-9 SPRING WASHER 12 |
| 17 | 922667-3 | Makita 922667-3 HEX. SOCKET HEAD BOLT M12 X45 |
| 18 | 321560-2 | Makita 321560-2 CRANK SLEEVE |
| 19 | 321557-1 | |
| 20 | 212307-4 | Makita 212307-4 NEEDLE BEARING 1820 |
| 22 | 265343-9 | |
| 23 | 321556-3 | Makita 321556-3 CRANK SHAFT, 8600S |
| 24 | 266009-4 | Makita 266009-4 HEX. SOCKET HEAD BOLT M8X |
| 25 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 27 | 315525-4 | Makita 315525-4 BEARING BOX |
| 28 | 211359-2 | Makita 211359-2 BALL BEARING 6205 |
| 29 | 213354-8 | Makita 213354-8 OIL SEAL 25 |
| 30 | 157648-0 | |
| 31 | 221714-0 | Makita 221714-0 HELICAL GEAR 53 HM1400 |
| 32 | 211214-8 | Makita 211214-8 BALL BEARING 6302 |
| 33 | 315908-8 | Makita 315908-8 GEAR HOUSING COVER |
| 34 | 323147-6 | Makita 323147-6 SWITCH LEVER PIN |
| 35 | 342531-6 | Makita 342531-6 SWITCH LEVER |
| 36 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 37 | 651131-4 | Makita 651131-4 Switch C3D-15MS-1D for 2414DB HM1400 HM1810 9005BZ 4110C |
| 38 | 181906-2 | Makita 181906-2 HANDLE SET |
| 39 | 911253-5 | Makita 911253-5 PANHEAD SCREW M5*30, EBH252L |
| 40 | 922356-0 | Makita 922356-0 HEX. SOCKET HEAD BOLT M6X |
| 42 | 316385-7 | Makita 316385-7 REAR CASE |
| 43 | 253751-6 | Makita 253751-6 FLAT WASHER 24 |
| 44 | 159420-6 | Makita 159420-6 MOTOR HOUSING HM1400 |
| 45 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 46 | 855573-6 | Makita 855573-6 NAME PLATE HM1400 |
| 47 | 423137-0 | Makita 423137-0 PACKING |
| 48 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 49 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 50 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
| 51 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 52 | 181906-2 | Makita 181906-2 HANDLE SET |
| 53 | 922461-3 | Makita 922461-3 HEX. SOCKET HEAD BOLT M8X |
| 55 | 321956-7 | Makita 321956-7 HANDLE SLEEVE |
| 56 | 421308-3 | Makita 421308-3 SLEEVE |
| 57 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 58 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 59 | 213855-6 | LOST Makita 213855-6 O RING 95 |
| 60 | 157649-8 | Makita 157649-8 CRANK HOUSING |
| 61 | 442009-0 | Makita 442009-0 PACKING 50 |
| 62 | 341397-1 | Makita 341397-1 PLATE 50 |
| 63 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 64 | 181048-2 | Makita 181048-2 Carbon Brush CB-155 5008NB HM1202C HR3851 HM1211B |
| 65 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 66 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 67 | 343891-9 | Makita 343891-9 HOLDER CAP PLATE |
| 94 | 262003-4 | Makita 262003-4 RUBBER RING 6 |

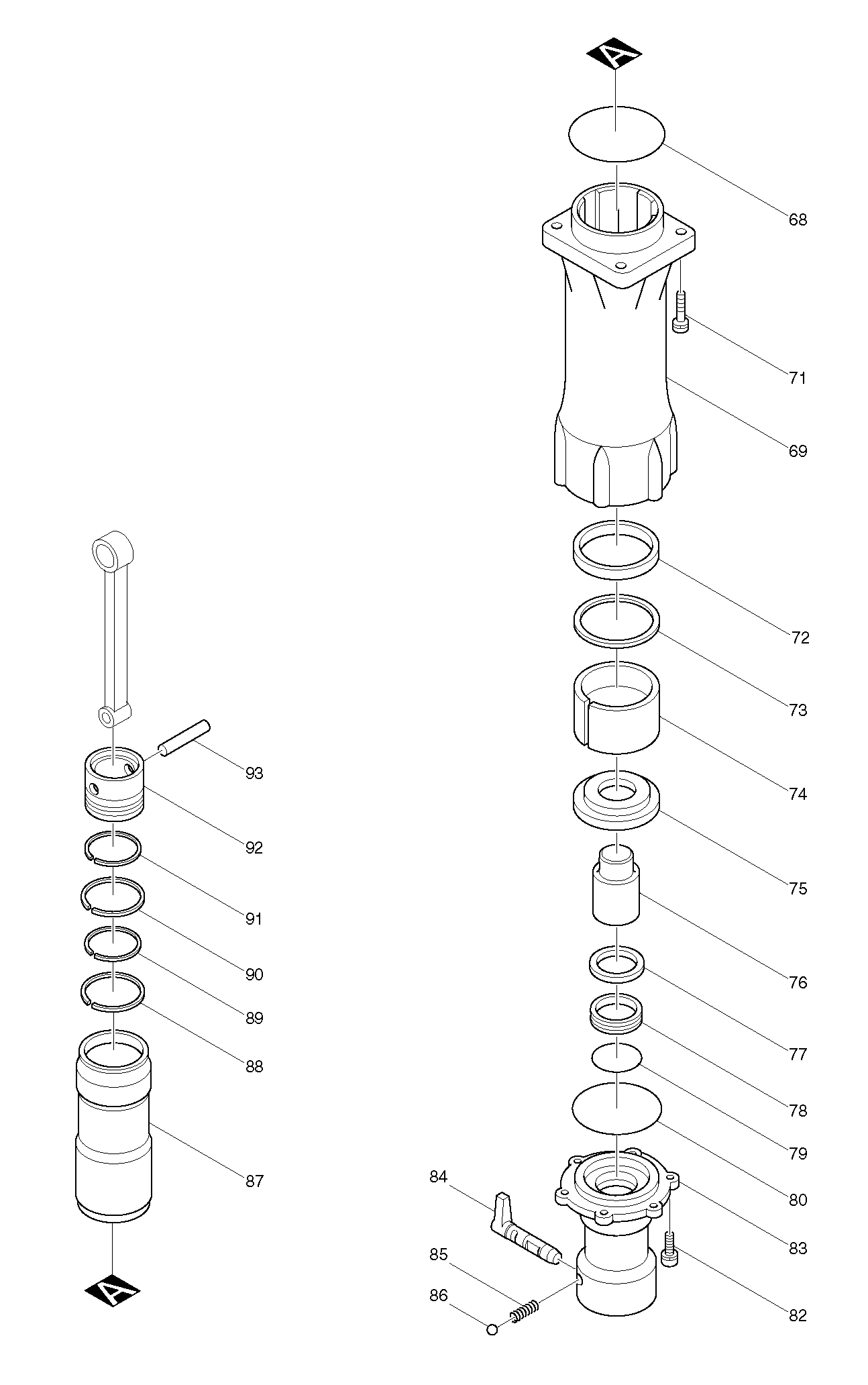

Sheet 2: Makita HM1400 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 68 | 213755-0 | Makita 213755-0 O RING 75 HM1400 |
| 69 | 315524-6 | Makita 315524-6 CYLINDER |
| 71 | 922461-3 | Makita 922461-3 HEX. SOCKET HEAD BOLT M8X |
| 72 | 262034-3 | Makita 262034-3 NYLON RING 63 |
| 73 | 253861-9 | Makita 253861-9 FLAT WASHER 63 |
| 74 | 331299-9 | Makita 331299-9 IDLER |
| 75 | 322208-9 | Makita 322208-9 RING HOLDER |
| 76 | 321563-6 | Makita 321563-6 IMPACT BOLT HM1400 |
| 77 | 262039-3 | Makita 262039-3 NYLON RING 42 |
| 78 | 213517-6 | Makita 213517-6 X RING 40 HM1400/1800 |
| 79 | 213504-5 | Makita 213504-5 O RING 40 |
| 80 | 213754-2 | Makita 213754-2 O RING 71 |
| 82 | 266010-9 | Makita 266010-9 Hex Socket Head Bolt M8X |
| 83 | 321961-4 | Makita 321961-4 TOOL HOLDER |
| 84 | 321788-2 | Makita 321788-2 TOOL RETAINER |
| 85 | 231032-8 | Makita 231032-8 COMPRESSION SPRING 5 |
| 86 | 216004-4 | Makita 216004-4 STEEL BALL 7.9 |
| 87 | 322059-0 | Makita 322059-0 HAMMER HM1400 |
| 88 | 412055-7 | Makita 412055-7 PISTON RING 50 |
| 89 | 341993-5 | Makita 341993-5 INNER RING |
| 90 | 412055-7 | Makita 412055-7 PISTON RING 50 |
| 91 | 341993-5 | Makita 341993-5 INNER RING |
| 92 | 321562-8 | Makita 321562-8 PISTON |
| 93 | 256128-4 | Makita 256128-4 PIN 10 HM1400 |
