All parts of Makita HM1317CB: 118 positions on 1 sheet

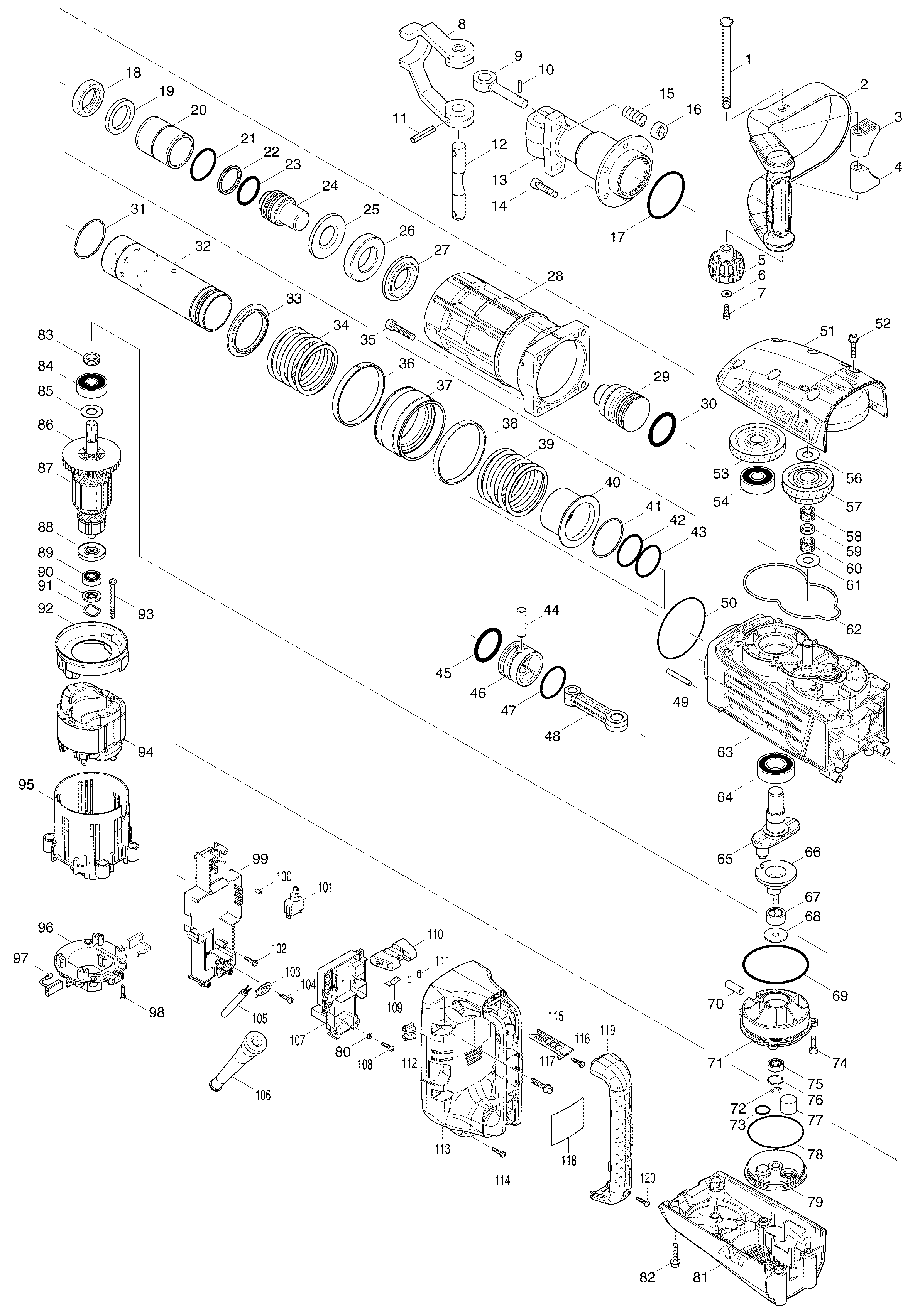

Sheet 1: Makita HM1317CB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266512-5 | Makita 266512-5 SET BOLT M10X142HM1317CB |
| 2 | 163506-0 | Makita 163506-0 SIDE HANDLEHM1317CB |
| 3 | 451331-4 | Makita 451331-4 HANDLE BASEHM1317CB |
| 4 | 451331-4 | Makita 451331-4 HANDLE BASEHM1317CB |
| 5 | 252654-1 | Makita 252654-1 THUMB NUT M10HM1317CB |
| 6 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 7 | 922221-3 | Makita 922221-3 HEX. BOLT, GA9010 |
| 8 | 325895-3 | Makita 325895-3 TOOL RETAINERHM1317CB |
| 9 | 322477-2 | Makita 322477-2 TOOL RETAINER POLE |
| 10 | 256219-1 | Makita 256219-1 PIN 4 |
| 11 | 951272-9 | Makita 951272-9 SPRING PIN 8-40 HM1500B |
| 12 | 324238-6 | Makita 324238-6 TOOL RETAINER SHAFT HM1800 |
| 13 | 331872-5 | Makita 331872-5 TOOL HOLDERHM1317CB |
| 14 | 266011-7 | Makita 266011-7 HEX. SOCKET HEAD BOLT M8X |
| 15 | 233083-7 | Makita 233083-7 COMPRESSION SPRING 12 |
| 16 | 322560-5 | Makita 322560-5 RETAINER RING HM1304B |
| 17 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 18 | 262151-9 | Makita 262151-9 URETHAN RING 32HM1317CB |
| 19 | 257301-9 | Makita 257301-9 RING 35 HM1317CB |
| 20 | 257788-5 | Makita 257788-5 SLEEVE 43HM1317CB |
| 21 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 22 | 213192-8 | Makita 213192-8 X RING 36HM1317CB |
| 23 | 213150-4 | Makita 213150-4 O RING 36HM1317CB |
| 24 | 325687-0 | Makita 325687-0 IMPACT BOLTHM1317CB |
| 25 | 325683-8 | Makita 325683-8 WASHER 30HM1317CB |
| 26 | 424206-0 | Makita 424206-0 RUBBER RING 36HM1317CB |
| 27 | 325684-6 | Makita 325684-6 SHOULDER RING 32HM1317CB |
| 28 | 318458-2 | Makita 318458-2 BARRELHM1317CB |
| 29 | 325685-4 | Makita 325685-4 STRIKER, HM1317C |
| 30 | 213193-6 | Makita 213193-6 O RING 42HM1317CB |
| 31 | 233977-6 | Makita 233977-6 RING SPRING 55HM1317CB |
| 32 | 331870-9 | Makita 331870-9 CYLINDERHM1317CB |
| 33 | 451168-9 | Makita 451168-9 SHOULDER SLEEVEHM1317CB |
| 34 | 234111-1 | Makita 234111-1 COMPRESSION SPRING66 HM1317CB |
| 35 | 265367-5 | Makita 265367-5 HEX. SOCKET HEAD BOLT M8X |
| 36 | 451169-7 | Makita 451169-7 WEIGHT GUIDEHM1317CB |
| 37 | 331867-8 | Makita 331867-8 COUNTER WEIGHT, HM1317C |
| 38 | 451169-7 | Makita 451169-7 WEIGHT GUIDEHM1317CB |
| 39 | 234111-1 | Makita 234111-1 COMPRESSION SPRING66 HM1317CB |
| 40 | 331868-6 | Makita 331868-6 SLIDE SLEEVE, HM1317C |
| 41 | 233977-6 | Makita 233977-6 RING SPRING 55HM1317CB |
| 42 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 43 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 44 | 256238-7 | Makita 256238-7 PIN 12 |
| 45 | 213193-6 | Makita 213193-6 O RING 42HM1317CB |
| 46 | 318459-0 | Makita 318459-0 PISTONHM1317CB |
| 47 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 48 | 451164-7 | Makita 451164-7 CONNECTING RODHM1317CB |
| 49 | 268241-6 | Makita 268241-6 PIN 6HM1317CB |
| 50 | 213806-9 | Makita 213806-9 O RING 90 |
| 51 | 318462-1 | Makita 318462-1 GEAR COVERHM1317CB |
| 52 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 53 | 227709-1 | Makita 227709-1 HELICAL GEAR 47HM1317CB |
| 54 | 211306-3 | Makita 211306-3 BALL BEARING 6204LLB |
| 56 | 267166-1 | Makita 267166-1 FLAT WASHER 14 HM0860C |
| 57 | 226156-3 | Makita 226156-3 GEAR COMPLETE 31-43HM1317CB |
| 58 | 212159-3 | Makita 212159-3 NEEDLE CAGE 1412HM1214C |
| 59 | 262157-7 | Makita 262157-7 NYLON RING 14HM1317CB |
| 60 | 212159-3 | Makita 212159-3 NEEDLE CAGE 1412HM1214C |
| 61 | 267166-1 | Makita 267166-1 FLAT WASHER 14 HM0860C |
| 62 | 424207-8 | Makita 424207-8 SEAL RINGHM1317CB |
| 63 | 140056-2 | Makita 140056-2 CRANK HOUSING COMPLHM1317CB |
| 64 | 211373-8 | Makita 211373-8 BALL BEARING 6205LLU |
| 65 | 331871-7 | Makita 331871-7 CRANK SHAFT, HM1317C |
| 66 | 331869-4 | Makita 331869-4 COUNTER SHAFTHM1317CB |
| 67 | 212264-6 | Makita 212264-6 NEEDLE ROLLER BEARING 1813 HM1317CB |
| 68 | 325686-2 | Makita 325686-2 SHOULDER WASHER 8, HM1317C |
| 69 | 213809-3 | Makita 213809-3 O-RING 86.5*2.4AN943 |
| 70 | 268240-8 | Makita 268240-8 PIN 10HM1317CB |
| 71 | 140057-0 | Makita 140057-0 BEARING BOX COMPLHM1317CB |
| 72 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 73 | 213261-5 | Makita 213261-5 O RING 17 |
| 74 | 265844-7 | Makita 265844-7 HEX. SOCKET HEAD BOLT M6X |
| 75 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 76 | 962112-6 | Makita 962112-6 RETAINING RING R-22 |
| 77 | 443127-7 | Makita 443127-7 Filter for HM1203C |
| 78 | 213758-4 | Makita 213758-4 O RING 74HM1317C |
| 79 | 451166-3 | Makita 451166-3 CRANK CAP COVERHM1317CB |
| 80 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 81 | 451167-1 | Makita 451167-1 REAR COVERHM1317CB |
| 82 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 83 | 331855-5 | Makita 331855-5 SEALING SCREW, HM1214C |
| 84 | 211249-9 | Makita 211249-9 Ball Bearing 6302LLU Replacement Part |
| 85 | 267397-2 | Makita 267397-2 FLAT WASHER 15HM1203C |
| 87 | 517788-0 | Makita 517788-0 ARMATURE ASSEMBLYHM1317CB |
| 88 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 89 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 90 | 451107-9 | Makita 451107-9 WASHER GUIDEHM1214C |
| 91 | 267809-5 | Makita 267809-5 WAVE WASHER 19HM1214C |
| 92 | 451111-8 | Makita 451111-8 BAFFLE PLATEHM1214C |
| 93 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 94 | 636333-3 | Makita 636333-3 FIELDHM1317CB |
| 95 | 451117-6 | Makita 451117-6 MOTOR HOUSINGHM1214C |
| 96 | 638447-4 | Makita 638447-4 Brush Holder Unit for HR5211C HM1307CB |
| 97 | 194412-8 | Makita 194412-8 CARBON BRUSH CB-171 HR5211C |
| 98 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 99 | 158986-3 | Makita 158986-3 CONTROLLER COVER COMHM1214C |
| 100 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 101 | 651423-1 | Makita 651423-1 Switch for 9523B RD1101 HM1203C 3706 BTM40 LXMT025 |
| 102 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 103 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 104 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 105 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 106 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 107 | 631920-3 | Makita 631920-3 CONTROLLERHM1317CB |
| 108 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 109 | 232209-8 | Makita 232209-8 LEAF SPRING HM0860C |
| 110 | 451112-6 | Makita 451112-6 SLIDE LEVERHM1214C |
| 111 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 112 | 451105-3 | Makita 451105-3 LENSHM1214C |
| 113 | 451118-4 | Makita 451118-4 HANDLEHM1214C |
| 114 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 115 | 451106-1 | Makita 451106-1 SWITCH LEVERHM1214C |
| 116 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 117 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 118 | 867310-6 | Makita 867310-6 NAME PLATEHM1317CB |
| 119 | 451119-2 | Makita 451119-2 HANDLE COVERHM1214C |
| 120 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
