Makita HM1304B
Makita HM1304B: exploded parts diagram, 1 sheet, 109 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1304B: 109 positions on 1 sheet

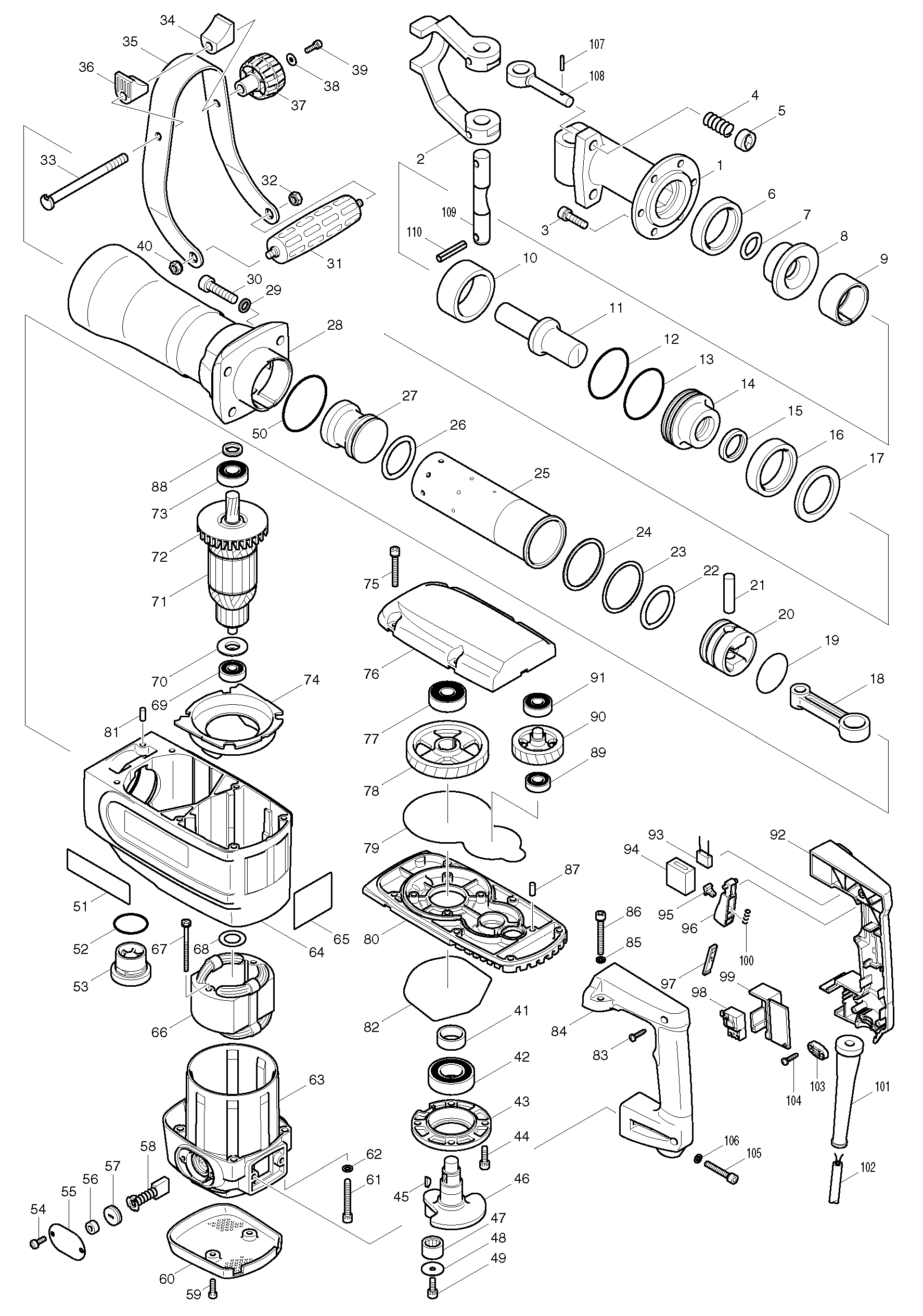

Sheet 1: Makita HM1304B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 324345-5 | Makita 324345-5 TOOL HOLDER FOR HM1304B |
| 2 | 322478-0 | Makita 322478-0 TOOL RETAINER |
| 3 | 266010-9 | Makita 266010-9 Hex Socket Head Bolt M8X |
| 4 | 233083-7 | Makita 233083-7 COMPRESSION SPRING 12 |
| 5 | 322560-5 | Makita 322560-5 RETAINER RING HM1304B |
| 6 | 262098-7 | Makita 262098-7 URETHAN RING 48 |
| 7 | 213388-1 | Makita 213388-1 O RING 24 |
| 8 | 324346-3 | Makita 324346-3 TOOL GUIDE FOR HM1304B |
| 9 | 324166-5 | Makita 324166-5 IDLER FOR HM1304B |
| 10 | 262099-5 | Makita 262099-5 RUBBER RING 52 FOR HM1304B |
| 11 | 324347-1 | Makita 324347-1 IMPACT BOLT FOR HM1304B |
| 12 | 213721-7 | Makita 213721-7 O RING 61 HM1800 HM1304B |
| 13 | 213721-7 | Makita 213721-7 O RING 61 HM1800 HM1304B |
| 14 | 324165-7 | Makita 324165-7 SEAL HOLDER HM1304B |
| 15 | 213443-9 | Makita 213443-9 X-Ring 30 for HM1304B |
| 16 | 262098-7 | Makita 262098-7 URETHAN RING 48 |
| 17 | 267232-4 | Makita 267232-4 FLAT WASHER 48 HM1304B |
| 18 | 317448-2 | Makita 317448-2 CONNECTING ROD COMPLETE |
| 19 | 213617-2 | Makita 213617-2 O RING 47 HM1304B |
| 20 | 317447-4 | Makita 317447-4 PISTON FOR HM1304B |
| 21 | 268066-8 | Makita 268066-8 PIN 12 FOR HM1304B |
| 22 | 213572-8 | Makita 213572-8 O RING 44 HM1304B |
| 23 | 267233-2 | Makita 267233-2 FLAT WASHER 55 HM1304B |
| 24 | 261121-5 | Makita 261121-5 NYLON WASHER 55 FOR HM130 |
| 25 | 331600-8 | Makita 331600-8 CYLINDER LINER 54 FOR HM1304B |
| 26 | 213572-8 | Makita 213572-8 O RING 44 HM1304B |
| 27 | 324102-1 | Makita 324102-1 STRIKER HM1304B |
| 28 | 317444-0 | Makita 317444-0 BARREL FOR HM1303 |
| 29 | 941252-3 | Makita 941252-3 FLAT WASHER, LF1000 |
| 30 | 266276-1 | Makita 266276-1 HEX. SOCKET HEAD BOLT M10 X40 FOR HM1304B |
| 31 | 273518-6 | Makita 273518-6 GRIP 37 FOR HM1304B |
| 32 | 252005-8 | Makita 252005-8 HEX. NUT M8-13 |
| 33 | 266298-1 | Makita 266298-1 SET BOLT M10X122 FOR HM1304B |
| 34 | 416228-4 | Makita 416228-4 HANDLE BASE FOR HM1303 |
| 35 | 345279-9 | |
| 36 | 416228-4 | Makita 416228-4 HANDLE BASE FOR HM1303 |
| 37 | 252633-9 | Makita 252633-9 WING NUT M10 FOR HM1500 |
| 38 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 39 | 922221-3 | Makita 922221-3 HEX. BOLT, GA9010 |
| 40 | 252005-8 | Makita 252005-8 HEX. NUT M8-13 |
| 41 | 257196-0 | Makita 257196-0 RING 25 |
| 42 | 211373-8 | Makita 211373-8 BALL BEARING 6205LLU |
| 43 | 316730-6 | Makita 316730-6 BEARING BOX |
| 44 | 265366-7 | Makita 265366-7 HEX. SOCKET HEAD BOLT M6X |
| 45 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 46 | 324100-5 | Makita 324100-5 CRANKSHAFT, HM1304 |
| 47 | 212261-2 | Makita 212261-2 NEEDLE BEARING 6302 HM1304B |
| 48 | 253196-8 | Makita 253196-8 FLAT WASHER 6 |
| 49 | 922326-9 | Makita 922326-9 HEX. SOCKET HEAD BOLT M6X |
| 50 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 51 | 819084-5 | Makita 819084-5 MAKITA LABEL |
| 52 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 53 | 416561-4 | Makita 416561-4 CRANK CAP |
| 54 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 55 | 345278-1 | Makita 345278-1 Holder Cap Plate |
| 56 | 262003-4 | Makita 262003-4 RUBBER RING 6 |
| 57 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 58 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 59 | 922227-1 | Makita 922227-1 HEX. SOCKET HEAD BOLT M5X |
| 60 | 345319-3 | Makita 345319-3 REAR COVER FOR HM1304B |
| 61 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 62 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 63 | 153438-9 | Makita 153438-9 MOTOR HOUSING HM1304B |
| 64 | 183557-7 | Makita 183557-7 CRANK HOUSING FOR HM1304B |
| 65 | 850406-0 | |
| 66 | 626124-0 | Makita 626124-0 FIELD FOR HM1304B |
| 67 | 265428-1 | |
| 68 | 253794-8 | Makita 253794-8 FLAT WASHER 18 |
| 69 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 70 | 681635-2 | Makita 681635-2 INSULATION WASHER 4110B |
| 71 | 516864-7 | Makita 516864-7 Armature Assembly for HM1304B HM1304 |
| 73 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 74 | 418000-0 | Makita 418000-0 BAFFLE PLATE FOR HM1304B |
| 75 | 266310-7 | Makita 266310-7 HEX. SOCKET HEAD BOLT M6 X45 FOR HM1304B |
| 76 | 317446-6 | Makita 317446-6 GEAR HOUSING COVER FOR HM1304B |
| 77 | 211214-8 | Makita 211214-8 BALL BEARING 6302 |
| 78 | 226450-3 | Makita 226450-3 HELICAL GEAR 57 |
| 79 | 421780-9 | Makita 421780-9 SEAL RING B FOR HM1304B |
| 80 | 317445-8 | Makita 317445-8 GEAR HOUSING FOR HM1304B |
| 81 | 256111-1 | Makita 256111-1 PIN 6 |
| 82 | 421779-4 | Makita 421779-4 SEAL RING A FOR HM1304B |
| 83 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 84 | 183546-2 | Makita 183546-2 HANDLE SET FOR HM1304B |
| 85 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 86 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 87 | 256111-1 | Makita 256111-1 PIN 6 |
| 88 | 331212-7 | Makita 331212-7 SEAL |
| 89 | 211104-5 | Makita 211104-5 BALL BEARING 6001, 5377MG |
| 90 | 226449-8 | Makita 226449-8 HELICAL GEAR 34 |
| 91 | 211109-5 | Makita 211109-5 BALL BEARING 6201, 5277NB |
| 92 | 183546-2 | Makita 183546-2 HANDLE SET FOR HM1304B |
| 93 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 94 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
| 95 | 415805-9 | Makita 415805-9 LOCK BUTTON FOR HM1304B |
| 96 | 417544-7 | Makita 417544-7 SWITCH LEVER FOR HM1304B |
| 97 | 415806-7 | Makita 415806-7 LOCK PLATE FOR HM1304B |
| 98 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 99 | 421778-6 | Makita 421778-6 SWITCH BOX HM1304B |
| 100 | 231457-6 | Makita 231457-6 COMPRESSION SPRING 3, LS1040 |
| 101 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 102 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 103 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 104 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 105 | 922361-7 | Makita 922361-7 HEX. SOCKET HEAD BOLT M6X |
| 106 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 107 | 256219-1 | Makita 256219-1 PIN 4 |
| 108 | 322477-2 | Makita 322477-2 TOOL RETAINER POLE |
| 109 | 322550-8 | Makita 322550-8 TOOL RETAINER SHAFT |
| 110 | 951272-9 | Makita 951272-9 SPRING PIN 8-40 HM1500B |
