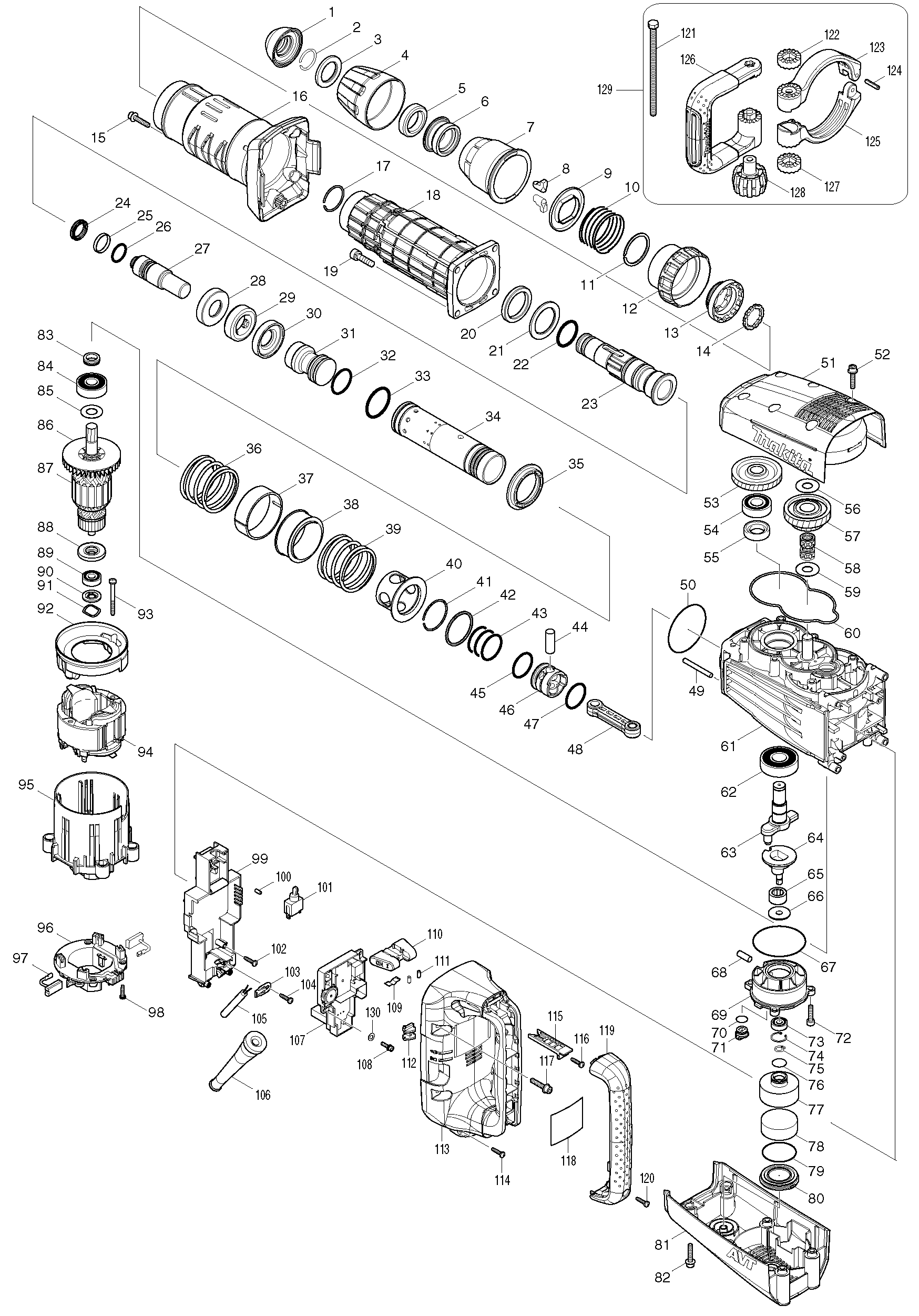

Sheet 1: Makita HM1214C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 424165-8 | Makita 424165-8 TOOL HOLDER CAPHM1203C |
| 2 | 233973-4 | Makita 233973-4 RING SPRING 26HM1203C |
| 3 | 267386-7 | Makita 267386-7 FLAT WASHER 30HM1203C |
| 4 | 450894-7 | Makita 450894-7 CHUCK COVERHM1203C |
| 5 | 262147-0 | Makita 262147-0 RUBBER RING 30HM1213C |
| 6 | 324987-5 | Makita 324987-5 CHUCK RINGHM1203C |
| 7 | 450895-5 | Makita 450895-5 RELEASE COVERHM1203C |
| 8 | 310279-8 | Makita 310279-8 TOOL RETAINERHM1203C |
| 9 | 346015-6 | Makita 346015-6 SPRING GUIDEHM1203C |
| 10 | 234086-4 | Makita 234086-4 COMPRESSION SPRING 5HM1203C |
| 11 | 961232-3 | Makita 961232-3 Retaining Ring WR-45 HM1202C |
| 12 | 450893-9 | Makita 450893-9 CHANGE RING COVERHM1203C |
| 13 | 324969-7 | Makita 324969-7 CHANGE RINGHM1203C |
| 14 | 324988-3 | Makita 324988-3 LOCK RINGHM1203C |
| 15 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 16 | 451113-4 | Makita 451113-4 BARREL COVERHM1214C |
| 17 | 233970-0 | Makita 233970-0 RING SPRING 35HM1203C |
| 18 | 158984-7 | Makita 158984-7 Barrel Complete for HM1214C |
| 19 | 266010-9 | Makita 266010-9 Hex Socket Head Bolt M8X |
| 20 | 262148-8 | Makita 262148-8 RUBBER RING 39HM1203C |
| 21 | 267387-5 | Makita 267387-5 FLAT WASHER 39HM1203C |
| 22 | 213079-4 | Makita 213079-4 O-RING 35.5HM1203C |
| 23 | 324985-9 | Makita 324985-9 Tool Holder for HM1203C |
| 24 | 213980-3 | Makita 213980-3 X-RING 21HR4511C |
| 25 | 213431-6 | Makita 213431-6 FLUORIDE RING 28 FOR HR5001C |
| 26 | 213394-6 | Makita 213394-6 O RING 23 FOR HR5001C |
| 27 | 325681-2 | Makita 325681-2 IMPACT BOLTHM1214C |
| 28 | 324993-0 | Makita 324993-0 SHOULDER SLEEVEHM1203C |
| 29 | 262149-6 | Makita 262149-6 RUBBER RING 24HM1203C |
| 30 | 324993-0 | Makita 324993-0 SHOULDER SLEEVEHM1203C |
| 31 | 325680-4 | Makita 325680-4 STRIKERHM1214C |
| 32 | 213499-2 | Makita 213499-2 O-RING 31.5HM1203C |
| 33 | 213581-7 | Makita 213581-7 O-RING 44HM1203C |
| 34 | 331856-3 | Makita 331856-3 CYLINDER 40HM1214C |
| 35 | 451110-0 | Makita 451110-0 CYLINDER GUIDEHM1214C |
| 36 | 234107-2 | Makita 234107-2 COMPRESSION SPRING 5HM1214C |
| 37 | 451103-7 | Makita 451103-7 WEIGHT GUIDEHM1214C |
| 38 | 331854-7 | Makita 331854-7 COUNTER WEIGHT, HM1214C |
| 39 | 234107-2 | Makita 234107-2 COMPRESSION SPRING 5HM1214C |
| 40 | 325661-8 | Makita 325661-8 SLIDE SLEEVEHM1214C |
| 41 | 231985-1 | Makita 231985-1 RING SPRING 43 FOR HR5001C |
| 42 | 257297-4 | Makita 257297-4 RING 45HM1214C |
| 43 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 44 | 268121-6 | Makita 268121-6 PIN 12, JR3050T |
| 45 | 213499-2 | Makita 213499-2 O-RING 31.5HM1203C |
| 46 | 450961-8 | Makita 450961-8 PISTONHM1203C |
| 47 | 213149-9 | Makita 213149-9 O RING 35HM1203C |
| 48 | 450890-5 | Makita 450890-5 CONNECTING RODHM1203C |
| 49 | 268235-1 | Makita 268235-1 PIN 6HM1214C |
| 50 | 213754-2 | Makita 213754-2 O RING 71 |
| 51 | 451115-0 | Makita 451115-0 GEAR COVERHM1214C |
| 52 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 53 | 226699-5 | Makita 226699-5 HELICAL GEAR 52HM1214C |
| 54 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 55 | 213313-2 | Makita 213313-2 OIL SEAL 20 |
| 56 | 267166-1 | Makita 267166-1 FLAT WASHER 14 HM0860C |
| 57 | 226155-5 | Makita 226155-5 GEAR COMPLETE 34-48HM1214C |
| 58 | 212159-3 | Makita 212159-3 NEEDLE CAGE 1412HM1214C |
| 59 | 267166-1 | Makita 267166-1 FLAT WASHER 14 HM0860C |
| 60 | 424196-7 | Makita 424196-7 SEAL RINGHM1214C |
| 61 | 158983-9 | Makita 158983-9 CRANK HOUSING COMPLEHM1214C |
| 62 | 211327-5 | Makita 211327-5 BEARING 6304 |
| 63 | 325659-5 | Makita 325659-5 CRANKSHAFT, HM1214C |
| 64 | 325660-0 | Makita 325660-0 COUNTER SHAFTHM1214C |
| 65 | 212225-6 | Makita 212225-6 NEEDLE BEARING 1613HM1214C |
| 66 | 325662-6 | Makita 325662-6 SHOULDER WASHER 8, HM1214C |
| 67 | 213754-2 | Makita 213754-2 O RING 71 |
| 68 | 268222-0 | Makita 268222-0 PIN 8HM1214C |
| 69 | 158985-5 | Makita 158985-5 BEARING BOX COMPLETEHM1214C |
| 70 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 71 | 451104-5 | Makita 451104-5 GREASE CAPHM1214C |
| 72 | 266087-4 | Makita 266087-4 HEX.BOLT M6X25AN450H |
| 73 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 74 | 962112-6 | Makita 962112-6 RETAINING RING R-22 |
| 75 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 76 | 213262-3 | Makita 213262-3 O RING 18 |
| 77 | 451108-7 | Makita 451108-7 FILTER CASEHM1214C |
| 78 | 443147-1 | Makita 443147-1 FILTERHM1214C |
| 79 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 80 | 451109-5 | Makita 451109-5 FILTER CASE COVERHM1214C |
| 81 | 451116-8 | Makita 451116-8 REAR COVERHM1214C |
| 82 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 83 | 331855-5 | Makita 331855-5 SEALING SCREW, HM1214C |
| 84 | 211249-9 | Makita 211249-9 Ball Bearing 6302LLU Replacement Part |
| 85 | 267397-2 | Makita 267397-2 FLAT WASHER 15HM1203C |
| 87 | 517838-1 | Makita 517838-1 ARMATURE ASSEMBLY 22HM1214C |
| 88 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 89 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 90 | 451107-9 | Makita 451107-9 WASHER GUIDEHM1214C |
| 91 | 267809-5 | Makita 267809-5 WAVE WASHER 19HM1214C |
| 92 | 451111-8 | Makita 451111-8 BAFFLE PLATEHM1214C |
| 93 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 94 | 636303-2 | Makita 636303-2 FIELD 220-240VHR5211C |
| 95 | 451117-6 | Makita 451117-6 MOTOR HOUSINGHM1214C |
| 96 | 638447-4 | Makita 638447-4 Brush Holder Unit for HR5211C HM1307CB |
| 97 | 194412-8 | Makita 194412-8 CARBON BRUSH CB-171 HR5211C |
| 98 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 99 | 158986-3 | Makita 158986-3 CONTROLLER COVER COMHM1214C |
| 100 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 101 | 651423-1 | Makita 651423-1 Switch for 9523B RD1101 HM1203C 3706 BTM40 LXMT025 |
| 102 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 103 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 104 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 105 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 106 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 107 | 631883-3 | Makita 631883-3 Controller for HM1214C |
| 108 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 109 | 232209-8 | Makita 232209-8 LEAF SPRING HM0860C |
| 110 | 451112-6 | Makita 451112-6 SLIDE LEVERHM1214C |
| 111 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 112 | 451105-3 | Makita 451105-3 LENSHM1214C |
| 113 | 451118-4 | Makita 451118-4 HANDLEHM1214C |
| 114 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 115 | 451106-1 | Makita 451106-1 SWITCH LEVERHM1214C |
| 116 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 117 | 266499-1 | Makita 266499-1 H.S HEAD BOLT M6X30HM1214C |
| 118 | 866749-0 | Makita 866749-0 NAME PLATEHM1214C |
| 119 | 451119-2 | Makita 451119-2 HANDLE COVERHM1214C |
| 120 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 121 | 265439-6 | Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200 |
| 122 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 123 | 318430-4 | Makita 318430-4 SIDE HANDLE BASE 90AHM1214C |
| 124 | 951166-8 | Makita 951166-8 SPÄNNSTIFT 4-20 |
| 125 | 318431-2 | Makita 318431-2 SIDE HANDLE BASE 90BHM1214C |
| 126 | 417003-1 | Makita 417003-1 SIDEHANDLE HM1202C |
| 127 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 128 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
| 130 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
