Makita HM1203C
Makita HM1203C: exploded parts diagram, 1 sheet, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1203C: 101 positions on 1 sheet

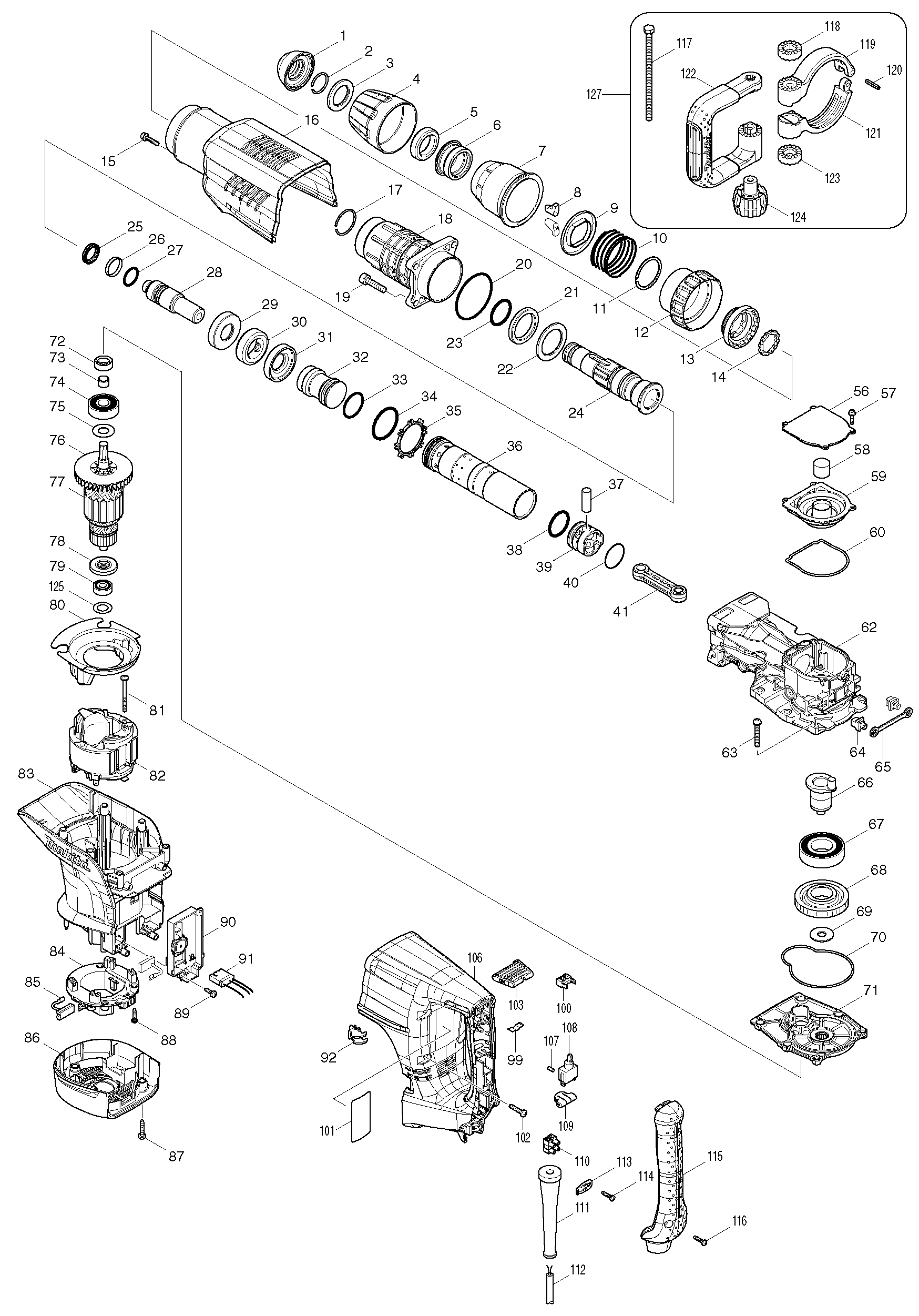

Sheet 1: Makita HM1203C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 424165-8 | Makita 424165-8 TOOL HOLDER CAPHM1203C |
| 2 | 233973-4 | Makita 233973-4 RING SPRING 26HM1203C |
| 3 | 267386-7 | Makita 267386-7 FLAT WASHER 30HM1203C |
| 4 | 450894-7 | Makita 450894-7 CHUCK COVERHM1203C |
| 5 | 262147-0 | Makita 262147-0 RUBBER RING 30HM1213C |
| 6 | 324987-5 | Makita 324987-5 CHUCK RINGHM1203C |
| 7 | 450895-5 | Makita 450895-5 RELEASE COVERHM1203C |
| 8 | 310279-8 | Makita 310279-8 TOOL RETAINERHM1203C |
| 9 | 346015-6 | Makita 346015-6 SPRING GUIDEHM1203C |
| 10 | 234086-4 | Makita 234086-4 COMPRESSION SPRING 5HM1203C |
| 11 | 961232-3 | Makita 961232-3 Retaining Ring WR-45 HM1202C |
| 12 | 450893-9 | Makita 450893-9 CHANGE RING COVERHM1203C |
| 13 | 324969-7 | Makita 324969-7 CHANGE RINGHM1203C |
| 14 | 324988-3 | Makita 324988-3 LOCK RINGHM1203C |
| 15 | 922243-3 | Makita 922243-3 HEX. SOCKET HEAD BOLT M5X |
| 16 | 450903-2 | Makita 450903-2 HOUSING COVERHM1203C |
| 17 | 233970-0 | Makita 233970-0 RING SPRING 35HM1203C |
| 18 | 158858-2 | Makita 158858-2 BARREL COMPLETEHM1203C |
| 19 | 922456-6 | Makita 922456-6 HEX. SOCKET HEAD BOLT M8X |
| 20 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 21 | 262148-8 | Makita 262148-8 RUBBER RING 39HM1203C |
| 22 | 267387-5 | Makita 267387-5 FLAT WASHER 39HM1203C |
| 23 | 213079-4 | Makita 213079-4 O-RING 35.5HM1203C |
| 24 | 324985-9 | Makita 324985-9 Tool Holder for HM1203C |
| 25 | 213980-3 | Makita 213980-3 X-RING 21HR4511C |
| 26 | 213431-6 | Makita 213431-6 FLUORIDE RING 28 FOR HR5001C |
| 27 | 213394-6 | Makita 213394-6 O RING 23 FOR HR5001C |
| 28 | 324990-6 | Makita 324990-6 IMPACT BOLTHM1203C |
| 29 | 324993-0 | Makita 324993-0 SHOULDER SLEEVEHM1203C |
| 30 | 262149-6 | Makita 262149-6 RUBBER RING 24HM1203C |
| 31 | 324993-0 | Makita 324993-0 SHOULDER SLEEVEHM1203C |
| 32 | 324991-4 | Makita 324991-4 STRIKERHM1203C |
| 33 | 213499-2 | Makita 213499-2 O-RING 31.5HM1203C |
| 34 | 213581-7 | Makita 213581-7 O-RING 44HM1203C |
| 35 | 450889-0 | Makita 450889-0 ONE WAY VALVE GUIDEHM1203C |
| 36 | 331848-2 | Makita 331848-2 CYLINDER 40HM1203C |
| 37 | 268121-6 | Makita 268121-6 PIN 12, JR3050T |
| 38 | 213499-2 | Makita 213499-2 O-RING 31.5HM1203C |
| 39 | 450961-8 | Makita 450961-8 PISTONHM1203C |
| 40 | 213149-9 | Makita 213149-9 O RING 35HM1203C |
| 41 | 450890-5 | Makita 450890-5 CONNECTING RODHM1203C |
| 56 | 450899-7 | Makita 450899-7 CRANK CAP COVERHM1203C |
| 57 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 58 | 443127-7 | Makita 443127-7 Filter for HM1203C |
| 59 | 450898-9 | Makita 450898-9 CRANK CAPHM1203C |
| 60 | 424166-6 | Makita 424166-6 SEAL RINGHM1203C |
| 62 | 318364-1 | Makita 318364-1 CRANK HOUSINGHM1203C |
| 63 | 266482-8 | Makita 266482-8 H.S.BUTTON HEAD SCREHM1203C |
| 64 | 419008-7 | Makita 419008-7 FIX GUIDE HR4001C/4011C |
| 65 | 423366-5 | Makita 423366-5 CUSHION PLATEHR5211C |
| 66 | 324994-8 | Makita 324994-8 CRANKSHAFT, HM1213C |
| 67 | 211424-7 | Makita 211424-7 BALL BEARING 6206LLUHM1203C |
| 68 | 226691-1 | Makita 226691-1 HELICAL GEAR 57HM1203C |
| 69 | 267398-0 | Makita 267398-0 FLAT WASHER 12HM1203C |
| 70 | 424167-4 | Makita 424167-4 SEAL RINGHM1203C |
| 71 | 158859-0 | Makita 158859-0 GEAR HOUSING COMPLETHM1203C |
| 72 | 213231-4 | Makita 213231-4 OIL SEAL 15 |
| 73 | 331596-3 | Makita 331596-3 SLEEVE 12, HR4002 |
| 74 | 211249-9 | Makita 211249-9 Ball Bearing 6302LLU Replacement Part |
| 75 | 267397-2 | Makita 267397-2 FLAT WASHER 15HM1203C |
| 77 | 517818-7 | Makita 517818-7 Armature Ass'y 220V HM1203C |
| 78 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 79 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 80 | 450900-8 | Makita 450900-8 BAFFLE PLATEHM1203C |
| 81 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 82 | 636303-2 | Makita 636303-2 FIELD 220-240VHR5211C |
| 83 | 450904-0 | Makita 450904-0 MOTOR HOUSINGHM1203C |
| 84 | 638447-4 | Makita 638447-4 Brush Holder Unit for HR5211C HM1307CB |
| 85 | 194412-8 | Makita 194412-8 CARBON BRUSH CB-171 HR5211C |
| 86 | 450901-6 | Makita 450901-6 REAR COVERHM1203C |
| 87 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 88 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 89 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 90 | 631869-7 | Makita 631869-7 Controller for HM1203C |
| 91 | 638650-7 | Makita 638650-7 LEAD UNITHM1203C |
| 92 | 419010-0 | Makita 419010-0 LENS HR4001C/4011C |
| 99 | 232209-8 | Makita 232209-8 LEAF SPRING HM0860C |
| 100 | 450891-3 | Makita 450891-3 LEVER STOPPERHM1203C |
| 101 | 866622-4 | Makita 866622-4 HM1203C NAME PLATEHM1203C |
| 102 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 103 | 450897-1 | Makita 450897-1 SLIDE LEVERHM1203C |
| 106 | 450907-4 | Makita 450907-4 HANDLEHM1203C |
| 107 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 108 | 651423-1 | Makita 651423-1 Switch for 9523B RD1101 HM1203C 3706 BTM40 LXMT025 |
| 109 | 423379-6 | Makita 423379-6 SPONGE SHEETHM1203C |
| 110 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 111 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 112 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 113 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 114 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 115 | 450908-2 | Makita 450908-2 HANDLE COVERHM1203C |
| 116 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 117 | 265439-6 | Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200 |
| 118 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 119 | 318505-9 | Makita 318505-9 SIDE HANDLE BASE 82AHM1203C |
| 120 | 951166-8 | Makita 951166-8 SPÄNNSTIFT 4-20 |
| 121 | 318506-7 | Makita 318506-7 SIDE HANDLE BASE 82BHM1203C |
| 122 | 417003-1 | Makita 417003-1 SIDEHANDLE HM1202C |
| 123 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 124 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
| 125 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
