Makita HM1200B
Makita HM1200B: exploded parts diagram, 1 sheet, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1200B: 88 positions on 1 sheet

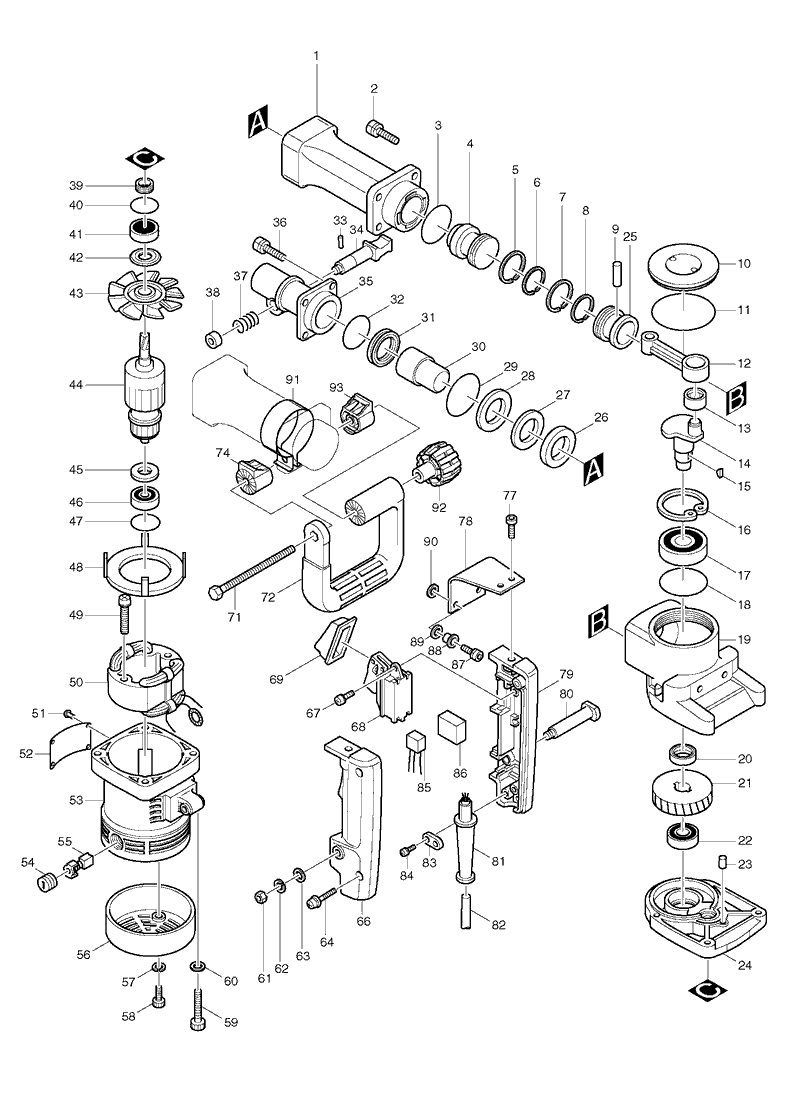

Sheet 1: Makita HM1200B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 151310-9 | Makita 151310-9 BARREL COMPLETE HM1200 |
| 2 | 922451-6 | Makita 922451-6 HEX.SOCKET SCREW M8X30, LS1013 |
| 3 | 213655-4 | Makita 213655-4 O-RING 56, 483 |
| 4 | 321732-9 | Makita 321732-9 STRIKER HM1200 |
| 5 | 412049-2 | Makita 412049-2 PISTON RING 40 |
| 6 | 341862-0 | Makita 341862-0 INNER RING 36 |
| 7 | 412049-2 | Makita 412049-2 PISTON RING 40 |
| 8 | 341862-0 | Makita 341862-0 INNER RING 36 |
| 9 | 256120-0 | Makita 256120-0 PIN 10 FOR HM1200 |
| 10 | 150369-3 | Makita 150369-3 CRANK CAP COMPLETE |
| 11 | 213754-2 | Makita 213754-2 O RING 71 |
| 12 | 315419-3 | Makita 315419-3 CONNECTING ROD |
| 13 | 212208-6 | Makita 212208-6 NEEDLE BEARING 1516 |
| 14 | 152180-9 | |
| 15 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 16 | 962251-2 | Makita 962251-2 RETAINING RING R-52 |
| 17 | 211314-4 | Makita 211314-4 BALL BEARING 6304 |
| 18 | 213656-2 | Makita 213656-2 O-RING 53, HM0830 |
| 19 | 156863-3 | Makita 156863-3 CRANK HOUSING COMPLETE |
| 20 | 213306-9 | Makita 213306-9 OIL SEAL 20, 5377MG |
| 21 | 221701-9 | Makita 221701-9 HELICAL GEAR 50 |
| 22 | 211209-1 | Makita 211209-1 BALL BEARING 6202 |
| 23 | 256111-1 | Makita 256111-1 PIN 6 |
| 24 | 157072-7 | Makita 157072-7 GEAR HOUSING |
| 25 | 321441-0 | Makita 321441-0 PISTON |
| 26 | 267059-2 | Makita 267059-2 FLAT WASHER 32 |
| 27 | 261054-4 | Makita 261054-4 NYLON WASHER 32 |
| 28 | 253845-7 | Makita 253845-7 FLAT WASHER 31 |
| 29 | 213604-1 | Makita 213604-1 O RING 50 |
| 30 | 322569-7 | Makita 322569-7 IMPACT BOLT |
| 31 | 213472-2 | Makita 213472-2 X RING 35 |
| 32 | 213464-1 | Makita 213464-1 O RING 34 |
| 33 | 256219-1 | Makita 256219-1 PIN 4 |
| 34 | 322570-2 | Makita 322570-2 TOOL RETAINER |
| 35 | 322571-0 | Makita 322571-0 TOOL HOLDER HM1202B |
| 36 | 922451-6 | Makita 922451-6 HEX.SOCKET SCREW M8X30, LS1013 |
| 37 | 231281-7 | Makita 231281-7 COMPRESSION SPRING 15 |
| 38 | 322560-5 | Makita 322560-5 RETAINER RING HM1304B |
| 39 | 331180-4 | Makita 331180-4 SEAL |
| 40 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 41 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 42 | 213202-1 | Makita 213202-1 DUST SEAL 15 |
| 43 | 241638-4 | Makita 241638-4 FAN 94 |
| 44 | 514778-4 | Makita 514778-4 ARMATURE ASSY HM1200 |
| 45 | 681624-7 | Makita 681624-7 INSULATION WASHER |
| 46 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 47 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 48 | 410163-8 | Makita 410163-8 BAFFLE PLATE |
| 49 | 265347-1 | Makita 265347-1 HEX. BOLT M5X45 |
| 50 | 528910-4 | Makita 528910-4 FIELD ASS Y 220V |
| 51 | ||
| 52 | 857144-5 | Makita 857144-5 NAME PLATE HM1200B |
| 53 | 159034-1 | Makita 159034-1 MOTOR HOUSING |
| 54 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 55 | 181048-2 | Makita 181048-2 Carbon Brush CB-155 5008NB HM1202C HR3851 HM1211B |
| 56 | 284055-5 | Makita 284055-5 REAR COVER |
| 57 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 58 | 922222-1 | Makita 922222-1 H.S.H.BOLT M5*16, HR3850 |
| 59 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 60 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 61 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 62 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 63 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 64 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 66 | 182077-8 | Makita 182077-8 HANDLE SET |
| 67 | 911129-6 | Makita 911129-6 PAN HEAD SCREW M4X16 |
| 68 | 651145-3 | Makita 651145-3 Switch C3D-H-MS for HM1200 HM1200K HM1500 HR5000K |
| 69 | 421265-5 | Makita 421265-5 DUST COVER |
| 71 | 952257-8 | Makita 952257-8 SPRING PIN 3.0-20 |
| 72 | 343322-8 | Makita 343322-8 SIDE HANDLE |
| 74 | 343321-0 | |
| 77 | 922316-2 | |
| 78 | 343755-7 | Makita 343755-7 CUSHION PLATE |
| 79 | 182077-8 | Makita 182077-8 HANDLE SET |
| 80 | 321210-9 | Makita 321210-9 HANDLE SHAFT |
| 81 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 82 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 83 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 84 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 85 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 86 | 685700-9 | |
| 87 | 265914-2 | Makita 265914-2 HEX. SOCKET HEAD BOLT M6X |
| 88 | 257636-8 | Makita 257636-8 SLEEVE 6 FOR HM0810 |
| 89 | 262052-1 | Makita 262052-1 RUBBER RING 9 HM1200 |
| 90 | 262051-3 | |
| 91 | 344379-2 | Makita 344379-2 HANDLE SPRING 60 |
| 92 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
| 93 | 416010-1 | Makita 416010-1 HANDLE BASE 60 |
