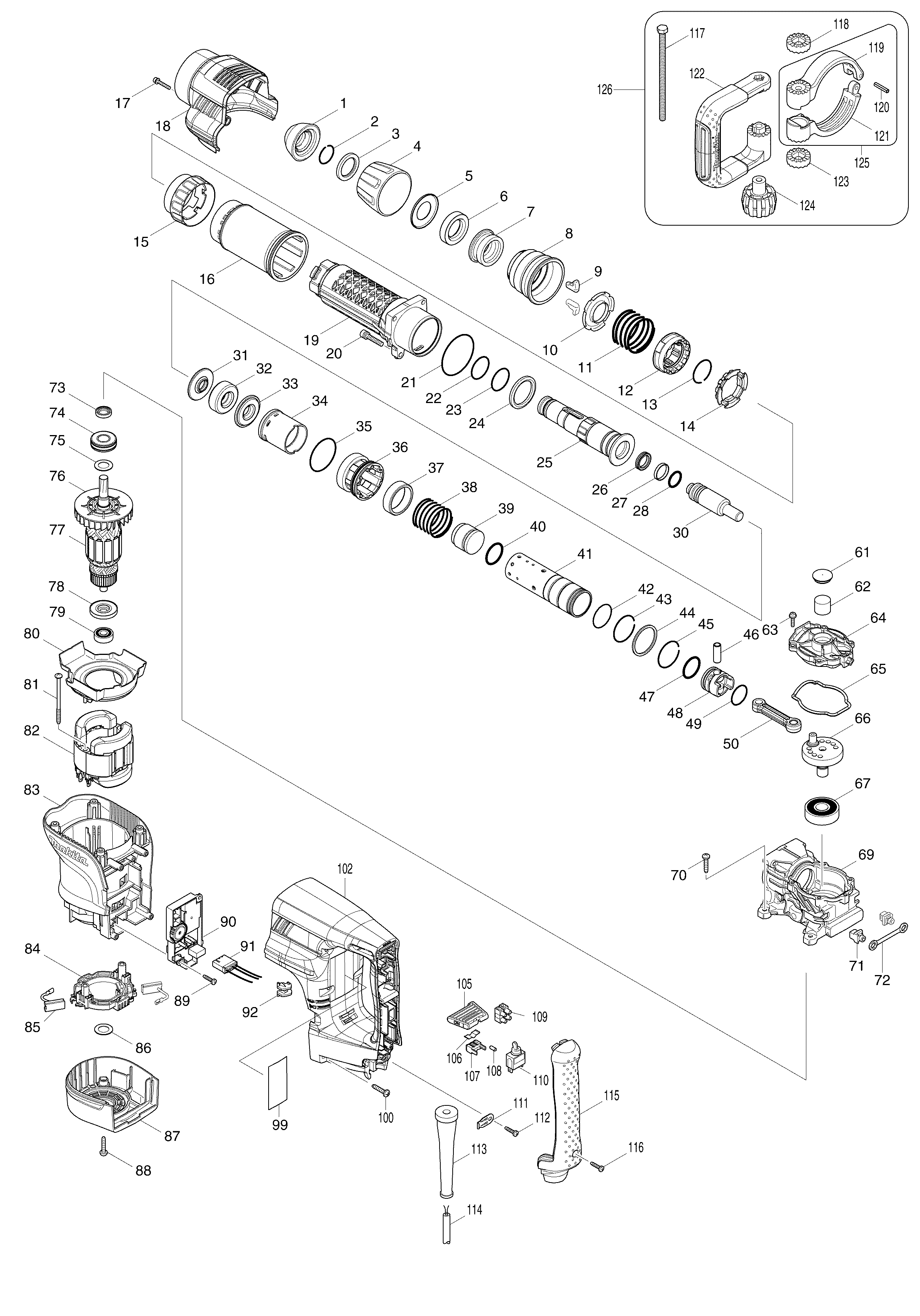

Sheet 1: Makita HM1101C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286285-4 | Makita 286285-4 Tool Holder Cap for HR4001C HR4011C |
| 2 | 233948-3 | Makita 233948-3 RING SPRING 25HR5211C |
| 3 | 257308-5 | Makita 257308-5 RING 28, HM1111C |
| 4 | 450064-8 | Makita 450064-8 CHUCK COVERHR4511C |
| 5 | 346247-5 | Makita 346247-5 CUP WASHER 28 |
| 6 | 262161-6 | Makita 262161-6 RUBBER RING 28 |
| 7 | 324752-2 | Makita 324752-2 CHUCK RINGHR5211C |
| 8 | 451836-4 | Makita 451836-4 RELEASE COVER |
| 9 | 310178-4 | Makita 310178-4 TOOL RETAINERHR5211C |
| 10 | 345804-6 | Makita 345804-6 SPRING GUIDEHR5211C |
| 11 | 234180-2 | Makita 234180-2 COMPRESSION SPRING47 |
| 12 | 313193-7 | Makita 313193-7 CHANGE RING |
| 13 | 233982-3 | Makita 233982-3 RING SPRING 33 |
| 14 | 325904-8 | Makita 325904-8 LOCK RING |
| 15 | 451842-9 | Makita 451842-9 CHANGE RING COVER |
| 16 | 451835-6 | Makita 451835-6 BARREL COVER |
| 17 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 18 | 451849-5 | |
| 19 | 140411-8 | Makita 140411-8 BARREL COMPLETE |
| 20 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 21 | 213654-6 | Makita 213654-6 O RING 60 |
| 22 | 213492-6 | Makita 213492-6 O-RING 32HR5211C |
| 23 | 213492-6 | Makita 213492-6 O-RING 32HR5211C |
| 24 | 262135-7 | Makita 262135-7 URETHAN RING 36HR4511C |
| 25 | 325901-4 | Makita 325901-4 TOOL HOLDER |
| 26 | 213281-9 | Makita 213281-9 X RING 18 HR4001C/4011C |
| 27 | 213392-0 | Makita 213392-0 FLUORIDE RING 25 HR4000C |
| 28 | 213317-4 | Makita 213317-4 O RING 20 HR4000C |
| 30 | 325902-2 | Makita 325902-2 IMPACT BOLT |
| 31 | 325903-0 | Makita 325903-0 COLLARED SLEEVE 19 |
| 32 | 422053-3 | Makita 422053-3 RUBBER RING 20 |
| 33 | 325903-0 | Makita 325903-0 COLLARED SLEEVE 19 |
| 34 | 412096-3 | Makita 412096-3 SLIDE SLEEVE |
| 35 | 213606-7 | Makita 213606-7 O RING 48 |
| 36 | 318604-7 | Makita 318604-7 CYLINDER GUIDE |
| 37 | 313194-5 | Makita 313194-5 RING 39 |
| 38 | 234178-9 | Makita 234178-9 COMPRESSION SPRING |
| 39 | 325905-6 | Makita 325905-6 STRIKER, HM1111C |
| 40 | 213536-2 | Makita 213536-2 O-RING 27 |
| 41 | 331892-9 | Makita 331892-9 CYLIDER 35 |
| 42 | 213458-6 | Makita 213458-6 O RING 34 |
| 43 | 233981-5 | Makita 233981-5 RING SPRING 38 |
| 44 | 267423-7 | Makita 267423-7 FLAT WASHER 40 |
| 45 | 233981-5 | Makita 233981-5 RING SPRING 38 |
| 46 | 331911-1 | Makita 331911-1 PIPE 10 |
| 47 | 213536-2 | Makita 213536-2 O-RING 27 |
| 48 | 451833-0 | Makita 451833-0 PISTON |
| 49 | 213415-4 | Makita 213415-4 O RING 28 |
| 50 | 451834-8 | Makita 451834-8 CONNECTING ROD |
| 61 | 424311-3 | Makita 424311-3 Filter Cap |
| 62 | 443127-7 | Makita 443127-7 Filter for HM1203C |
| 63 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 64 | 451838-0 | Makita 451838-0 CRANK CAP |
| 65 | 424312-1 | Makita 424312-1 SEAL RING |
| 66 | 325899-5 | Makita 325899-5 CRANK SHAFT, HM1111C |
| 67 | 211279-0 | Makita 211279-0 BALL BEARING 6303LLU |
| 69 | 140408-7 | |
| 70 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 71 | 419008-7 | Makita 419008-7 FIX GUIDE HR4001C/4011C |
| 72 | 423345-3 | Makita 423345-3 CUSHION PLATE HR4001C/4011C |
| 73 | 213133-4 | Makita 213133-4 OIL SEAL 12, HR281FT |
| 74 | 211295-2 | Makita 211295-2 BALL BEARING 6202LLU |
| 75 | 267215-4 | Makita 267215-4 FLAT WASHER 15, SA7000 |
| 77 | 517858-5 | Makita 517858-5 ARMATURE ASSÝ220-240V |
| 78 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 79 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 80 | 451837-2 | Makita 451837-2 BAFFLE PLATE |
| 81 | 266568-8 | Makita 266568-8 TAPPING SCREW 5X80 |
| 82 | 623418-4 | Makita 623418-4 FIELD 220-240V 125T, HM1111C |
| 83 | 451840-3 | Makita 451840-3 MOTOR HOUSING |
| 84 | 638700-8 | Makita 638700-8 ARMATURE ASS'Y 220V |
| 85 | 194412-8 | Makita 194412-8 CARBON BRUSH CB-171 HR5211C |
| 86 | 267215-4 | Makita 267215-4 FLAT WASHER 15, SA7000 |
| 87 | 451839-8 | Makita 451839-8 REAR COVER |
| 88 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 89 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 90 | 631966-9 | |
| 91 | 638718-9 | Makita 638718-9 LEAD UNIT |
| 92 | 450240-4 | Makita 450240-4 LENSHR3210FCT |
| 99 | 868072-9 | |
| 100 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 102 | 140410-0 | |
| 105 | 450897-1 | Makita 450897-1 SLIDE LEVERHM1203C |
| 106 | 232209-8 | Makita 232209-8 LEAF SPRING HM0860C |
| 107 | 450891-3 | Makita 450891-3 LEVER STOPPERHM1203C |
| 108 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 109 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 110 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 111 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 112 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 113 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 114 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 115 | 451841-1 | |
| 116 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 117 | 265439-6 | Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200 |
| 118 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 119 | 317282-0 | |
| 120 | 951166-8 | Makita 951166-8 SPÄNNSTIFT 4-20 |
| 121 | 317283-8 | |
| 122 | 417003-1 | Makita 417003-1 SIDEHANDLE HM1202C |
| 123 | 417002-3 | Makita 417002-3 SIDE HANDLE CAM |
| 124 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
