Makita HM1100
Makita HM1100: exploded parts diagram, 1 sheet, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM1100: 93 positions on 1 sheet

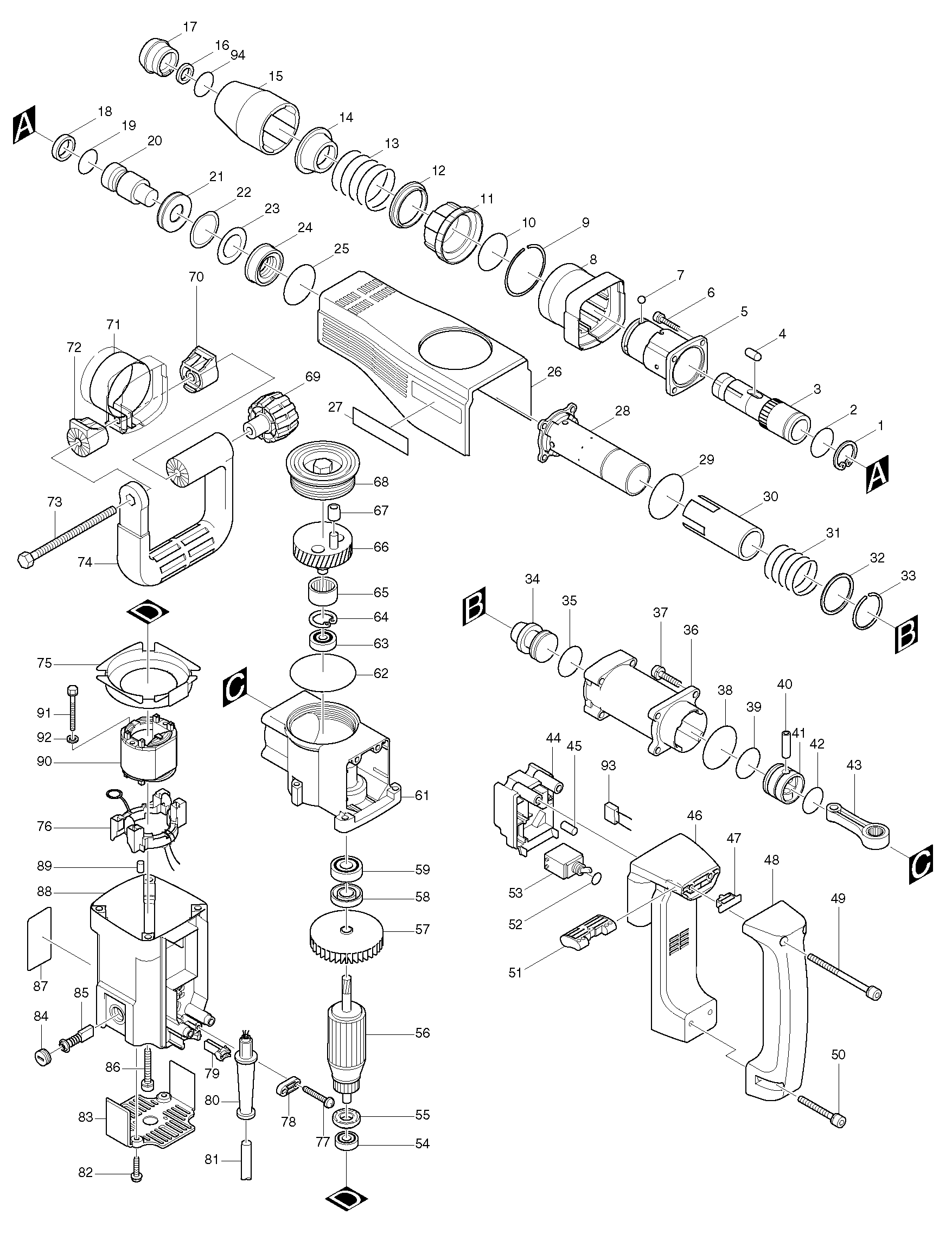

Sheet 1: Makita HM1100 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 962154-0 | Makita 962154-0 RETAINING RING R-36 |
| 2 | 213479-8 | Makita 213479-8 O RING 33 |
| 3 | 322982-9 | Makita 322982-9 TOOL HOLDER HM1100C |
| 4 | 322908-1 | Makita 322908-1 ROLLER 8 |
| 5 | 322882-3 | |
| 6 | 922351-0 | Makita 922351-0 H.S.H.BOLT M6X30, LF1000 |
| 7 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 8 | 416086-8 | Makita 416086-8 SIDE HANDLE SUPPORT HM1100C |
| 9 | 231972-0 | Makita 231972-0 RING SPRING 52 HM1100C |
| 10 | 213554-0 | Makita 213554-0 O RING 44 |
| 11 | 416087-6 | Makita 416087-6 CHANGE RING |
| 12 | 331489-4 | Makita 331489-4 STEEL BALL GUIDE |
| 13 | 233167-1 | Makita 233167-1 COMPRESSION SPRING 44 HM1100C |
| 14 | 331484-4 | Makita 331484-4 ROLLER GUIDE |
| 15 | 416085-0 | Makita 416085-0 TOOL HOLDER COVER FOR HM1100C |
| 16 | 213270-4 | Makita 213270-4 X RING 18 |
| 17 | 286244-8 | Makita 286244-8 TOOL HOLDER CAP |
| 18 | 213269-9 | Makita 213269-9 X RING 17 HM1100C |
| 19 | 213311-6 | Makita 213311-6 O RING 19 |
| 20 | 322906-5 | Makita 322906-5 IMPACT BOLT |
| 21 | 331487-8 | Makita 331487-8 IMPACT BOLT GUIDE |
| 22 | 421570-0 | Makita 421570-0 RING 36 |
| 23 | 213391-2 | Makita 213391-2 O RING 25 |
| 24 | 331488-6 | Makita 331488-6 Sleeve Guide |
| 25 | 213554-0 | Makita 213554-0 O RING 44 |
| 26 | 415698-4 | Makita 415698-4 HOUSING COVER |
| 27 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 28 | 125071-7 | Makita 125071-7 CYLINDER LINER ASS'Y |
| 29 | 213614-8 | Makita 213614-8 O RING 50 |
| 30 | 125071-7 | Makita 125071-7 CYLINDER LINER ASS'Y |
| 31 | 233166-3 | Makita 233166-3 COMPRESSION SPRING 39 |
| 32 | 267156-4 | Makita 267156-4 FLAT WASHER 39 |
| 33 | 231971-2 | Makita 231971-2 RING SPRING 36 |
| 34 | 322907-3 | Makita 322907-3 STRIKER |
| 35 | 213429-3 | Makita 213429-3 O RING 27 |
| 36 | 316672-4 | Makita 316672-4 BARREL |
| 37 | 922351-0 | Makita 922351-0 H.S.H.BOLT M6X30, LF1000 |
| 38 | 213606-7 | Makita 213606-7 O RING 48 |
| 39 | 213429-3 | Makita 213429-3 O RING 27 |
| 40 | 257676-6 | Makita 257676-6 SLEEVE 6 |
| 41 | 415773-6 | Makita 415773-6 PISTON HM1100C |
| 42 | 213415-4 | Makita 213415-4 O RING 28 |
| 43 | 415689-5 | Makita 415689-5 Rod HM1100C HM1140C HM1130C HM1100 |
| 44 | 415699-2 | Makita 415699-2 SWITCH BOX |
| 45 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 46 | 416231-5 | Makita 416231-5 CONTROLLER COVER |
| 47 | 415692-6 | Makita 415692-6 STOPPER |
| 48 | 421507-7 | Makita 421507-7 HANDLE HM1202C |
| 49 | 266135-9 | |
| 50 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 51 | 415691-8 | |
| 52 | 213107-5 | Makita 213107-5 O RING 12 |
| 53 | 651481-7 | Makita 651481-7 Switch STE215K HM1100C HM1130 HM1140C HM1202C 3612BR |
| 54 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 55 | 681643-3 | Makita 681643-3 INSULATION WASHER |
| 56 | 510028-5 | Makita 510028-5 ARMATURE ASS Y 220/240V |
| 57 | 241876-8 | Makita 241876-8 FAN 76 HR4000C |
| 58 | 213160-1 | Makita 213160-1 OIL SEAL 14 HR5001C |
| 59 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 61 | 134792-0 | Makita 134792-0 CRANK HOUSING ASS'Y |
| 62 | 213707-1 | Makita 213707-1 O RING 65 |
| 63 | 210054-1 | Makita 210054-1 BALL BEARING 6000LLU, HR2810 |
| 64 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 65 | 212259-9 | Makita 212259-9 NEEDLE BEARING 2116 |
| 66 | 153249-2 | Makita 153249-2 CRANK SHAFT COMPLETE HM1100C |
| 67 | 216116-3 | Makita 216116-3 INNER SLEEVE 812 HM1100C |
| 68 | 415690-0 | Makita 415690-0 CRANK CAP FOR HM1100C |
| 69 | 252640-2 | Makita 252640-2 WING NUT M8 HR4000C |
| 70 | 416010-1 | Makita 416010-1 HANDLE BASE 60 |
| 71 | 344379-2 | Makita 344379-2 HANDLE SPRING 60 |
| 72 | 416010-1 | Makita 416010-1 HANDLE BASE 60 |
| 73 | 265439-6 | Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200 |
| 74 | 416009-6 | Makita 416009-6 SIDE HANDLE |
| 75 | 415693-4 | Makita 415693-4 BAFFLE PLATE |
| 76 | 632678-7 | Makita 632678-7 SUPPORT COMPLETE HM1100C |
| 77 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 78 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 79 | 416167-8 | Makita 416167-8 FIX ROD |
| 80 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 81 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 82 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 83 | 415700-3 | Makita 415700-3 REAR COVER HM1100C |
| 84 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 85 | 191961-6 | Makita 191961-6 CARBON BRUSH CB-304 |
| 86 | 922364-1 | Makita 922364-1 HEX. SOCKET HEAD BOLT M6X |
| 87 | 858345-8 | Makita 858345-8 NAME PLATE HM1100 |
| 88 | 159919-1 | Makita 159919-1 MOTOR HOUSING COMPLETE |
| 89 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 90 | 639009-1 | Makita 639009-1 FIELD 220V |
| 91 | 265345-5 | Makita 265345-5 HEX. BOLT M5X60 TW1000 |
| 92 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 93 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 94 | 213385-7 | Makita 213385-7 O RING 24 |
