Makita HM0810T
Makita HM0810T: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM0810T: 80 positions on 1 sheet

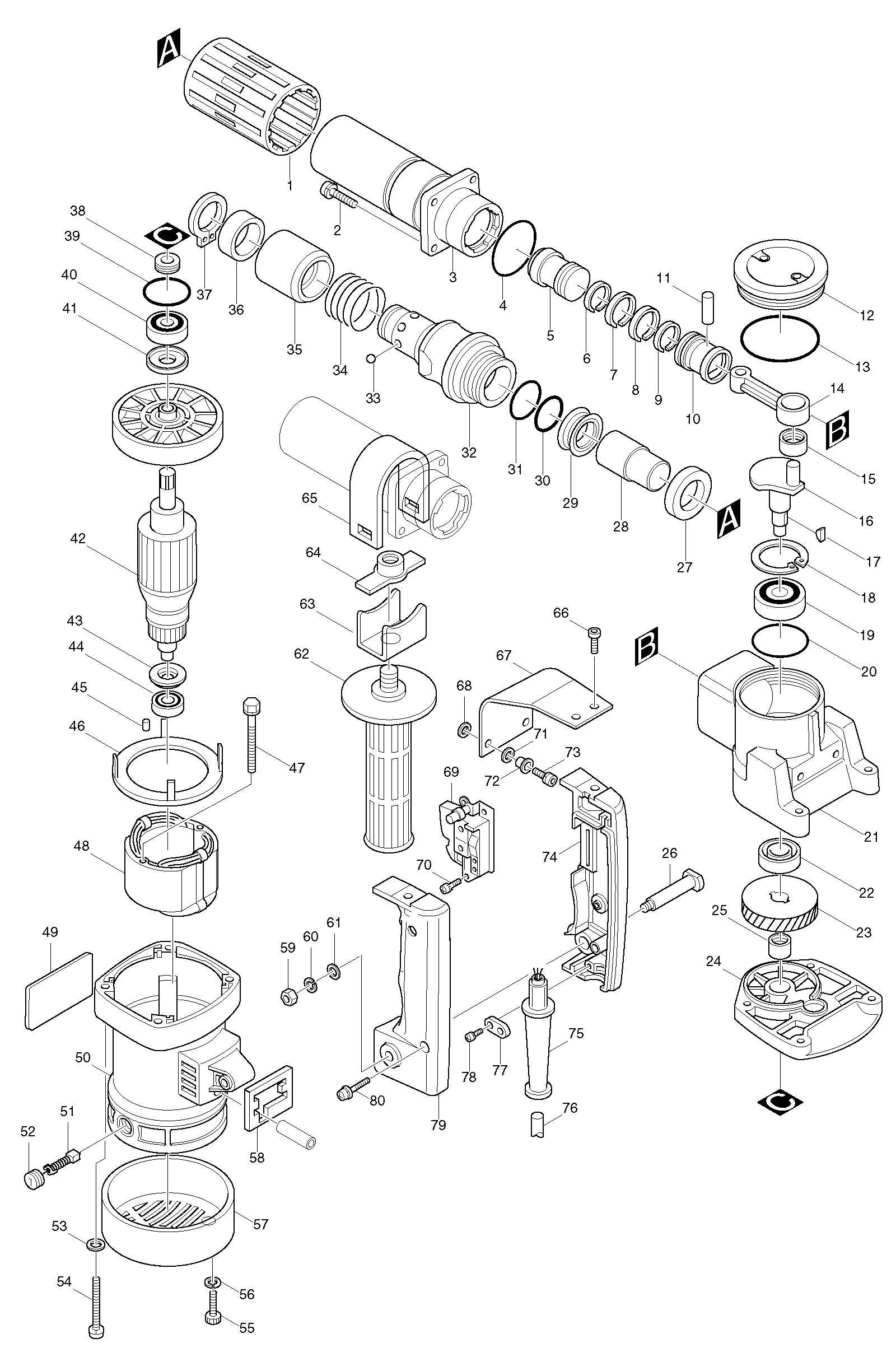

Sheet 1: Makita HM0810T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421541-7 | Makita 421541-7 BARREL COVER |
| 2 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 3 | 151457-9 | Makita 151457-9 BARREL COMPLETE |
| 4 | 213554-0 | Makita 213554-0 O RING 44 |
| 5 | 321929-0 | Makita 321929-0 STRIKER |
| 6 | 412073-5 | Makita 412073-5 INNER RING 26 |
| 7 | 412053-1 | Makita 412053-1 PISTON RING HM0810B |
| 8 | 412053-1 | Makita 412053-1 PISTON RING HM0810B |
| 9 | 321514-9 | Makita 321514-9 INNER RING 26 |
| 10 | 321958-3 | |
| 11 | 256165-8 | Makita 256165-8 PIN 8 HM1100C |
| 12 | 150368-5 | Makita 150368-5 CRANK CAP COMPLETE |
| 13 | 213654-6 | Makita 213654-6 O RING 60 |
| 14 | 312956-8 | Makita 312956-8 Rod HM0810 HM0810B HM0810T HR3850 HR3850B HR3850K |
| 15 | 212108-0 | Makita 212108-0 NEEDLE BEARING 1212 |
| 16 | 321954-1 | Makita 321954-1 CRANKSHAFT, HM0810 |
| 17 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 18 | 962203-3 | Makita 962203-3 RETAINING RING R-47 |
| 19 | 211279-0 | Makita 211279-0 BALL BEARING 6303LLU |
| 20 | 213606-7 | Makita 213606-7 O RING 48 |
| 21 | 157627-8 | |
| 22 | 213260-7 | Makita 213260-7 OIL SEAL 17 |
| 23 | 221669-9 | Makita 221669-9 HALICAL GEAR HM0810 |
| 24 | 157628-6 | Makita 157628-6 GEAR HOUSING |
| 25 | 212102-2 | Makita 212102-2 NEEDLE BEARING 1210, 5900B |
| 26 | 321210-9 | Makita 321210-9 HANDLE SHAFT |
| 27 | 253955-0 | Makita 253955-0 FLAT WASHER 24 |
| 28 | 321495-7 | Makita 321495-7 IMPACT BOLT |
| 29 | 213428-5 | Makita 213428-5 X RING 28 |
| 30 | 213411-2 | Makita 213411-2 O RING 27 |
| 31 | 213508-7 | Makita 213508-7 O RING 38 FOR HM0810 |
| 32 | 125070-9 | Makita 125070-9 TOOL HOLDER ASS Y |
| 33 | 216004-4 | Makita 216004-4 STEEL BALL 7.9 |
| 34 | 233191-4 | Makita 233191-4 COMPRESSION SPRING 30 |
| 35 | 331518-3 | Makita 331518-3 CHANGE RING |
| 36 | 257206-3 | Makita 257206-3 RING 29 |
| 37 | 962106-1 | Makita 962106-1 RETAINING RING R-28, GD0800C |
| 38 | 331194-3 | Makita 331194-3 SEAL |
| 39 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 40 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 41 | 213102-5 | Makita 213102-5 DUST SEAL 12, 5007NB |
| 42 | 518283-3 | Makita 518283-3 ARMATURE ASS Y 220V |
| 43 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 44 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 45 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 46 | 410509-8 | Makita 410509-8 BAFFLE PLATE |
| 47 | 265345-5 | Makita 265345-5 HEX. BOLT M5X60 TW1000 |
| 48 | 528796-6 | Makita 528796-6 FIELD ASS Y 220V |
| 49 | 858893-7 | Makita 858893-7 NAME PLATE HM0810T |
| 50 | 159634-7 | |
| 51 | 181038-5 | Makita 181038-5 Carbon Brushes CB-105 for HR2010 HR2510 HR3520 HM0810 HK1800 |
| 52 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 53 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 54 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 55 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 56 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 57 | 284059-7 | Makita 284059-7 REAR COVER, HM0821 |
| 58 | 423257-0 | Makita 423257-0 SPONGE 38.5-46 |
| 59 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 60 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 61 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 62 | 273457-0 | Makita 273457-0 GRIP 32 |
| 63 | 341922-8 | Makita 341922-8 GRIP BASE, HM0811 |
| 64 | 321497-3 | Makita 321497-3 CLAMP NUT |
| 65 | 341914-7 | Makita 341914-7 GRIP CLAMP |
| 66 | 922316-2 | |
| 67 | 343753-1 | Makita 343753-1 CUSHION PLATE |
| 68 | 262051-3 | |
| 69 | 651038-4 | Makita 651038-4 SWITCH HPAHR6-3S |
| 70 | 911109-2 | Makita 911109-2 PAN HEAD SCREW M4*8, 3612 |
| 71 | 262052-1 | Makita 262052-1 RUBBER RING 9 HM1200 |
| 72 | 257636-8 | Makita 257636-8 SLEEVE 6 FOR HM0810 |
| 73 | 265914-2 | Makita 265914-2 HEX. SOCKET HEAD BOLT M6X |
| 74 | 182590-6 | Makita 182590-6 HANDLE SET |
| 75 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 76 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 77 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 78 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 79 | 182590-6 | Makita 182590-6 HANDLE SET |
| 80 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
