Makita HM002G

Makita HM002G: exploded parts diagram, 2 sheets, 111 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HM002G: 111 positions on 2 sheets

Sheet 1: Makita HM002G parts diagram

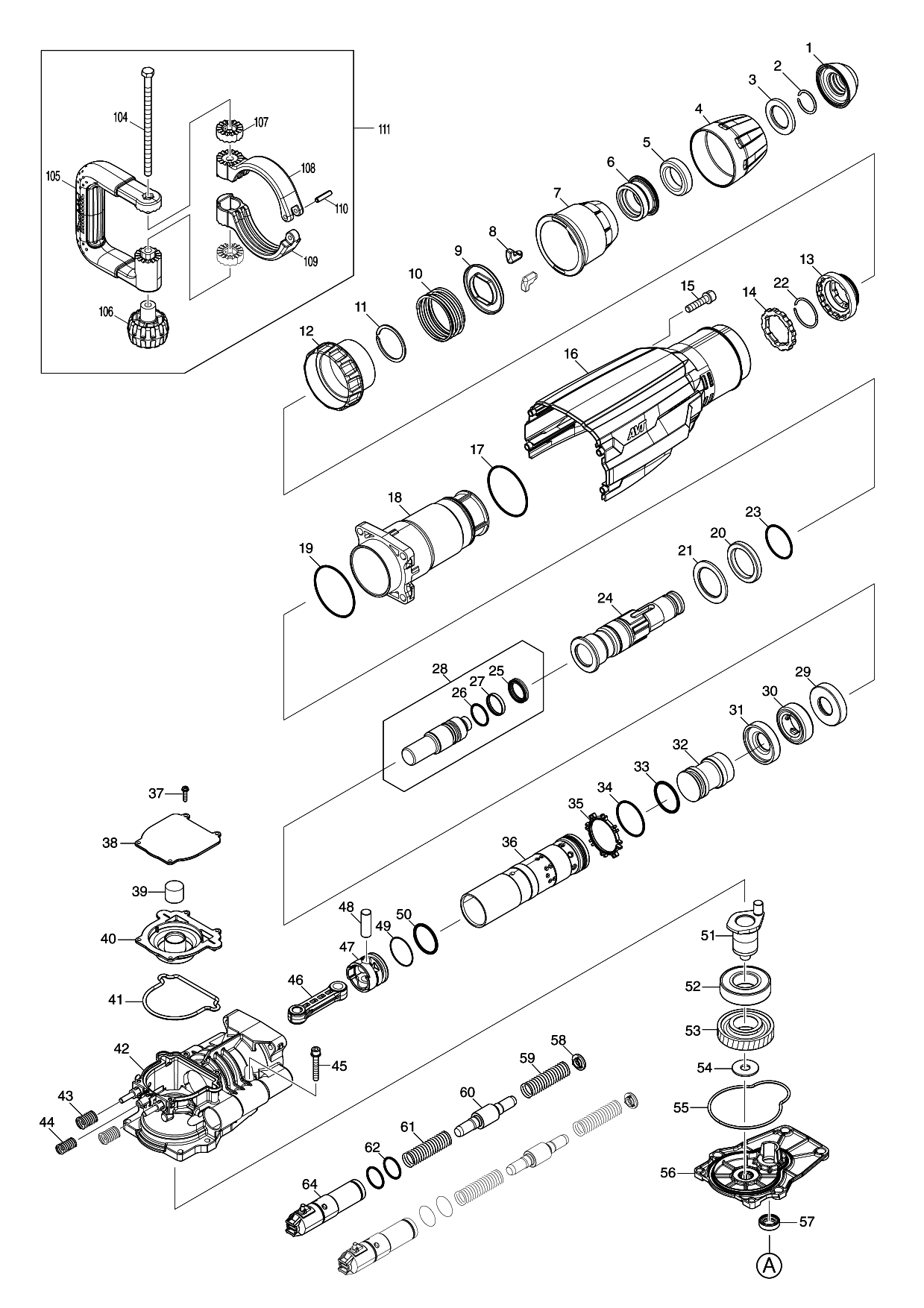

Makita HM002G parts diagram, sheet 1
No.Part numberPart name
1424165-8Makita 424165-8 TOOL HOLDER CAPHM1203C
2233973-4Makita 233973-4 RING SPRING 26HM1203C
3267386-7Makita 267386-7 FLAT WASHER 30HM1203C
4450894-7Makita 450894-7 CHUCK COVERHM1203C
5262147-0Makita 262147-0 RUBBER RING 30HM1213C
6324987-5Makita 324987-5 CHUCK RINGHM1203C
7450895-5Makita 450895-5 RELEASE COVERHM1203C
8310279-8Makita 310279-8 TOOL RETAINERHM1203C
9346015-6Makita 346015-6 SPRING GUIDEHM1203C
10234086-4Makita 234086-4 COMPRESSION SPRING 5HM1203C
11961232-3Makita 961232-3 Retaining Ring WR-45 HM1202C
12450893-9Makita 450893-9 CHANGE RING COVERHM1203C
13324969-7Makita 324969-7 CHANGE RINGHM1203C
14324988-3Makita 324988-3 LOCK RINGHM1203C
15922456-6Makita 922456-6 HEX. SOCKET HEAD BOLT M8X
16413268-3
17213664-3Makita 213664-3 O-RING 60, HR4212C
18140Y02-5
19213720-9Makita 213720-9 O RING 67, GA9050
20262148-8Makita 262148-8 RUBBER RING 39HM1203C
21267387-5Makita 267387-5 FLAT WASHER 39HM1203C
22233970-0Makita 233970-0 RING SPRING 35HM1203C
23213079-4Makita 213079-4 O-RING 35.5HM1203C
24324985-9Makita 324985-9 Tool Holder for HM1203C
25213980-3Makita 213980-3 X-RING 21HR4511C
26213394-6Makita 213394-6 O RING 23 FOR HR5001C
27213431-6Makita 213431-6 FLUORIDE RING 28 FOR HR5001C
29324993-0Makita 324993-0 SHOULDER SLEEVEHM1203C
30262149-6Makita 262149-6 RUBBER RING 24HM1203C
31324993-0Makita 324993-0 SHOULDER SLEEVEHM1203C
32327739-3
33213499-2Makita 213499-2 O-RING 31.5HM1203C
34213581-7Makita 213581-7 O-RING 44HM1203C
35450889-0Makita 450889-0 ONE WAY VALVE GUIDEHM1203C
36327741-6
37911133-5Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438
38413273-0
39443127-7Makita 443127-7 Filter for HM1203C
40413272-2
41422658-9
42140Y06-7
43232662-8
44232664-4
45922363-3
46413277-2
47450961-8Makita 450961-8 PISTONHM1203C
48268121-6Makita 268121-6 PIN 12, JR3050T
49213149-9Makita 213149-9 O RING 35HM1203C
50213499-2Makita 213499-2 O-RING 31.5HM1203C
51327740-8
52210254-3
53226691-1Makita 226691-1 HELICAL GEAR 57HM1203C
54267398-0Makita 267398-0 FLAT WASHER 12HM1203C
55422659-7
56140Y03-3
57213231-4Makita 213231-4 OIL SEAL 15
58413275-6
59232691-1
60324992-2Makita 324992-2 COUNTER WEIGHT, HM1213C
61232691-1
62213953-6Makita 213953-6 O RING 24, HR2430
64140Y04-1
104265439-6Makita 265439-6 HEX. BOLT M8X150 HR4000C HM1200
105417003-1Makita 417003-1 SIDEHANDLE HM1202C
106252640-2Makita 252640-2 WING NUT M8 HR4000C
107417002-3Makita 417002-3 SIDE HANDLE CAM
108318505-9Makita 318505-9 SIDE HANDLE BASE 82AHM1203C
109318506-7Makita 318506-7 SIDE HANDLE BASE 82BHM1203C
110951166-8Makita 951166-8 SPÄNNSTIFT 4-20

Sheet 2: Makita HM002G parts diagram

Makita HM002G parts diagram, sheet 2
No.Part numberPart name
66210253-5
67267397-2Makita 267397-2 FLAT WASHER 15HM1203C
68519651-3
69210059-1Makita 210059-1 Ball Bearing for 6000DDW 9069
70265995-6Makita 265995-6 TAPPING SCREW 4X18, 4100NH
71413271-4
72629A27-3
73620E26-2
74687B69-9
75266490-9Makita 266490-9 TAPPING SCREW 2X6
76632R89-4
77652031-1
78413266-7
79256380-4Makita 256380-4 SHOULDER PIN, DHR400
80412985-2
81232643-2Makita 232643-2 TORSION SPRING 13, HR005G
82140W48-9
83263046-9Makita 263046-9 TAPPING SCREW 3X14, HR005G
84620E28-8
85265995-6Makita 265995-6 TAPPING SCREW 4X18, 4100NH
86620E29-6
87140Y05-9
88266041-8Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB
89183T10-3
90266041-8Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB
91232663-6
92620E27-0
93620E31-9
95632R98-3
96232152-1Makita 232152-1 Leaf Spring for JR181D
97412981-0
98458097-7
99651083-9Makita 651083-9 SWITCH
100232418-9
101183T10-3
102140F99-0
103265995-6Makita 265995-6 TAPPING SCREW 4X18, 4100NH
1128029M5-9
1138029M4-1
114858E35-3
115858E41-8
116688163-8Makita 688163-8 Line Filter for BHS630
