Makita HK1820L
Makita HK1820L: exploded parts diagram, 1 sheet, 115 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HK1820L: 115 positions on 1 sheet

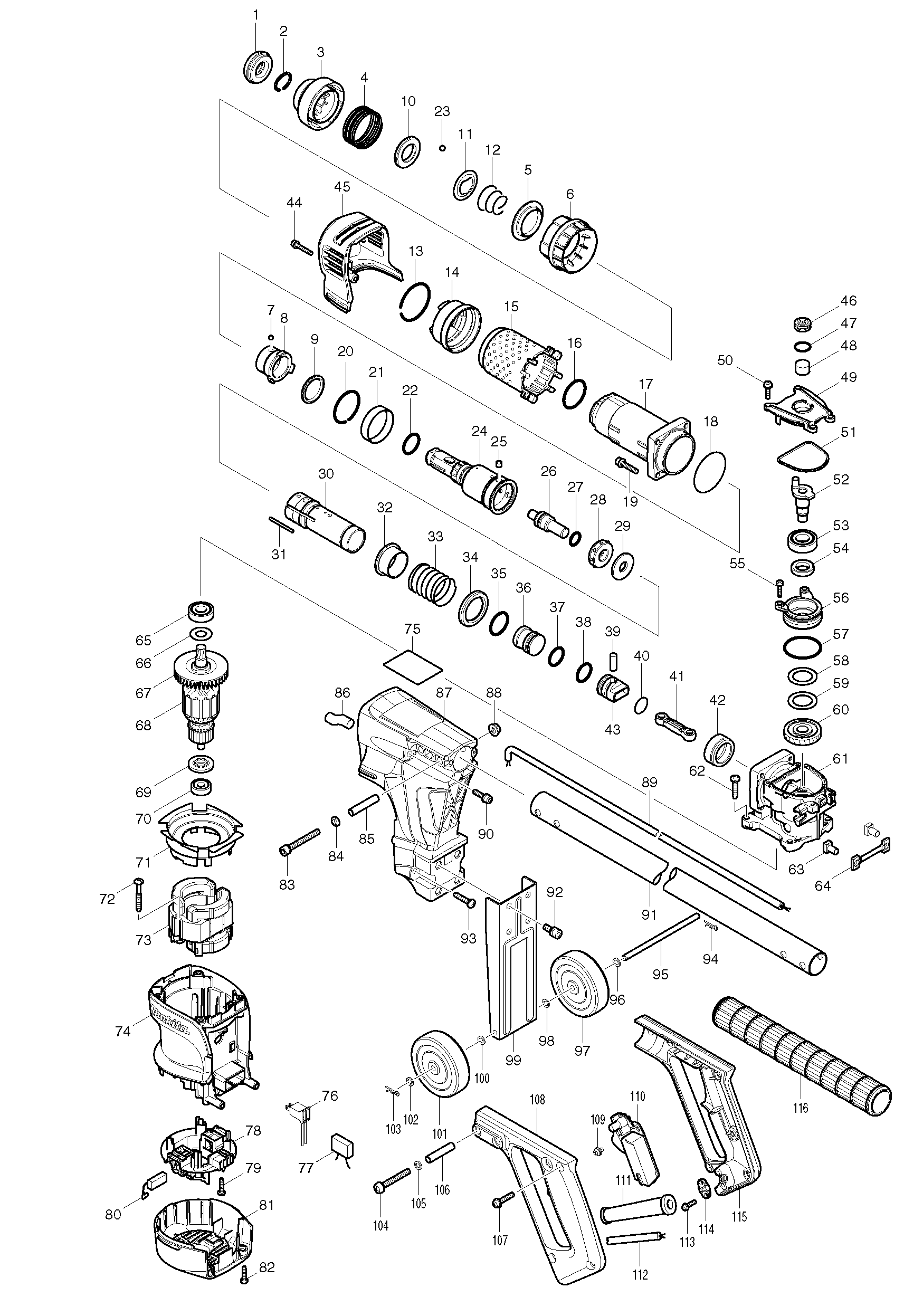

Sheet 1: Makita HK1820L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286283-8 | Makita 286283-8 CAP 38HK1820 |
| 2 | 233966-1 | Makita 233966-1 RING SPRING 19HK1820 |
| 3 | 450275-5 | Makita 450275-5 CHUCK COVERHK1820 |
| 4 | 234039-3 | Makita 234039-3 COMPRESSION SPRING 4HK1820 |
| 5 | 345874-5 | Makita 345874-5 STEEL BALL GUIDEHK1820 |
| 6 | 450274-7 | Makita 450274-7 CHANGE RINGHK1820 |
| 7 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 8 | 331796-5 | Makita 331796-5 RING 25HK1820 |
| 9 | 262142-0 | Makita 262142-0 URETHAN RING 26HK1820 |
| 10 | 257288-5 | Makita 257288-5 RING 21HR3210FCT |
| 11 | 345873-7 | Makita 345873-7 GUIDE WASHERHR3210FCT |
| 12 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 13 | 231985-1 | Makita 231985-1 RING SPRING 43 FOR HR5001C |
| 14 | 450273-9 | Makita 450273-9 BARREL COVER SUPPORTHK1820 |
| 15 | 424066-0 | Makita 424066-0 BARREL COVERHK1820 |
| 16 | 213465-9 | Makita 213465-9 O RING 31HK1820 |
| 17 | 318196-6 | Makita 318196-6 BARREL, HK1820 |
| 18 | 213606-7 | Makita 213606-7 O RING 48 |
| 19 | 922243-3 | Makita 922243-3 HEX. SOCKET HEAD BOLT M5X |
| 20 | 233956-4 | Makita 233956-4 RING SPRING 37HR4511C |
| 21 | 257290-8 | Makita 257290-8 RING 39HK1820 |
| 22 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 23 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 24 | 324837-4 | Makita 324837-4 TOOL HOLDERHK1820 |
| 25 | 256266-2 | Makita 256266-2 PIN 6HR3210FCT |
| 26 | 324844-7 | Makita 324844-7 IMPACT BOLTHK1820 |
| 27 | 213128-7 | Makita 213128-7 O-RING 12 HR2450 |
| 28 | 424065-2 | Makita 424065-2 RUBBER RING 13HK1820 |
| 29 | 267363-9 | Makita 267363-9 FLAT WASHER 12HK1820 |
| 30 | 331804-2 | Makita 331804-2 CYLINDERHK1820 |
| 31 | 256833-3 | Makita 256833-3 ROD 3HK1820 |
| 32 | 331799-9 | Makita 331799-9 RING 29HK1820 |
| 33 | 234041-6 | Makita 234041-6 COMPRESSION SPRING 3HK1820 |
| 34 | 345872-9 | Makita 345872-9 CUP WASHER 29HK1820 |
| 35 | 213435-8 | Makita 213435-8 O RING 26, CS550D |
| 36 | 324847-1 | Makita 324847-1 STRIKERHK1820 |
| 37 | 213283-5 | Makita 213283-5 O-RING 18HR3210FCT |
| 38 | 213283-5 | Makita 213283-5 O-RING 18HR3210FCT |
| 39 | 256087-2 | Makita 256087-2 PIN 7, JR3000V |
| 40 | 213262-3 | Makita 213262-3 O RING 18 |
| 41 | 450278-9 | Makita 450278-9 CONNECTING RODHK1820 |
| 42 | 331797-3 | Makita 331797-3 SLEEVE 29HK1820 |
| 43 | 450298-3 | Makita 450298-3 PISTONHK1820 |
| 44 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 45 | 450277-1 | Makita 450277-1 CRANK HOUSING COVERHK1820 |
| 46 | 419988-7 | Makita 419988-7 Filter Cap for HR2810 |
| 47 | 213218-6 | Makita 213218-6 O-RING 16, HR281FT |
| 48 | 443129-3 | Makita 443129-3 Filter for HR2810 |
| 49 | 450276-3 | Makita 450276-3 CRANK CAPHK1820 |
| 50 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 51 | 424067-8 | Makita 424067-8 SEAL RINGHK1820 |
| 52 | 324845-5 | Makita 324845-5 CRANKSHAFT, HK1820 |
| 53 | 211232-6 | Makita 211232-6 BALL BEARING 6002LLU, HR2810 |
| 54 | 213219-4 | Makita 213219-4 OIL SEAL 15 |
| 55 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 56 | 318202-7 | Makita 318202-7 BEARING BOX, HK1820 |
| 57 | 213513-4 | Makita 213513-4 O RING 39, AN611 |
| 58 | 267126-3 | Makita 267126-3 FLAT WASHER 22, GD0600 |
| 59 | 267126-3 | Makita 267126-3 FLAT WASHER 22, GD0600 |
| 60 | 226675-9 | Makita 226675-9 HELICAL GEAR 36HK1820 |
| 61 | 158523-3 | Makita 158523-3 CRANK HOUSING COMPLEHK1820 |
| 62 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 63 | 331798-1 | Makita 331798-1 FIX GUIDEHK1820 |
| 64 | 424068-6 | Makita 424068-6 CUSHION PLATEHK1820 |
| 65 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 66 | 253748-5 | Makita 253748-5 FLAT WASHER 12 |
| 68 | 513759-5 | Makita 513759-5 ARMATURE ASS'Y 240VHK1820L |
| 69 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 70 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 71 | 450265-8 | Makita 450265-8 BAFFLE PLATEHK1820 |
| 72 | 266211-9 | Makita 266211-9 TAPPING SCREW 5X40 |
| 73 | 625818-4 | Makita 625818-4 FIELD 220-240V 250T, HK1820L |
| 74 | 450263-2 | Makita 450263-2 MOTOR HOUSINGHK1820 |
| 75 | 864991-7 | Makita 864991-7 HK1820L NAMEPLATEHK1820L |
| 76 | 638607-8 | Makita 638607-8 LEAD UNITHK1820L |
| 77 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 78 | 638577-1 | Makita 638577-1 BRUSH HOLDER UNIT, HK1820 |
| 79 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 80 | 194160-9 | Makita 194160-9 CARBON BRUSH CB-350, HR4011 |
| 81 | 450264-0 | Makita 450264-0 REAR COVERHK1820L |
| 82 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 83 | 922371-4 | Makita 922371-4 HEX. SOCKET HEAD BOLT M6X |
| 84 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 85 | 257734-8 | Makita 257734-8 SLEEVE 6HK1820L |
| 86 | 683242-7 | Makita 683242-7 POLYETHYLENE TUBE 10HK1820L |
| 87 | 450467-6 | Makita 450467-6 HANDLE BASEHK1820L |
| 88 | 252115-1 | Makita 252115-1 HEX. SOCKET HEAD BOLHK1820L |
| 89 | 664176-3 | Makita 664176-3 POWER SUPPLY CORD Ä1HK1820L |
| 90 | 266439-9 | Makita 266439-9 HEX SOCKET HEAD BOLTHK1820L |
| 91 | 331839-3 | Makita 331839-3 PIPE 29-900HK1820L |
| 92 | 922323-5 | Makita 922323-5 HEX. SOCKET HEAD BOLT M6X |
| 93 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 94 | 259011-4 | |
| 95 | 321962-2 | Makita 321962-2 ROD |
| 96 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 97 | 421310-6 | Makita 421310-6 CASTER 75 FOR HK1800L |
| 98 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 99 | 345890-7 | Makita 345890-7 SUPPORTERHK1820L |
| 100 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 101 | 421310-6 | Makita 421310-6 CASTER 75 FOR HK1800L |
| 102 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 103 | 259011-4 | |
| 104 | 911366-2 | Makita 911366-2 PAN HEAD SCREW M6X45 |
| 105 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 106 | 257632-6 | Makita 257632-6 SLEEVE 6 |
| 107 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 108 | 181954-1 | Makita 181954-1 HANDLE SET |
| 109 | 911109-2 | Makita 911109-2 PAN HEAD SCREW M4*8, 3612 |
| 110 | 651018-0 | Makita 651018-0 Switch HPAHR2-3S HL1800L 9217SPC 9207SPB |
| 111 | 682505-8 | Makita 682505-8 Cord Guard 10-90 for 5806B |
| 112 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 113 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 114 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 115 | 181954-1 | Makita 181954-1 HANDLE SET |
| 116 | 424091-1 | Makita 424091-1 GRIP COVER 28 HK1820L |
