Makita HK1800: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HK1800: 74 positions on 1 sheet

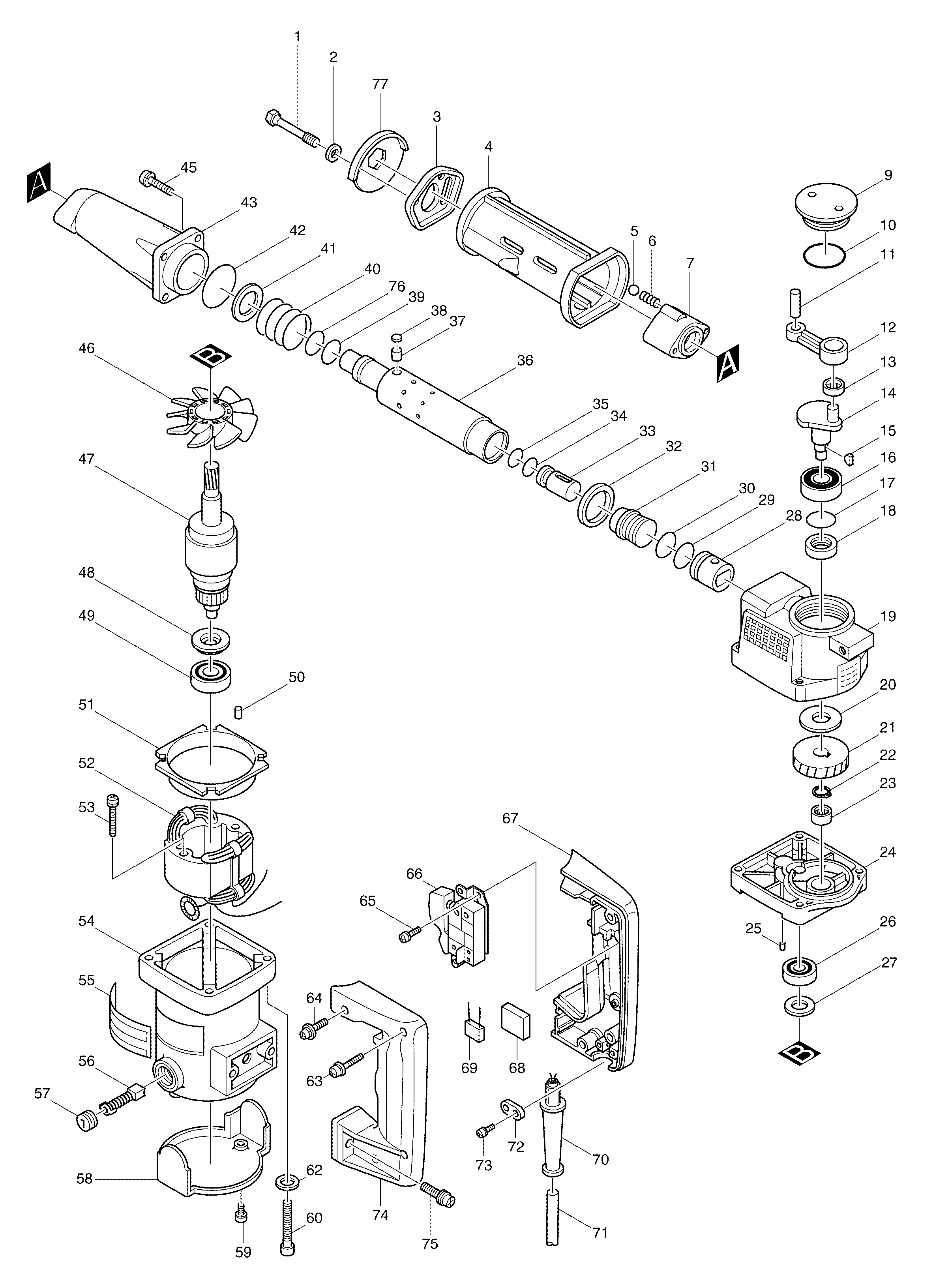

Sheet 1: Makita HK1800 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265393-4 | Makita 265393-4 HEX. BOLT M6X49 |
| 2 | 267017-8 | Makita 267017-8 FLAT WASHER 8, 6827 |
| 3 | 342910-8 | Makita 342910-8 TOOL RETAINER |
| 4 | 414175-3 | Makita 414175-3 BARREL COVER |
| 5 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 6 | 231403-9 | Makita 231403-9 COMPRESSION SPRING 3 |
| 7 | 321859-5 | Makita 321859-5 TOOL HOLDER |
| 9 | 410734-1 | Makita 410734-1 CRANK CAP |
| 10 | 213554-0 | Makita 213554-0 O RING 44 |
| 11 | 256099-5 | Makita 256099-5 PIN 6, HR2412 |
| 12 | 315146-2 | Makita 315146-2 ROD |
| 13 | 212025-4 | Makita 212025-4 NEEDLE BEARING 810 |
| 14 | 321855-3 | Makita 321855-3 CRANKSHAFT, HK1800 |
| 15 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 16 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 17 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 18 | 213219-4 | Makita 213219-4 OIL SEAL 15 |
| 19 | 159532-5 | Makita 159532-5 CRANK HOUSING |
| 20 | 253887-1 | Makita 253887-1 FLAT WASHER 15 |
| 21 | 221745-9 | Makita 221745-9 HELICAL GEAR 36 |
| 22 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 23 | 212052-1 | Makita 212052-1 NEEDLE BEARING 1010, 5007NB |
| 24 | 157782-6 | |
| 25 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 26 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 27 | 253748-5 | Makita 253748-5 FLAT WASHER 12 |
| 28 | 321685-2 | Makita 321685-2 PISTON |
| 29 | 213308-5 | Makita 213308-5 O RING 19 |
| 30 | 213308-5 | Makita 213308-5 O RING 19 |
| 31 | 321854-5 | |
| 32 | 257117-2 | Makita 257117-2 RING 28 |
| 33 | 321856-1 | Makita 321856-1 IMPACT BOLT |
| 34 | 213111-4 | Makita 213111-4 O RING 12 |
| 35 | 213111-4 | Makita 213111-4 O RING 12 |
| 36 | 321857-9 | Makita 321857-9 CYLINDER LINER 24 |
| 37 | 256156-9 | |
| 38 | 423122-3 | Makita 423122-3 CUSHION PLATE FOR HK1800 |
| 39 | 213309-3 | Makita 213309-3 O RING 19 |
| 40 | 231395-2 | Makita 231395-2 COMPRESSION SPRING 24 |
| 41 | 267026-7 | Makita 267026-7 FLAT WASHER 25 |
| 42 | 213512-6 | Makita 213512-6 O-Ring 39 for SS610D |
| 43 | 315838-3 | Makita 315838-3 BARREL |
| 45 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 46 | 241820-5 | Makita 241820-5 FAN 67 |
| 47 | 512853-0 | Makita 512853-0 Armature Ass'y 220V |
| 48 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 49 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 50 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 51 | 410578-9 | Makita 410578-9 BAFFLE PLATE |
| 52 | 528788-5 | Makita 528788-5 FIELD ASS'Y 220V |
| 53 | 911265-8 | Makita 911265-8 PAN HEAD SCREW M5X40 |
| 54 | 157553-1 | |
| 55 | 855426-9 | Makita 855426-9 NAME PLATE HK1800 |
| 56 | 181038-5 | Makita 181038-5 Carbon Brushes CB-105 for HR2010 HR2510 HR3520 HM0810 HK1800 |
| 57 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 58 | 343390-1 | Makita 343390-1 REAR COVER |
| 59 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 60 | 265923-1 | Makita 265923-1 HEX. SOCKET HEAD BOLT M6X |
| 62 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 63 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 64 | 911328-0 | |
| 65 | 911109-2 | Makita 911109-2 PAN HEAD SCREW M4*8, 3612 |
| 66 | 651026-1 | Makita 651026-1 SWITCH HPAH6-3S |
| 67 | 181411-9 | Makita 181411-9 HANDLE SET |
| 68 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
| 69 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 70 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 71 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 72 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 73 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 74 | 181411-9 | Makita 181411-9 HANDLE SET |
| 75 | 911343-4 | Makita 911343-4 PAN HEAD SCREW M6X25 |
| 76 | 213309-3 | Makita 213309-3 O RING 19 |
| 77 | 421336-8 | Makita 421336-8 DUST COVER FOR HK1800 |
