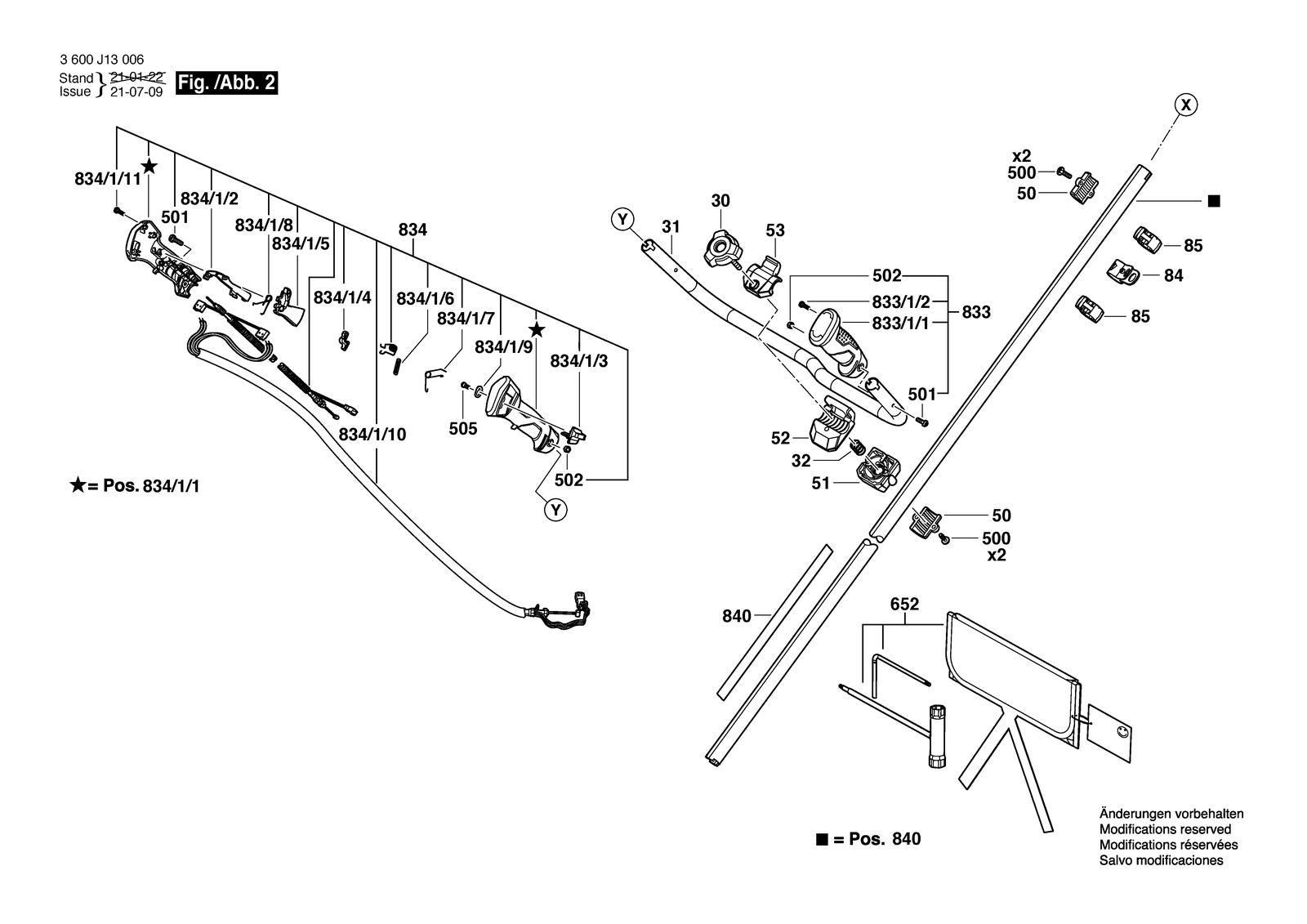

Bosch HHT 36AXB EUE electric brushcutter: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HHT 36AXB EUE: 31 positions on 1 sheet
Bosch HHT 36AXB EUE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 30 | F016L76232 | Handwheel |
| 31 | F016L76303 | Handle Bar |
| 32 | F016L76284 | Spring |
| 37 | F016L81952 | Safety Guard |
| 50 | F016L76337 | Clamping Piece |
| 500 | F016L76058 | Screw M5X20 |
| 501 | F016L76403 | Bolt |
| 502 | F016L76408 | Nut |
| 505 | F016L76373 | Screw M4 X14 |
| 51 | F016L76336 | Fastening Part |
| 52 | F016L76338 | Clamping Block |
| 53 | F016L76339 | Clamping Piece |
| 652 | F016L77555 | Set Of Tools |
| 833 | F016104568 | Handle |
| 833/1/1 | F016L76233 | Handle |
| 833/1/2 | F016L76187 | Screw M5X20 Plastic |
| 834 | F016L77747 | Handle |
| 834/1/1 | F016L77543 | Handle |
| 834/1/10 | F016L76315 | Control Cable |
| 834/1/11 | F016L76373 | Screw M4 X14 |
| 834/1/2 | F016L81946 | Interlock Gray |
| 834/1/3 | F016L81947 | Interlock Gray |
| 834/1/4 | F016L81948 | Interlock Gray |
| 834/1/5 | F016L81949 | Trigger Gray |
| 834/1/6 | F016L76285 | Spring |
| 834/1/7 | F016L76286 | Torsion Spring |
| 834/1/8 | F016L76287 | Spring |
| 834/1/9 | F016L76321 | Slide Plate |
| 84 | F016L76435 | Clip |
| 840 | F016104564 | Main tube |
| 85 | F016L76312 | Cable Holder |
