Bosch HHH 36AXB E60R hedge trimmer: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HHH 36AXB E60R: 16 positions on 1 sheet

Bosch HHH 36AXB E60R parts list (1 sheet)

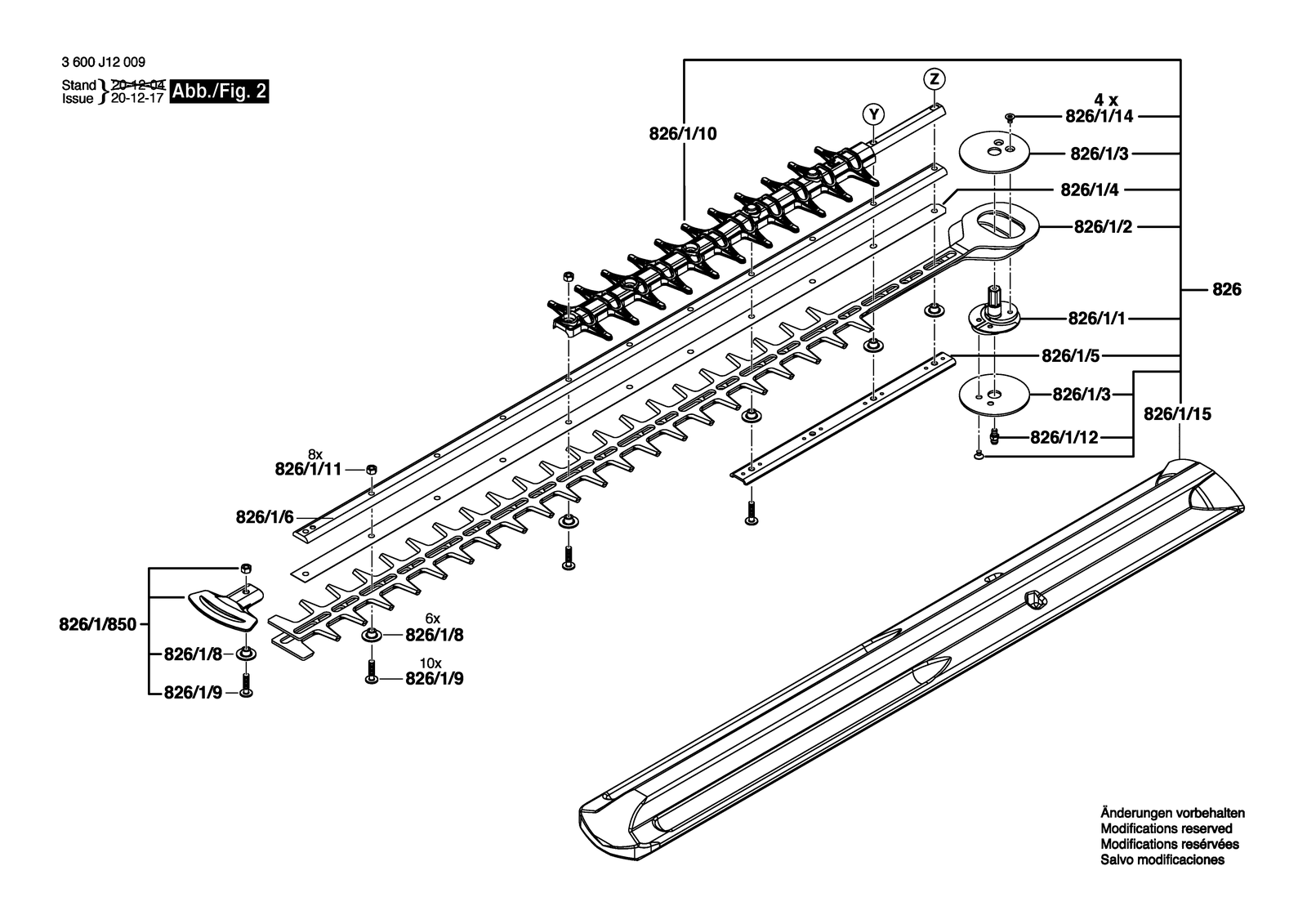

Bosch HHH 36AXB E60R parts diagram, sheet 2
No.Part numberPart name
8F016L76058Screw M5X20
826F016105043Knife Pro R 60 CM
826/1/1F016L76591Eccentric
826/1/10F016L76736Knife Guard
826/1/11F016L76408Nut
826/1/12F016L76596Lubricating Nipple
826/1/14F016L77361Countersunk-Head Screw
826/1/15F016L77610Knife Guard 60 R
826/1/2F016L76724Knife
826/1/3F016L76884Shim
826/1/4F016L76726Shim
826/1/5F016L76570Guide
826/1/6F016L76725Guide
826/1/8F016L76572Spacer Bushing
826/1/850F016104938Protector
826/1/91613414026Torx socket button screw
