Bosch HGS 85/40

Bosch HGS 85/40 straight grinders: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HGS 85/40: 49 positions on 1 sheet

Bosch HGS 85/40 parts list (1 sheet)

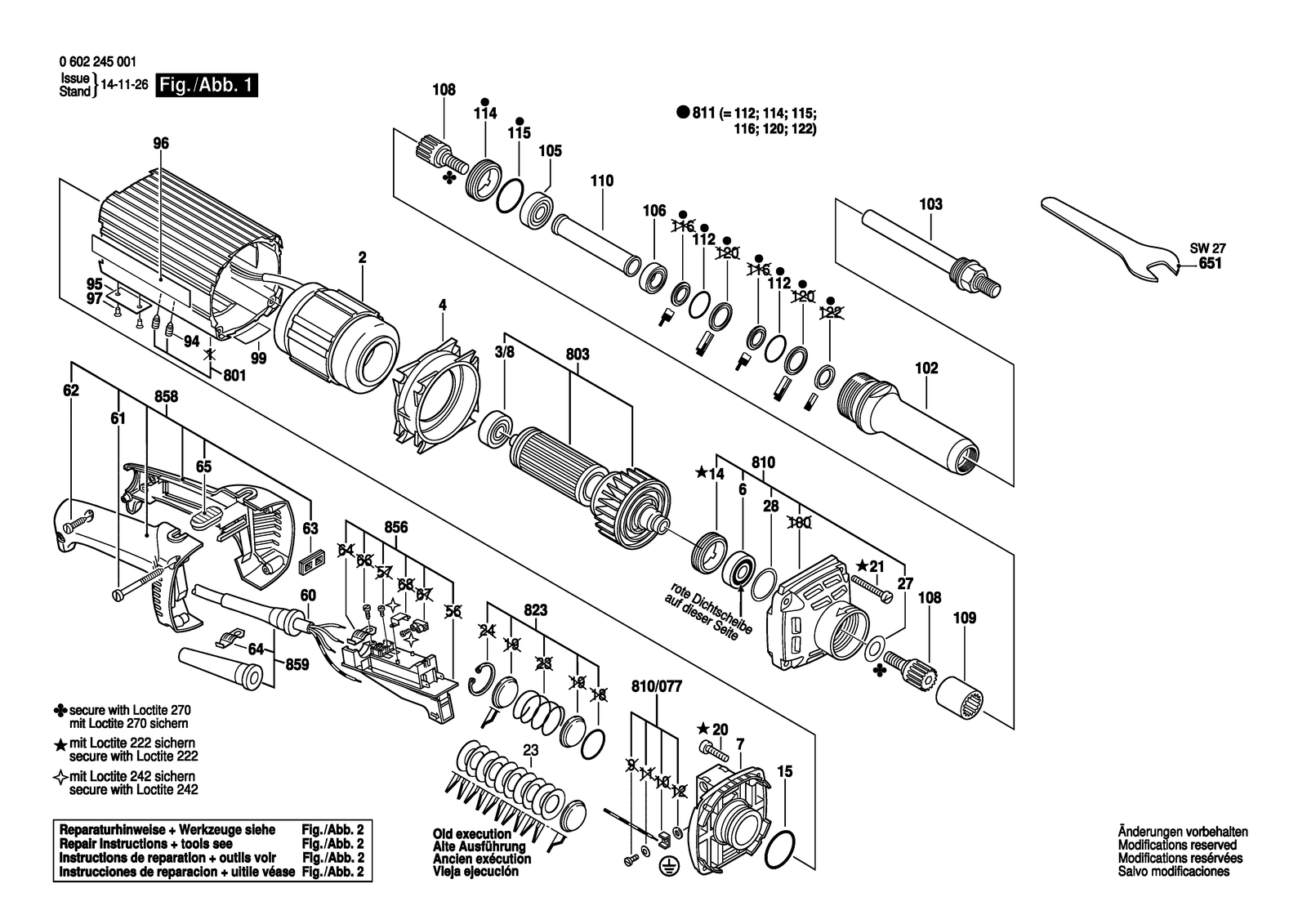

Bosch HGS 85/40 parts diagram, sheet 1
No.Part numberPart name
1023605806079Spindle Housing
1033606120007Grinding Spindle
1053600905060Groove ball bearing
1063600905067Groove ball bearing 15X28X7MM
1083606300074Pinion Z=21
1093606491000Clutch Element Z=21
1103600700057Spacer Sleeve
1123600210056O-Ring 26,0X1,0 MM
1143603344024Threaded Ring
1153600210050O-Ring 33,0X2,5 MM
143603344024Threaded Ring
151600210037O-Ring 38,1X2,2 MM
23604229081Stator 265V/200HZ
23604229082Stator 135V/200HZ
23604229083Stator 72V/200HZ
23604229086Stator 72V/300HZ
202914451079Thread-forming tap. Screw
212914451080Thread-forming tap. Screw
273600100049Sealing Disc
283600100048Sealing Disc
3/83600905119Groove ball bearing 12X32X10
43600209008Air-Deflector Ring
63600905095Groove ball bearing
603604462017Elec. Cable W/Connection
603604462018Elec. Cable W/Connection
611603435024Tapping Screw C4,8X63 MM
622910211020Tapping Screw DIN 7971-BZ3,9X19
631602388027Cable routing
643601303002Fastening Clamp
643601303004Fastening Clamp
651602388029Storage Ledge Black
6513607950004Single-Head Eng. Wrench SW27
73605805009Bearing Flange
8013605108159Motor Housing GR.85
8033604080038Rotor
8103607020109Bearing Flange
810/0773607031299Set Of Eartling Material
8113607031287Fastening parts kit
8233607031296Spring set
8563607031294Switch Kit
8563607031295Switch Kit
8563607031298Switch Kit
8583607031297Handle
8593607031550Grommet
942912081116Set screw DIN 915-M4X6-45H
953601106053Nameplate
963601110047Manufacturer's nameplate
973603133001Grooved Nail DIN 1476-2X5 MM
993601119236Reference Plate
