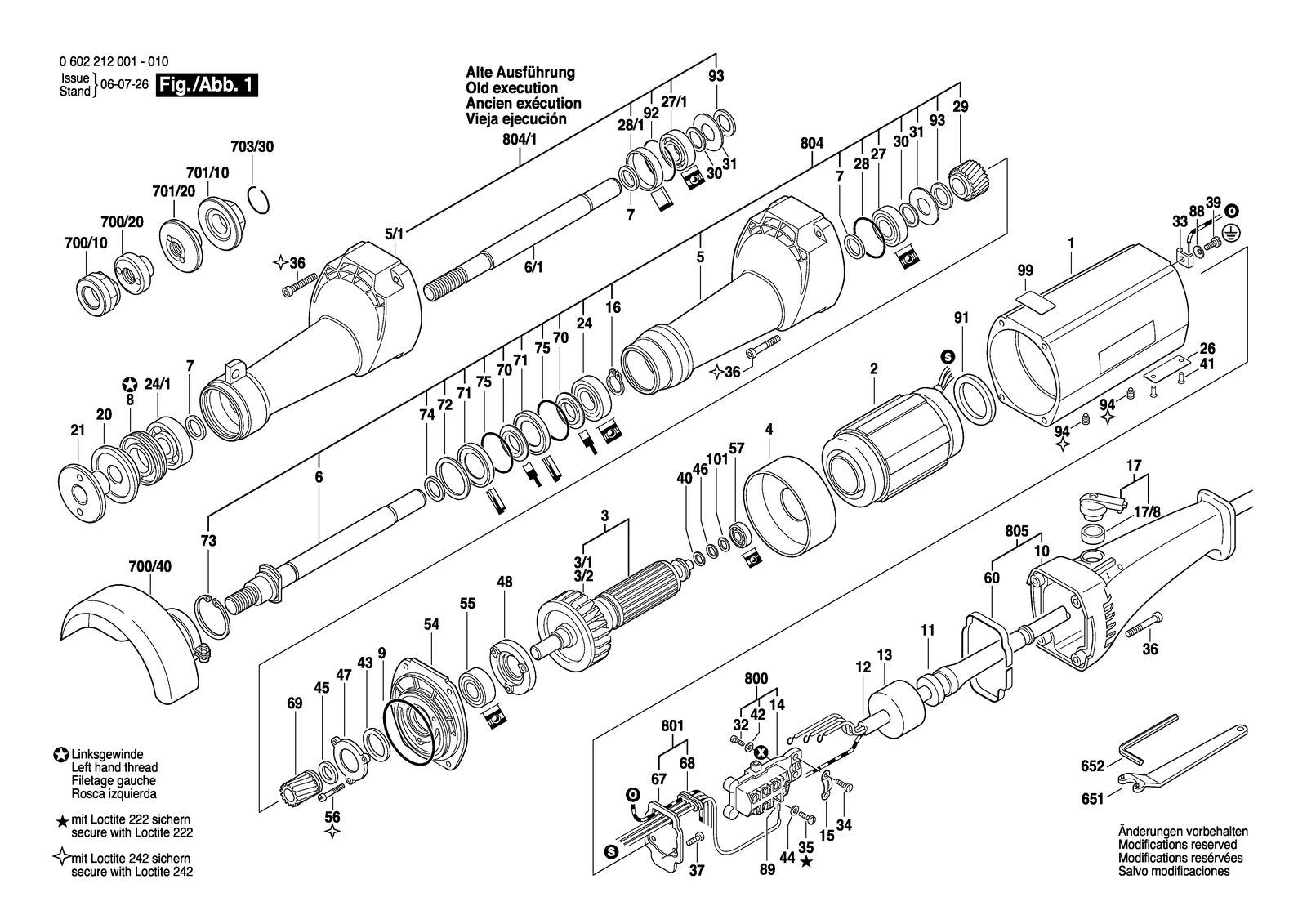

Bosch HGS 77/100 straight grinders: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HGS 77/100: 84 positions on 1 sheet
Bosch HGS 77/100 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102081 | Motor Housing |
| 10 | 3605132024 | Handle Blue |
| 101 | 1600100601 | Shim Thick 0,05 MM |
| 11 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3607030236 | Elec. Cable W/Connection |
| 13 | 1600113003 | Sealing Plate |
| 14 | 1607200020 | Switch |
| 15 | 1601303003 | Fastening Clamp |
| 16 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 17 | 1602026030 | Control Lever |
| 17/8 | 1600205008 | Felt Washer |
| 2 | 1604229098 | Stator 265V/200HZ,230V/180HZ |
| 2 | 1604229099 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229100 | Stator 72V/200HZ |
| 2 | 1604229105 | Stator 220V/360HZ |
| 20 | 1605703005 | Clamping-Flange Ø 100 MM |
| 21 | 1603345009 | Round Nut |
| 24 | 3600905058 | Groove ball bearing |
| 24/1 | 1900900351 | Groove ball bearing 15X42X13 |
| 26 | 3601106053 | Nameplate |
| 27 | 3600905060 | Groove ball bearing |
| 27/1 | 1900905162 | Groove ball bearing 15X32X9 |
| 28 | 2600210026 | O-Ring 35,0X2,0 MM |
| 29 | 1606319007 | Cylindrical Gear Z=28 |
| 3 | 1604080032 | Rotor Without Winding |
| 30 | 1600101600 | Shim washer Thick 0,4 MM |
| 31 | 1600101016 | Cover Disc |
| 32 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 33 | 3601321001 | Clamping Saddle |
| 34 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 35 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 36 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 37 | 3603450008 | Socket head cap screw |
| 39 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 4 | 1600209002 | Air-Deflector Ring |
| 40 | 1600100632 | Shim Thick 0,2 MM |
| 41 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 43 | 1600108018 | Felt Disc |
| 44 | 1600150006 | Spring Washer DIN 137-A4 |
| 45 | 1600101625 | Shim |
| 46 | 1420100023 | Shim Thick 0,10 MM |
| 47 | 1600501024 | Cover Disc |
| 48 | 1600501019 | Bearing cover |
| 5 | 3605806140 | Spindle Bearing |
| 54 | 3605820002 | Bearing Flange |
| 55 | 1900905234 | Groove ball bearing 15X35X11 |
| 56 | 3603435051 | Torx Flat-Head Screw M4X20 |
| 57 | 1900905018 | Ball Bearing 7X22X7 |
| 6 | 3603050013 | Grinding Spindle |
| 6/1 | 1603050012 | Grinding Spindle |
| 60 | 1601014000 | Sealing Cord |
| 651 | 1607950061 | Pin-Type Face-Wrench |
| 652 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 67 | 1602388006 | Sealing Plate |
| 68 | 1600306001 | Grommet |
| 69 | 1606302001 | Cylindrical Gear Z=21 |
| 7 | 1600200009 | Intermediate Ring |
| 70 | 3600222004 | Protective Ring |
| 700/10 | 3605703089 | Clamping-Flange |
| 700/20 | 3605703074 | Clamping Ring |
| 700/40 | 3605510032 | Protective Cover Ø100 MM |
| 701/10 | 3605703070 | Clamping-Flange |
| 701/20 | 3605703066 | Clamping Ring |
| 703/30 | 2916609112 | Retaining ring 24X2 DIN9045-24 |
| 71 | 3600200057 | Spacer Ring |
| 72 | 3600150019 | Shim |
| 73 | 2916669114 | Spring retaining ring DIN472-35X1,5 |
| 74 | 3600202015 | Spacer Ring |
| 75 | 3600210057 | O-Ring 32,0X1,5 MM |
| 8 | 1603344002 | Threaded Ring |
| 800 | 1607000036 | Switch Kit |
| 801 | 1602388007 | Sealing Plate |
| 804 | 3607031221 | Assembly Of Service Parts |
| 804/1 | 1605806373 | Gear Housing |
| 805 | 3605132048 | Handle Dark Blue |
| 88 | 3600150006 | Spring Washer Ø4,2 MM |
| 89 | 3604477008 | End Splice |
| 9 | 1600210004 | O-Ring 54,0X3,0 MM |
| 91 | 1600209004 | Seal Ring |
| 92 | 2916600018 | Retaining ring 35 DIN 9045 |
| 93 | 1600101002 | Plain Washer |
| 94 | 1603402002 | Set screw |
| 99 | 3601119236 | Reference Plate |
