Bosch HGS 65/50

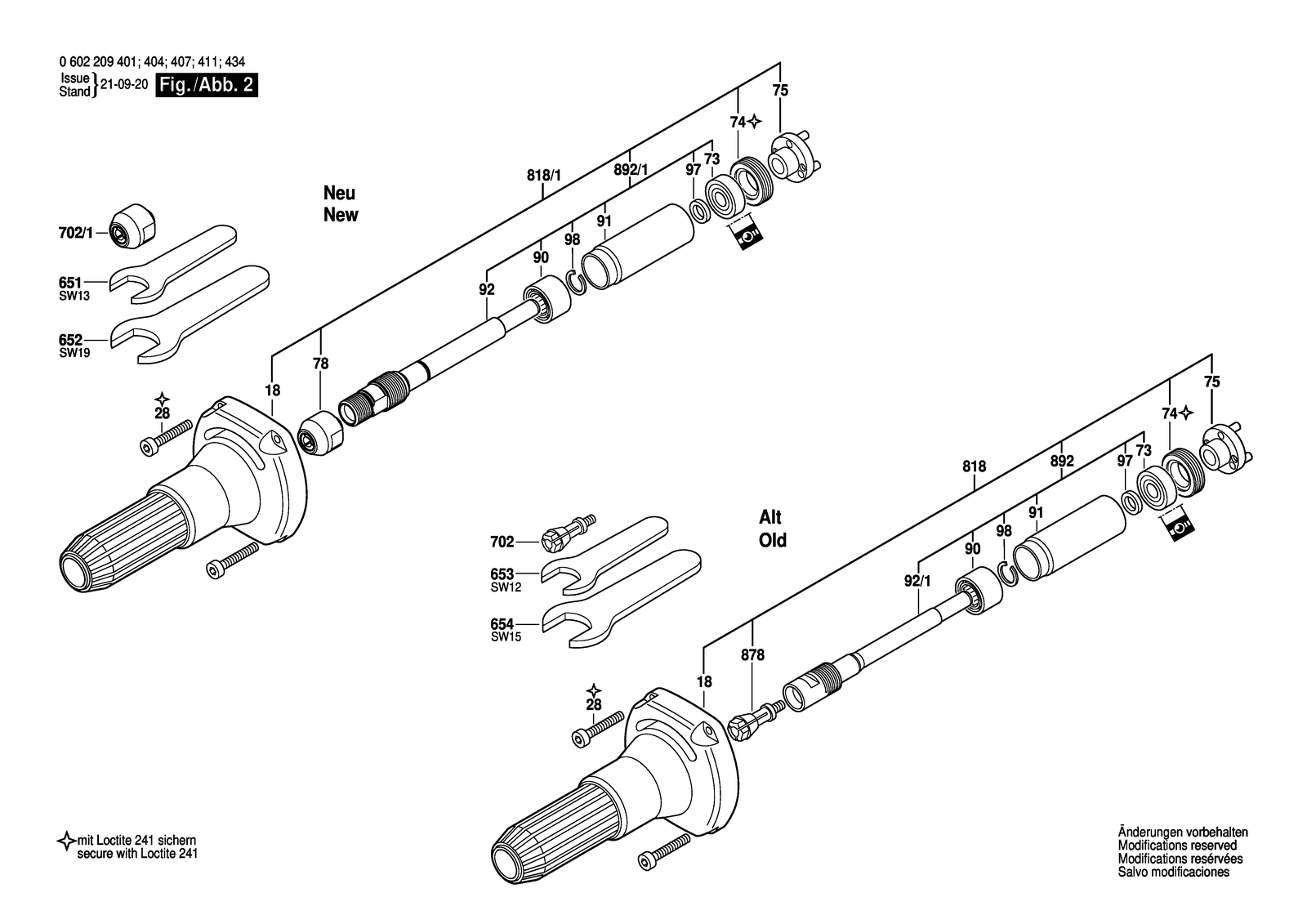

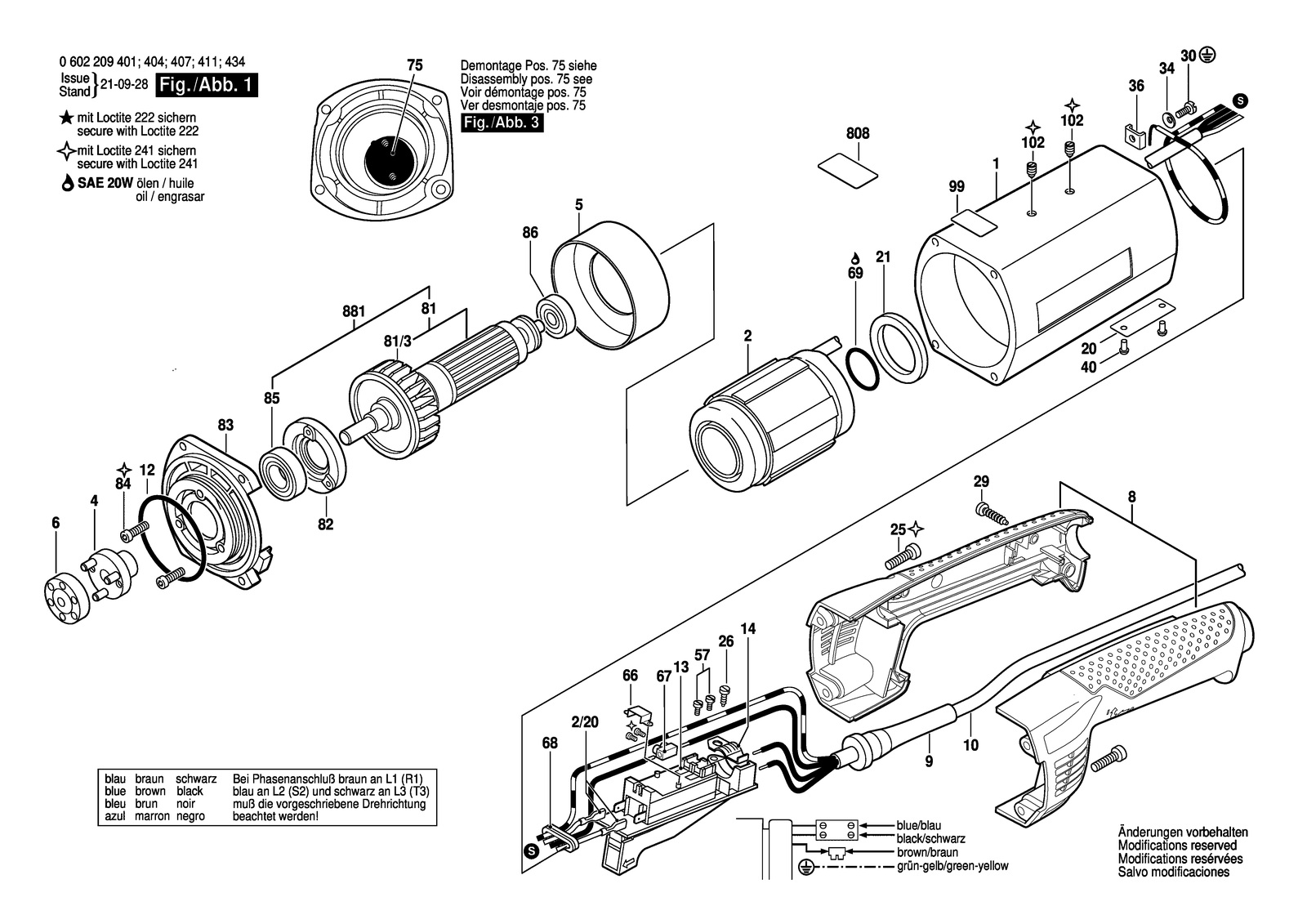

Bosch HGS 65/50 straight grinders: exploded parts diagram, 2 sheets, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HGS 65/50: 67 positions on 2 sheets
Bosch HGS 65/50 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102077 | Motor Housing |
| 10 | 3604462017 | Elec. Cable W/Connection |
| 102 | 1603402002 | Set screw |
| 12 | 1900210146 | O-Ring 45X3MM |
| 13 | 3607200055 | Switch |
| 14 | 3601303004 | Fastening Clamp |
| 18 | 3605806109 | Spindle Housing |
| 2 | 3604229125 | Stator |
| 2 | 3604229126 | Stator |
| 2 | 3604229127 | Stator |
| 2 | 3604229128 | Stator |
| 2/20 | 3604478004 | Receptacle |
| 20 | 3601106053 | Nameplate |
| 21 | 1600209006 | Seal Ring |
| 25 | 2910141160 | Hex Socket Head Cap Screw DIN 912-M5X18-8.8 |
| 26 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 28 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 29 | 2603490022 | Screw 4X16 |
| 30 | 2914461403 | Thread-forming tap. Screw |
| 34 | 3600150006 | Spring Washer Ø4,2 MM |
| 36 | 3601321001 | Clamping Saddle |
| 4 | 1600320028 | Carrier |
| 40 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 5 | 1600209003 | Air-Deflector Ring |
| 57 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 6 | 1606442000 | Carrier |
| 651 | 3607950025 | Single-Head Eng. Wrench SW13 |
| 652 | 3607950024 | Single-Head Eng. Wrench SW19 |
| 653 | 1907950506 | Single-Head Eng. Wrench DIN 894 SW 12 |
| 654 | 1907950509 | Single-Head Eng. Wrench DIN 894 SW 15 |
| 66 | 3601303003 | Retaining Bracket |
| 67 | 1901091110 | Strip Terminal |
| 68 | 3600054005 | Sealing Plate |
| 69 | 3600210016 | O-Ring 22,0X1,5 MM |
| 702 | 1608570058 | Collet Ø 1/4" (6,35 Mm) |
| 702/1 | 3607030482 | Clamping Unit |
| 73 | 3600905063 | Groove ball bearing |
| 74 | 3603344059 | Threaded Ring |
| 75 | 1600320028 | Carrier |
| 78 | 3607030513 | Clamping Unit |
| 8 | 3605132078 | Handle |
| 808 | 160111A65G | Nameplate |
| 808 | 160111A65H | Nameplate |
| 808 | 160111A65K | Nameplate |
| 808 | 160111A65L | Nameplate |
| 808 | 160111A65M | Nameplate |
| 81 | 3604080054 | Rotor Without Winding |
| 81/3 | 3606610010 | Fan |
| 818 | 1605806202 | Spindle Bearing |
| 818/1 | 1607000E2T | Spindle Bearing |
| 82 | 1600501025 | Conical Spring Washer |
| 83 | 3605820065 | Bearing Flange |
| 84 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 85 | 1900905121 | Groove ball bearing 12X28X8 |
| 86 | 1610900025 | Groove ball bearing 7X22X7 |
| 878 | 2608570118 | Collet |
| 881 | 3604080055 | Rotor Without Winding |
| 892 | 3603123017 | Grinding Spindle |
| 892/1 | 1607000E2V | Grinding Spindle |
| 9 | 3600703003 | Grommet Ø12,8XØ13,5X100 MM |
| 90 | 1600910002 | Needle-Roller Bearing |
| 91 | 3600320015 | Guide Sleeve |
| 92 | 160312307M | Grinding Spindle |
| 92/1 | 1603123011 | Grinding Spindle |
| 97 | 1600202016 | Spacer Ring |
| 98 | 1600224025 | Retaining ring |
| 99 | 3601119236 | Reference Plate |
